Digital Signage Player
ISR500
MediaTek Genio 700 (MT8390) or MediaTek Genio 510 (MT8370) Processor Ruggedized Fanless Signage Player with 2x HDMI
- MediaTek Genio 700 (MT8390) 2.2GHz or MediaTek Genio 510 (MT8370) 2.0GHz processor
- 1x HDMI (4K60) + 1x HDMI (FHD60)
- LPDDR4 4000MT/s on-board 4GB
- Embedded I/O for COM, USB, HDMI, Ethernet
- Supports M.2 E-Key (2230) for WiFi6 2T2R + BT 5.2 connectivity
- Ruggedized and Fanless Design
| System Mainboard | IBR500 SBC |
| CPU | MediaTek Genio 700 (MT8390) : 2x A78 2.2GHz L2 256KB, 6x A55 2.0GHz L2 128KB, shared 2MB L3 cache MediaTek Genio 510 (MT8370) : 2x A78 2.0GHz L2 256KB, 4x A55 2.0GHz L2 128KB, shared 2MB L3 cache |
| Chipset | Integrated |
| Memory | 4GB LPDDR4 on board |
| Graphics | ARM Mali-G57 MC3, OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1 ARM Mali-G57 MC2, Vulkan 1.1, OpenGL ES 3.2, and OpenCLTM 2.2 |
| LAN | 1x RJ45 GbE LAN |
| Expansion Slots | 1x M.2 E-Key (2230) w/ SDIO, UART (for Wireless) |

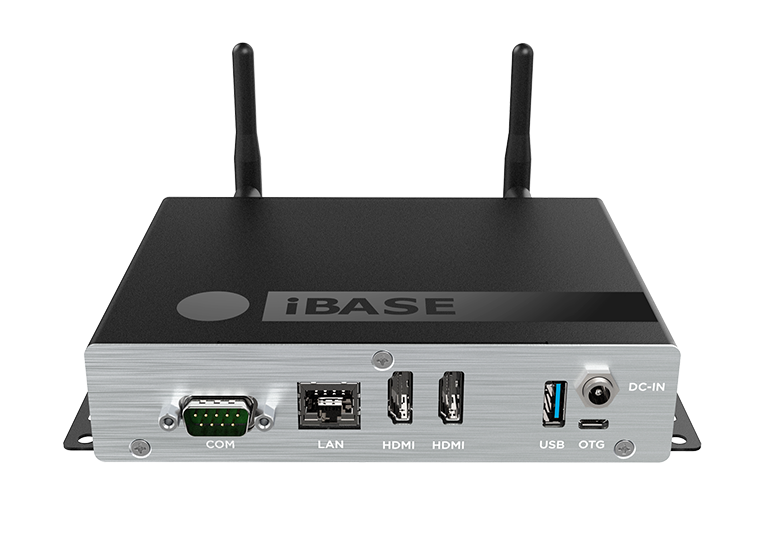

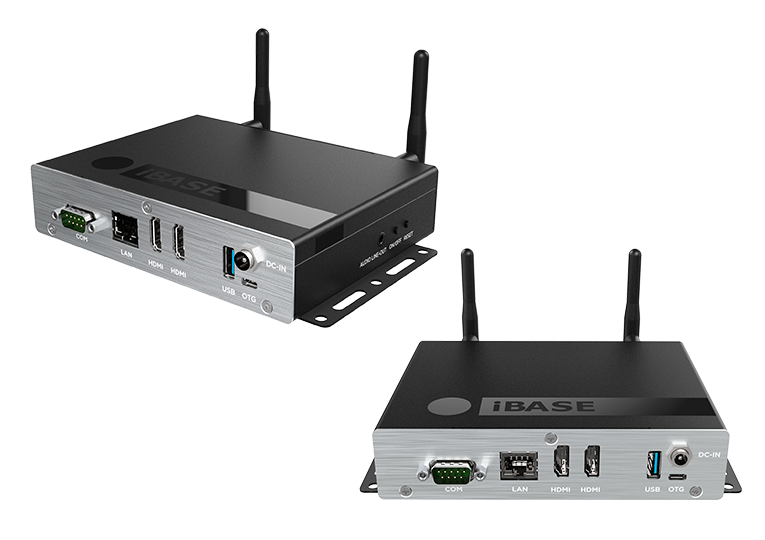

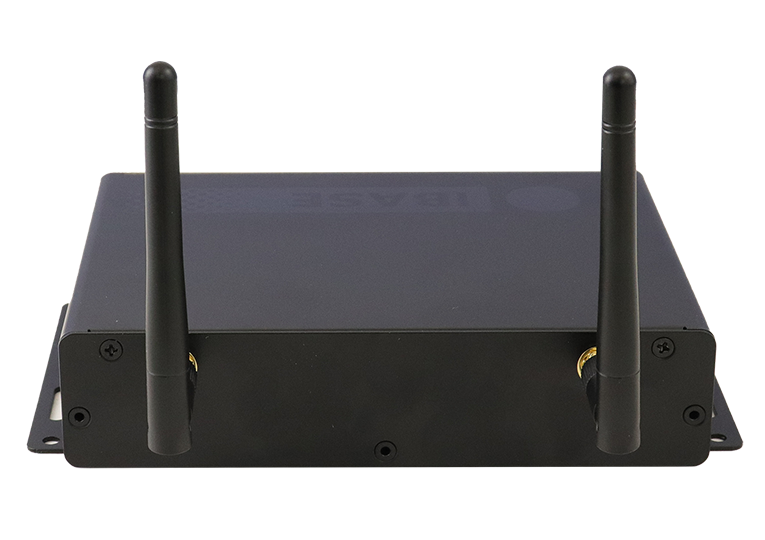

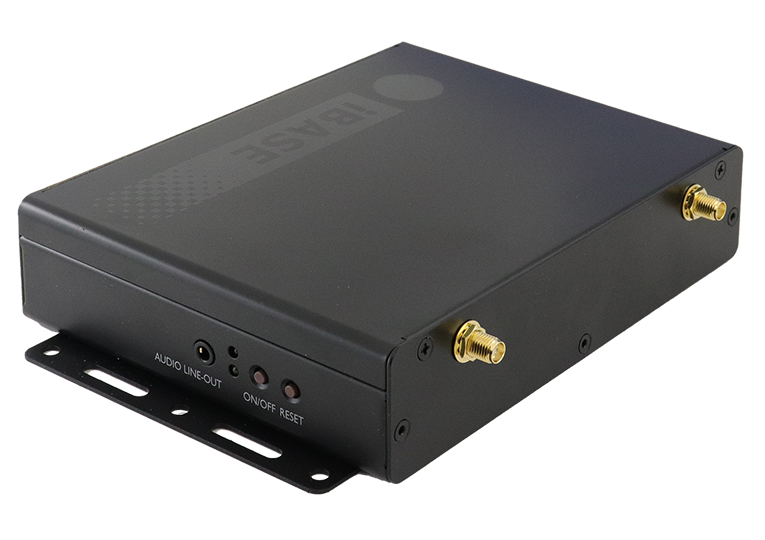

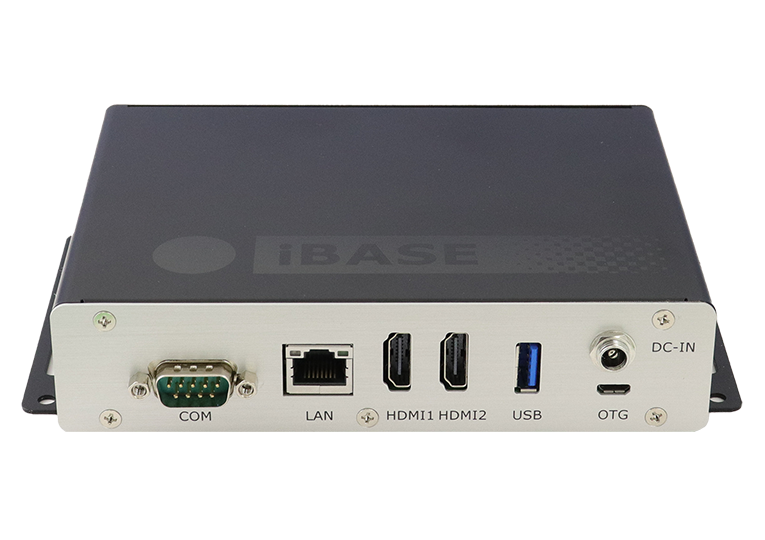

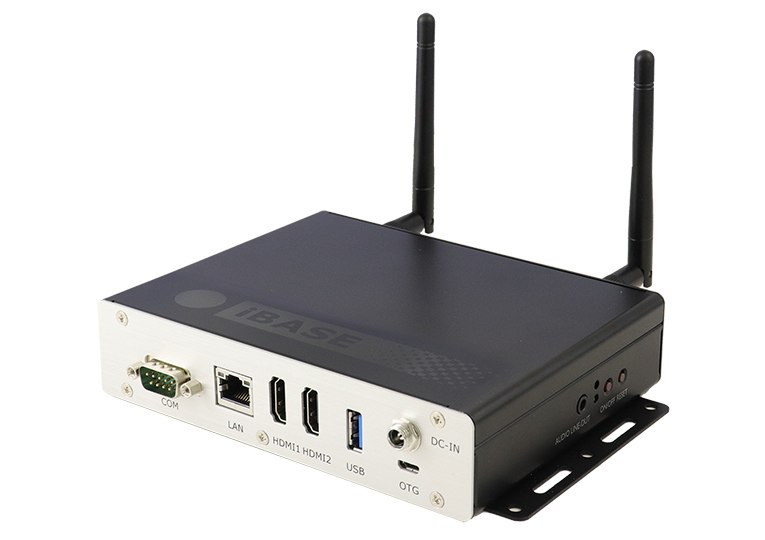

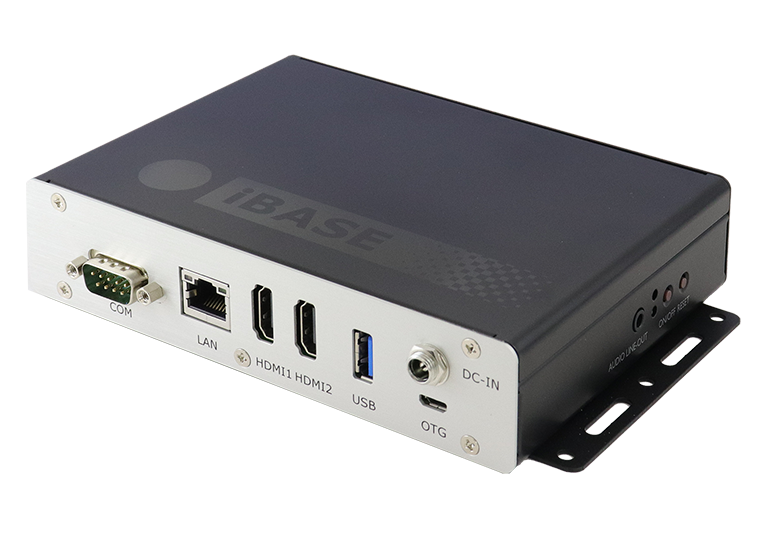

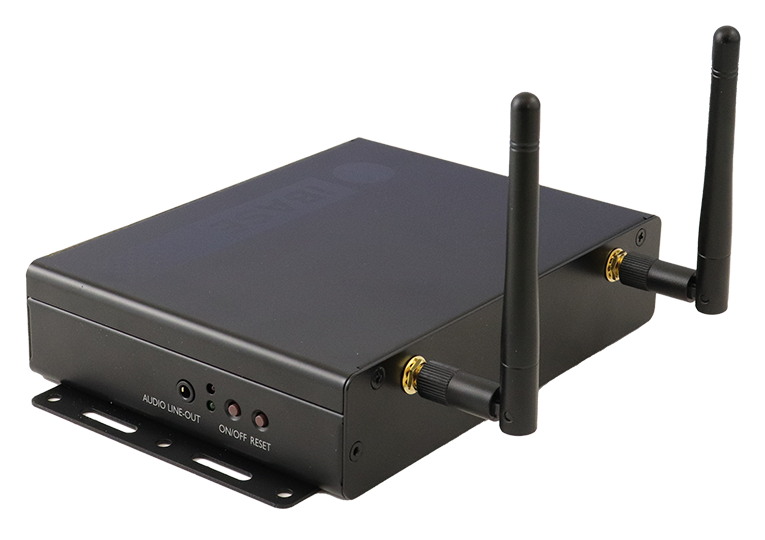

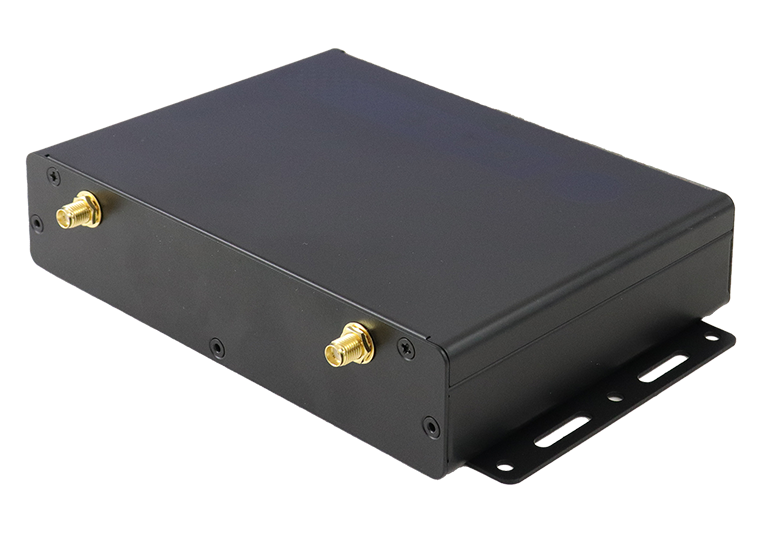

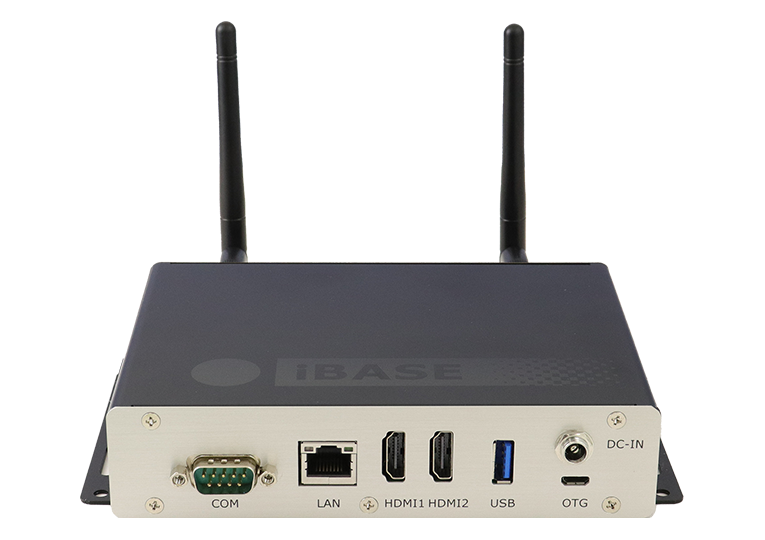

| I/O Interface | Front I/O: 1x RS232 DB9 connector 1x RJ45 GbE LAN 1x HDMI (4K60) + 1x HDMI (4K30) 1x Micro USB2.0 (with OTG support) + 1x USB 3.1 Type-A 1x DC IN power jack EIAJ with screw lock Rear I/O: 2x Antenna holes Side I/O: 1x PWR On/Off button 1x Factory reset button 1x Audio Line-Out |
| Auto Control and Monitoring | Watchdog Timer: 256 Levels, 0~128 Secs |
| Power Requirement | 12V DC-in |
| Construction | SGCC |
| Weight | 0.5kg (1.1lbs) |
| Chassis Color | Black & Silver |
| Storage | 64GB~128GB eMMC 5.1 Flash for O.S. and 8MB SPI NOR Flash for board information |
| Power Supply | 60W |

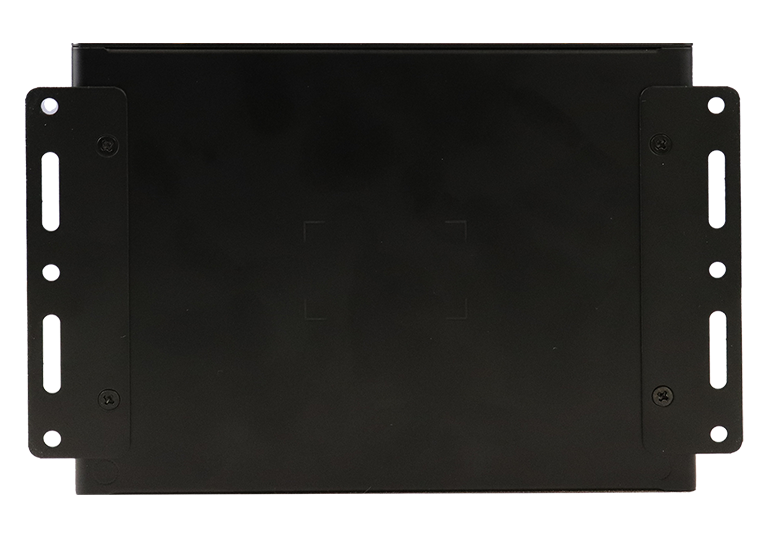

| Mounting | Desktop or wall mounting (wall mount kit included) |
| Dimensions | 155mm (W) x 110mm (D) x 35mm (H) |
| Operating Temperature | -10 to +50℃(14°F~122°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 5~90% @ 45°C, (non-condensing) |
| Vibration | Non-Operating: 1.0 grms / 5~500Hz / random operation Operatiing:0.25 grms / 5~500Hz / random operation |
| Certification | CE / LVD / FCC Class-B (TBD) |
| Operating System | Linux Yocto 5.15 ready Android 13 ready Support for other OS available upon request |
| ISR500-1 | MediaTek Genio 700 / MT8390: 2x A78 2.2GHz L2 256KB, 6x A55 2.0GHz L2 128KB, shared 2MB L3 cache, 8GB LPDDR4, 64~128GB eMMC |
| ISR500-2 | MediaTek Genio 510 / MT8370: 2x A78 2.2GHz L2 256KB, 4x A55 2.0GHz L2 128KB, shared 2MB L3 cache, 4GB LPDDR4, 64GB eMMC |
| 60W power adaptor | 60W (12V @5.0A) power adaptor, bare wire type Compatible with IEC62368-1/EN62368-1 |
| Optional Accessories | WiFi / Bluetooth module & antenna kit M.2 Wifi/BT module: A024MDWIFI0045000P or A024MDWIFI0046000P Antenna kit: A055RFAS67H600000P+A055BTC0000010000P |
| DATASHEETS | ISR500 |
| CATALOGS | Digital Signage Players (Vol.23.12) |
