Digital Signage Player
SI-636
13th/12th Gen Intel® Core™ Processors (Raptor Lake-P / Alder Lake-P) Video Wall Signage Player with 6x HDMI from E8860 GPU
- iSMART 4.0 smart control energy-saving and Observer Connect remote monitoring & management technologies
- Supports13th/12th Gen Intel® Core™ Processors
- Discrete AMD Radeon™ E8860 graphics processors with 2GB GDDR5 graphics memory
- 2x DDR5-5600 SO-DIMM, dual channel, Max. 64GB
- Flexible video wall display configuration
- 1x M.2 B-Key (3052) for 5G or LTE options
- 1x M.2 E-Key (2230) for Wi-Fi, Bluetooth
- 1x M.2 M-Key (2280) for storage
- 2x RS232 serial ports
- 6x HDMI 1.4 outputs with independent audio
- Slim and segregated flow ventilation design
- Supports OOB function via I210AT LAN port (optional)
The SI-636 is an advanced video wall signage player designed to captivate audiences with seamless, ultra-high resolution content across six independent HDMI displays. Powered by 13th and 12th Gen Intel® Core™ processors combined with the AMD GPU for unmatched graphics and processing.
Ideal for large retail stores, airports, transit hubs, and public venues, the SI-636 delivers crisp, synchronized playback with flexible video wall configurations to enhance customer engagement and information delivery. Its slim profile of just 29.9mm thickness and lightweight 1kg aluminum chassis enable easy installation in tight spaces. Robust connectivity options include 5G or LTE, WiFi 6E, Bluetooth, and multiple USB ports, ensuring versatile integration into existing infrastructure.
IBASE’s iSMART 4.0 smart energy-saving control and Observer Connect remote monitoring & management technologies help optimize power consumption and maximize system uptime. The SI-636-B model features an optional Out-of-Band (OOB) management function via the I210AT LAN port, enabling remote control even during power or OS failures. This solution ensures seamless connectivity, real-time control, and efficient maintenance, enhancing overall operational efficiency and system reliability. Businesses can save time, reduce costs, and improve efficiency while achieving centralized management across distributed networks.
With Windows 10 (64-bit) or Ubuntu installation options, the SI-636 offers a rugged, reliable solution for enterprises seeking cutting-edge video wall signage players capable of delivering immersive visual experiences in complex, multi-display environments.
| System Mainboard | MBD636 |
| CPU | 13th/12th Gen Intel® Core™ Mobile Processors TDP ≤ 35W |
| CPU Socket | FCBGA1744 |
| Chipset | SoC integrated |
| Memory | DDR5-5600 SO-DIMM, Dual channel |
| Graphics | AMD Radeon™ E8860 GPU |
| LAN | 1x Intel® 226LM 2.5Gb with LAN Wakeup and PXE support 1x Intel® I210AT (for OOB function with COM) |
| Expansion Slots | 1x M.2 E-Key (2230) (WiFi-6E support) 1x M.2 B-Key (3052) (1x PCI-E x1; USB 2.0, USB 3.x) 1x UIM/SIM card slot 1x M.2 M-Key(2280) (for capture card) 1x M.2 M-Key(2280) NVMe(PCIe3.0 x4 / SATA) |

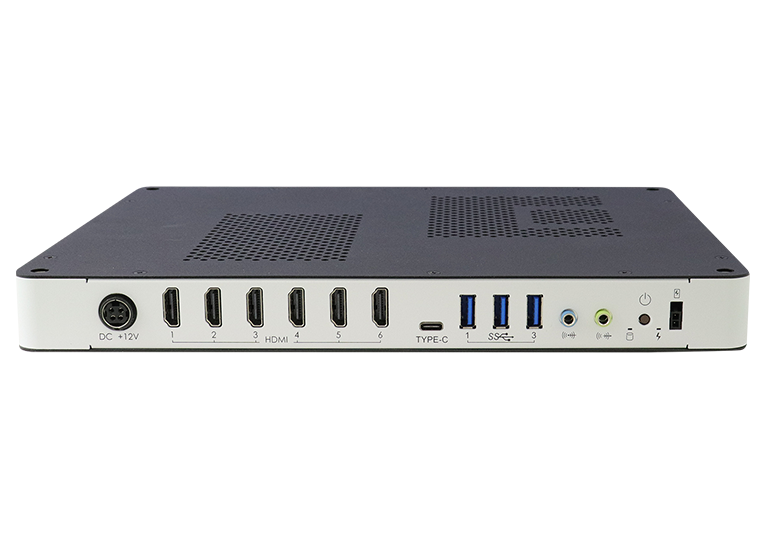

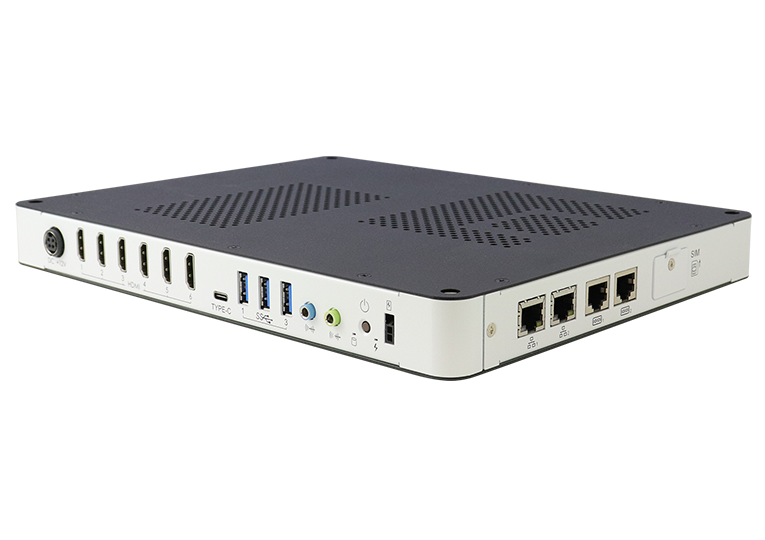

| I/O Interface | 6x HDMI 1.4b 3x USB 3.2 1x USB type-C 1x Audio connector for Line-out/Mic-in 1x Power / HDD LED 1x Power button 1x Power jack connector |
| Auto Control and Monitoring | Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min) |
| Power Requirement | +12V DC |
| Construction | Aluminum + SGCC |
| Weight | 2 kg(4.4 lbs) |
| Chassis Color | Black and white |
| Storage | 1x M.2 (2280) |
| Power Supply | 150W power adapter |
| Mounting | Standard system bracket |
| Dimensions | 290mm(W) x 222mm(D) x 29.9mm(H) 11.41”(W) x 8.74”(D) x 1.17”(H) |
| Operating Temperature | 0°C ~ 45°C (32°F ~ 113°F) |
| Storage Temperature | -20°C ~ 80°C (-4°F~176°F) |
| Relative Humidity | 5%~90% |
| Vibration | 1 grms / 5~500Hz / random operation |
| Certification | CE, FCC Class-A, cULus |
| Operating System | Windows 10 (64-bit), Ubuntu (Installation) |
| SI-636-B | Signage Player with MBD636 (w/ AMD E8860 GPU for 6x HDMI), with 13th/12th Gen Intel® Core™ i7-13800 processor, 2x DDR5-5600, 256GB SSD and 150W power adapter, with OOB function |
| SI-636 | Signage Player with MBD636 (w/ AMD E8860 GPU for 6x HDMI), with 13th/12th Gen Intel® Core™ i7-13800 processor, 2x DDR5-5600, 256GB SSD and 150W power adapter |
| DATASHEETS | SI-636 |
| CATALOGS | Digital Signage Players (Vol.25.05) |
| USER'S MANUALS | SI-636 V1.0 |
| DRIVERS - SYSTEMS | SI-636 Driver DVD AMD E8860 VGA Driver |
