Digital Signage Player


11th Gen Intel® Core™ / Celeron® U-Series Processor Fanless Signage Player with 1x HDMI, DP and DVI

  • iSMART intelligent energy-saving & Observer remote monitoring technologies
  • 11th Gen Intel® Core™ / Celeron® U-Series Processors
  • 2x DDR4-3200 SO-DIMM, dual channel, Max. 64GB
  • Intel® Processor integrated graphics device
  • Supports OOB (Out-of-Band) and PDPC (Peripheral Device Power Control) functions
  • 1x HDMI 2.0, 1x DVI-D, 1x DP (supports DP++)
  • 1x M.2 E-Key (2230) for Wi-Fi, Bluetooth or capture card options
  • 1x M.2 B-Key (3052) for 5G options
  • TPM 2.0, vPro and watchdog timer
  • Wide-range operating temperature: -20°C ~ 70°C
  • Ruggedized, fanless and all solid state design
  • 5G
  • iSMART
  • Observer
  • Fanless
  • Wide Temperature

The SE-603-N outdoor digital signage player is powered by 11th Gen Intel® Core™ processors and supporting up to 64GB DDR4-3200 memory. It delivers high performance, reliability and security, and enables smooth 4K media playback on three independent displays.

The SE-603-N features various connectivity options such as M.2 E-Key (2230) for Wi-Fi, Bluetooth, or capture card options and M.2 B-Key (3052) for 5G options. With Intel® processor integrated graphics, the player offers high-quality graphics content with HDMI 2.0, DVI-D, and DP (DP++) outputs for flexible display configurations.

SE-603-N Outdoor Digital Signage Player

Additionally, the compact player features TPM 2.0, vPro, and a watchdog timer to ensure maximum security and reliability. The fanless design enables silent operation, making it ideal for use in noise-sensitive environments. It can also operate in a wide-range temperatures from -20°C to 70°C, making it suitable for use in various rugged environments.

With built-in iSMART energy saving and Observer remote monitoring technologies, the SE-603-N offers power on/off scheduler, power resume and remote management functions. It also supports OOB (Out-of-Band), allowing users to flexibly manage devices remotely and maintain computers that cannot access the operating system over the network to reduce maintenance costs. PDPC functionality enables control of peripheral device power to restore the operation of external devices.

System Mainboard MBD603
CPU 11th Gen Intel® Core™ / Celeron® U-Series (TGL-U Platform) Processors TDP<=15W
CPU Socket SoC Integrated
Memory 2x DDR4-3200 SO-DIMM, dual channel, Max. 64GB
Graphics Gen12 integrated graphics (up to 96EU)
LAN 1x Intel® 226IT PCI-E Gigabit LAN controller
Expansion Slots 1x M.2 E-Key (2230)
1x M.2 B-Key (3052)
1x UIM/SIM card slot

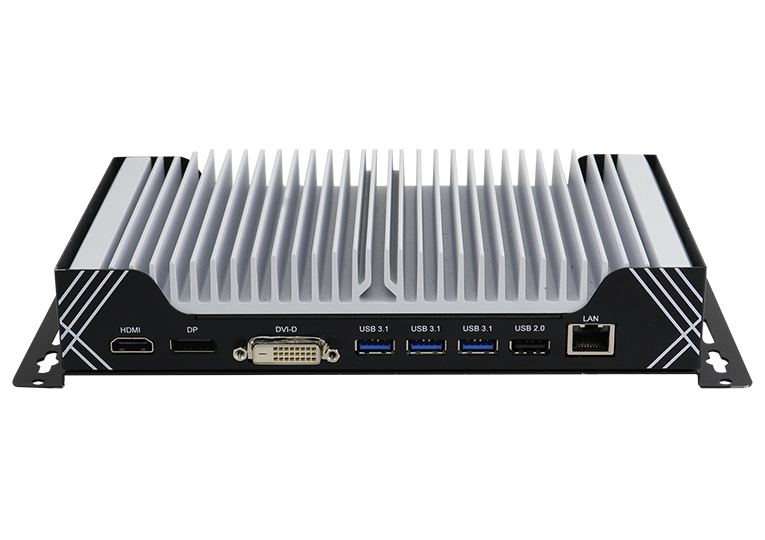

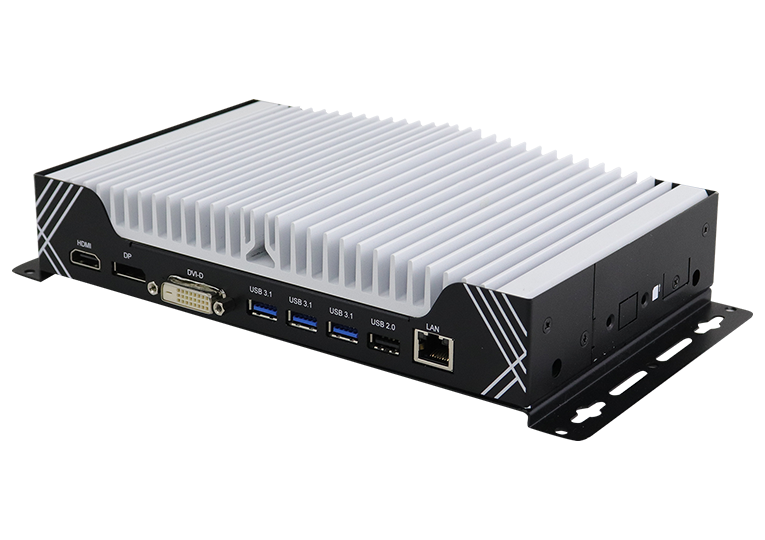

I/O Interface 1x HDMI 2.0
1x DP (support DP++)
1x DVI-D
3x USB 3.1 @gen 2
1x USB 2.0
1x RJ45 for 2.5 Gigabit LAN
2x Audio connectors for Line-in / Line-out

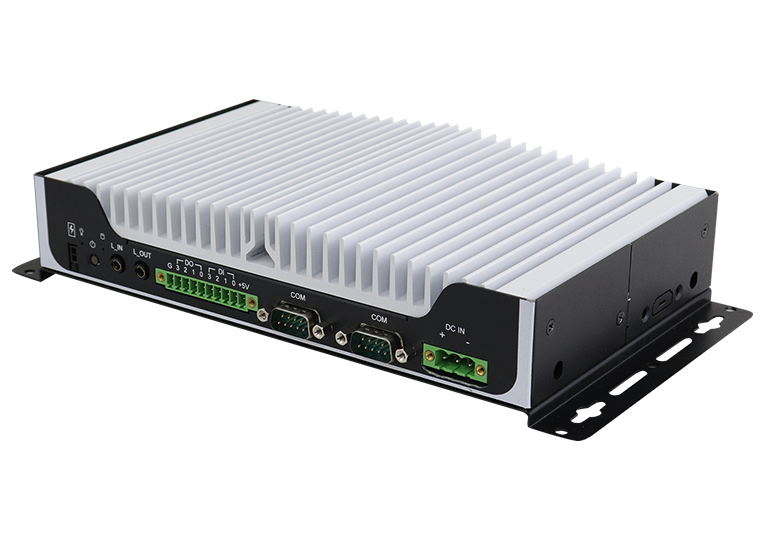

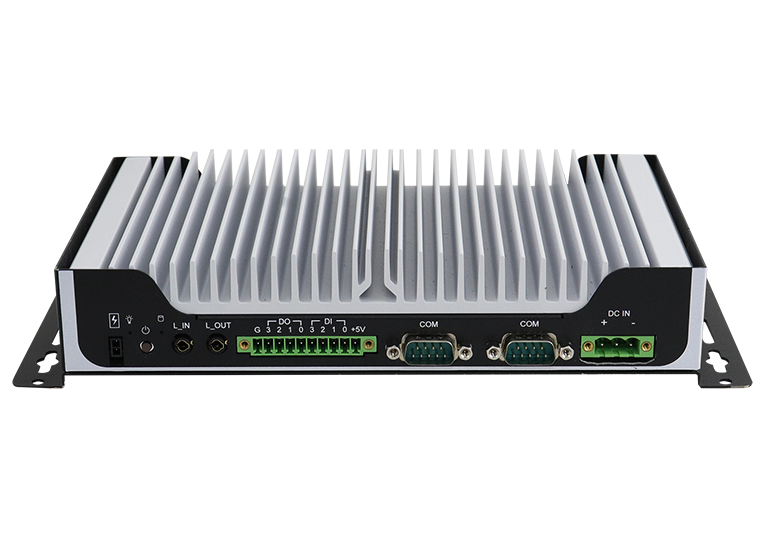

2x COM ports: 1x RS232/422/485 + 1x RS232
1x DIO (4-in/4-out)
1x Power / HDD LED
1x Power button
1x 4-pin terminal block
1x Power switch connector
Auto Control and Monitoring Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement 12V~24V DC terminal block
Construction Aluminum + SGCC
Weight 1.7kg (3.75lbs)
Chassis Color Black and white
Storage 1x M.2 M-Key (2280)
Power Supply Optional
Mounting Standard system bracket
Dimensions 224mm(W) x 134.6mm(D) x 46.5mm(H)
103”(W) x52.9”(D) x 18.3”(H)
Operating Temperature -20°C ~ 70°C (-4°F ~ 167°F)
Storage Temperature -20°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity 10% ~ 90% (non-condensing)
Vibration SSD: 5 grms / 5~500Hz / random operation
Certification CE, FCC class-B, cULus, UKCA
Operating System Win10 IoT Enterprise (64-bit)
Linux Ubuntu (64-bit)
SE-603-N Fanless Signage Player with MBD603 w/ Intel® 11th Gen Intel® Core™ I7-1185GRE processor TDP<=15W, 2x 4GB SODIMM RAM, M.2 128GB storage,and 60W power adaptor (Operating temperature -20°C~70°C; w/o adapter)
SE-603-N5 Fanless Signage Player with MBD603 w/ Intel® 11th Gen Intel® Core™ I5-1145G7E processor TDP<=15W, 2x 4GB SODIMM RAM, M.2 128GB storage, and 60W power adaptor (Operating temperature -20°C~70°C; w/o adapter)


Model Chipset Video Audio Network Others

Intel(R) Chipset Software Installation Utility

Windows 10

Intel(R) Elkhartlake Graphics Driver

Windows 10

Realtek High Definition Audio Driver

Windows 10

Intel(R) I22X Gigabit Network Drivers

Windows 10

Intel(R) ME Drivers

Windows 10
