Digital Signage Player

SE-103-N

Intel® Atom® x6000 / Pentium® / Celeron® Processor Outdoor Fanless Signage Player with Three HDMI

  • iSMART intelligent energy-saving & Observer remote monitoring technologies
  • Intel® Atom® x6000/ Pentium® / Celeron® Processors
  • 3x HDMI 2.0b with HDMI-CEC display on/off control function
  • Built-in hardware EDID emulation with S/W control function
  • 2x DDR4-3200 SO-DIMM, Dual channel, Max. 32GB
  • 1x Intel® 2.5GbE LAN
  • 1x M.2 B-Key (3052) for 5G options
  • 1x M.2 E-Key (2230) for Wi-Fi, Bluetooth or capture card options
  • TPM 2.0 and watchdog timer
  • Industrial-grade robust, fanless and compact Design
  • Wide-range operating temperature from -20°C to 70°C
  • NEW
  • 5G
  • HDMI CEC
  • iSMART
  • Observer
  • Fanless
  • Wide Temperature

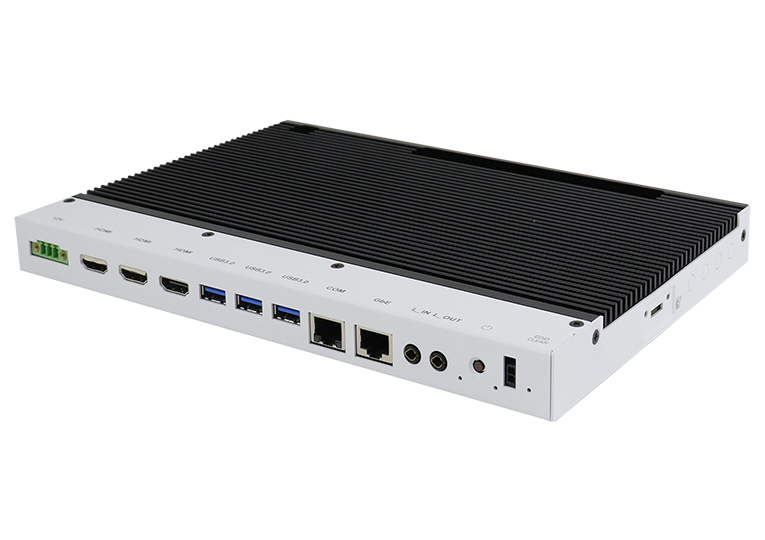

SE-103-N Compact Fanless, Outdoor Signage Player

The SE-103-N is a compact fanless, outdoor signage player for three HDMI displays and designed with Intel® Atom® x6000/Celeron® processors (formerly Elkhart Lake). Built for smart retail and drive-thru applications, not only does it provide an eye-catching retail experience but also help increase foot traffic that leads to higher revenue. Like all other IBASE digital signage players, the latest SE-103-N boasts advanced functions including iSMART/iControl energy-saving and Observer remote monitoring technologies with power on/off scheduling and power recovery functions.


Measuring 260mm x 181mm x 25mm, the compact SE-103-N comes with industrial-grade components and specifications, allowing it to operate reliably under harsh conditions with temperatures from -20°C to 70°C. Aside from an integrated TPM (2.0), it supports EDID (extended display identification data) that prevents screen convergence issues, display status monitoring and HDMI-CEC for display on/off control through HDMI ports. Standard features include 2x DDR4-3200 slot with the max. 32GB capacity, 1x 2.5GbE LAN, 1x M.2 E-Key for Wi-Fi, Bluetooth modules or capture cards, 1x M.2 B-key (3052) for 5G/LTE module, 1x UIM/SIM card slot and 3x USB ports.


The SE-103-N is currently available with a selection of four processors, including Intel Celeron N6210/J6413 and Atom x6425E/x6211E(wide-temp). All units run on both Windows 10 IoT Enterprise and Linux Ubuntu operating systems.

System Mainboard MBD103
CPU Intel® Atom® x6425E (2.0~3.0GHz)
Intel® Atom® x6211E (1.3~3.0GHz)
Intel® Celeron® J6413 (1.8~3.0GHz)
Intel® Celeron® N6210 (1.2~2.6GHz)
CPU Socket FCBGA1493
Chipset SoC Integrated
Memory 2x DDR4-3200 SO-DIMM, Dual channel, Max. 32GB, supports IBECC for X6000 Series CPU
Graphics 11th Gen Intel® SoC integrated 18EUs Gfx
LAN 1x Intel® I225IT 2.5GbE LAN for Atom® x6000 series
1x Intel® I225V 2.5GbE LAN for Celeron®/ Pentium®
Expansion Slots 1x M.2 E-Key (2230)
1x M.2 B-Key (3052)
1x UIM/SIM card slot

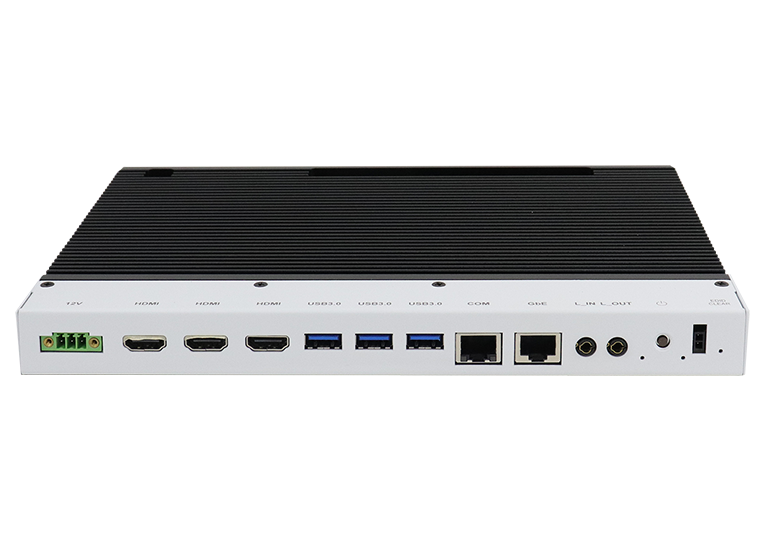

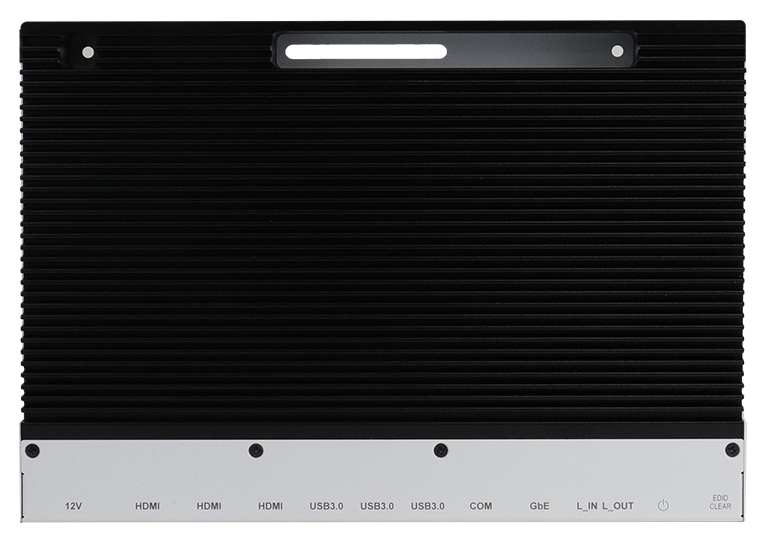

I/O Interface 3x HDMI 2.0b
3x USB
1x RJ45 for 2.5GbE LAN
1x RJ45 for RS232 serial port
2x Audio connectors for Line-in / Line-out
1x Power button
1x Terminal block for power port
1x UIM/SIM card slot
1x Power / HDD LED
4x DI, 4x DO pin header (w/o isolation) (Internal)
Auto Control and Monitoring Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement +12V DC
Construction Aluminum + SGCC
Weight 1.7Kg (3.75lbs)
Chassis Color Black & White
Storage 1x M.2 M-Key (2280)
Power Supply 60W power adaptor
Mounting Standard system bracket
Dimensions 260mm(W) x 181.4mm(D) x 25mm(H)
10.24”(W) x 7.14”(D) x 0.98”(H)
Operating Temperature -20°C~70°C (-29°F~158°F) for x6000 Series CPU
0°C~45°C (0°F~140°F) for N/J6000 Series CPU
Storage Temperature -20°C ~ 80°C (-22°F~176°F)
Relative Humidity 10%~90% (non-condensing)
Vibration SSD: 5 grms / 5~500Hz / random operation
Certification CE, FCC class-B, UKCA, cULus
Operating System Win10 IoT Enterprise (64-bit)
Linux Ubuntu (64-bit)
SE-103-N Signage Player with Intel® Atom® x6425E (2.0~3.0GHz); 2x 4GB DDR4-3200 SO-DIMM, M.2 128GB storage, 3x HDMI 2.0b, 3x USB, 1x LAN, 1x COM (RJ45), 60W power adaptor (Operating temperature -20°C~70°C)
SE-103-N11E Signage Player with Intel® Atom® x6211E (1.3~3.0GHz); 2x 4GB DDR4-3200 SO-DIMM, M.2 128GB storage, 3x HDMI 2.0b, 3x USB, 1x LAN, 1x COM (RJ45), 60W power adaptor (Operating temperature -20°C~70°C)
SE-103-N13 Signage Player with Intel® Celeron® J6413 (1.8~3.0GHz); 2x 4GB DDR4-3200 SO-DIMM, M.2 128GB storage, 3x HDMI 2.0b, 3x USB, 1x LAN, 1x COM (RJ45) and 60W power adaptor (Operating temperature 0°C~45°C)
SE-103-N10 Signage Player with Intel® Celeron® N6210 (1.2~2.6GHz); 2x 4GB DDR4-3200 SO-DIMM, M.2 128GB storage, 3x HDMI 2.0b, 3x USB, 1x LAN, 1x COM (RJ45) and 60W power adaptor (Operating temperature 0°C~45°C)
