Edge AI & Intelligent System
AMI241
Expandable Fanless System with 14th/13th Intel® Core™ i9/i7/i5/i3 desktop processors (35W TDP)
- Fanless system with iBASE MBE240 proprietary board
- 14th/13th Intel® Core™ i9/i7/i5/i3 desktop processors (35W TDP)
- Support DDR5-5600 memory, up to Max.64GB Non-ECC
- 2x Intel® 2.5G LAN, 2x Intel® GbE (Support 802.3 at PoE+)
- 3x M.2 sockets (M-key/B-key/E-key)
- Supports 1x PCIe(16x) expansion slot
- Supports Over/Under/Reverse voltage protection
- Dual SIM slots support WWAN redundancy, iAMT (16.1), dTPM(2.0)
- 2x 2.5” Storage (support RAID 0/1)
| System Mainboard | MBE240AF with Intel® Q670E PCH |
| CPU Type | 14th/13th/12th Intel® Core™ i9/i7/i5/i3 desktop processors (35W TDP) |
| System Speed | Up to 5.0GHz |
| Memory | 2x DDR5-5600 SO-DIMM, Max. 64GB , Non-ECC |

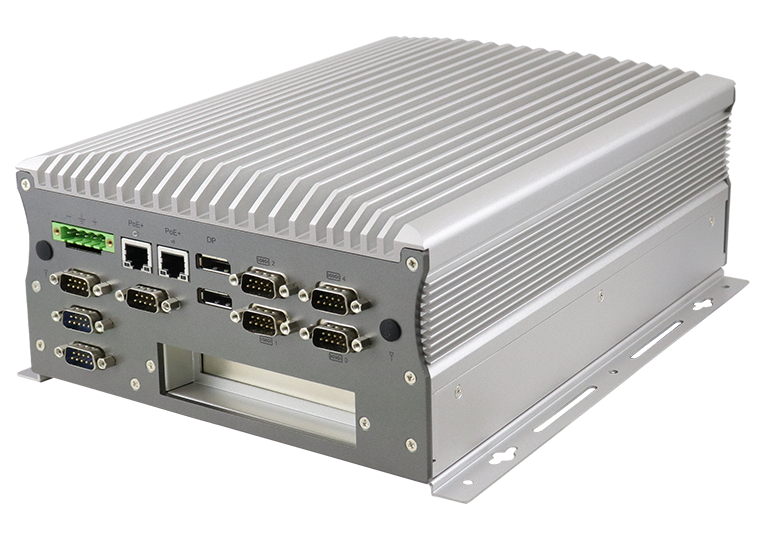

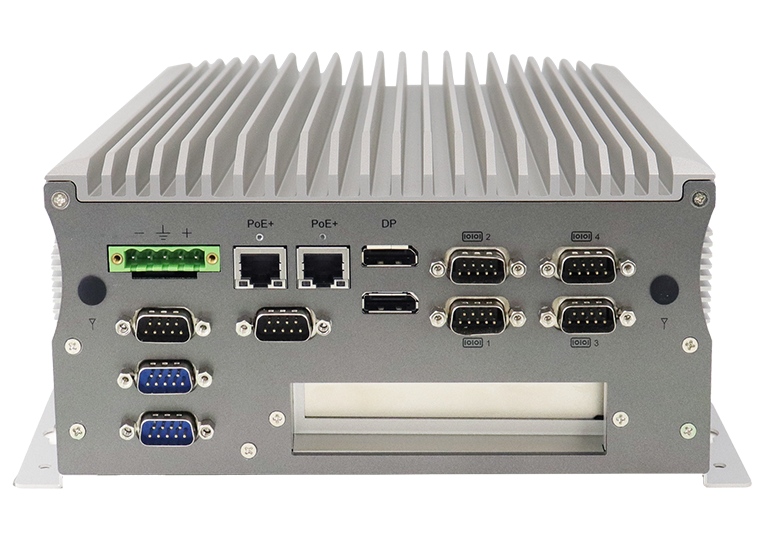

| Front Panel External I/O | 2x RS232/422/485 COM ports 4x RS232 COM ports 2x DisplayPort 2x RJ-45 GbE ports (supports 802.3at PoE+) 1x 5-pins DC-in terminal block type for +24V 2x Antenna holes 1x Expansion slots |

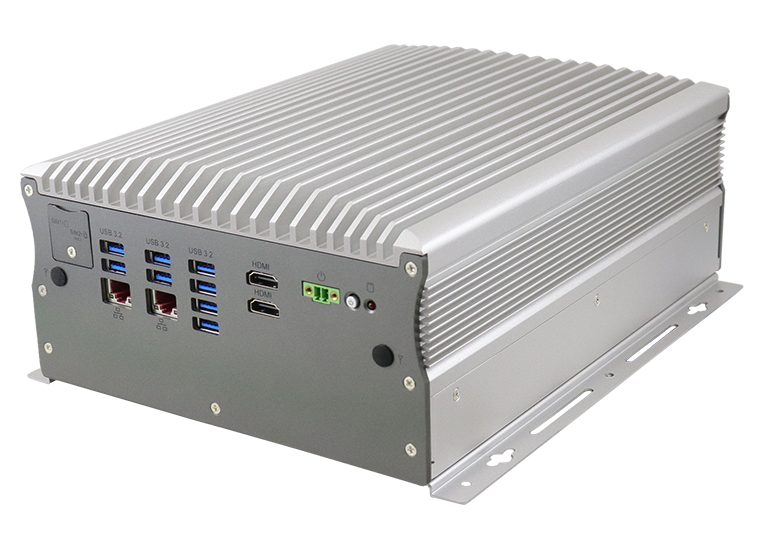

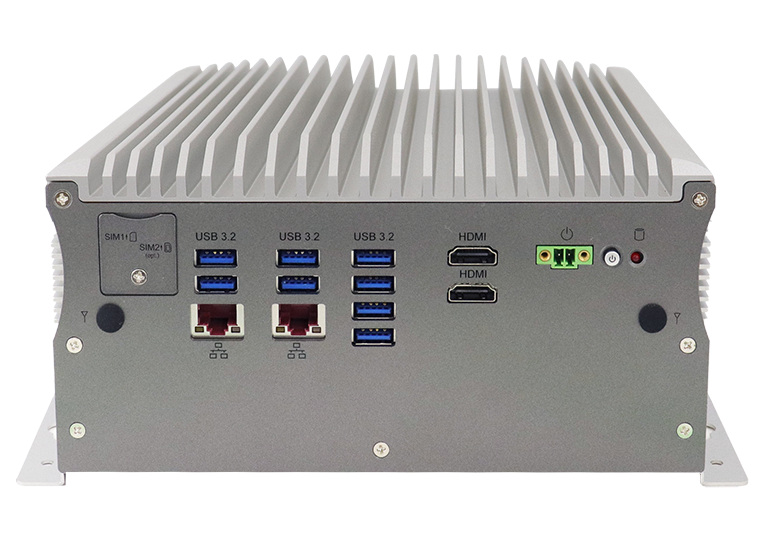

| Rear Panel External I/O | 2x HDMI 8x USB 3.2 ports 2x Antenna holes 2x RJ-45 2.5G port 1x RED HDD/SSD LED 1x Power button with Green LED indicator 1x 2-pin terminal block for On/Off 2x SIM card slots |
| Expansion Slots | 1x PCIe (16x) expansion slot 1x M.2 B-key 3052 (LTE/5G/4G) 1x M.2 E-key 2230 (WIFI/BT) 1x M.2 M-key 2280 (NVMe / SATA SSD) |
| Storage | 2 x 2.5” storage |
| Power Requirement | +24V DC-in |
| Construction | Aluminum @ Gray |
| Chassis Color | Silver & Gray |
| Mounting | Desktop & wall mount |
| Dimensions | 210mm(W)0 x 285mm(D) x 109mm(H) |
| Weight | 4.9 kg |
| Operating Temperature | -20 °C ~ +70 °C (-4°F~158°F) [with 35W CPU and DDR5 memory] |
| Storage Temperature | -20°C~+80°C (-4°F~176°F) |
| Relative Humidity | 5%~90%@45°C (non-condensing) |
| Vibration | Operating: 3.0 Grms / 5~500Hz |
| Shock | Operating: 20G/11 ms Duration Non-operating: 40G/11 ms Duration |
| Certification | CE, FCC & LVD |
| Operating System | Windows 10 /11, Ubuntu |
| AMI241AFM | (AMI) Aluminum Chassis with MBE240AF (Q670E PCH), Fanless Design, w/o CPU /memory/Storage, with riser card IP214. Supporting 6x COM, iAMT16.1, mounting brackets, (RoHS2) |
| 330W Power Adaptor (optional) | 330W (24V@13.75A) power kit compatible with IEC62368-1/EN62368-1 |
| DATASHEETS | AMI241 |
| CATALOGS | Intelligent Systems (Vol.26.01) |
| USER'S MANUALS | AMI241 V1.0 |
| DRIVERS - SYSTEMS | AMI241 Driver DVD |
