Edge AI & Intelligent System

ASB100-PI800

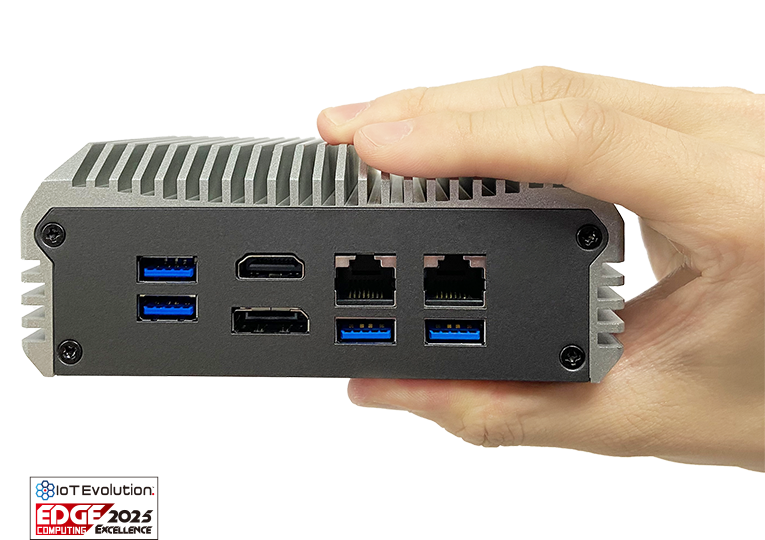

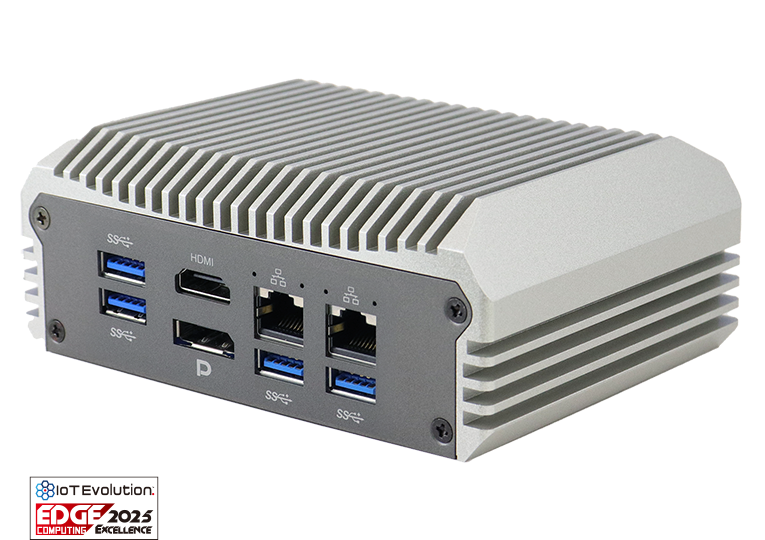

Palm-Sized Fanless System with Intel® Atom™ x7433RE Processor

  • Palm-Sized Fanless System with IBASE PI800 PICO ITX board (TDP 9W)
  • Onboard Intel® Atom™ x7433RE Processor
  • Supports 2x M.2 sockets (E2230 and M2242)
  • 1x DDR5 SO-DIMM, Max. 16GB
  • 4x USB 3.2, 2x 2.5 GbE, 2x COM (RS232/422/485)
  • Supports HDMI, DisplayPort
  • 12V DC-in power input
  • Supports Wall mount, TPM (2.0)
  • NEW
  • Fanless
System Mainboard IBASE PICO-ITX PI800F-7433RE
CPU Type Intel® Atom® x7433RE Processor
System Speed Up to 3.4GHz
Memory 1x DDR5-4800 SO-DIMM, Max. 16GB

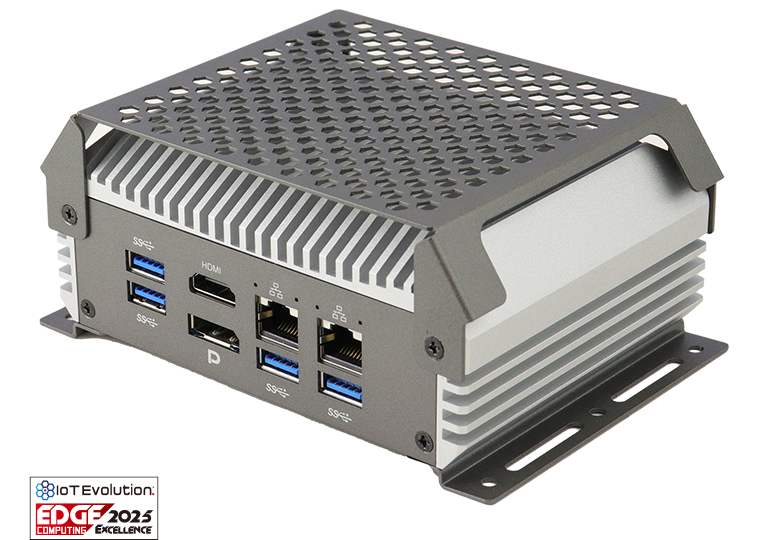

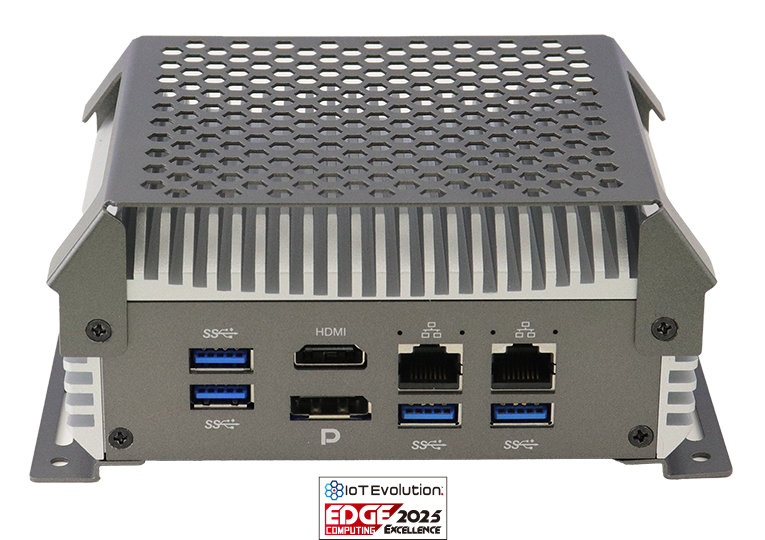

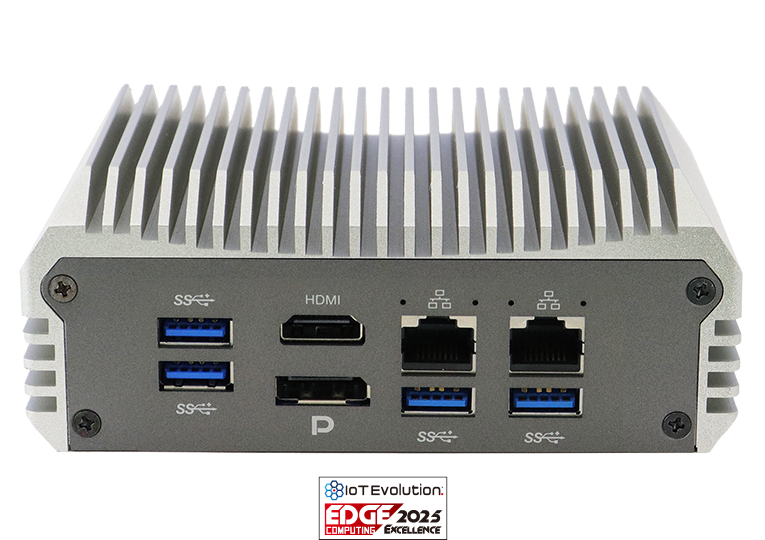

Front Panel External I/O 4x USB 3.2
1x HDMI
1x DisplayPort
2x 2.5 GbE

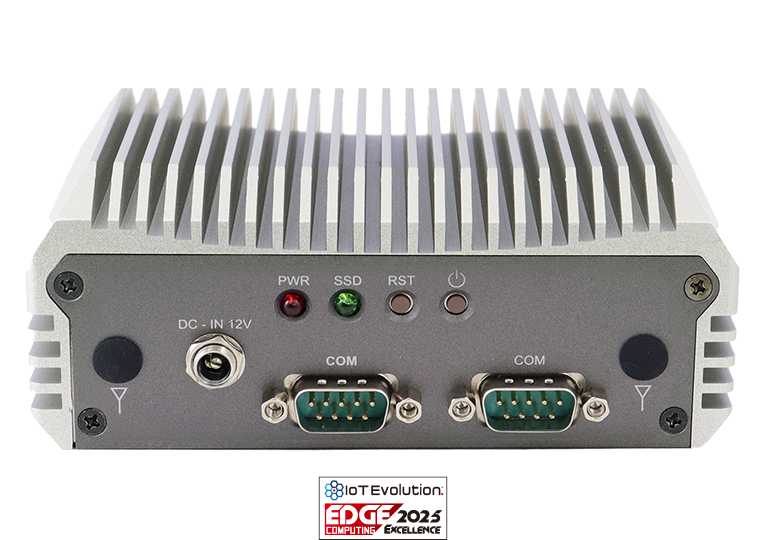

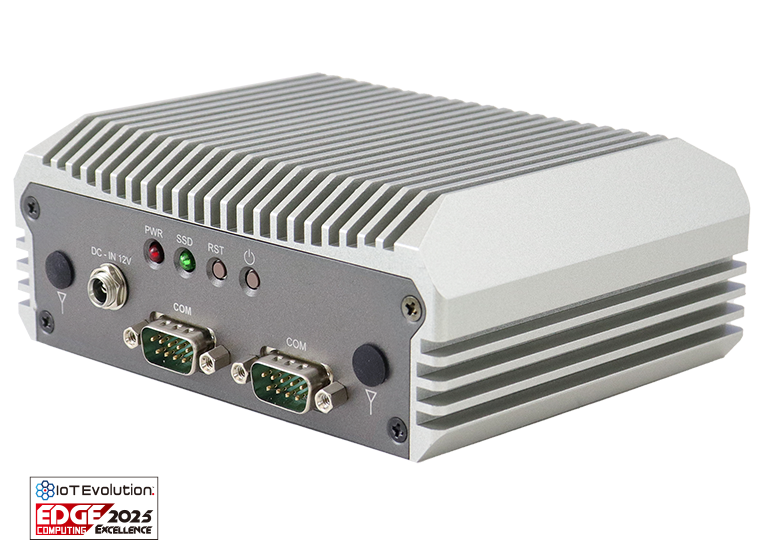

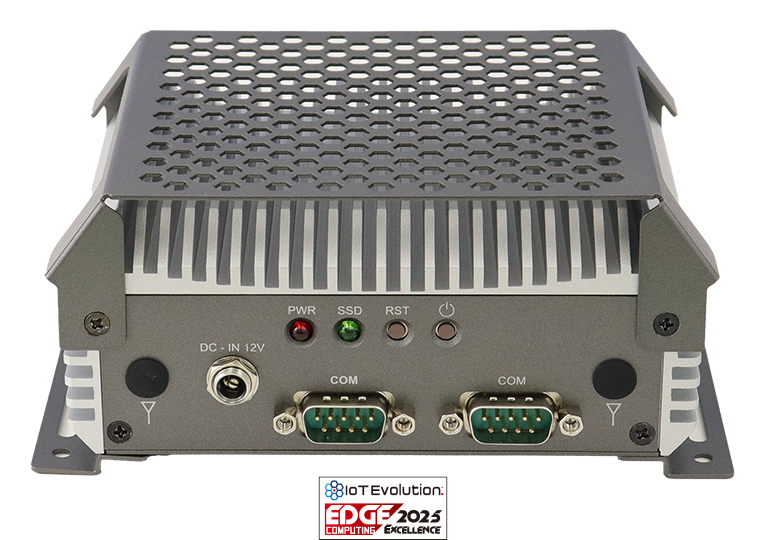

Rear Panel External I/O 1x DC-jack
2x Antenna holes
2x COM ports (RS232/422/485)
2x LED indicators (storage / power)
1x Reset Button
1x ON/OFF Button
Expansion Slots 1x M.2 2230 (E-key) supports WiFi/ BT
1x M.2 2242 (M-key) supports PCIe(1x)/SATA SSD
Storage 1x M.2 M-key 2242
Construction Aluminum & steel
Chassis Color Silver & Gray

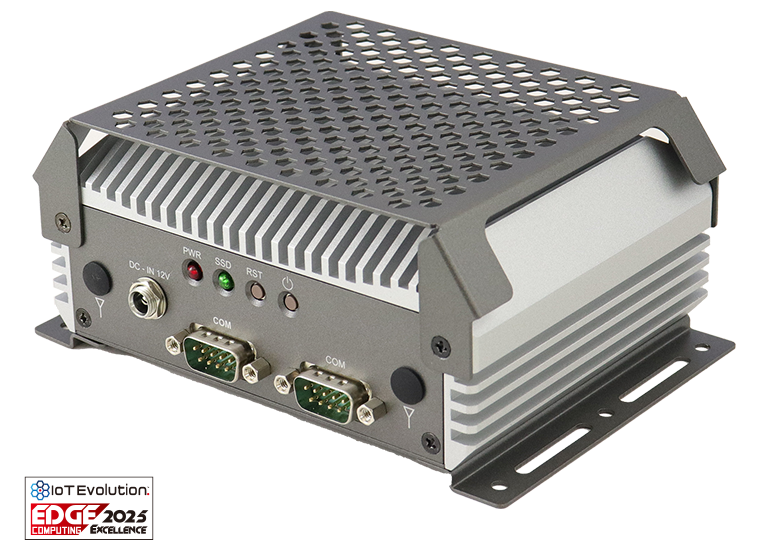

Mounting Wall mount or Desk mount
Dimensions 133mm (W) x 102.2mm (D) x 51.5mm (H)
5.24” (W) x 4.02” (D) x 2.03” (H)
Weight 1.0 kg
Operating Temperature -20°C~50°C (-4°F~122°F) *with airflow 0.9m/s
Storage Temperature -20°C ~80°C (-4°F~176°F)
Relative Humidity 5%~90%@45°C (non-condensing)
Vibration Operating: 1Grms / 3~500Hz
Shock Operating : 20G / 11ms
Non-operating : 40G / 11ms
Certification CE/LVD/FCC Class B
DATASHEETS ASB100-PI800
CATALOGS Intelligent Systems (Vol.26.01)
USER'S MANUALS ASB100-PI800 V1.0
