Mini PCI-E Cards for Expansion

  • PCI Express® Mini Card form factor
  • Upgradeability, flexibility and serviceability

Mini PCI-E Cards for Expansion

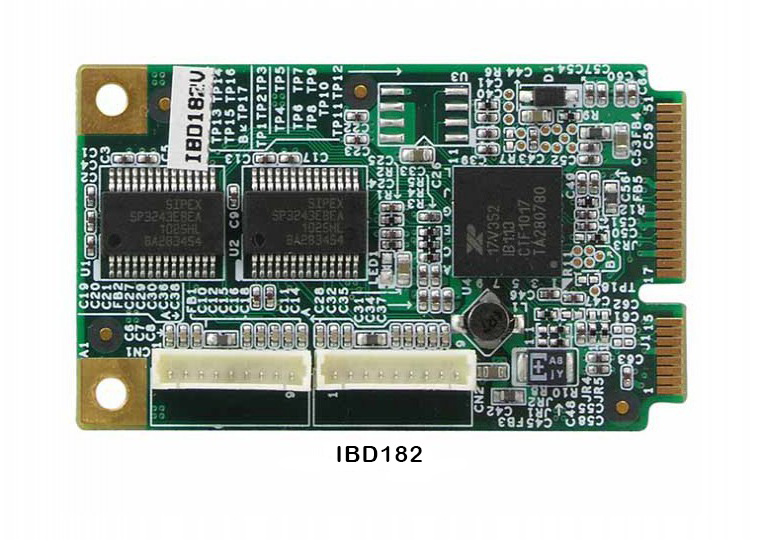

IBD182

  • PCI-E to 2x RS232
  • XR17V352 chipset
  • 50.95mm x 30mm

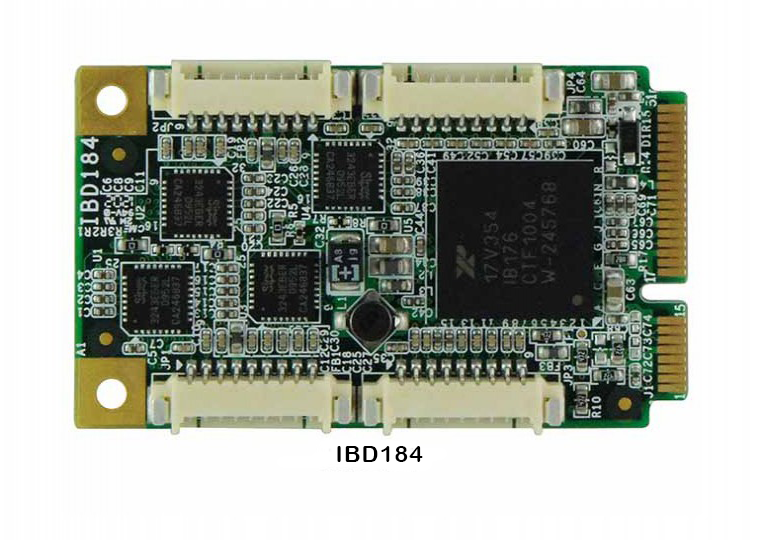

IBD184

  • PCI-E to 4x RS232
  • XR17V354 chipset
  • 50.95mm x 30mm

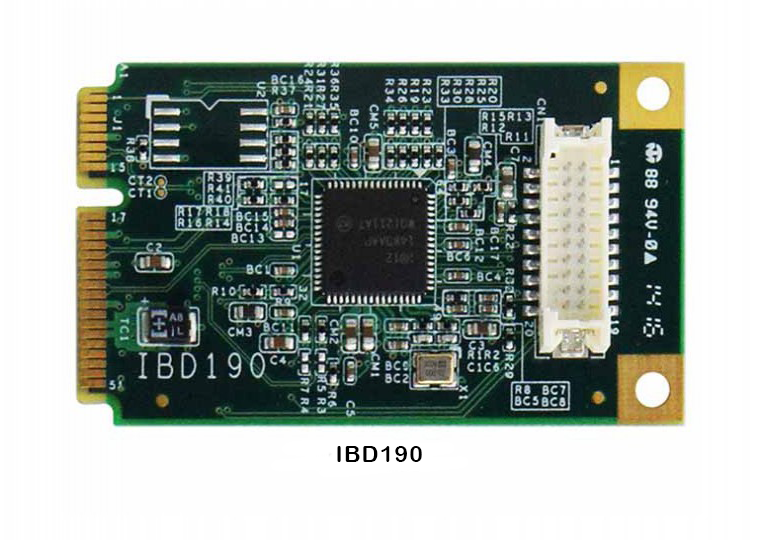

IBD190

  • PCI-E to 1x GbE LAN
  • 1x Intel® I211-AT chipset
  • 50.95mm x 30mm

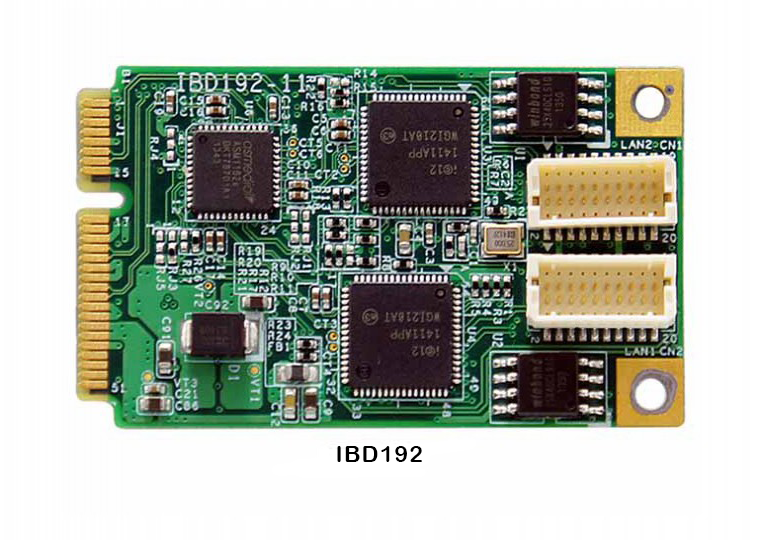

IBD192

  • PCI-E to 2x GbE LAN
  • 2x Intel® I211-AT or 2x Intel® I210-AT chipset
  • 50.95mm x 30mm

DATASHEETS Mini PCI-E Cards for Expansion
CATALOGS Embedded Computing (Vol.24)

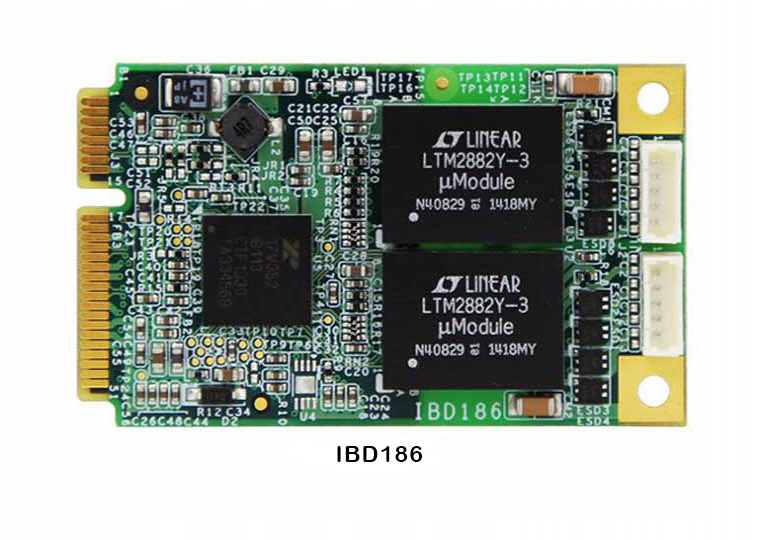

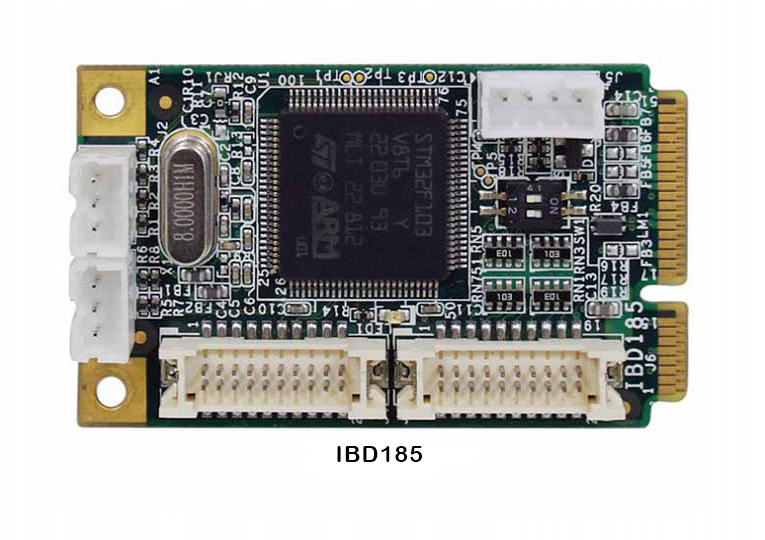

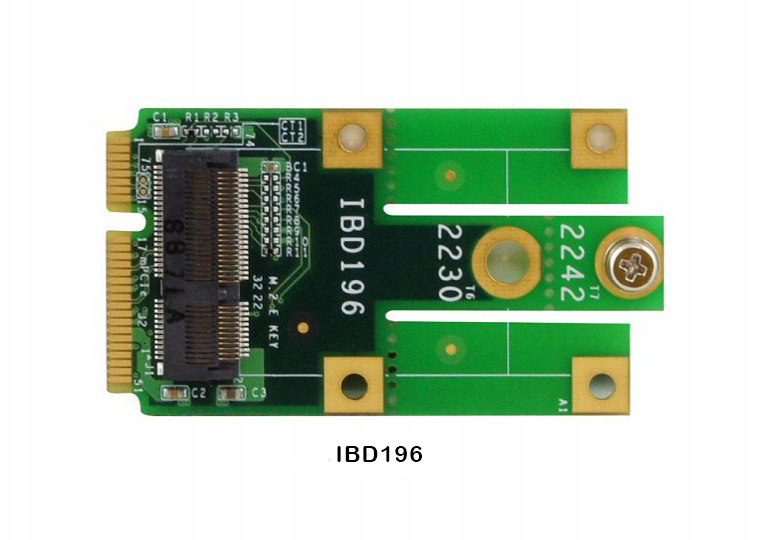

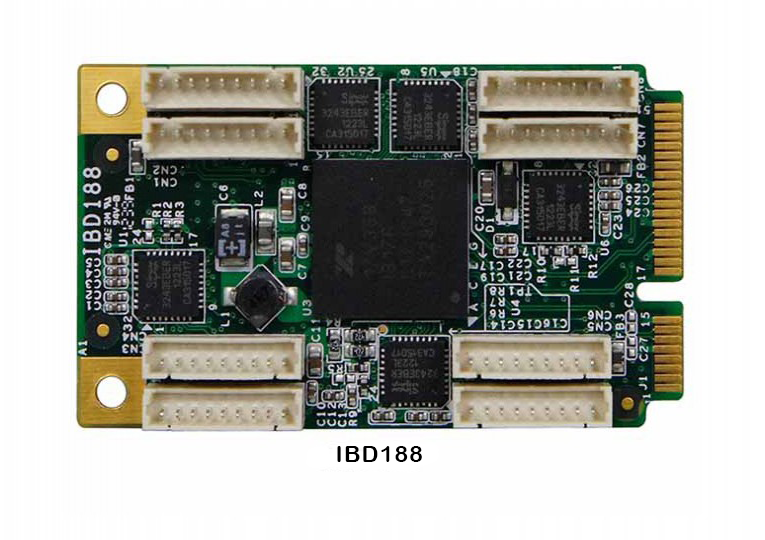

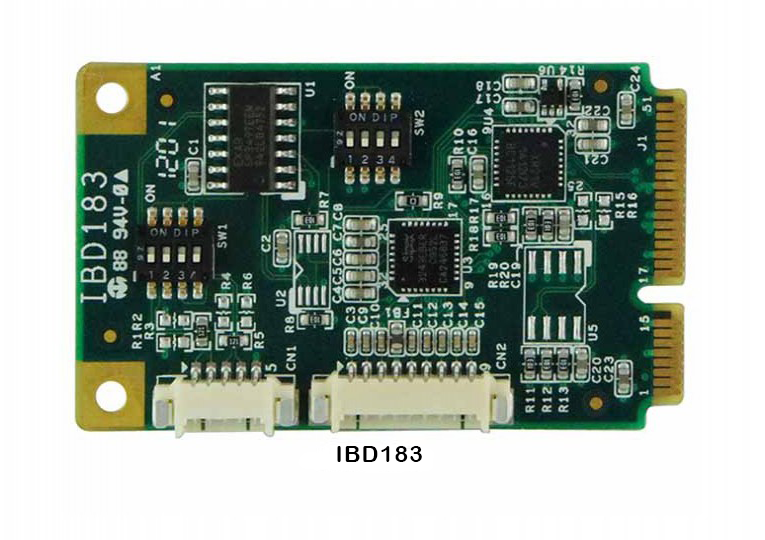

USER'S MANUALS IBD182 V1.0 IBD183 V1.0 IBD184 V1.0 IBD185 V1.0 IBD186 V1.0 IBD188 V1.0 IBD189 V1.2 IBD190 V1.0 IBD192 V1.0 IBD193 V1.0 IBD195 V1.0 IBD196 V1.0
