IP315

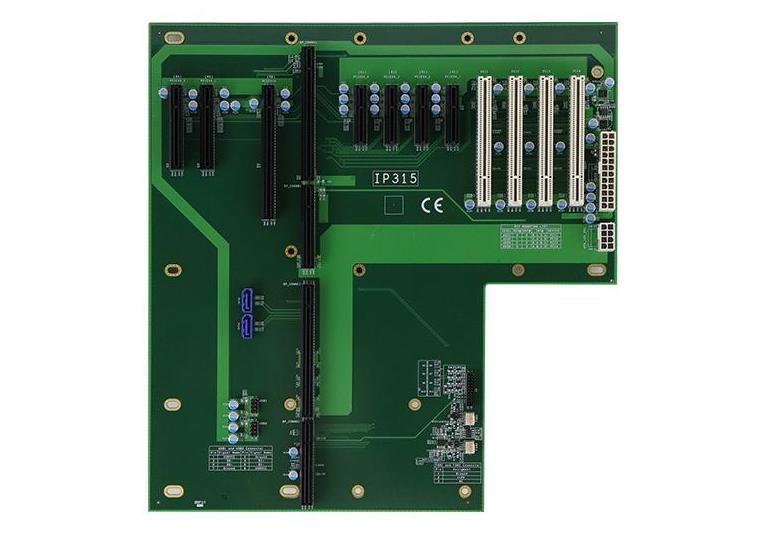

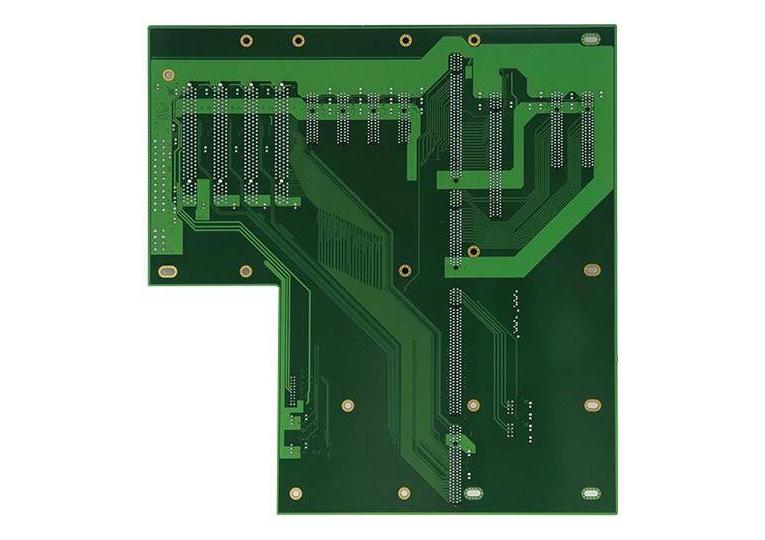

PICMG 1.3 12-Slot Backplane

  • 4-layer PCB
  • AT / ATX power connector, ATX power outlet
  • 4x CPI, 1x PCI-E(x16), 2x PCI-E(x8), 4x PCI-E(x4)
  • Size: 310mm x 327 mm (12.2" x 12.9")
CPU Socket N/A
CPU N/A
PCH N/A
Memory N/A
BIOS N/A
Watchdog Timer N/A
H/W Monitor N/A
Storage Device Interface N/A
Expansion Slots 4x PCI, 1x PCIe(x16), 2x PCIe(x8), 4x PCIe(x4)
Mini Type Slots N/A
Graphics Controller N/A
Video Output N/A
Ethernet N/A
I/O Chip N/A
Serial Port N/A
USB 2.0 N/A
USB 3.X N/A
Serial ATA N/A
Audio N/A
TPM N/A
Others AT/ ATX Power connector, ATX power outlet
Dimensions (L X W) 310mm x 327 mm (12.2" x 12.9")
Power Consumption N/A
Operating Temperature O°C ~ 60°C (32°F ~ 140°F)
Storage Temperature N/A
Relative Humidity N/A
IP315 PICMG 1.3 12-slot Backplane W/ 1x PCI-E(16x), 2x (PCI-Ex8), 4x PCI-E(x4), 4x PCI slot
