IB995

9th/8th Gen Intel® Xeon® E / Core™ i7/i5/i3 / Pentium® / Celeron® PICMG 1.3 with Intel® C246/Q370/H310 PCH Full-Size CPU Card

  • 9th/8th Gen Intel® Xeon® E / Core™ i7/i5/i3 Pentium® QC/DC Processor, up to 4.7GHz
  • 2x DDR4 DIMM, Max. 32GB
  • 2x PCI-E Gigabit LAN
  • Intel® processor integrated graphics, supports DVI-I/DVI-D/ LVDS
  • 3x USB 2.0, 5x USB 3.0, 5x SATAIII, 4x COM
  • 2x M.2 socket (M-Key/E-Key)

The IB995 PICMG® 1.3 Full-Size CPU Card is a slot-card server designed for the 8th Gen and 9th Gen (codenamed “Coffee Lake Refresh”) of Intel’s Core processors with support for up to 8 cores and CNVi architecture for wireless connectivity devices. The new CPU Card delivers cutting-edge performance with intelligent security and hardware monitoring features for real-time applications in process control, surveillance or imaging in the field of automation, transportation, medical technology and digital surveillance markets.

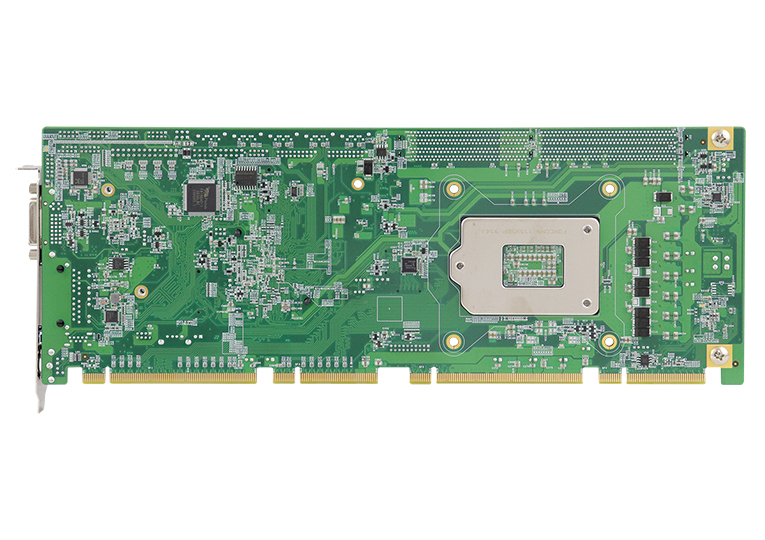

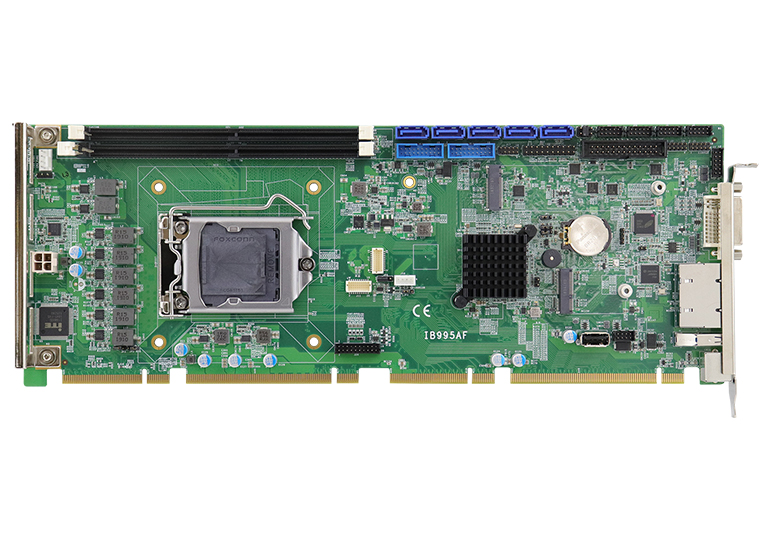

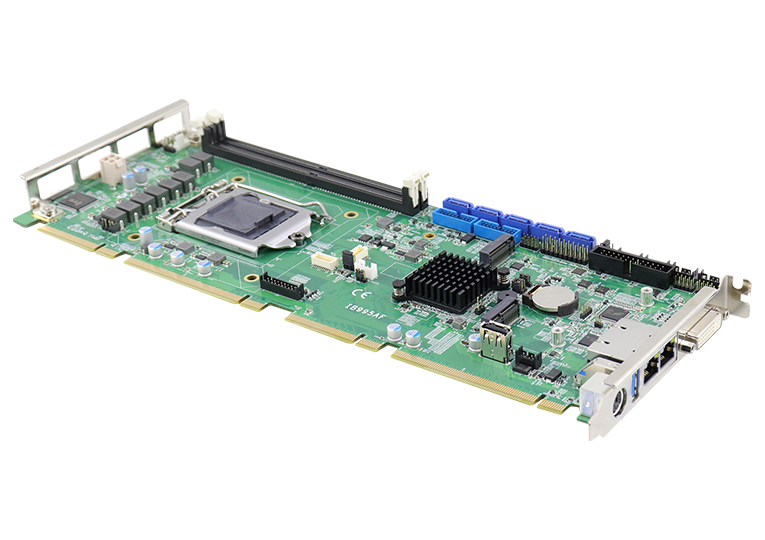

 IB995 Full-Size CPU Card

The IB995 is currently available in 3 models, integrated with different chipsets: C246 (IB995AF-C246), Q370 (IB995AF) and H310 (IB995EF) - all of which feature an M.2 storage interface with NVMe (Non-Volatile Memory Express) that enables rapid storage with write speeds of up to 3500MB/s (7 times over SATA SSDs), and up to 32 GB of DDR4-2166/2400 memory. Additionally, the board offers advanced TPM 2.0 to provide a high level of hardware-based security that carries out cryptographic operations for access control and authentication, and prevent phishing attacks. With Intel® AMT 11.6, remote maintenance of operating systems and hardware enables IT managers to protect networked computers to improve service quality and reduce service operation costs.

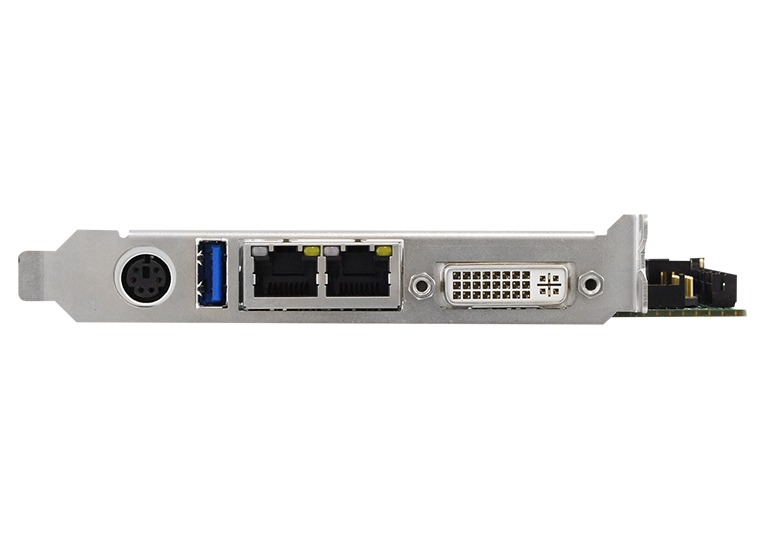

The IB995 provides a wide range of interface and expansion flexibility. These include DVI-D, DVI-I and 24-bit dual channel video outputs, and three USB 2.0, five USB 3.0, five SATA III with RAID, four serial ports and two M.2 sockets (M/E key). It also comes with two Gigabit Ethernet, a PCIe x16 (from backplane), and four PCIe x1 expansion slots (configurable as one PCIe x4). The number of USB 3.0 and SATA varies, depending on the IB995 series.

CPU Socket LGA1151
CPU 9th/8th Gen Intel® Xeon® E / Core™ i7/i5/i3 DT processors
PCH IB995AF-C246: Intel® C246 PCH
IB995AF: Intel® Q370 PCH
IB995EF: Intel® H310 PCH
Memory 2x DDR4-2166/2400MHz DIMM, Max. 32GB (ECC compatible)
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface 1x M.2 (supports NVMe)
Expansion Slots 4x PCI, 4x PCI-E (x1) or 1x PCI-E (x4)
1x PCI-E (x16) from backplane
Mini Type Slots 1x M.2 (M-Key, type:2280, supports NVMe)
1x M.2 (E-Key, type:2230, supports CNVi)
Graphics Controller Intel® UHD Graphics P630
Video Output Supports DVI-D, DVI-I, 24-bit dual channel LVDS
Ethernet IB995AF-C246& IB995AF: Intel® I219LM Gigabit LAN PHY
IB995EF:
Intel® I219V Gigabit LAN PHY
Intel® I211AT or I210AT Gigabit LAN (as 2nd LAN)
IB995AF-C246: Intel® I210AT Gigabit LAN (as 2nd LAN)
I/O Chip Fintek F81964D-I
Serial Port 1x RS232/422/485 (jumperless selection)
3x RS232
USB 2.0 2x USB 2.0 on board
1x USB 2.0 via on board USB vertical connector
1x USB 2.0 via M.2 (E-key)
USB 3.X 5x USB 3.0 on board for IB995AF series
3x USB 3.0 on board for IB995EF
Serial ATA 5x SATA III for IB995AF-C246
3x SATA III for IB995AF
2x SATA III for IB995EF
Audio Intel® PCH built-in HD audio controller + Realtek ALC888S codec
TPM TPM (2.0)
Others Digital I/O (4-in/ 4-out), RAID, iAMT (11.6)
Dimensions (L X W) 338mm x 126mm (13.3" x 4.96")
Power Consumption Intel® Xeon processor i7-9700K w/ 2x DDR4 2133 16GB
+12V: 8.21A
+5VSB: 0.26A
+5V: 1.16A
+3.3V: 0.6A
Operating Temperature 0°C ~ 60°C(32°F ~ 140°F)
Storage Temperature -20°C ~ 80°C(-4°F ~ 140°F)
Relative Humidity 90%(non-condensing @60°C)
IB995AFS-C246 LGA1151 C246 PICMG1.3 Full-Size CPU Card w/ DVI-I, DVI-D, LVDS, Dual Gigabit LAN, iAMT (11.6), 5x SATA III
*(S) means with Realtek ALC888S codec
IB995AFS LGA1151 Q370 PICMG1.3 Full-Size CPU Card w/ DVI-I, DVI-D, LVDS, Dual Gigabit LAN, iAMT (11.6), 3x SATA III
*(S) means with Realtek ALC888S codec
IB995EFS LGA1151 H310 PICMG1.3 Full-Size CPU Card w/ DVI-I, DVI-D, LVDS, Dual Gigabit LAN, 2x SATA III
*(S) means with Realtek ALC888S codec
