Embedded Computing

IB996

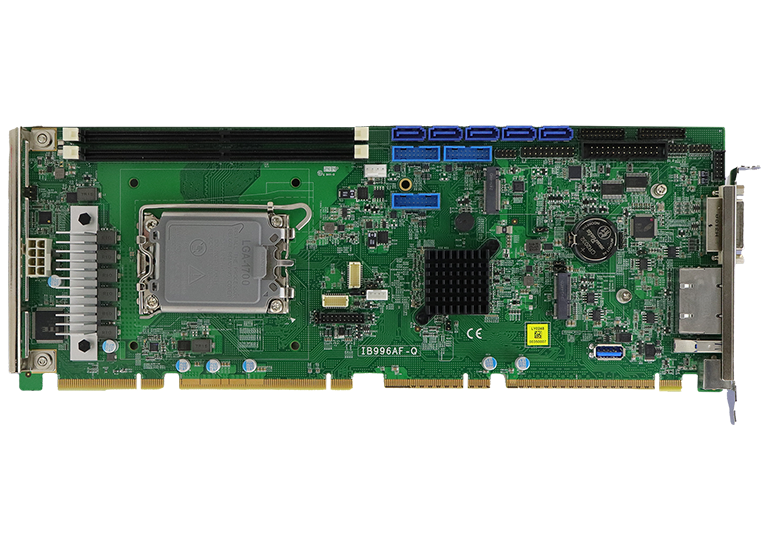

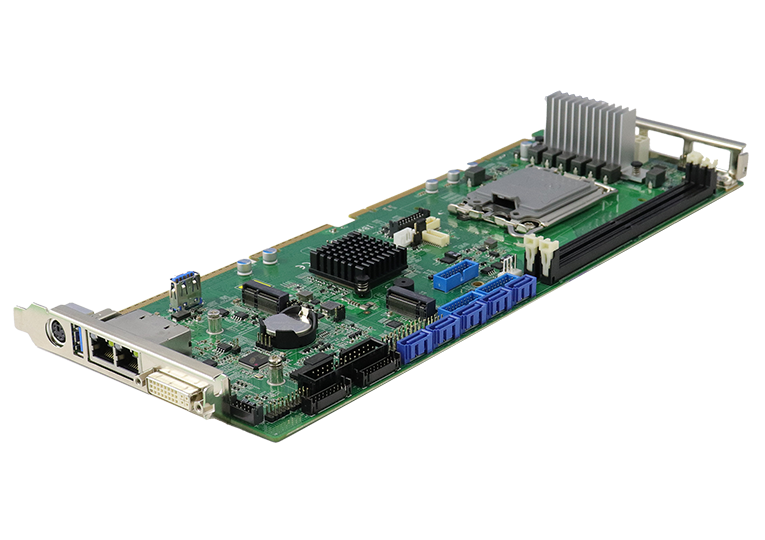

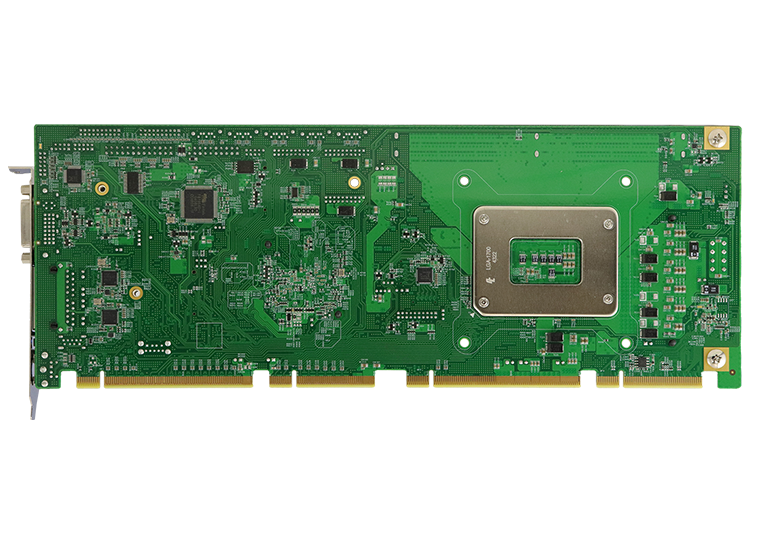

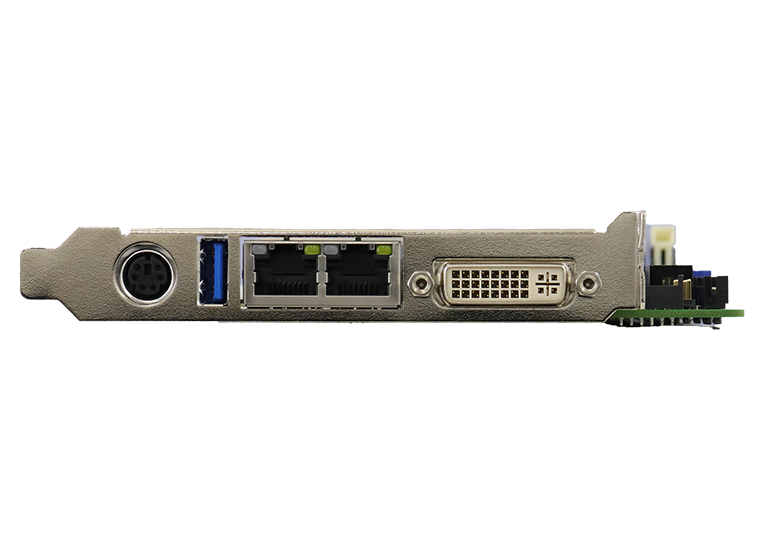

14th/13th/12th Gen Intel® Core™ DT processors (RPL-S Refresh Platform) PICMG 1.3 with Intel® Q670E PCH Full-Size CPU Card

  • 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Desktop Processors
  • 2x DDR5 DIMM, Max. 64GB
  • 2x Intel® 2.5G LAN
  • Intel® processor integrated Xe graphics, supports DVI-I & LVDS & DVI-D
  • 8x USB 3.2, 5x SATA III, 4x COM
  • 2x M.2 socket (M-Key/E-Key)
  • NEW
CPU Socket LGA1700
CPU 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 processors
PCH Intel® Q670E PCH
Memory 2x DDR5-5600MHz DIMM, Max. 64GB, Non-ECC
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface 1x M.2 (supports NVMe)
Expansion Slots 4x PCI, 4x PCI-E (x1) or 1x PCI-E (x4)
1x PCI-E (x16) from backplane
Mini Type Slots 1x M.2 (M-Key, type:2280, supports NVMe)
1x M.2 (E-Key, type:2230, supports CNVi)
Graphics Controller Intel® DT processor integrated Xe graphics
Video Output Supports DVI-I, LVDS, DVI-D
Ethernet Intel® I226LM 2.5G LAN
Intel® I226V 2.5G LAN (as 2nd LAN)
I/O Chip Fintek F81966AB-I
Serial Port 1x RS232/422/485 (jumperless selection), 3x RS232
USB 2.0 1x USB 2.0 via M.2 (E-Key)
USB 3.X 6x USB 3.2 on board
1x USB 3.2 on edge IO
1x USB 3.2 Type-A on board (vertical type)
Serial ATA 5x SATA III
Audio Intel® PCH built-in HD audio controller + Realtek ALC888S codec
TPM TPM (2.0)
Others Printer Port, Digital I/O (4-in/ 4-out), RAID, iAMT (16.1)
Dimensions (L X W) 338mm x 126mm (13.3" x 4.96")
Power Consumption TBD
Operating Temperature 0°C ~ 60°C(32°F ~ 140°F)
Storage Temperature -20°C ~ 80°C(-4°F ~ 140°F)
Relative Humidity 90%(non-condensing @60°C)
IB996AF-Q LGA1700 Q670E PICMG1.3 Full-Size CPU Card w/ DVI-I, LVDS, DVI-D, 2.5G LAN, iAMT (16.1), 5x SATA III
DATASHEETS IB996
CATALOGS Embedded Computing (Vol.23)
DRIVERS - BOARDS IB996 Driver DVD
