Embedded Computing
ET860

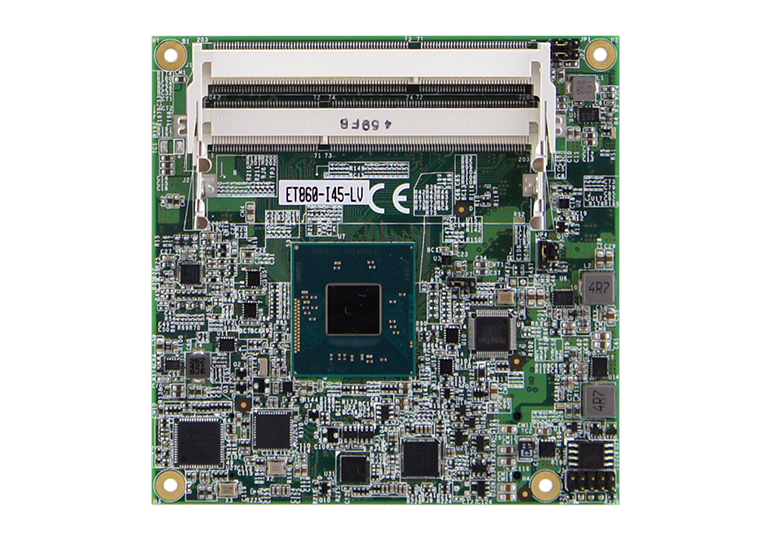

Intel® Atom® E3845/E3827 COM Express Type-6 CPU Module
- Onboard Intel® Atom® Processor E3845/E3827
- 2x DDR3L SO-DIMM, Max. 8GB
- Single Gigabit LAN via Carrier Board (IP411)
- 2x SATA II, 1x USB 3.0, 8x USB 2.0, 2x COM via Carrier Board (IP411)
- Supports 2x independent displays, DisplayPort/CRT/LVDS via Carrier Board (IP411)
- Supports HD audio via Carrier Board (IP411)
- Wide-range operating temperature from -40°C to 85°C
| CPU | Intel® Atom® Processor E3845/E3827 |
| PCH | Integrated in Intel® Atom® SoC |
| Memory | 2x DDR3L@1.35V SO-DIMM, Max. 8GB (Non-ECC) |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | N/A |
| Expansion Slots | 1x PCI-E(x1) |
| Graphics Controller | Intel® Atom® E3845/E3827 SoC integrated graphics Supports CRT, DisplayPort & LVDS |
| Video Output | 24-bit single-channel LVDS on carrier board (IP411) |
| Ethernet | 1x Intel® I210IT Gigabit LAN |
| I/O Chipset | Nuvoton NCT5523D |
| Serial Port | 2x COM ports (Tx/Rx only)) |
| USB 2.0 | 8x USB 2.0 via carrier board (Supports 6x USB 2.0 only on IP411) |
| USB 3.X | 1x USB 3.0 via carrier board (IP411) |
| Serial ATA | 2x SATA III ports via carrier board (IP411) |
| Audio | Intel® Atom® E3845/E3827 SoC built-in audio with Realtek ALC662 or ALC888S codec on carrier board (IP411) |
| TPM | N/A |
| Others | MicroSD slot on board@ rear side Digital I/O (4-in / 4-out) on carrier board (IP411) |
| Dimensions (L X W) | 95mm x 95mm (3.74" x 3.74") |
| Power Consumption | Intel® Atom® E3845 1.91GHz w/ 2x 2GB DDR3L-1600 +12V: 0.91A; +5V: 0.13A; +5VSB: 0.05A; +3.3V: 0.24A |
| Operating Temperature | -40°C~85°C (-40°F~185°F) |
| Storage Temperature | -40°C~90°C (-40°F~194°F) |
| Relative Humidity | 90% (non-condensing @60°C) |
| ET860-i45-LV | COM Express (Type-6) CPU Module w/ Intel® Atom® Processor E3845 (1.91GHz) SoC, DDR3L dual-channel memory, LVDS |
| ET860-i27-LV | COM Express (Type-6) CPU Module w/ Intel® Atom® Processor E3827 (1.75GHz) SoC, DDR3L dual-channel memory, LVDS |

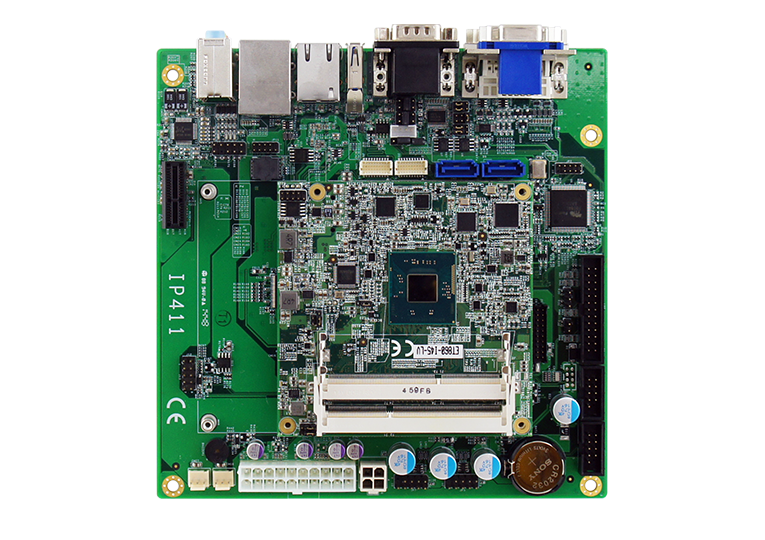

| IP411 | Mini-iTX COM Express (Type-6) Carrier Board |
| HSET860-BGA-A | Heatsink for ET860 |
| HSET860-BGA-1 | Heat Spreader for ET860 |
| DATASHEETS | ET860 |
| CATALOGS | Embedded Computing (Vol.23) |
| MANUALS | ET860 COMe Carrier Board Design Guide |
Drivers
| Model | Chipset | Video | Audio | Network | Others |
| ET860 |
Intel Chipset Driver Windows 7 & 8 |
Intel HD Graphics Driver Windows 7 (32 bit) |
Realtek High Definition Audio Driver Windows 7 & 8 |
Intel LAN Driver Windows 7 & 8 |
Intel USB 3.0 Driver Windows 7Intel TXE Driver Windows 7 & 8 |
