Embedded Computing

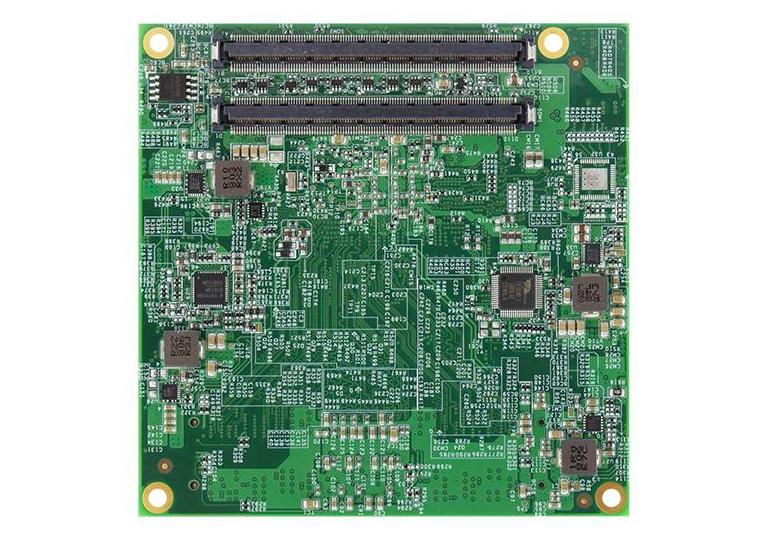

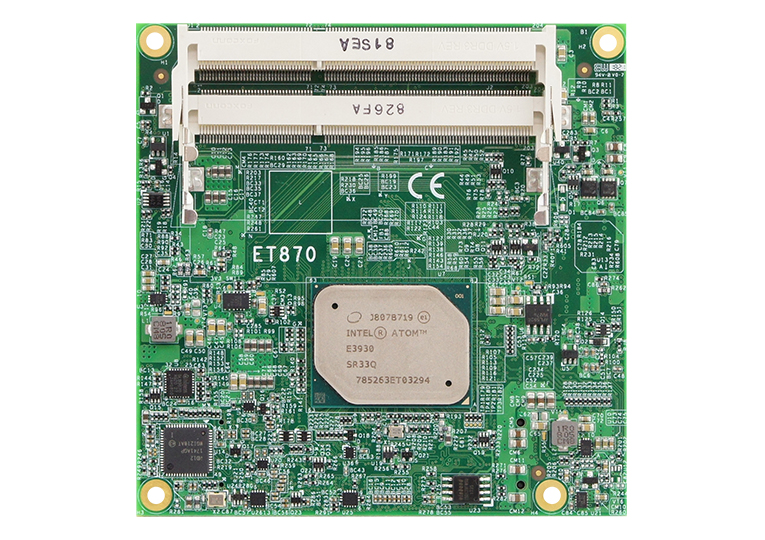

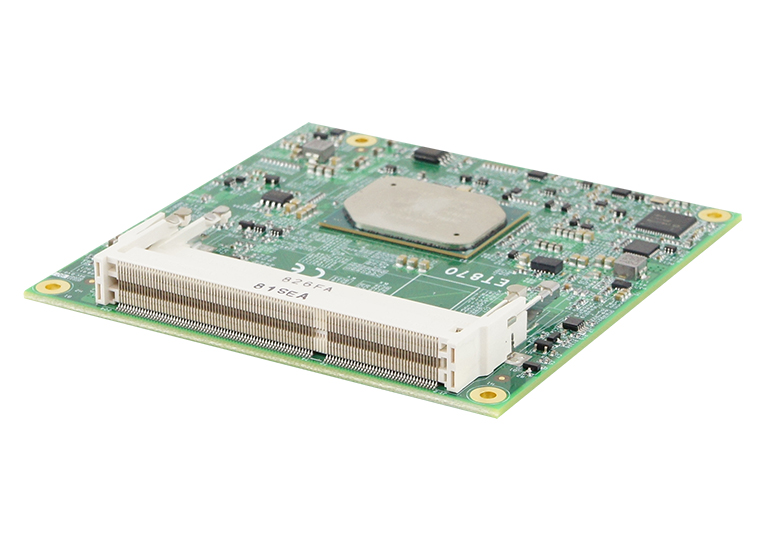

ET870
Intel® Atom® x7/ x5 COM Express Type 6 (R3.0) CPU Module
- Onboard Intel® Atom® x7-E3950/ x5-E3940/ x5-E3930 Processor [i-Temp support]
- 2x DDR3L-1866 SO-DIMM sockets, Max. 16GB
- Supports 2x independent displays, DisplayPort/ DVI-D/ LVDS or eDP via Carrier Board (IP419)
- Supports HD audio via Carrier Board (IP419)
- Wide-range operating temperature from -40°C to 85°C
| CPU | Intel Atom® x7-E3950 Processor (1.6GHz~2.0GHz) Intel Atom® x5-E3940 Processor (1.6 GHz~1.8GHz) Intel Atom® x5-E3930 Processor (1.3 GHz~1.8GHz) |
| PCH | Integrated in Intel® SoC |
| Memory | 2x DDR3L-1866 SO-DIMM sockets, Max. 16GB |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | N/A |
| Expansion Slots | 4x PCI-E(x1) |
| Graphics Controller | Intel® SoC integrated Gen9 18EUs graphics |
| Video Output | Supports 2x DDI (DisplayPort / DVI-D) 1x 24-bit dual-channel or eDP |
| Ethernet | Intel® I210IT PCI-E Gigabit LAN |
| I/O Chipset | Fintek F81804U-I |
| Serial Port | 2x COM ports (Tx/Rx only)) |
| USB 2.0 | 4x USB 2.0 via carrier board |
| USB 3.X | 3x USB 3.0 via carrier board |
| Serial ATA | 2x SATA III via carrier board |
| Audio | Intel® Atom® SoC built-in HD Audio |
| TPM | TPM (2.0) |
| Others | Digital I/O (4-in / 4-out) |
| Dimensions (L X W) | 95mm x 95mm |
| Power Consumption | Intel® Atom® E3950 1.6GHz w/ 2x 8GB DDR3L-1600 +12V: 2.18A |
| Operating Temperature | -40°C ~85°C (-40°F ~ 185°F) |
| Storage Temperature | -40°C ~ 90°C (-40°F ~ 194°F) |
| Relative Humidity | 10~90% (non-condensing) |
| ET870-I50 | COM Express (Type-6) CPU Module with Intel® Atom® x7-E3950 (2.0GHz), DDR3L dual-channel memory, eDP support |
| ET870-I50LV | COM Express (Type-6) CPU Module with Intel® Atom® x7-E3950 (2.0GHz), DDR3L dual-channel memory, LVDS support |
| ET870-I40 | COM Express (Type-6) CPU Module with Intel® Atom® x5-E3940 (1.8GHz), DDR3L dual-channel memory, eDP support |
| ET870-I40LV | COM Express (Type-6) CPU Module with Intel® Atom® x5-E3940 (1.8GHz), DDR3L dual-channel memory, LVDS support |
| ET870-I30 | COM Express (Type-6) CPU Module with Intel® Atom® x5-E3930 (1.8GHz), DDR3L dual-channel memory, eDP support |
| ET870-I30LV | COM Express (Type-6) CPU Module with Intel® Atom® x5-E3930 (1.8GHz), DDR3L dual-channel memory, LVDS support |
| IP419 | Mini-ITX COM Express Type-6 (R3.0) Carrier Board |
| HSET870-A | Heatsink for ET870 |
| HSET870-1 | Heat spreader for ET870 |
| DATASHEETS | ET870 |
| CATALOGS | Embedded Computing (Vol.23) |
| MANUALS | COMe Carrier Board Design Guide ET870 |
Drivers
| Model | Chipset | Video | Audio | Network | Others |
| ET876/ET875/ET870 |
Intel Chipset Windows 10 |
Intel Apollolake Graphics Windows 10 |
Realtek High Definition Audio Windows 10 |
Intel I21x Windows 10 |
Intel TXE Windows 10 |
