Embedded Computing

ET977

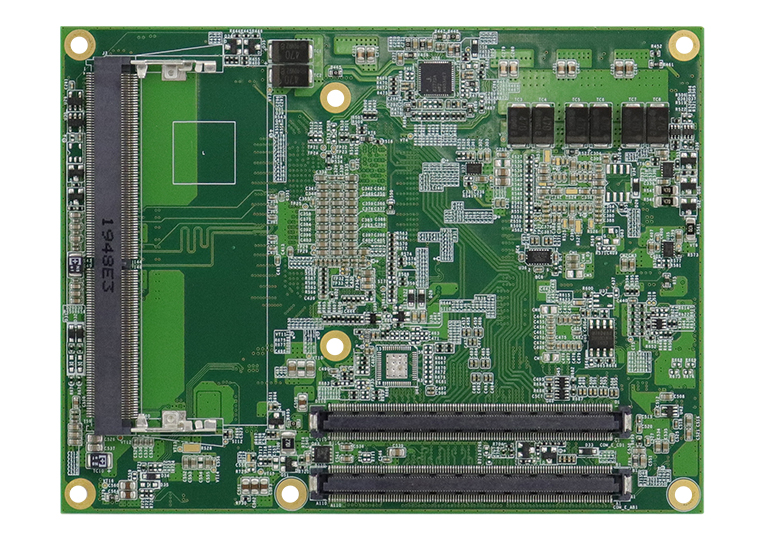

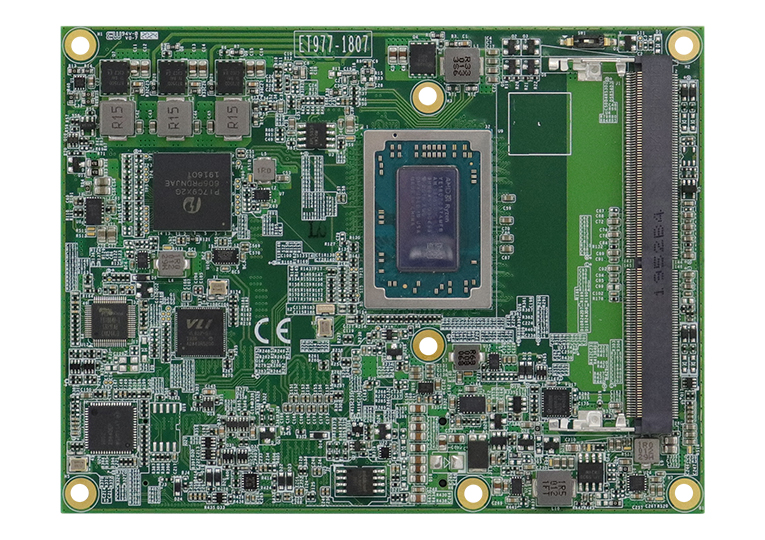

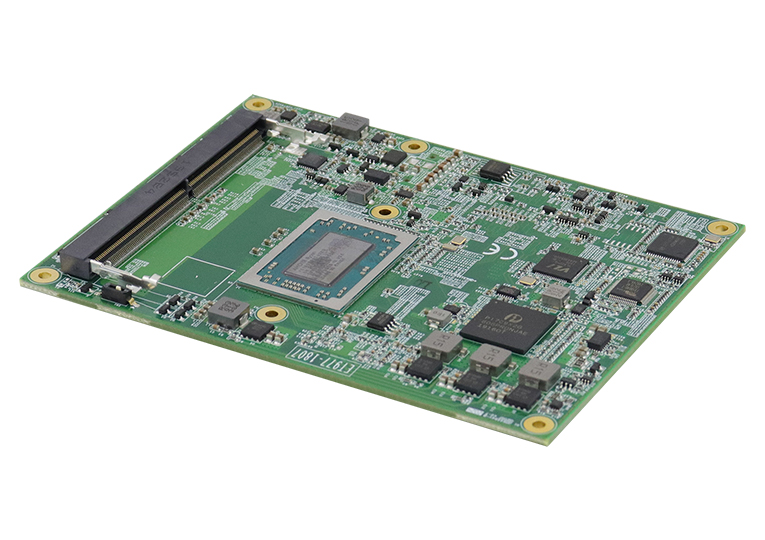

AMD Ryzen™ Embedded V1000/ R1000 Series COM Express Type-6 (R3.0) CPU Module

  • Onboard AMD Ryzen™ Embedded V1000/ R1000 Series
  • 2x DDR4-2400 SO-DIMM sockets, Max. 32GB, ECC compatible
  • Supports 4x independent displays (HDMI/DVI/DisplayPort, LVDS, and eDP) via the carrier board
  • 4x USB 3.1, 8x USB 2.0, 2x SATA III
  • Supports TPM (2.0)
  • AMD Ryzen Embedded

The ET977 is a low-power COM Express Basic Type 6 modules based on the AMD Ryzen™ Embedded SoC to enable next-generation embedded designs. The series targets a wide range of applications including AIoT, retail, medical, transportation, automation and gaming fields. It allows users to deliver basic embedded solutions with a new class of performance and power efficiency. Built with the AMD Ryzen™ Embedded V1000/R1000 SoC, the board is very suitable for modular designs and platforms that require high scalability to meet customers' time-to-market needs.


 ET977 COM Express

The new ET977 provides powerful computing with 'Zen' CPU cores and excellent image processing performance with the integrated AMD Radeon Vega graphics with 3 compute units to deliver stunningly visual experiences. It features four (V1000) or three (R1000) independent displays (HDMI/DVI/DP, LVDS or eDP) with up to 4K UltraHD resolutions and two DDR4 SO-DIMM slots for up to 32GB memory and with ECC compatibility.

The unit provides a wealth of advanced connectivity options including 2x serial, 4x USB 3.1, 8x USB 2.0, and 2x SATA 6Gb/s ports, as well as high-speed PCIe 3.0 lanes. Measuring 125mm x 95 mm, the Computer-on-Module is available in V1807B and V1605B variants for high computing and R1606G variant for low-power applications. Both Windows 10 and Linux Ubuntu are supported.

CPU Onboard AMD Ryzen™ Embedded V1000 / R1000 Series
PCH N/A
Memory 2x DDR4 SO-DIMM, Max. 32GB
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface N/A
Expansion Slots V1000 Series: 1x PEG(8x)(Gen3), 4x PCI-E(1x)(Gen3), 2x PCI-E(1x)
R1000 Series: 1x PEG(4x)(Gen3), 3x PCI-E(1x)(Gen3), 3x PCI-E(1x)
Graphics Controller AMD Radeon™ Vega GPU integrated
Video Output V1000 Series: 3x DDI
R1000 Series: 2x DDI
1x LVDS or 1x eDP (By option)
Ethernet Intel® I211AT or I210AT Gigabit LAN
I/O Chipset Fintek F81804U-I
Serial Port 2x UART (Tx/Rx only)
USB 2.0 8x USB2.0 Port [USB 2.0 Hub x 3 ports, (VL822-Q7)]
USB 3.X 1x USB3.1 port (10G), 3x USB3.1 ports (VL822-Q7)
Serial ATA 2x SATA III via carrier board
Audio AMD Ryzen™ built-in HD audio controller
TPM TPM (2.0)
Others Digital I/O (4in/4-out)
Dimensions (L X W) 125mm x 95mm (4.92" x 3.74")
Power Consumption AMD V1605B w/ 2x 8GB DDR4-2133, +12V: 3.28A
AMD R1606G w/ 2x 8GB DDR4-2133, +12V: 3.43A
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 90% (non-condensing @60°C)
ET977-1605LV COM Express (Type-6) CPU Module with AMD Ryzen™ V1605B QC APU (2.0GHz~3.6GHz), DDR4 dual-channel memory, LVDS support
ET977-1606LV COM Express (Type-6) CPU Module with AMD Ryzen™ R1606G DC APU (2.6GHz~3.5GHz), DDR4 dual-channel memory, LVDS support
ET977-1505LV COM Express (Type-6) CPU Module with AMD Ryzen™ R1505G DC APU (2.4GHz~3.5GHz), DDR4 dual-channel memory, LVDS support
HSET977-A Heatsink with Fan for ET977
HSET977-1 Heat Spreader for ET977

Drivers

Model Chipset Video Audio Network Others
ET977

AMD Graphics

Windows10

Realtek High Definition Audio

Windows10

Intel i211 Driver

Windows10
