Embedded Computing
ET980

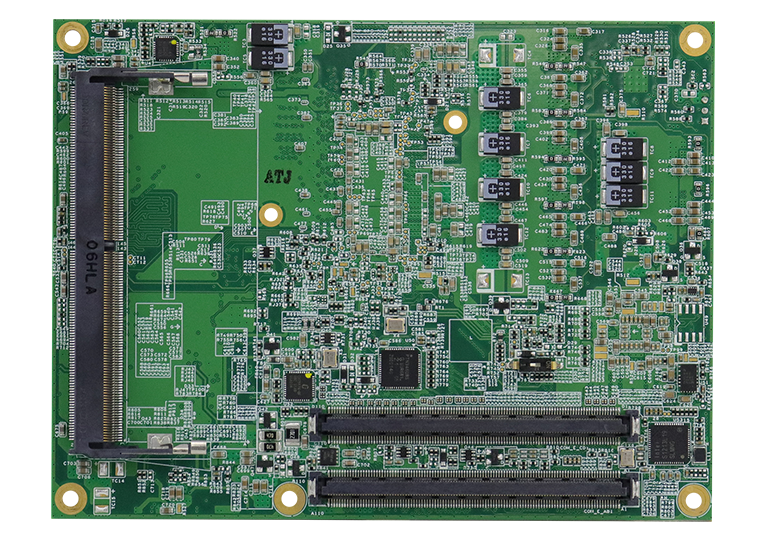

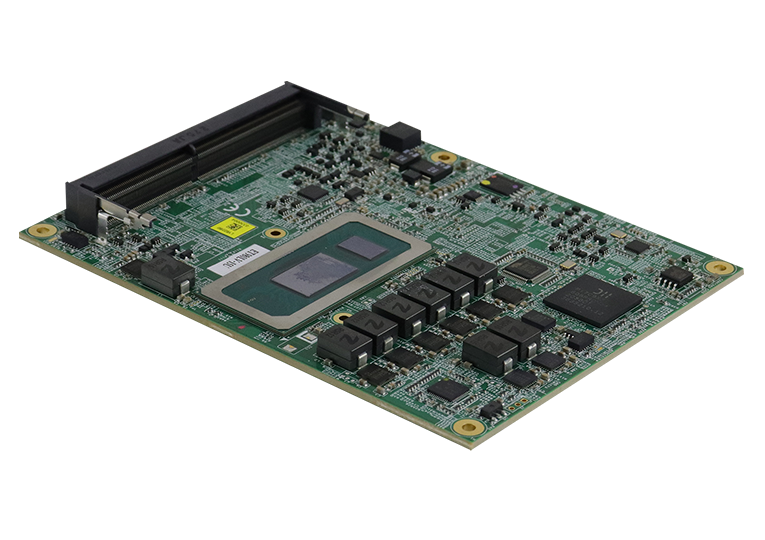

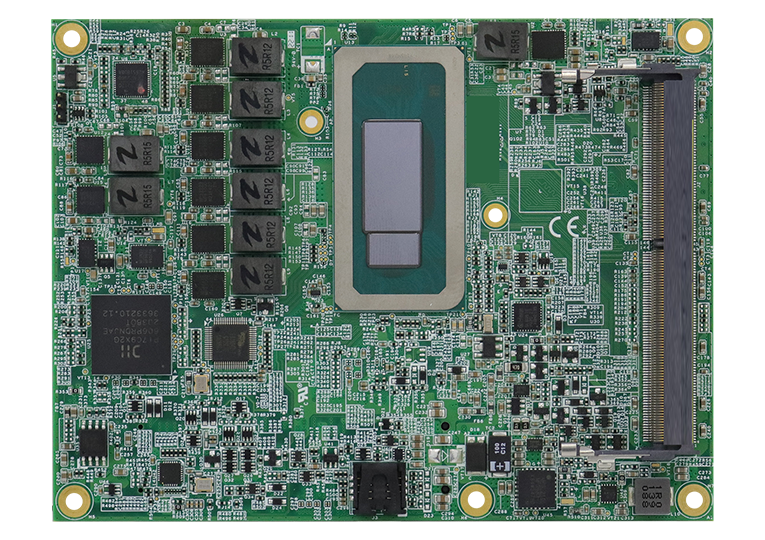

12th Gen Intel® Core™ P-series COM Express Type 6 (R3.0) CPU Module
- IBASE has added the ET980 series of COM Express modules to its portfolio. The embedded board is especially suited for applications demanding responsive technology to handle compute-intensive tasks simultaneously, such as medical instruments, industrial automation and control, robotics, and embedded gaming.
The ET980 is a COM Express CPU module supports the U-series and P-series of 12th Gen Intel® Core™ processors from i3-1220PE to i7-1265UE (12M Cache, up to 4.70GHz). It provides a platform with 10-12% boost in productivity performance compared with the previous generation. The ET980 is especially suited for applications demanding responsive technology to handle compute-intensive tasks simultaneously, such as medical instruments, industrial automation and control, robotics, and embedded gaming.
The ET980 is ideally suitable for use in high-performance IoT edge computing and offers our customers the shortest time to market. Its upgradability and versatile design provide a competitive advantage, enabling lower cost of ownership through high configurability and optimum scalability.
The board offers fast data transmission with an Intel® I226LM 2.5 GbE controller that is Time Sensitive Networking (TSN) capable. The integrated Intel® UHD Graphics drives independent display outputs (HDMI, DP, VGA, LVDS or eDP) to boost productivity levels. Two DDR4 SO-DIMM sockets are available with a capacity of 64GB to meet the needs of demanding real-time applications. The COM Express Type 6 module also supports 4x USB 3.2, 8x USB 2.0, 2x SATA III, 2x COM ports and 1x PCI-E(x16), 1x PCI-E(x4), 4x PCI-E(x1) expansion via the carrier board.
| CPU | BGA1744 for 12th Gen Intel® Core™i7/i5/i3 processors |
| Memory | 2x DDR4-3200 SO-DIMM sockets, Max. 64GB, ECC compatible |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | N/A |
| Expansion Slots | 1x PCI-E(x16), 1x PCI-E(x4), 4x PCI-E(x1) to carrier board |
| Graphics Controller | 12th Gen Intel® Core™ P-series processor integrated graphics |
| Video Output | HDMI, DisplayPort, VGA, LVDS or eDP on carrier board |
| Ethernet | Intel® I226LM 2.5 GbE RJ45 on carrier board |
| I/O Chip | Fintek F81804U-I onboard |
| Serial Port | 2x COM ports (Tx/Rx only) |
| USB 2.0 | 8x USB2.0 via carrier board |
| USB 3.X | 4x USB3.2 (10bps) via carrier board |
| Serial ATA | 2x SATA III via carrier board |
| Audio | Built-in HD Audio controller |
| TPM | TPM (2.0) |
| Others | Digital I/O (4-in/4-out) , Watchdog timer |
| Dimensions (L X W) | 125mm x 95mm (4.92“ x 3.74“) |
| Power Consumption | TBD |
| Operating Temperature | 0°C~60°C (32°F~140°F) |
| Storage Temperature | -20°C~80°C (-4°F~176°F) |
| Relative Humidity | 90% (non-condensing @60) |
| ET980LV-I7U | COM Express (Type 6) CPU Module w/ Intel® Core™ i7-1265UE onboard, support LVDS |
| ET980LV-I7P | COM Express (Type 6) CPU Module w/ Intel® Core™ i7-1270PE onboard, support LVDS |
| ET980LV-I5U | COM Express (Type 6) CPU Module w/ Intel® Core™ i5-1245UE onboard, support LVDS |
| ET980-I5U | COM Express (Type 6) CPU Module w/ Intel® Core™ i5-1245UE onboard, support eDP |
| ET980LV-I5P | COM Express (Type 6) CPU Module w/ Intel® Core™ i5-1250PE onboard, support LVDS |
| ET980LV-I3P | COM Express (Type 6) CPU Module w/ Intel® Core™ i3-1220PE onboard, support LVDS |
| IP414 | ATX COM Express Type-6 carrier board, Supports ATX |
| IP414-DC | ATX COM Express Type-6 carrier board, Supports DC-in (+8V ~ +20V) |
| DATASHEETS | ET980 |
| CATALOGS | 2022 Embedded Computing Catalog |
