Embedded Computing

ET839

Intel® Atom® Processor E3845 ETX CPU Module

  • Onboard Intel® Atom® Processor E3845, 1.91GHz
  • 1x DDR3L SO-DIMM, Max. 8GB
  • Supports CRT, LVDS and 1x DDI
  • 1x 10/100Mbps LAN
  • Watchdog timer, LPC to ISA
  • 1x SATA II, 2x IDE, 4x USB 2.0, 2x COM
  • Wide-range operating temperature

The ET839 ETX module supports industrial wide temperature (-20°C ~70°C) and low heat dissipation efficiency, making it ideal for use in fanless applications in harsh environments. The platform is powered by a 1.91GHz quad-core Intel® Atom® Processor E3845 SoC that features scalable performance that allows simple replacement or upgrade of current Bay Trail-I ETX solutions without changing the baseboard, regardless of the chassis and thermal designs.

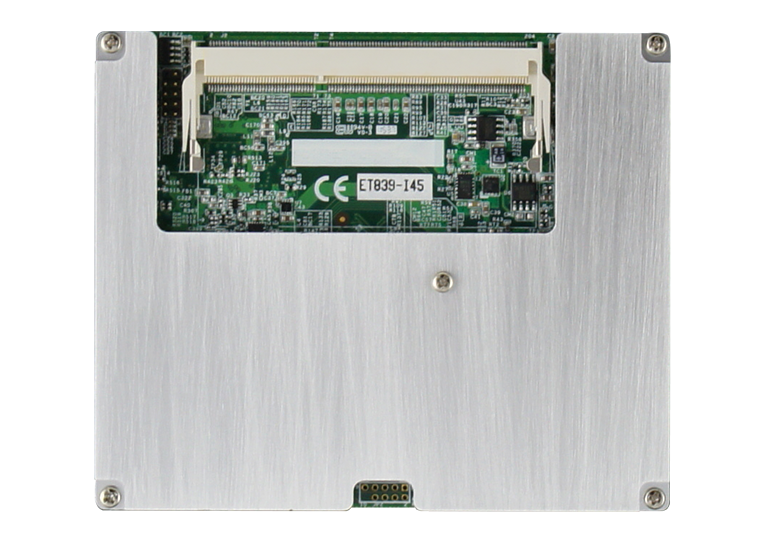

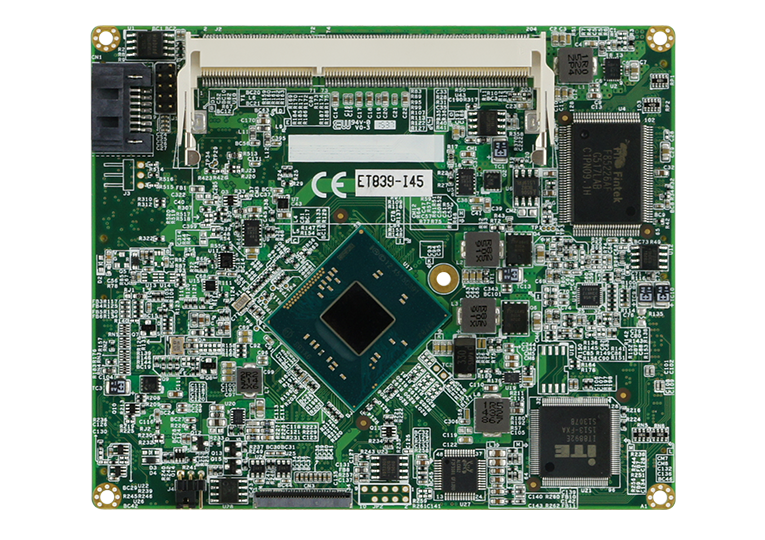

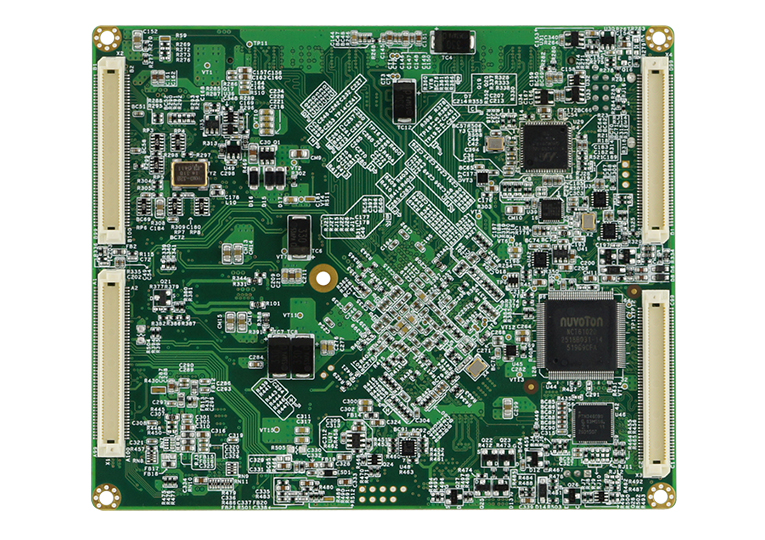

ET839 ETX module

The ET839 ETX module also gives customers with flexibility to design different carrier boards with different I/O interface, connectors and functionality specific to their needs and reduce time-to-market.

The new ET839 (95 x 114mm) supports up to 8GB of DDR3L SO-DIMM system memory. Integrated graphics enable dual independent displays via 24-bit dual channel LVDS and CRT graphics outputs with resolutions up to 1600 x 1200 and 2048 x 1536 respectively. Other interfaces and expansion provided include 4x USB, SATA II, 2x IDE, 2x COM, audio, LAN, LPT, PS/2 keyboard/mouse, as well as PCI and ISA bus.

CPU Intel® Atom® Processor E3845 SoC, 1.91GHz
PCH Integrated in Intel® Atom® SoC
Memory 1x DDR3L SO-DIMM, Max. 8GB
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface N/A
Expansion Slots 4x ETX connectors for PCI bus, USB, audio, CRT, LVDS, LAN, COM ports, LPT, IDE, PS/2 keyboard/mouse and ISA bus
Graphics Controller Intel® Atom® SoC integrated Gen. 7 4Eus graphics
Video Output Supports CRT, 24-bit dual-channel LVDS & 1x DDI port
Ethernet Realtek 8106E 10/100Mbps LAN
I/O Chipset Nuvoton NCT6102D 1x keyboard, 1x mouse, 1x printer
Serial Port 2x RS232
USB 2.0 4x USB 2.0 via Carrier Board
USB 3.X N/A
Serial ATA 1x SATA 2.0 port on board (3.0Gb/sec)
Audio Intel® Atom® SoC built-in HD Audio w/ Realtek ALC888S codec
TPM N/A
Others Fintek F85226 ( LPC to ISA)
Dimensions (L X W) 95mm x 114mm (3.74" x 4.49")
Power Consumption Intel® Atom® E3845 1.91GHz w/ 2x 4GB DDR3L-1600 +5V : 1.92A
Operating Temperature -20°C~70°C (-68°F~158°F)
Storage Temperature -20°C~80°C (-68°F~176°F)
Relative Humidity 10%~90% (non-condensing)
ET839D1S-I45 ETX (3.0) CPU Module w/ Intel® Atom® processor E3845 SoC, CRT, LVDS and 10/100 LAN, heat spreader included
*(S) means with Realtek ALC888S codec
IP412 ETX(3.0) carrier board
HSET838-BGA-1 Heat spreader for ET839
DATASHEETS ET839
CATALOGS Embedded Computing (Vol.22)
MANUALS ET839
