Embedded Computing

IP412

ETX (3.0) Carrier Board

  • Supports 1x ISA, 3x PCI expansion slots

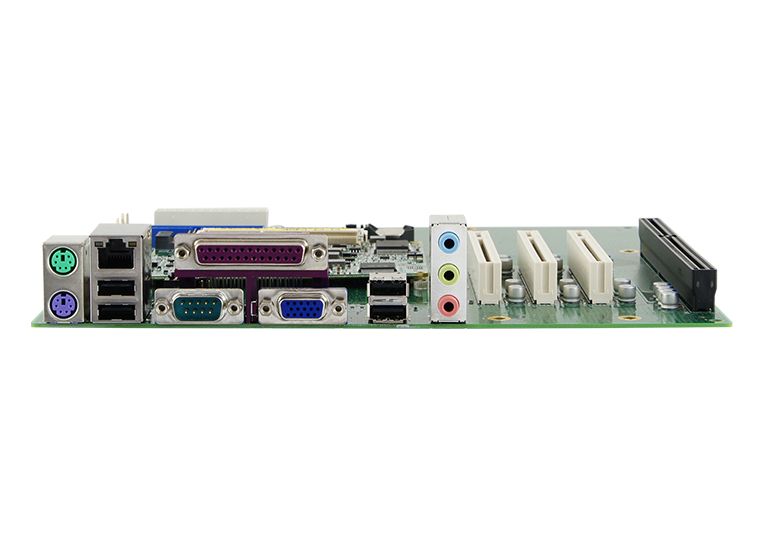

  • Edge connector for PS/2 keyboard & Mouse, RJ45 + dual USB (2.0), COM, VGA, printer port, dual USB2.0, audio connector (Line-out, Line-in & Mic.)
  • Onboard header for COM, LVDS, IDE, ETX connectors
Form Factor Micro ATX
Module Interface ETX (3.0)
Expansions slots 3x PCI slot
1x ISA slot
Mini Type Slots N/A
Video Output Derived from ETX module
1x CRT
1x 18/24-bit dual-channel LVDS
Ethernet Derived from ETX module for 10/100 LAN
I/O Chip N/A
Serial Port 1x DB-9 connector for COM1 (RS232/422/485)
1x pin header for COM2 (RS232 only)
USB 2.0 Derived from ETX module
4x USB 2.0
USB 3.0/ 3.1 N/A
Serial ATA N/A
Audio Derived from ETX module
Via audio jack for AC97 out
Digital I/O 4-in/4-out
Watchdog 256 levels
KB/MS PS/2 KB/MS stack connector
Parallel 1x Parallel port connector
Dimensions (L X W) 244mm x 244mm (9.6" x 9.6")
Power 20+4-pin connector for ATX
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 10% ~ 90% (non-condensing)

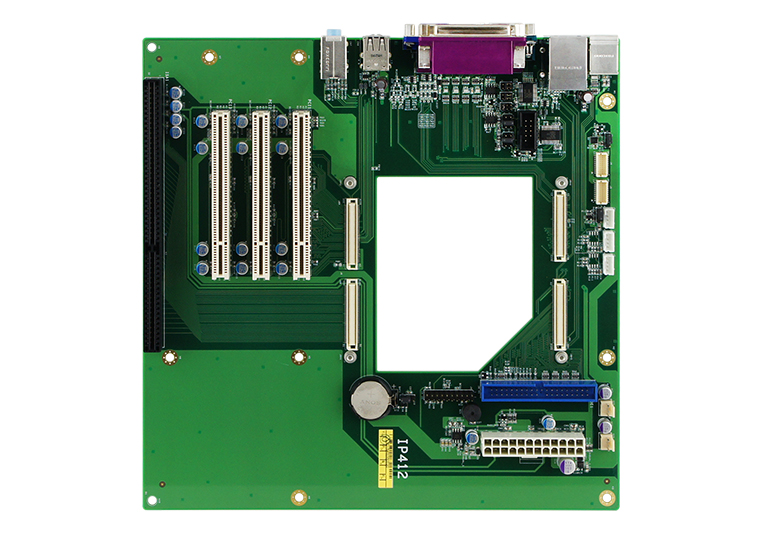

IP412 Mico ATX ETX (3.0) carrier board
