Embedded Computing

IP416

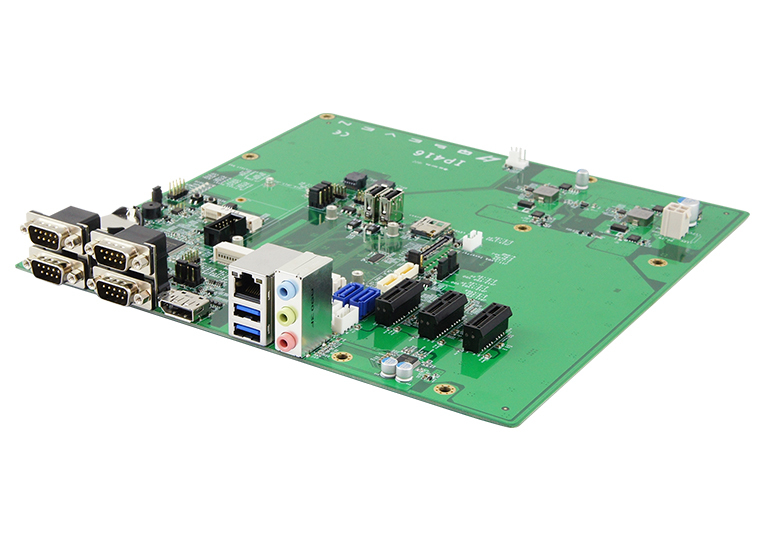

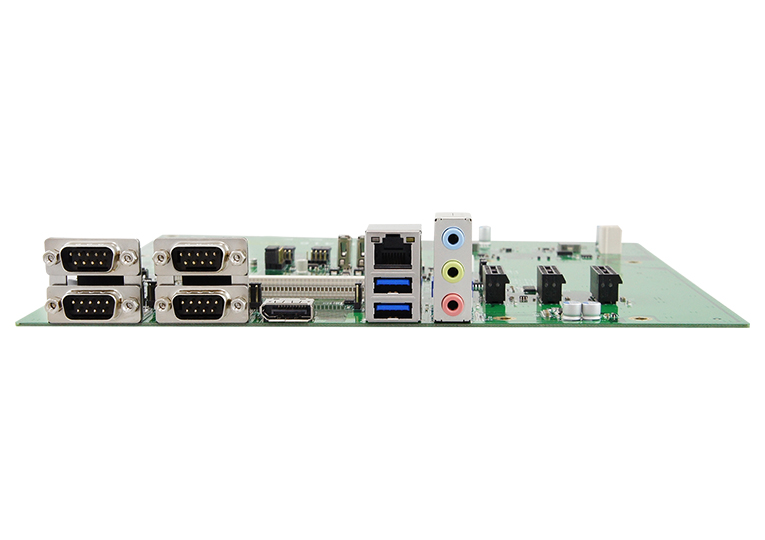

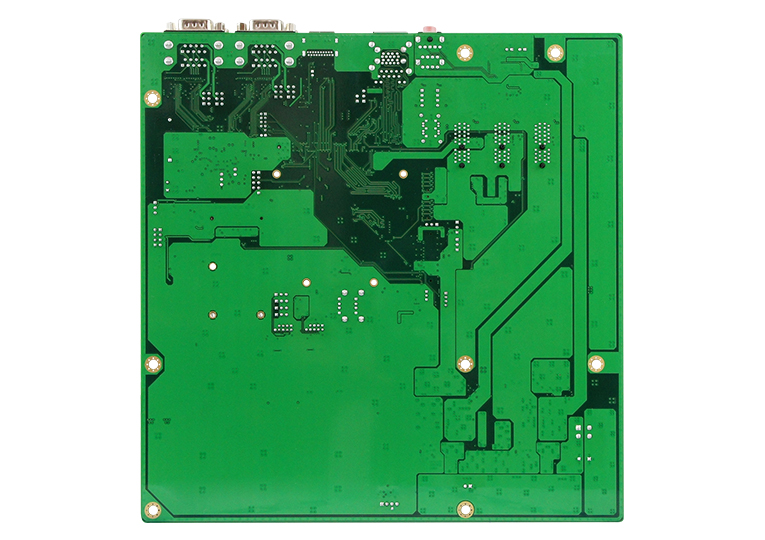

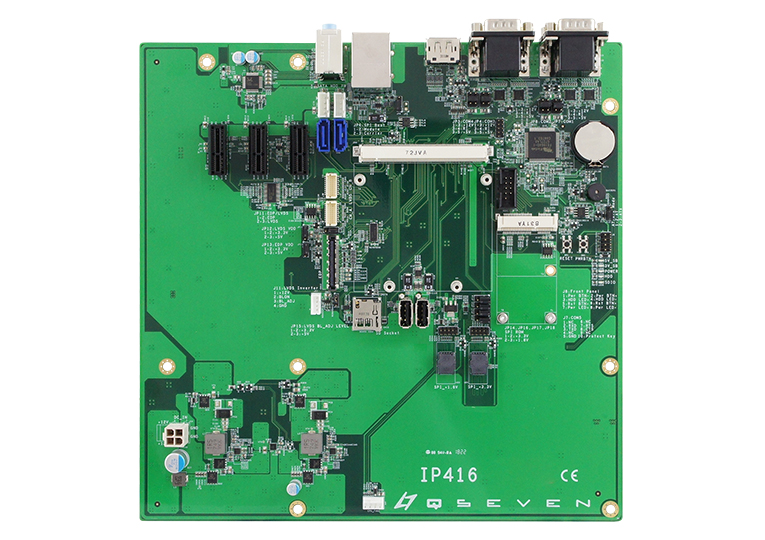

Qseven Carrier Board

  • 2x USB2.0, 2x USB3.0
  • 3x PCI-E(1x) Slots, 1x MiniPCI-E socket (Full-size)
  • Supports 1x eDP or 1x LVDS, 1x DisplayPort
  • 1x LAN connector
  • Wide Temperature
Form Factor Micro ATX
Module Interface Qseven CPU Module (R2.1)
Expansions slots 3x PCI-E(x1) slot
Mini Type Slots 1x MiniPCI-E socket (full-size, reserved one hole for half-size)
Video Output 1x DisplayPort,1x LVDS or 1x eDP (option)
Ethernet LAN: Derived from Qseven CPU module
I/O Chip Fintek F81846D-I
Serial Port 4x COM RS232 & 1x COM (Tx/Rx only) from Qseven module
USB 2.0 2x USB 2.0
USB 3.0/ 3.1 2x USB 3.0
Serial ATA 2x SATA III
Audio Built-in ALC662 or ALC888S HD audio codec
Digital I/O 4-in/4-out
Watchdog 256 levels
KB/MS Yes
Parallel N/A
Dimensions (L X W) 244mm x 244mm (9.6" x 9.6")
Power DC-in 12V
Operating Temperature -40°C~85°C ( -40°F~185°F)
Storage Temperature -40°C~90°C (-40°F~194°F)
Relative Humidity 10% ~ 90% (non-condensing)
IP416 Micro ATX Qseven Carrier Board
DATASHEETS IP416
CATALOGS Embedded Computing (Vol.23)
USER'S MANUALS IP416 V1.0
