Embedded Computing
MBB1001

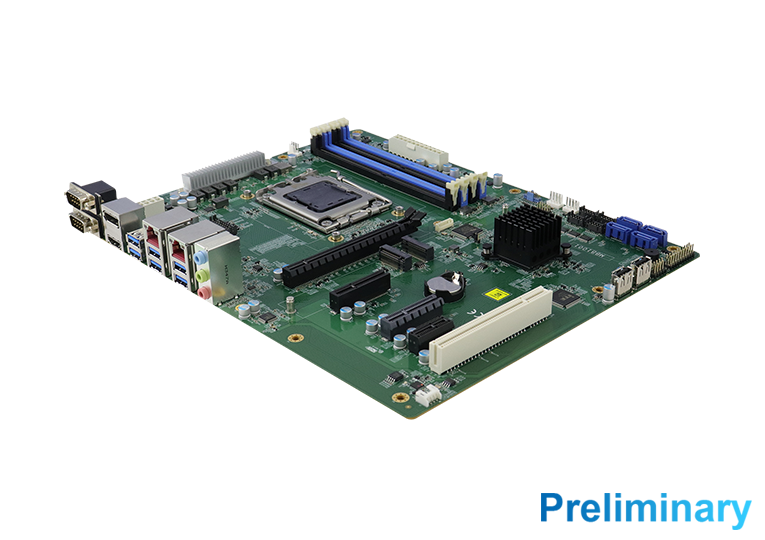

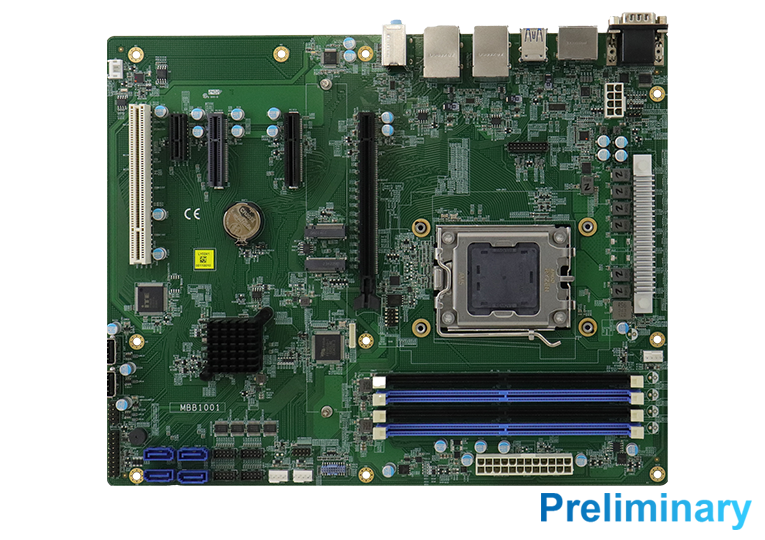

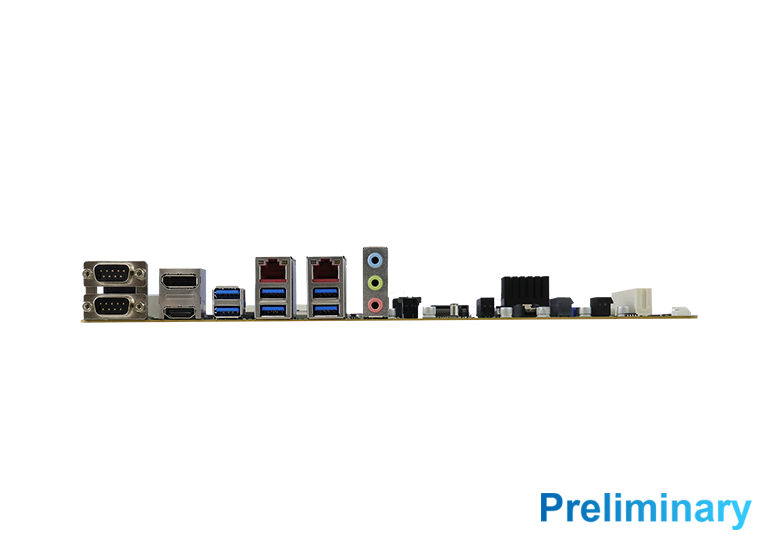

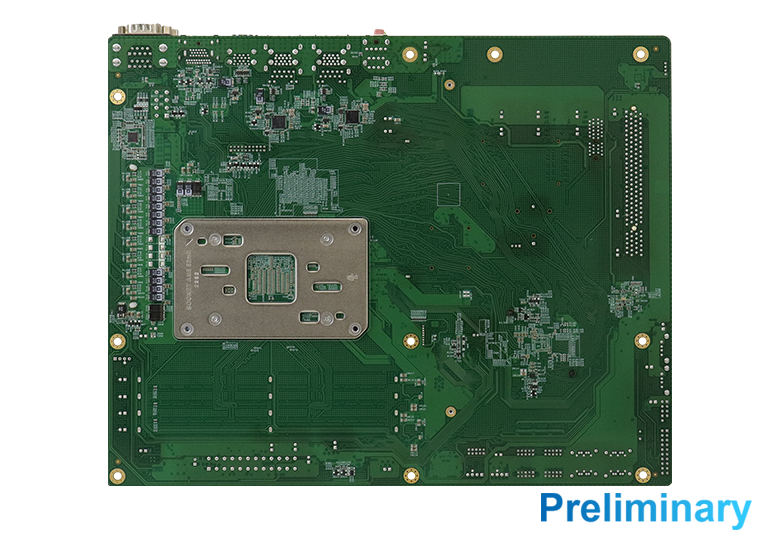

AMD Ryzen™ Embedded 7000 series ATX Motherboard
- AMD Ryzen™ Embedded 7000 Processors with B650 chipset
- Dual-channel DDR5-5200 UDIMM (4 slots), up to 128GB, ECC supported
- Triple independent display outputs: DP / HDMI / DVI-D
- Dual GbE LAN for high-speed networking
- Flexible expansion: 1x PCI-E x16 (Gen5), 1x PCI-E x4 (Gen5), 1x PCI-E x4 (Gen4), 1x PCI-E x1 (Gen3), 1x PCI slot
- 2x M.2 2280 (PCI-E x2 Gen4, NVMe), supports RAID 0, 1
| CPU Socket | LGA1718 |
| CPU | AMD Ryzen™ Embedded 7000 series |
| PCH | B650 |
| Memory | Dual Channel DDR5 5200, UDIMM 4 slots, Max. up to 128GB Supports ECC |
| BIOS | AMI |
| Watchdog Timer | 256 levels |
| H/W Monitor | Yes |
| Storage Device Interface | NVMe |
| Expansion Slots | 1x PCI-E x16 support (Gen5) / 1x PCI-E x4 support (Gen5) 1x PCI-E x4 support (Gen4) / 1x PCI-E x1 support (Gen3) / 1x PCI |
| Graphics Controller | 2x Gigabit LAN / Intel I226-V |
| Video Output | 1x HDMI 2.1 1x DP 2.0 1x DVI-D |
| Serial Port | 1x Dual DB9 stack connector for - COM #1 (RS232/422/485) (jumper-less selection) - COM #2 (RS232) 4x COM Port Header (RS232) |
| USB 2.0 | 2x USB 2.0 via pin header, 2x USB 2.0 type A vertical connector |
| USB 3.X | 4x USB 3.2 Gen 2, + 2 x USB 3.2 Gen1 With PDPC support |
| Serial ATA | 4x SATA 6Gb/s SUPPORT RAID 0, 1, 10 / UEFI and Windows 10 x64 Only (9.2 based driver) |
| Audio | 1x Triplet type jack 3 x 1 for HD audio port [Line-in / Lineout / Mic-in] Realtek ALC888S for 5.1 channel |
| Others | Digital I/O (4-in/4-out) |
| Dimensions (L X W) | 305mm x 244mm (12” x 9.6”) |
| Power Consumption | MBB1001-7645 / 7745 / 7945: AMD Ryzen™ 5 PRO 7645 3.8GHz AMD Ryzen™ 7 PRO 7745 3.8GHz AMD Ryzen™ 9 PRO 7945 3.7GHz w/ 1x 8GB DDR5-5200 UDIMM +12V: ~6.5A / +12V: ~7.0A / +12V: ~7.5A |
| Operating Temperature | 0°C~60°C ( 32°F~140°F) |
| Storage Temperature | 20°C~80°C (-4°F~176°F) |
| Relative Humidity | 95% (non-condensing @60°C) |
| MBB1001 | AMD Ryzen™ Embedded 7000 series ATX Motherboard w/ HDMI, DisplayPort, DVI-D, Dual Giga-LAN, RAID, TPM (2.0), supports ECC |
| DATASHEETS | MBB1001 |
| CATALOGS | Embedded Computing (Vol.24) |
| USER'S MANUALS | MBB1001 V1.0a |
| DRIVERS - BOARDS | MBB1001 Driver DVD |
