Embedded Computing

MBB1002

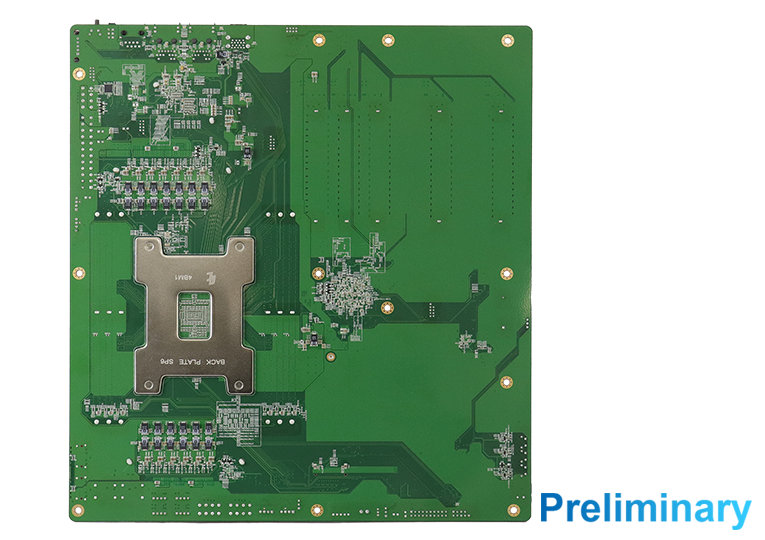

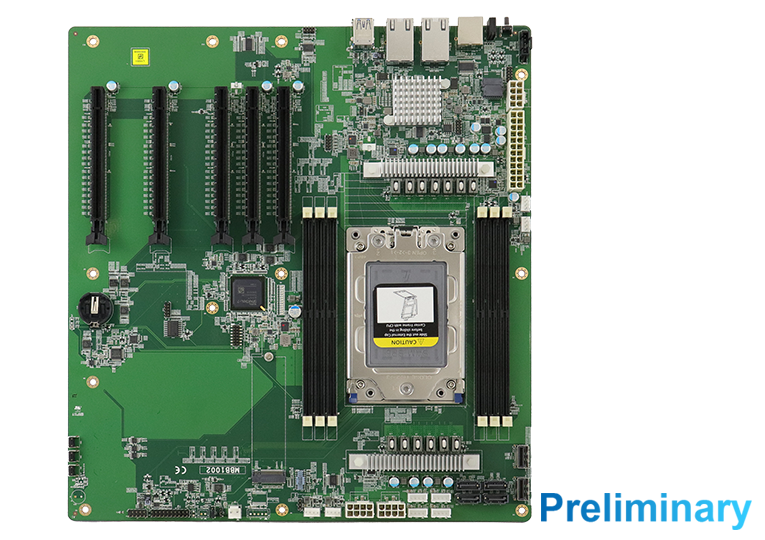

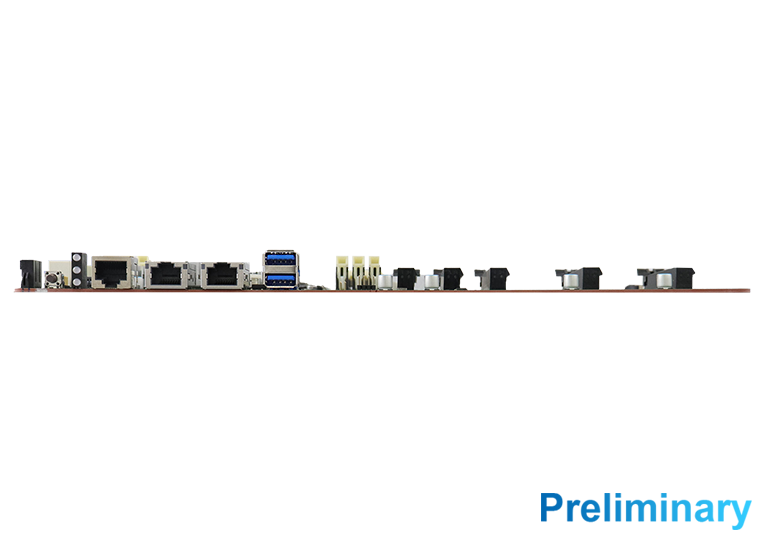

AMD EPYC Embedded 8004 Series Processors eATX Motherboard

  • AMD EPYC Embedded 8004 series CPU
  • 6x DDR5 4800 up to 576GB ECC support
  • 5x PCI-E x16 slots
  • 2x (USB 3.2 Gen1) with PDPC Support
  • 4x SATA 6Gb/s
  • 1x PCI-E Gen5 22110/ 2280, 2x MCIO x4
  • 2x Intel® X710-AT2 (Dual 10GbE port)
  • NEW
  • iSMART
CPU Socket AMD SP6 LGA 4844 (EPYC SP6 processors)
CPU AMD EPYC Embedded 8004 series
PCH N/A
Memory Six-Channel DDR5 4800, 6 slots RDIMM, Max. 576GB, supports ECC
3600/4000/4400/4800MHz, 16GB, 32GB, 64GB, 96GB
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface 4x SATA(6Gb/s)
NVMe: 1x 2280 (by PCIe Gen.5 interface)
NVMe: 2x MCIO x4 (Test by Gen.5 SSD)
Expansion Slots 5x PCI-E(x16) (Gen5.0)
Mini Type Slots N/A
Graphics Controller N/A
Video Output N/A
Ethernet 2x Intel® X710-AT2 (Dual 10GbE port)
I/O Chip TBD
Serial Port 1x External serial port (RS232)
USB 2.0 2x USB 2.0 PIN Header
USB 3.X 2x (USB 3.2 Gen1) with PDPC
Serial ATA 4x SATA (6Gb/s)
Audio N/A
TPM TPM 2.0
Others 1x 24-pin SSI power connector
3x 8-pin SSI 12V power connector
4x Fan header 4-pin (3 for system + 1 for CPU)
1x SMBus
3x LED (Power+HDD+Status refer to Genoa)
1x RTC battery on board
Dimensions (L X W) eATX (30.4 cm x 24.4 cm)
Power Consumption TBD
Operating Temperature 0°C~60°C ( 32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 0%~90% (non-condensing @60°C)
MBB1002 AMD EPYC Embedded 8004 series eATX Motherboard w/o CPU, memory, storage, supports EEC
DATASHEETS MBB1002
CATALOGS Embedded Computing (Vol.24)
