MI836

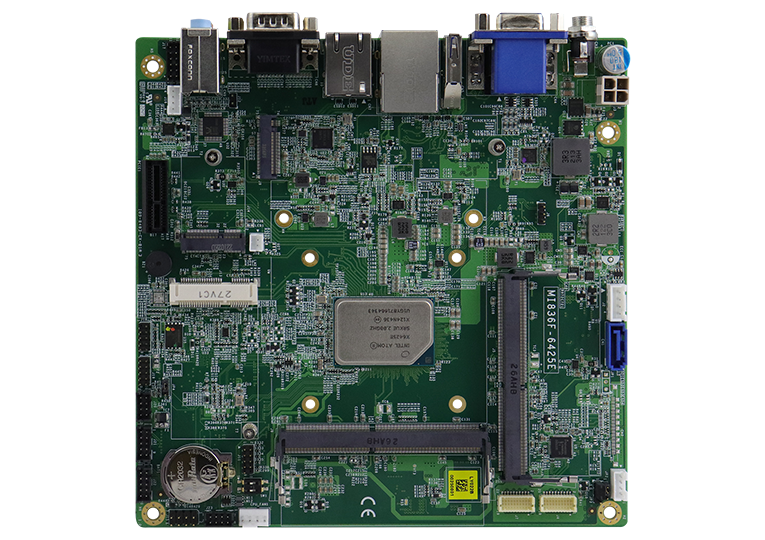

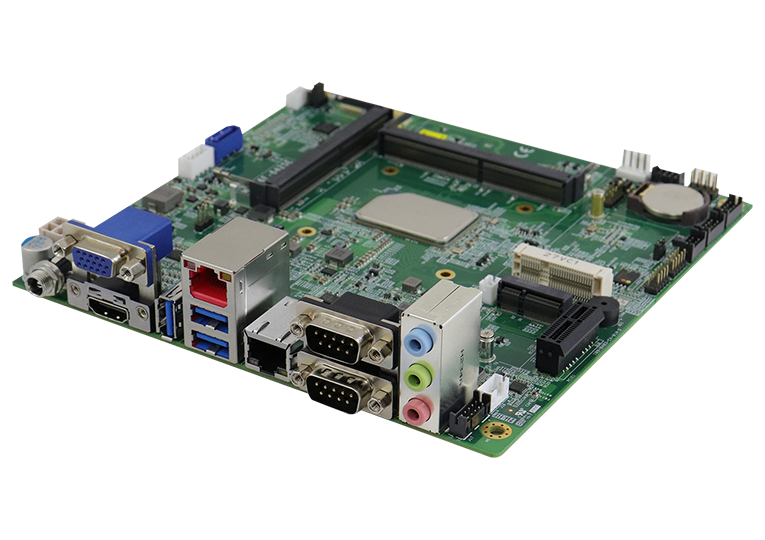

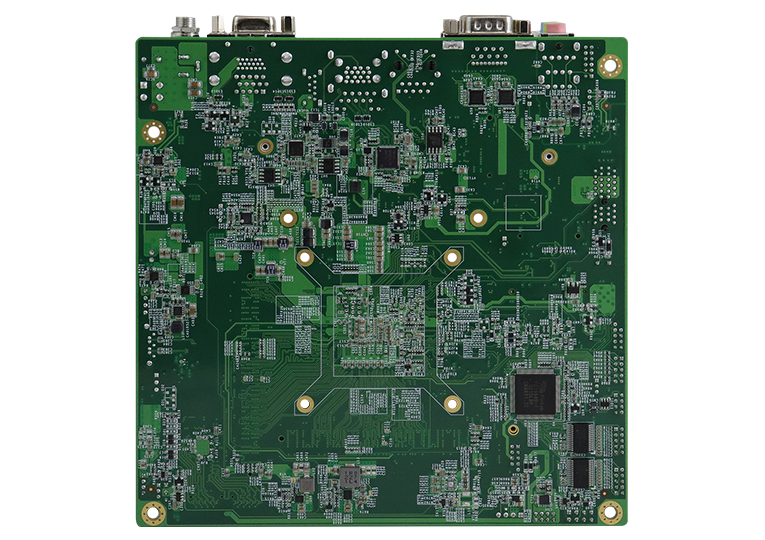

The MI836 is an industrial-grade Mini-ITX motherboard based on Intel® Atom® x6000E processor, with TDP ranges from 6W to 12W. It supports both passive and active thermal solutions with a wide operating temperature range from -20°C to 70°C, ensuring reliable operation even in outdoor and semi-outdoor environments.

The MI836 is practically suitable for various industries or applications that require the combination of performance and low-power design offered by the platform. These applications include real-time control systems, fleet monitoring and management systems, kiosks, and point-of-sale (POS) systems. It is equipped with 12V~24V DC input, two Intel® 2.5G Ethernet controllers, two DDR4 3200MHz slots with 32GB capacity and IBECC (In Band ECC) and graphics interface for HDMI (2.0b), VGA, and eDP or LVDS displays.

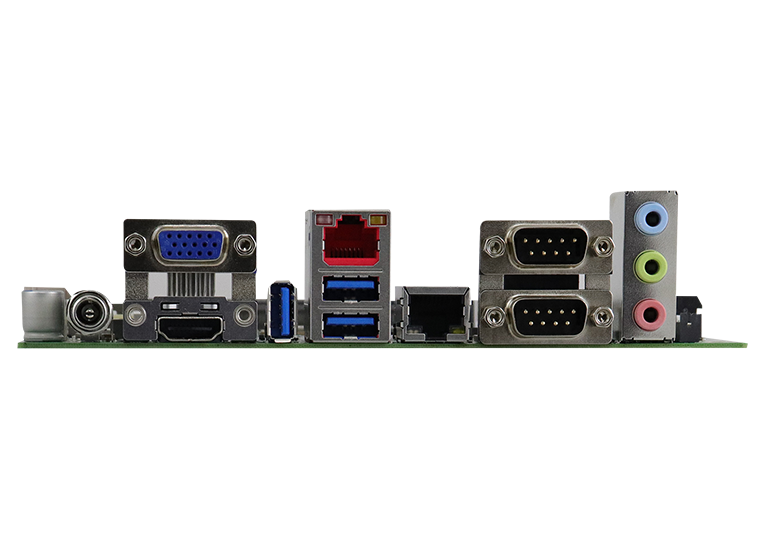

The MI836 provides a comprehensive set of I/O including 3x USB 3.1, 4x USB 2.0, 1x SATA III, 2x RS-232 COM, and 2x coastline RS-232/422/485 COM ports for secure serial communication over a network, and a variety of expansion slots, such as 1x PCIe Gen. 3, 1x mPCIe, 2x M.2 sockets (M-key and E-key) for add-on cards, storage devices and wireless connectivity. Supported operating systems include 64-bit Windows 10, Yocto, and Ubuntu.
