MI989

AMD Ryzen™ Embedded V2000 Series Mini-ITX Motherboard

  • AMD Ryzen™ Embedded V2000 Series on board
  • 2x DDR4 SO-DIMM, Max. 64GB, ECC compatible
  • Dual Intel® Gigabit LAN
  • 4x DisplayPort 1.4
  • 3x USB3.1, 2x USB2.0, 4x COM, 1x SATA III
  • 1x PCI-E(x16), 3x M.2 (B-Key, E-Key and M-Key)
  • Watchdog timer, Digital I/O, TPM (2.0)
  • 5G
  • AMD Ryzen Embedded V-Series

The MI989 Mini-ITX motherboard is powered by AMD Ryzen™ Embedded V2000 Series processor that offers up to eight CPU cores and 16 threads, providing unprecedented speed and power efficiency for embedded applications in retail, healthcare, industrial automation, and smart cities. The AMD Ryzen Embedded V2000 family is built with 7nm process technology, achieving up to 30% better CPU performance and up to 40% faster graphics performance than previous generation counterparts.

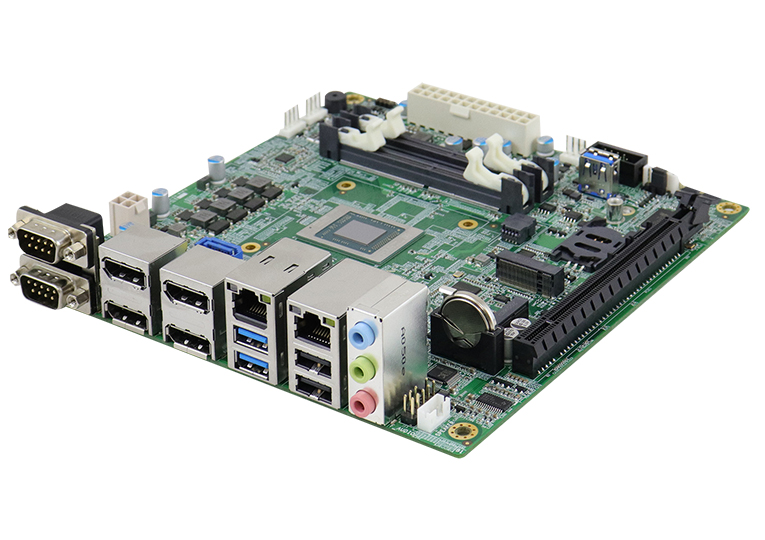

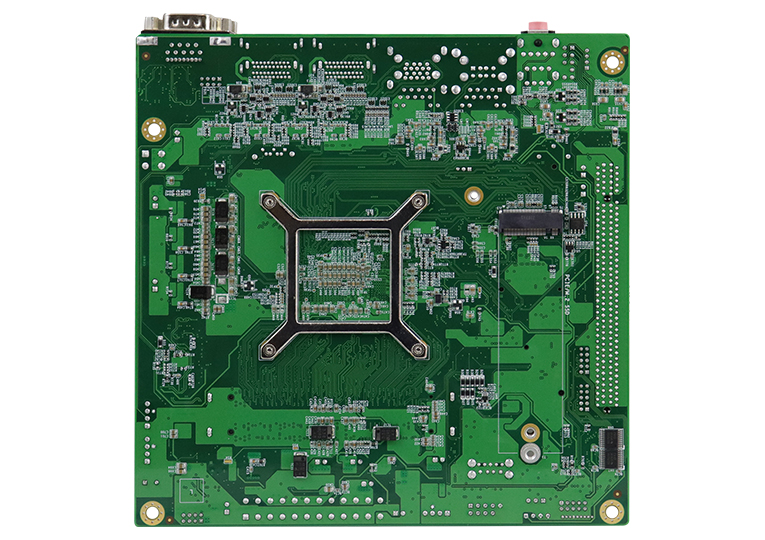

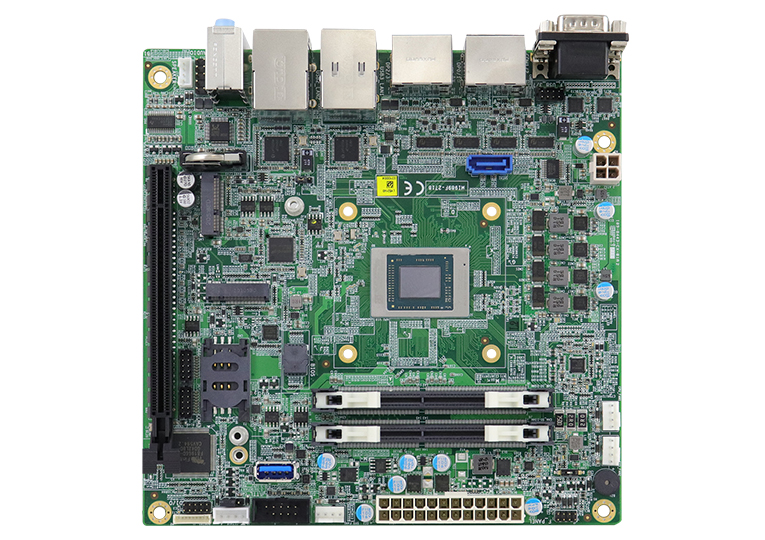

MI989 Mini-ITX motherboard

All AMD Ryzen Embedded V2000-Based Solutions from IBASE

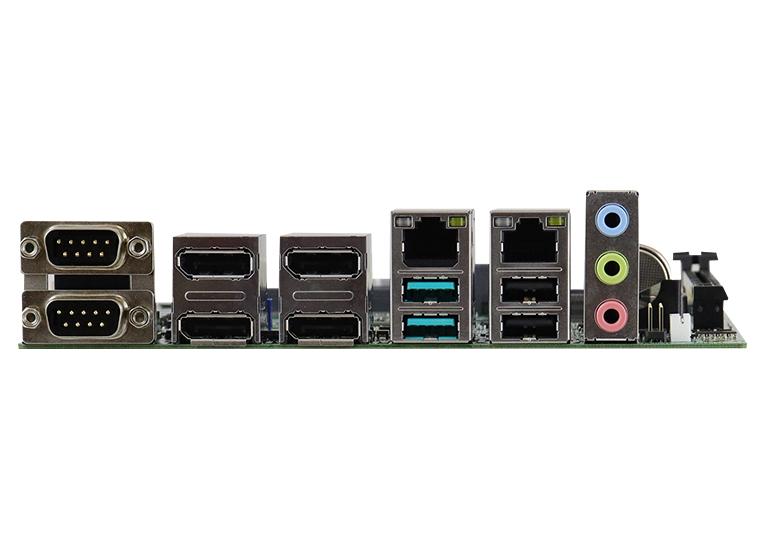

The board features a 5G-compatible M.2 3052 socket and is packed with advanced graphics capabilities and versatile I/O connectivity. The integrated new generation AMD Radeon Vega graphics can drive four independent displays in full 4K resolution. The board also features support for up to 64GB DDR4-3200 modules, two GbE LAN controllers, TPM 2.0 hardware security, and expansion slots such as PCI-e(x16), M.2 E-key, M.2 B-key, and M.2 M-key. Measuring 170x170mm, MI989 has external ports for 4x COM, 4x DP (1.4), 3x USB 3.1, 2x USB 2.0, 1x SATA III, and jacks for HD audio.

CPU Socket BGA1140
CPU AMD V2000 series APU on board
PCH N/A
Memory 2x DDR4-3200 SO-DIMM socket, Max 64GB, ECC compatible
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface 2x M.2 (B-Key/ M-key)
Expansion Slots 1x PCI-E (x16)
Mini Type Slots 1x M.2 (E-Key, type:2230)
1x M.2 (B-Key, type:3052)
1x M.2 (M-key, type:2280, NVMe)
Graphics Controller AMD Radeon Graphics
Video Output 4x DisplayPort 1.4
Ethernet 2x Intel® I211AT or I210AT Gigabit LAN
I/O Chip F81966D-I
Serial Port 4x COM Port
USB 2.0 2x USB 2.0
USB 3.X 3x USB 3.1 (10Gbps)
Serial ATA 1x SATA3.0
Audio built-in HD audio + Realtek ALC888S codec
TPM 2.0
Others Digital I/O, SIM socket
Dimensions (L X W) 170mm x 170mm (6.7" x 6.7")
Power Consumption TBD
Operating Temperature 0°C~ 60°C (32°F~140°F)
Storage Temperature -20°C ~ 80°C (-4°F ~ 176°F)
Relative Humidity 95% (non-condensing @60°C)

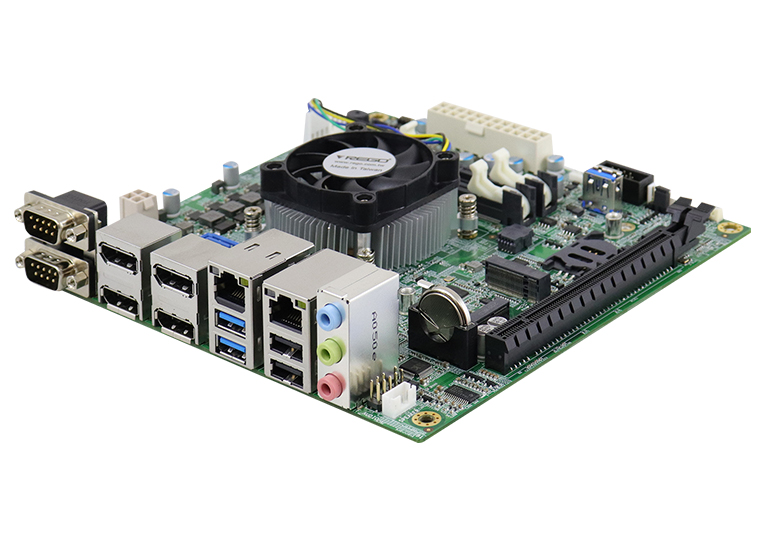

MI989F-2718 AMD Ryzen™ V2718 APU (1.7GHz~4.15GHz) on board Mini-ITX motherboard, with 4x DisplayPort, dual Gigabit LAN, TPM (2.0), EuP/ErP, CPU cooler on board
MI989F-2748 AMD Ryzen™ V2748 APU (2.9GHz~4.15GHz) on board Mini-ITX motherboard, with 4x DisplayPort, dual Gigabit LAN, TPM(2.0), EuP/ErP, CPU cooler on board
