MI990

6th Gen Intel® Xeon® E3 / Core™ i7/i5/i3 / Celeron® Mini-ITX Motherboard

  • Onboard 6th Gen Intel® Xeon® E3 / Core™ i7/i5/i3 / Celeron® QC/DC processors, up to 3.7GHz
  • 2x DDR4 SO-DIMM, Max. 32GB, ECC compatible
  • Intel® Processor integrated graphics device, supports DVI-D, HDMI (2.0), DisplayPort and 24-bit dual channel LVDS
  • 2x Intel® Gigabit LAN
  • 4x USB 2.0, 6x USB 3.0, 6x COM, 4x SATAIII
  • 1x PCI-E(x16), 2x Mini PCI-E, 1x mSATA, 1x M.2
  • Watchdog timer, Digital I/O, iAMT (11.0), TPM (2.0), vPro, iSMART 3.0
  • iSMART

The MI990 Mini-ITX motherboard is based on the new 6th Gen Intel® Core™ processor family (codename Skylake) manufactured on Intel's 14 nm manufacturing process. It offers accelerated processing performance and leading-edge graphics capability to simultaneously drive up to three independent displays with clear, crisp visuals without a discrete graphics card. With outstanding features that include up to 32GB of fast DDR4 DRAM memory in two SO-DIMM sockets, it is designed for high-end applications in industrial automation, kiosk, digital signage, medical and gaming markets.

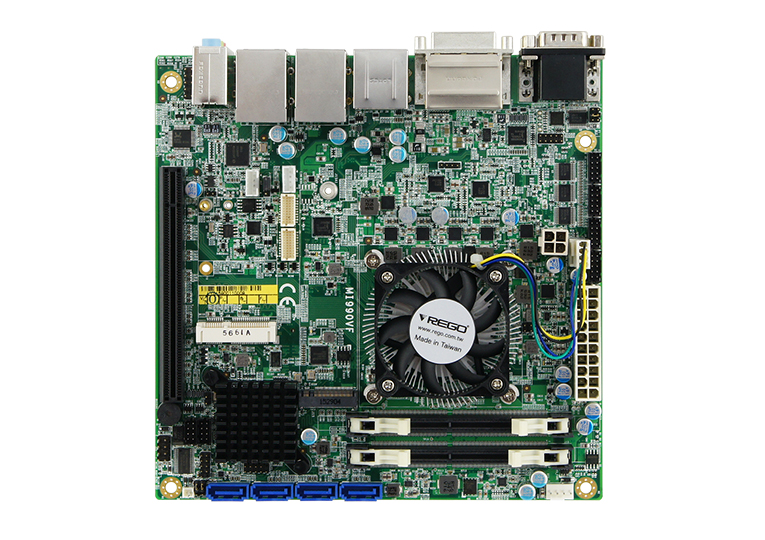

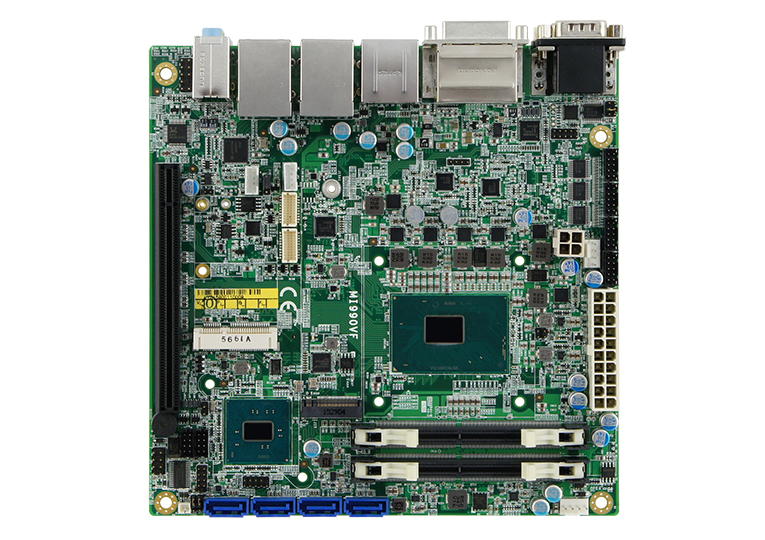

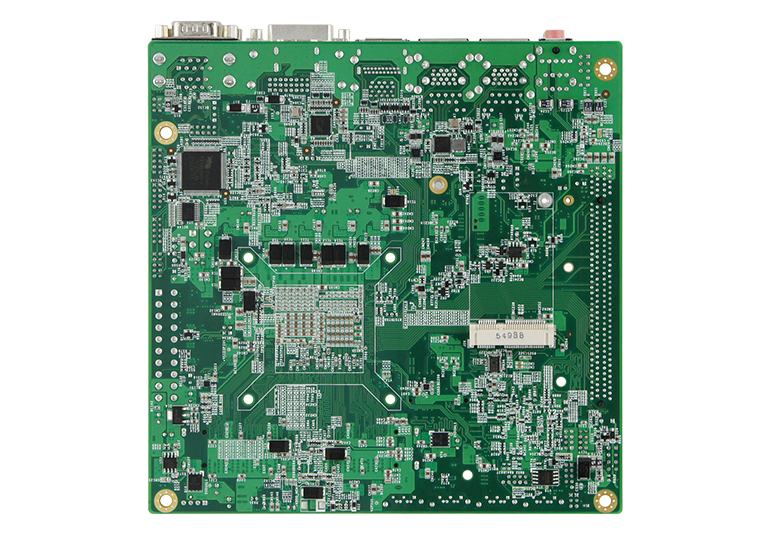

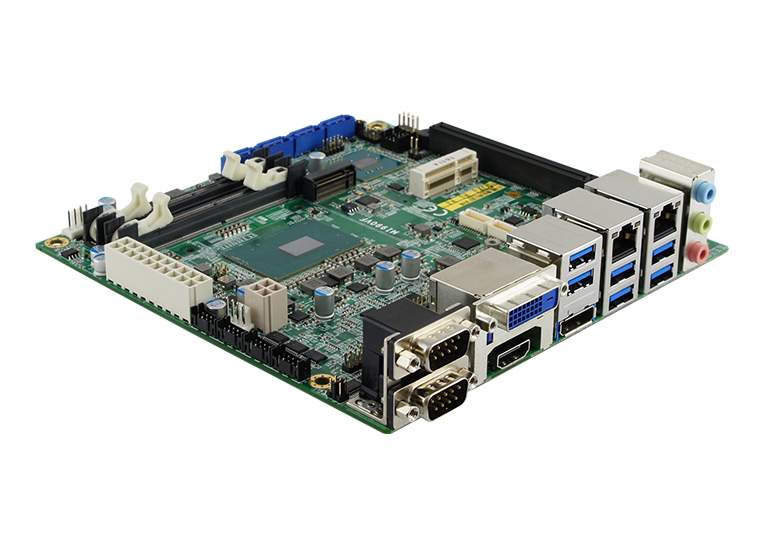

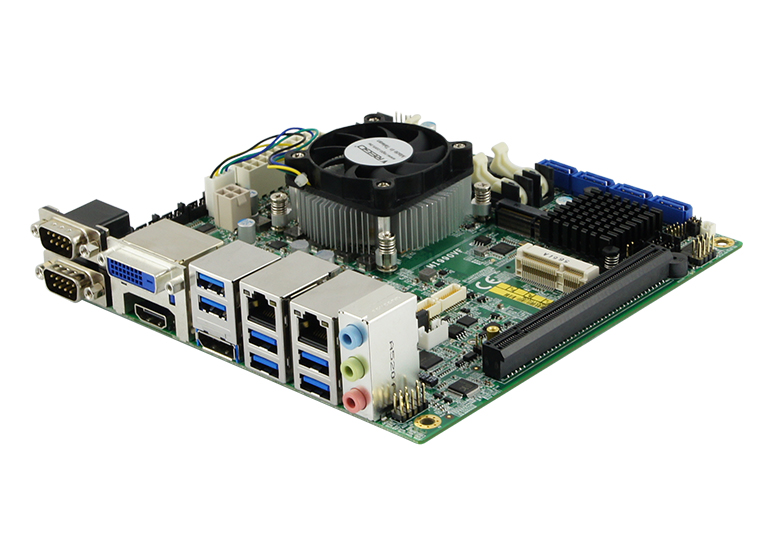

MI990 Mini-ITX motherboard


MI990 integrates the Intel CM236 / HM170 chipset to deliver performance and to accommodate current I/O technologies for fast connectivity including 4x USB 2.0, 6x USB 3.0, 6x serial ports and 2x/4x SATA III, as well as flexible expansion with 1x PCI-E(x16), 2x Mini PCI-E and 1x M.2 slots. The board supports two Gigabit Ethernet ports and other advanced features, such as iAMT (11.0) for remote management and repair of systems, TPM (2.0) for improved systems integrity, vPro and IBASE’s owned iSMART (3.0) that enables energy-efficient systems with various power-saving functions.

There are four MI990 models available in MI990VF and MI990EF series with support for Intel CM236 and HM170 chipsets respectively. The four integrated processors list includes Intel Xeon E3-1505M v5, Intel Core i7-6820EQ, Intel Core i5-6440EQ and Intel Core i3-6100E.

CPU Socket BGA1440
CPU 6th Gen Intel® Xeon® E3 / Core™ i7/i5/i3 / Celeron® QC/ DC processors, up to 3.7GHz
PCH MI990VF series: Intel® CM236 PCH
MI990EF series: Intel® HM170 PCH
Memory 2x DDR4 SO-DIMM, Max. 32GB (supports ECC by CPU SKUs)
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface 1x mSATA via Mini PCI-E (Thru SATA III)
1x M.2 slot (Thru SATA III & PCI-E)
Expansion Slots 1x PCI-E (x16)
Mini Type Slots 2x Mini PCI-E
1x M.2
Graphics Controller 6th Gen Intel® Xeon® / Core™ i7/ i5/ i3 / Celeron® processor integrated

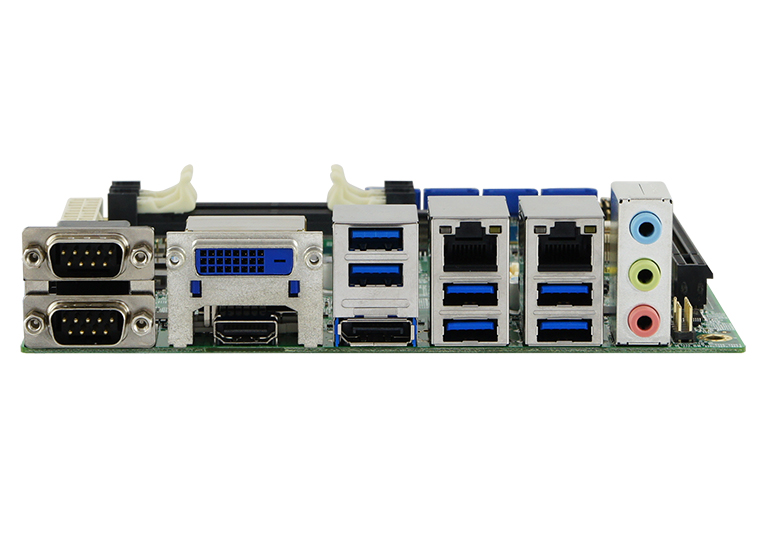

Video Output Supports DVI-D, HDMI (2.0), DisplayPort and 24-bit dual-channel LVDS
Ethernet MI990VF series: Intel® I219LM Gigabit LAN PHY
MI990EF series: Intel® I219V Gigabit LAN PHY
Intel® I211AT or I210AT Gigabit LAN (as 2nd LAN)
I/O Chip Fintek F81866AD-I
Serial Port 5x RS232
1x RS232/422/485 (jumper-less selection)
USB 2.0 4x USB 2.0 via pin-header
USB 3.X 6x USB 3.0 on board
Serial ATA MI990VF series: 4x SATA III
MI990EF series: 2x SATA III
Audio Intel® CM236 / HM170 PCH built-in HD audio + Realtek ALC888S codec
TPM TPM (2.0)
Others Digital I/O(4-in/4-out), RAID, iAMT (11.0), iSMART
Dimensions (L X W) 170mm x 170mm (6.7" x 6.7")
Power Consumption Intel® Core™ i5-6400EQ 2.4GHz w/ 2x 8GB DDR4-2133
+12V: 2.84A; +5V: 1.45A; +5VSB: 0.058A; +3.3V: 0.52A
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 90% (non-condensing @60°C)
MI990VF-X28E BGA1440 Intel® CM236/ Xeon® E3-1505M v5(2.8GHz) Mini-ITX motherboard w/ DVI-D, HDMI (2.0), DisplayPort, LVDS, dual Gigabit LAN, RAID, iAMT (11.0), TPM (2.0), vPro, iSMART (3.0), CPU cooler on board
MI990VF-6820E BGA1440 Intel® CM236/ Core™ i7-6820EQ(2.8GHz) Mini-ITX motherboard w/ DVI-D, HDMI (2.0), DisplayPort, LVDS, dual Gigabit LAN, RAID, iAMT (11.0), TPM (2.0), vPro, iSMART (3.0), CPU cooler on board
MI990VF-6440E BGA1440 Intel® CM236/ Core™ i5-6440EQ(2.7GHz) Mini-ITX motherboard w/ DVI-D, HDMI (2.0), DisplayPort, LVDS, dual Gigabit LAN, RAID, iAMT (11.0), TPM (2.0), vPro, iSMART (3.0), CPU cooler on board
MI990EF-6100E BGA1440 Intel® HM170/ Core™ i3-6100E(2.7GHz) Mini-ITX motherboard w/ DVI-D, HDMI (2.0), DisplayPort, LVDS, dual Gigabit LAN, RAID, EuP/ErP compliant, iSMART (3.0), CPU cooler on board
DATASHEETS MI990
CATALOGS Embedded Computing (Vol.23)
MANUALS MI990
