Embedded Computing

IB838

Intel® Core™ i3 N-series Processor 3.5-inch Single Board Computer

  • Intel® Core™ i3 N-series Processor
  • 1x DDR5 SO-DIMM, Max. 16GB
  • Supports Type-C & DP++ and eDP or LVDS
  • 2x Intel® PCI-E 2.5G LAN
  • 2x USB 2.0, 4x USB 3.2 (1x Type-C + 3x Type-A), 4x COM, 1x SATA III
  • 2x M.2 sockets (E-key + B-key), supports CNVi
  • 9V~36V wide-range DC input
  • Supports fTPM, Watchdog timer, Digital I/O
  • NEW
  • 5G
  • Wide-range power input

The low-power IB838 3.5” single board computer is powered by Intel® Core™ i3 N-series (formerly Alder Lake-N) processor. Combining robust computing performance with advanced features, it is positioned to meet diverse needs across multiple industries, including industrial automation and control, retail displays, transportation, and automotive applications.

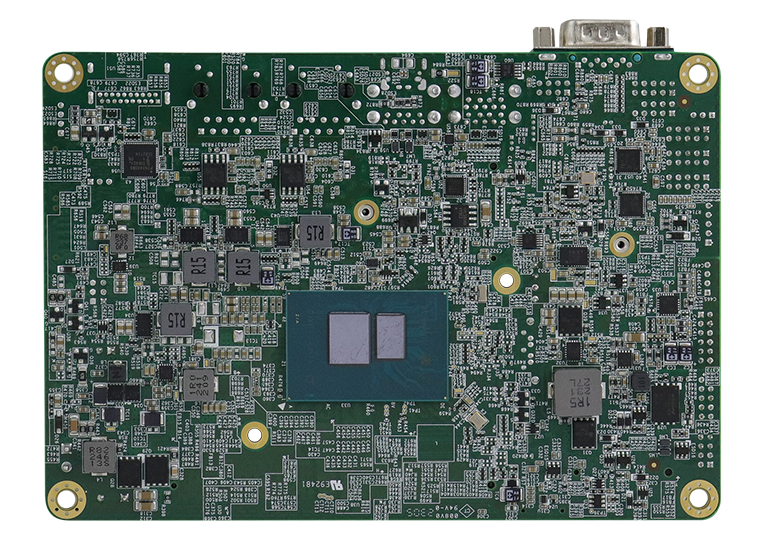

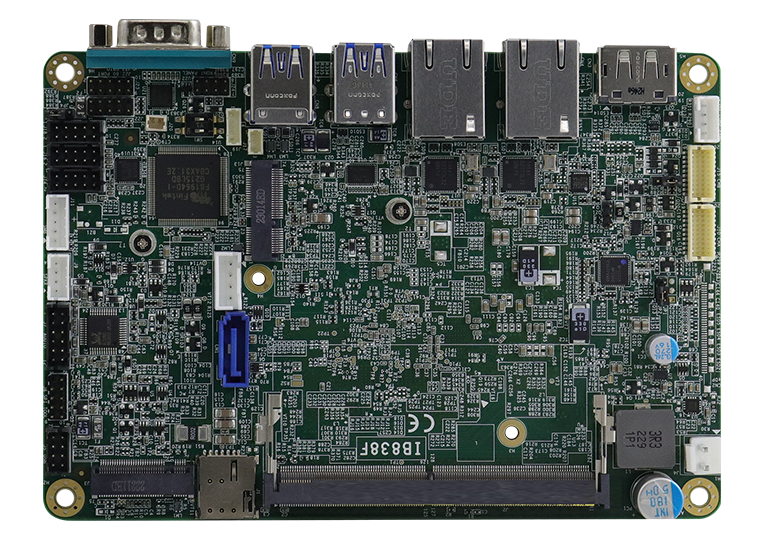

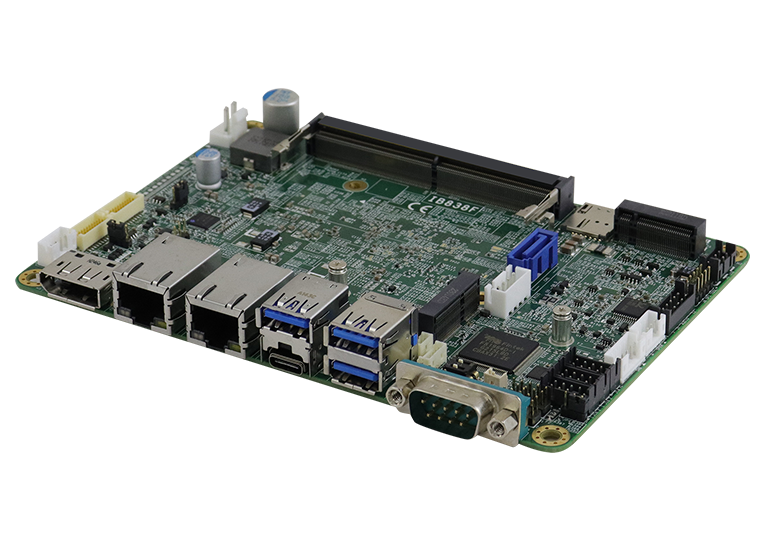

IB838 3.5” single board computer
IB838 INTRODUCTION VIDEO

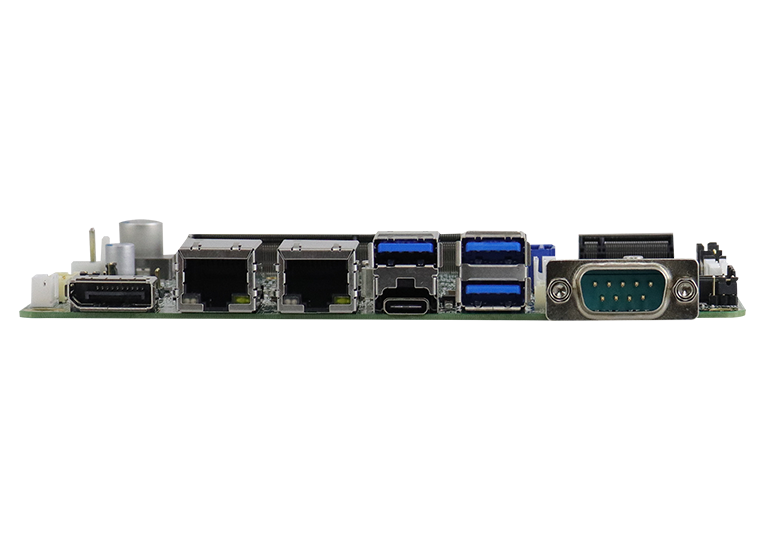

Fortified with intelligent power handling and a 9V~36V DC input range, the IB838 ensures reliability and consistent operations in transportation applications that may encounter variable power conditions. Versatile connectivity makes it ideal for automation processes and data acquisition systems. The SBC offers Type-C, DP++, and eDP or LVDS display options, along with a rich set of I/O interfaces, including two Intel® PCI-E 2.5G LAN ports, two USB 2.0 ports, and four USB 3.2 ports (1x Type-C + 3x Type-A).


With CNVi support, the 5G-ready IB838 comes equipped with a high-speed SATA III port and two M.2 sockets (E-key + B-key), providing ample storage and expansion possibilities. Additionally, it boasts four serial ports and digital I/O, facilitating comprehensive connectivity to diverse devices and peripherals. Enhanced security and functionality are integrated through fTPM (firmware-based Trusted Platform Module) and a Watchdog timer for system stability.

CPU Intel® Core™ i3 N-series Processor
PCH N/A
Memory 1x DDR5 SO-DIMM, Max. 16GB
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface M.2(B-key)
Mini Type Slots 2x M.2 sockets (E-key+B-key)
Graphics Controller Intel® SoC integrated Gen12 graphics
Video Output 3x Display [DP connector & Type-C & eDP or LVDS]
Ethernet 2x Intel® I226V LAN
I/O Chipset Fintek F81964D-I on board
Serial Port 1x RS232/422/485 (Jumper-less selection)
3x RS232
USB 2.0 2x USB 2.0 via (pin header)
USB 3.X 1x Type-C+ 3x Type-A
Serial ATA 1x SATA III
Audio Intel® Core™ i3 Processor N-series & Intel® Processor N-series built-in HD audio + ALC888S codec
TPM fTPM
Others Digital I/O (4-in/4-out), EuP/ErP, +9V~+36V DC-in
Dimensions (L x W) 102mm x 147mm (4“ x 5.8“)
Power Consumption TBD
Operating Temperature 0°C~60°C (-4°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 10% ~ 90% (non-condensing)
IB838F-N305 Intel® Core i3-N305 SoC on board 3.5" SBC w/ 2x 2.5GbE, DisplayPort + Type-C + LVDS, 4x COM, 2x M.2 (E-key+B-key), 1x SATA III, fTPM, DC-in (9V~36V)
IB838FE-N305 Intel® Core i3-N305 SoC on board 3.5" SBC w/ 2x 2.5GbE, DisplayPort + Type-C + eDP, 4x COM, 2x M.2 (E-key+B-key), 1x SATA III, fTPM, DC-in (9V~36V)
IB838F-N50 Intel® N50 SoC on board 3.5" SBC w/ 2x 2.5GbE, DisplayPort + Type-C + LVDS, 4x COM, 2x M.2 (E-key+Bkey), 1x SATA III, fTPM, DC-in (9V~36V)
IB838FE-N50 Intel® N50 SoC on board 3.5" SBC w/ 2x 2.5GbE, DisplayPort + Type-C + eDP, 4x COM, 2x M.2 (E-key+Bkey), 1x SATA III, fTPM, DC-in (9V~36V)

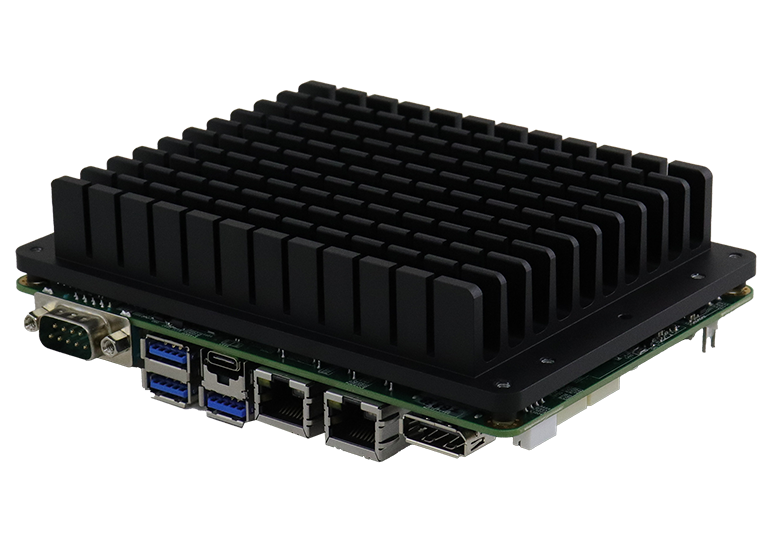

HSIB838-A HSIB838-A Heatsink for IB838 series (for N50)
HSIB838-C Heatsink for IB838 series (for N305)

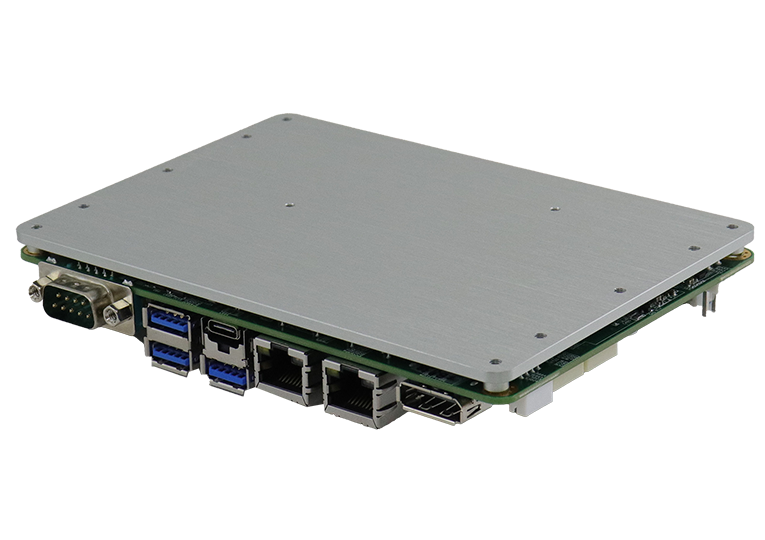

HSIB838-1 Heat spreader for IB838
