Embedded Computing

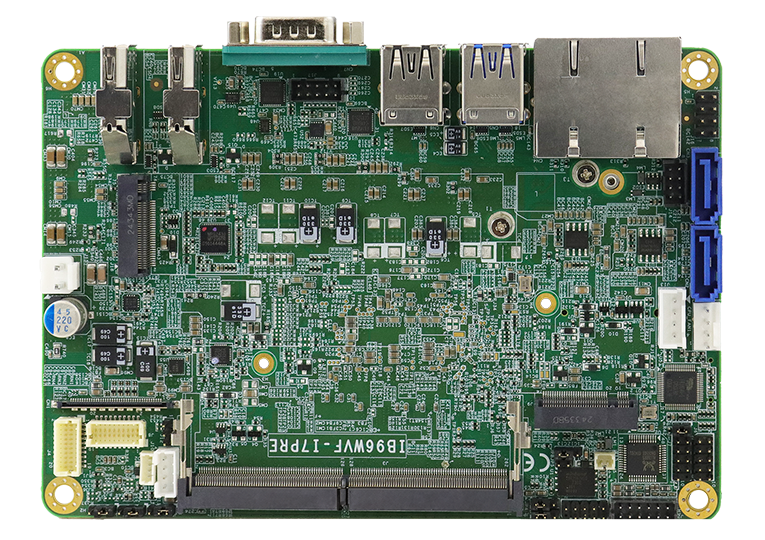

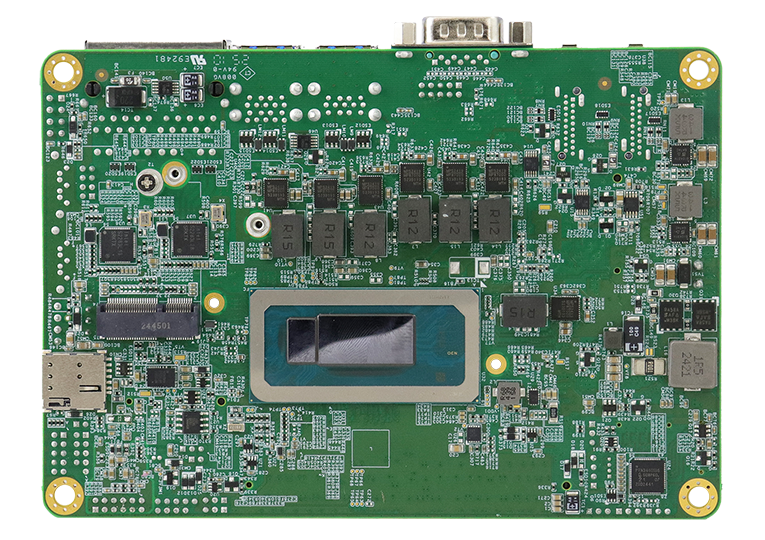

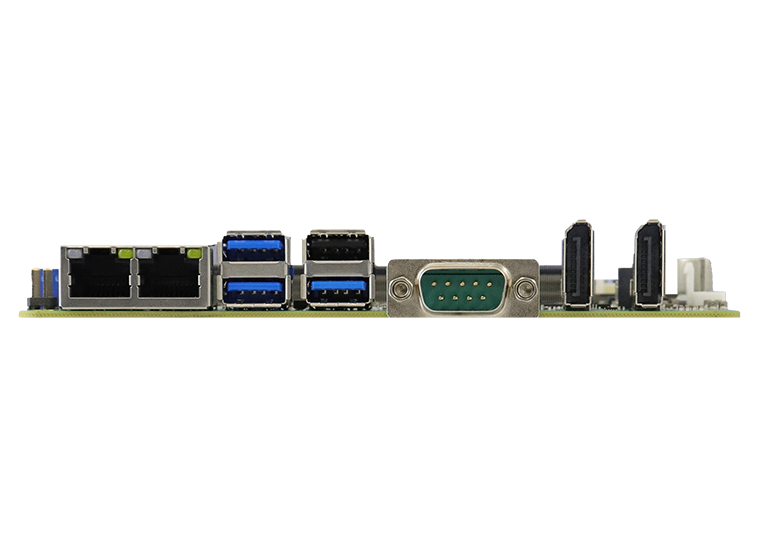

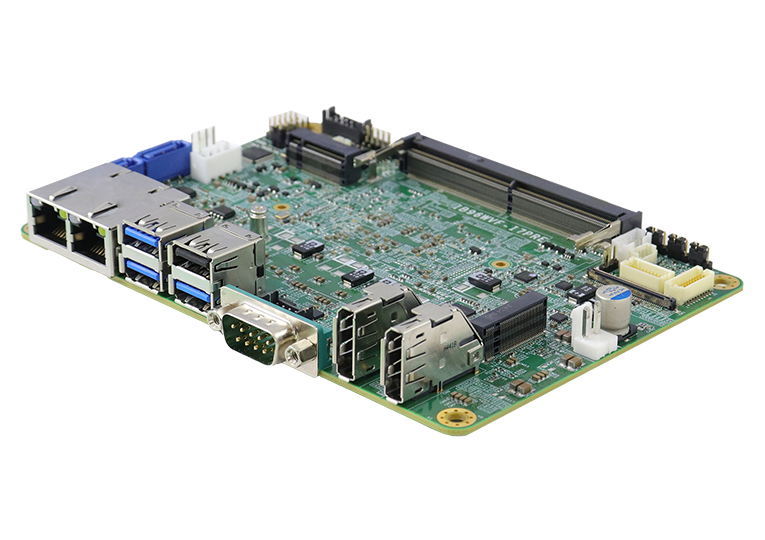

IB96W

3.5" Single Board Computer with 13th Gen Intel® Core™ Mobile Wide-Temp Processor (RPL-P Platform)

  • Onboard 13th Gen Intel® Core™ i7-1370PRE mobile processor, supports wide-temp.
  • 1x DDR5 SO-DIMM, up to 32GB, supports IBECC
  • supports 2x DP++, LVDS, and eDP
  • 2x Intel® I226IT PCIe 2.5G LAN
  • 3x USB 2.0, 3x USB 3.2, 2x COM, 2x SATA III
  • 3x M.2 slots (M-Key + E-Key + B-Key)
  • supports digital I/O (4-in/4-out), fTPM, and watchdog timer
  • NEW
  • 5G
  • Wide Temperature
  • Wide-range power input
CPU Onboard 13th Gen Intel® Core™ i7-1370PRE processor, support wide-temp
PCH N/A
Memory 1x DDR5 SO-DIMM, Max.32GB, supports IBECC
BIOS AMI
Watchdog Timer 256 levels
H/W Monitor Yes
Storage Device Interface M.2 (M2280 for NVMe) SATA III
Mini Type Slots 1x M.2 (M-Key, Type:2280, with PCle (4x) signal only, supports NVMe)
1x M.2 (E-Key, Type:2230, with PCle (1x) & USB 2.0 signal, supports CNVi)
1x M.2 (B-Key, Type:3052, with PCle (1x) & USB 3.2 signal, supports 5G/LTE
Graphics Controller 13th Gen Intel® Core™ mobile processor integrated graphics
Video Output 2x DisplayPort, eDP, and LVDS
Ethernet 2x Intel® I226IT 2.5G LAN
I/O Chipset Fintek F81804U-I
Serial Port 2x COM (RS232/422/485)
USB 2.0 3x USB 2.0 (1x Type-A ; 2x via pin headers)
USB 3.X 3x USB 3.2 (Type-A)
Serial ATA 2x SATA III
Audio Integrated HD audio with ALC888S codec
TPM fTPM only
Others Digital I/O (4-in/4-out); +12V~+24V DC-in
Dimensions (L x W) 102mm x 147mm (4“ x 5.8“)
Power Consumption Intel® Core™ i7-1370PRE processor, Up to 4.8GHz w/ 1x 32GB DDR5-5600 memory
+24V: 3.82A
Operating Temperature -40°C~+75°C (-40°F~+167°F)
Storage Temperature -45°C~+80°C (-49°F~176°F)
Relative Humidity 10% ~ 90% (non-condensing)
IB96WVF-I7PRE Intel® Core™ i7-1370PRE 3.5" SBC, w/ Dual I226IT LAN, VGA (2x DisplayPort + eDP + LVDS), 2x SATA III, 2x COM, 3x M.2 (M2280/ E2230 & B3052), DC in (12V~24V), supports iAMT, fTPM, Optional heatsink, w/o cable kit, (RoHS 2)

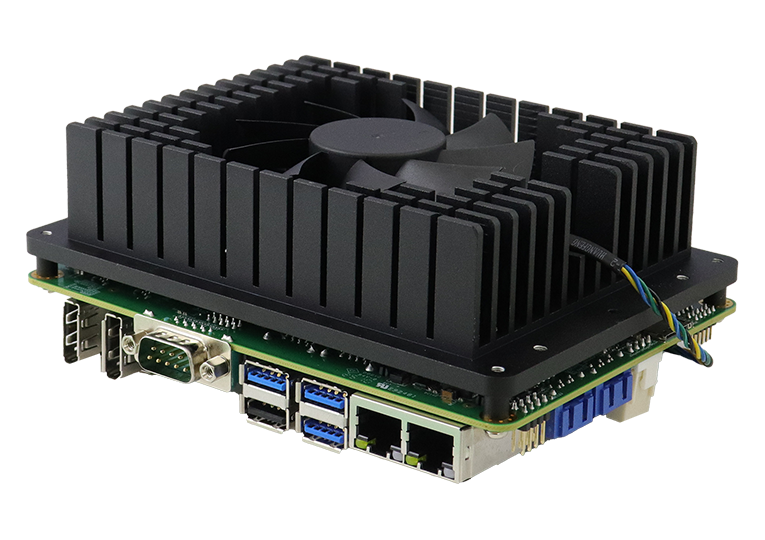

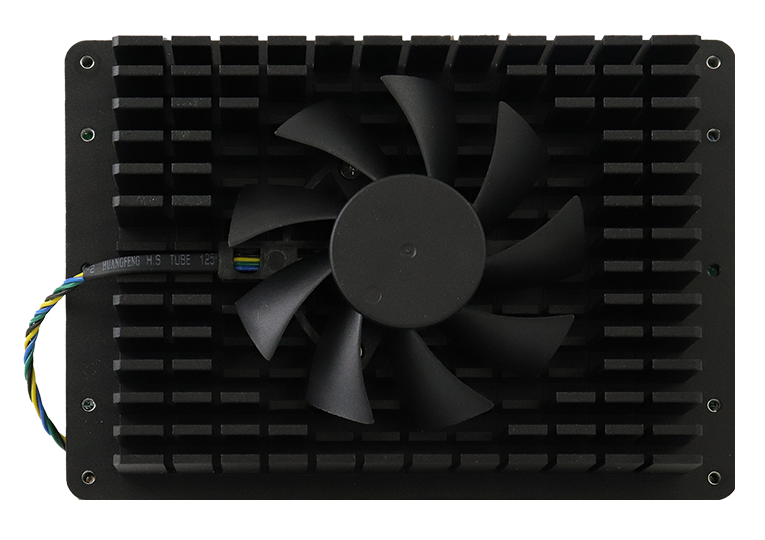

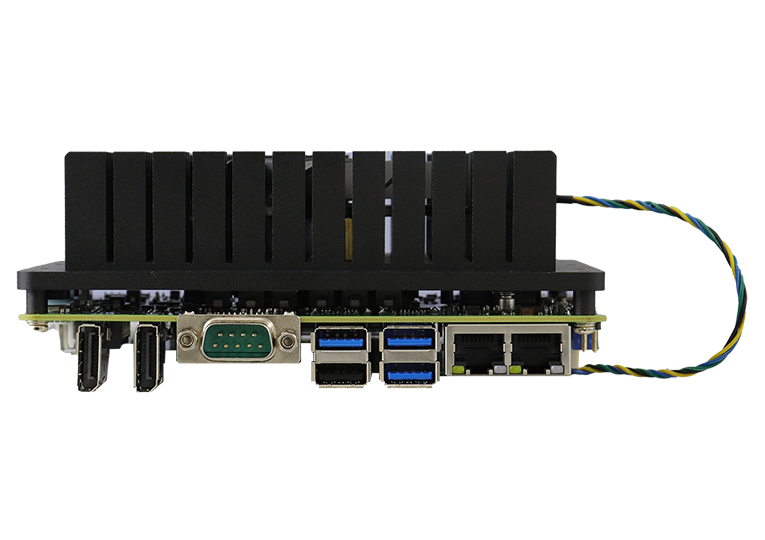

HSIB96W-A Heatsink with fan for IB96W
HSIB96W-1 Heat spreader for IB96W
IB76A-2 Cable kit w/USB, COM, Power, SATA + Power
DATASHEETS IB96W
CATALOGS Embedded Computing (Vol.24)
USER'S MANUALS IB96W V1.0
DRIVERS - BOARDS IB96W Driver DVD
