ASB210-953-AI
Edge AI Computer with 11th Gen Intel® Core™ U-Series CPU & Hailo-8™ M.2 AI Acceleration Module
- With Hailo-8™ AI accelerator module supporting up to 26 Tera-Operations Per Second (TOPS)
- System with IBASE IB953 3.5" Single Board Computer (TDP-up 28W)
- Onboard 11th Gen Intel® Core™ U-Series Processor
- Supports 2x M.2 sockets (B-Key/E-Key)
- 12V (-10%) ~ 24V (+10%) DC-in power input
- 2x DDR4-3200 SO-DIMM, Max. 64GB
- 3x USB 3.1, 1x USB 2.0, 2x Intel® GbE, 1x COM
- External GPIO, 2x DisplayPort, TPM (2.0)
- Optional VESA mount bracket

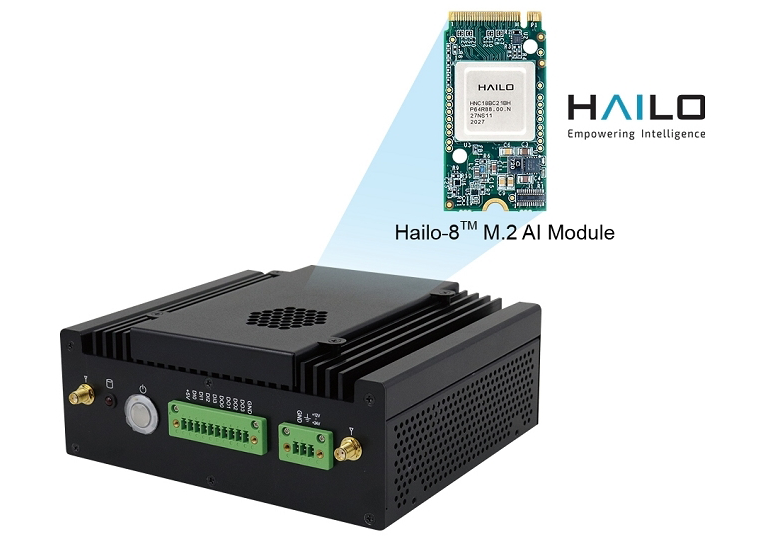

The ASB210-953-AI is an edge AI computer powered by 11th Gen Intel® Core™ U-Series (formerly Tiger Lake) processor. Integrated with the Hailo-8™ M.2 AI acceleration module, the ASB210-953-AI provides unparalleled performance, with up to 26 Tera-Operations Per Second (TOPS) and high-power efficiency.
With the best-in-class AI processor packaged in a module, the Hailo-8 is compatible with NGFF M.2 form factor, as well as with M, B+M and A+E keys that can be perfectly adopted in the ASB210-953-AI platform to execute real-time deep neural network inferencing in a wide range of market applications.
Measuring 180x150x72mm (WxDxH), the compact system comes with flexible expansion supporting high-speed 5G connectivity and three M.2 modules – B-Key, E-Key and M-Key (with Hailo-8 AI module installed), allowing customers to accelerate time to market. Targeted at smart AIoT applications in smart cities and industry 4.0 as well as the automotive industry, the ASB210-953-AI supports up to 64GB in two SO-DIMM slots and 12V~24V wide-range DC power input.
System Mainboard | IB953AF-i7/ IB953AF-i5/ IB953EF-i3 |
CPU Type | Intel® Core™ i7-1185G7E Processor Intel® Core™ i5-1145G7E Processor Intel® Core™ i3-1115G4E Processor |
System Speed | Up to 4.4GHz |
Memory | 2x DDR4-3200 SO-DIMM, Max. 64GB |
AI Accelerator | Hailo-8™ AI accelerator module, up to 26 TOPS |
LAN | IB953AF series: Intel® I219LM Gigabit LAN PHY IB953EF series: Intel® I219V Gigabit LAN PHY Intel® I211AT PCI-E Gigabit LAN (as 2nd LAN) |

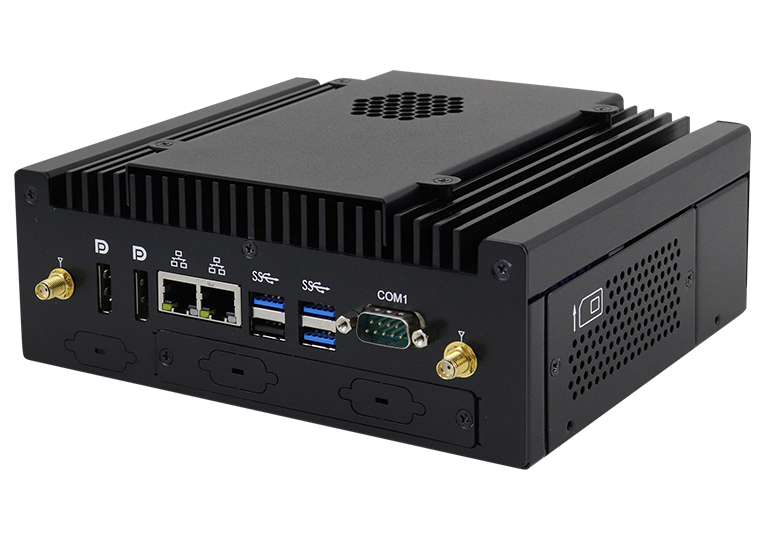

Front Panel External I/O | 3x USB 3.1 1x USB 2.0 2x DisplayPort 1x DB9 for COM#1 (RS232/422/485) 2x Gigabit LAN |

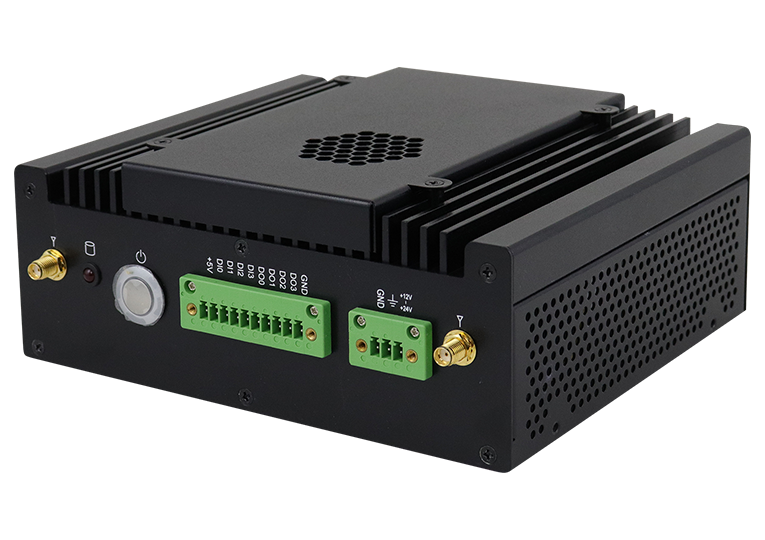

Rear Panel External I/O | 1x Power button 1x Digital I/O (4-in/4-out) 2x Antenna holes 1x HDD LED 1x 3-pin DC-in terminal block for 12V (-10%) ~ 24V (+10%) |
Expansion Slot | 2x M.2 sockets (B-Key/ E-Key) 1x M.2 M-key for Hailo-8™ AI accelerator module |
Storage | 1x 2.5" HDD or SSD |
Auto Control and Monitoring | Watchdog Timer 256 levels |
Power Requirement | 12V~24V DC-in |
Power Supply | 90W power adaptor |
Construction | Aluminum & steel 1x System fan |
Chassis Color | Black |
Mounting | Desktop or wall mount (wall mount kit included) Optional VESA mount kit |
Weight | 1.5kg |
Dimensions | 180mm (W) x 150mm (D) x 72mm (H) 7.08" (W) x 5.9" (D) x 2.83" (H) |
Operating Temperature | 0°C~45°C (32°F~113°F) *with airflow 0.9m/s |
Storage Temperature | -20°C ~80°C (-4°F~176°F) |
Relative Humidity | 5%~90%@45°C (non-condensing) |
Vibration | Operating: 3Grms / 5~500Hz |
Shock | Operating : 20G / 11ms Non-operating : 40G / 11ms |
Certification | CE/LVD/FCC Class-B |
Operating System | Linux (Ubuntu 18.04 / 20.04) |
