Intelligent System

SI-614-AI

Edge AI Computer with 7th Gen Intel® Core™ Desktop Processor-based & NVIDIA MXM Graphics GPU Modules

  • iSMART - for auto-scheduling and power resume
  • 7th Generation Intel® Core™ i7/i5/i3/ Processors
  • NVIDIA MXM graphics card (Up to 150W)
  • 2x DDR4 2133 SO-DIMM, dual channel, Max 32GB
  • 1x HDMI 1.4 for console, 4x DP 1.3 output
  • 1x Mini PCI-E (full-size) for Wi-Fi, Bluetooth, 4G LTE or capture card options
  • 1x M.2 B key (3042) for storage or 4G LTE options
  • 2x 2.5" SATA III SSD device
  • Compact and rugged design
  • AI Solution
  • iSMART

The SI-614-AI edge AI computer supports expansion with NVIDIA MXM GeForce GTX 10 Series graphics cards (Type-B, up to 150W), leveraging the powerful parallel computing capabilities of NVIDIA GPUs to provide multiplexed and advanced image processing. It meets the needs of high-performance of constraint-space applications and can solve harsh environmental application problems.


It is designed for AIoT applications within automation, retail and education sectors to empower the establishments to connect and communicate with their customers and audience, reliably delivering high-quality live video and AI analytics contents for use in a control room or other fields. The standard SI-614-AI is powered by a 7th Gen Intel® Core™ i5-7500 processor with a NVIDIA MXM NV1050 graphics card integrated with 4GB GDDR5 128bit memory, 16GB DDR4 memory and a 128GB 2.5-inch SSD storage device.

SI-614-AI  AI computer with NVIDIA

With IBASE's SI-614-AI, users have the option to choose the type of NVIDIA GeForce GTX 10 Series graphics cards to enable flexible deployments based on their specific requirements, including the GTX 1080 8GD5x, GRX 1070 8GD5, GTX 1060 6GD5, GTX 1050TI-LN 4GD5, GTX 1050-LN 4GD5, and GT1030 2GD5. The SI-614-AI has four DisplayPort video output connectors to support four independent displays - four displays with each supporting 4K @60Hz, or just one display with 8K@60 resolution. Another display option is to have four displays with 2x2 VW setting or just one single display with 8K super-high-definition image/video (based on GTX 1080 8GD5x). The SI-614-AI has dimensions of 256mm(W) x 160mm (D) x 69mm(H) and can be installed with the standard system bracket.

System Mainboard MBD614
CPU Type 7th Generation Intel® Core™ Desktop processor
System Speed LGA1151
Memory 2x DDR4 2133 SO-DIMM, Dual Channel, Max. 32GB
AI Accelerator NVIDIA GeForce GTX 1080 8GD5X / GeForce GTX 1060 6GD5 / GeForce GTX 1050-LN 4GD5
LAN 1x Intel® I219V Gigabit LAN controller

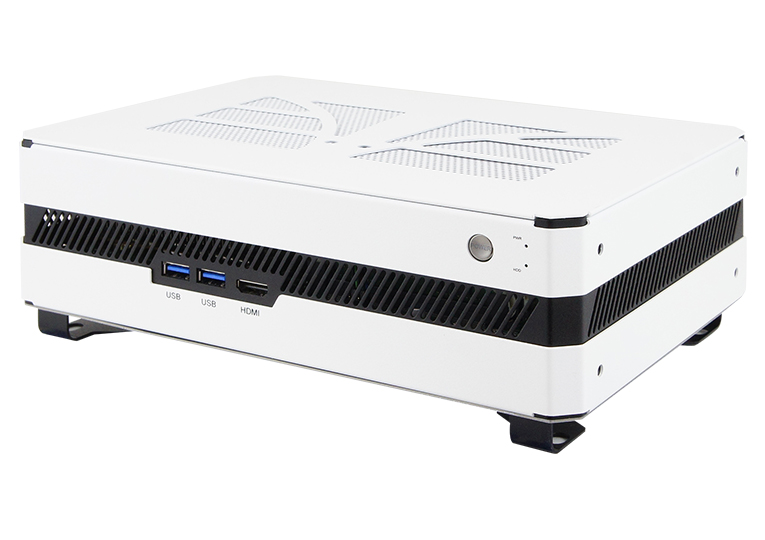

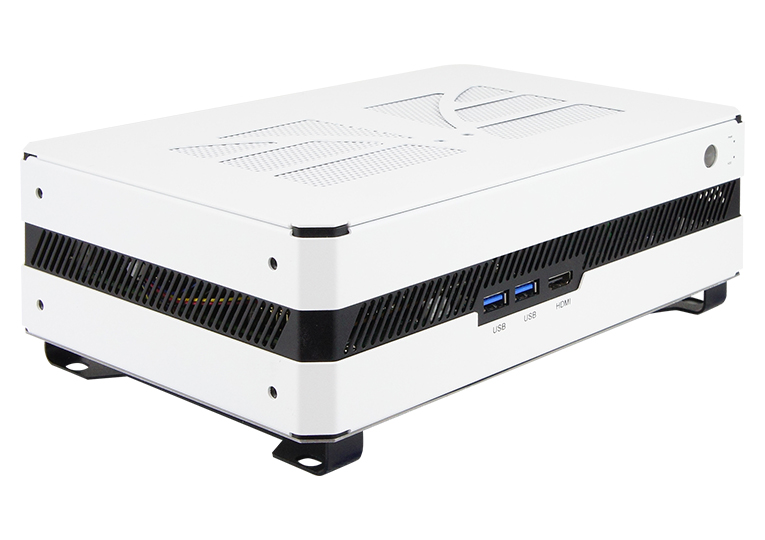

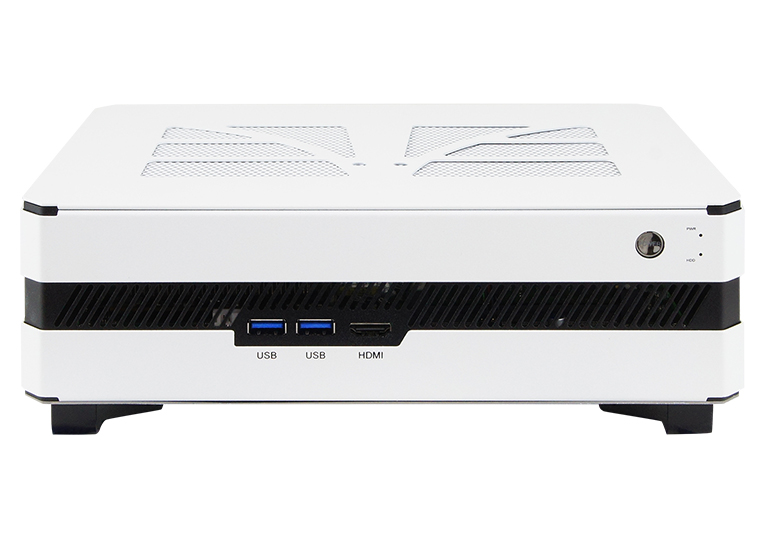

Front Panel External I/O 1x HDMI 1.4 for console
2x USB 3.0

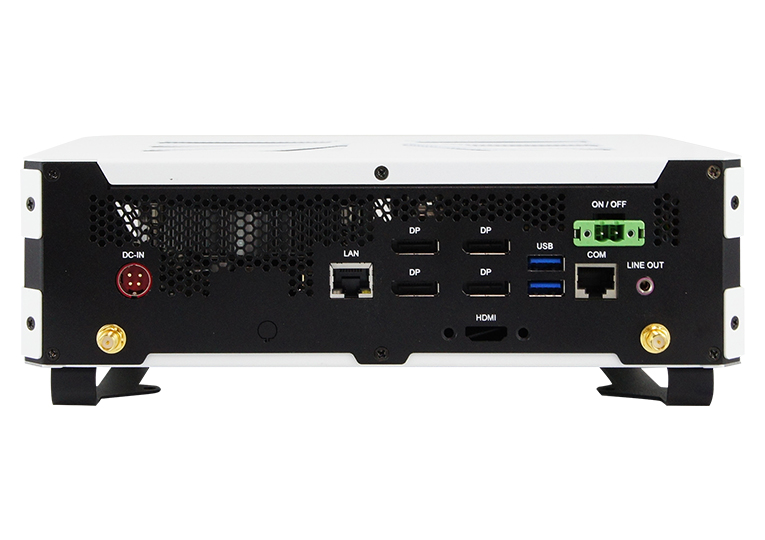

Rear Panel External I/O 4x DP
2x USB 3.0
1x RJ45 for Gigabit LAN
1x RJ45 for RS-232 serial port
1x Audio connectors for Line out Power / HDD LED, 1x power button
1x Power jack connector
1x Terminal block for external power button
Expansion Slot 1x Mini PCI-E (full-size) for Wi-Fi, Bluetooth, 4G LTE or Capture card options
1x M.2 B key(3042) for storage or 4G LTE options
2x 2.5" SATA III SSD for storage
1x SIM card slot
Storage 1x M.2 M-Key (2280)
Auto Control and Monitoring Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement +19V DC
Power Supply 270W power adaptor
Construction SGCC
Chassis Color Black and white
Mounting Standard system bracket
Weight 3kg (6.6lbs)
Dimensions 256mm(W) x 173mm(D) x 73mm(H)
10.07" (W) x 6.81" (D) x 2.87" (H)
Operating Temperature 0°C~ 45°C (32°F~113°F)
Storage Temperature -20°C ~ 80°C (-4°F~176°F)
Relative Humidity 5%~90% @45oC (non-condensing)
Vibration SSD: 5 grms / 5~500Hz / random operation
Shock Operating : 20G / 11ms
Non-operating : 40G / 11ms
Certification CE, FCC class B, UL & CCC
Operating System Windows10 / Linux
SI-614-AI Industrial AI Computer with MBD614 with Intel® Core™ i5-7500 processor (8M Cache, up to 3.4 GHz), 1x MXM NV1050 4GB 128bit/GDDR5 GPU card, 2x 8GB DDR4 memory, 2.5” SSD 128GB & 270W PSU
