Intelligent System
EC3000
Edge AI Computer with NVIDIA® Jetson Orin NX / Nano series
- 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
- 1024-core NVIDIA Ampere architecture GPU with 32 Tensor cores / 512-core NVIDIA Ampere architecture GPU with 16 Tensor cores
- 1x M.2 3042/3052 B-Key 4G/5G/M.2 2242 B+M-Key storage function
- 1x M.2 2230 E-Key WiFi/BT/Storage function
- 2x COM/DIO/CANBus, 4x USB, 1x GB LAN, 1x HDMI
- Wide power input range +12V to +24V DC
- Supports Ubuntu 20.04 OS
| System Mainboard | NVIDIA® Jetson ORIN NX 8GB/ORIN Nano 4GB SOM + carrier board |
| CPU Type | EC3000-NX-8: 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 EC3000-NANO-4: 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| System Speed | EC3000-NX-8: 2.0 GHz EC3000-NANO-4: 1.5 GHz |
| Memory | EC3000-NX-8: 8GB 128-bit LPDDR5, 102.4GB/s EC3000-NANO-4: 4GB 64-bit LPDDR5, 34 GB/s |

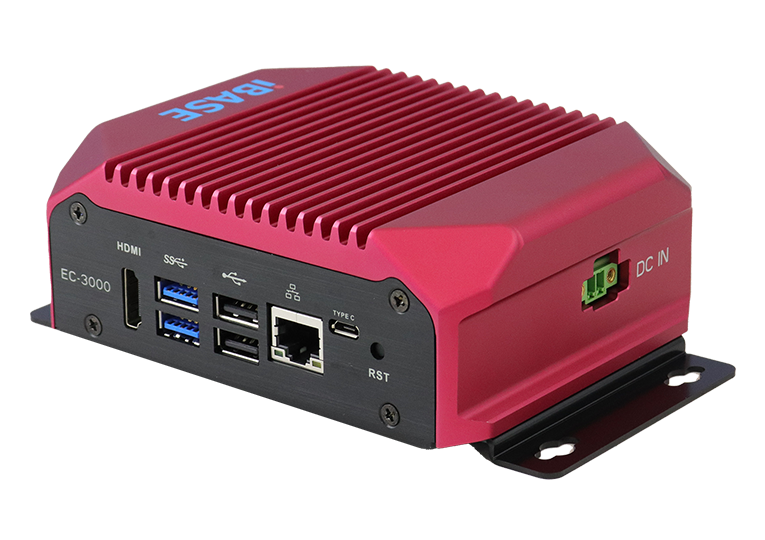

| Front Panel External I/O | 1x Gigabit Ethernet (10/100/1000), RJ45 with LED 1x HDMI Type-A 2x USB 3.2 Gen2 Type-A 2x USB 2.0 Type-A 1x Micro USB connector supports Recovery Mode and OTG 1x Power LED 1x Recovery button 2x Antenna |

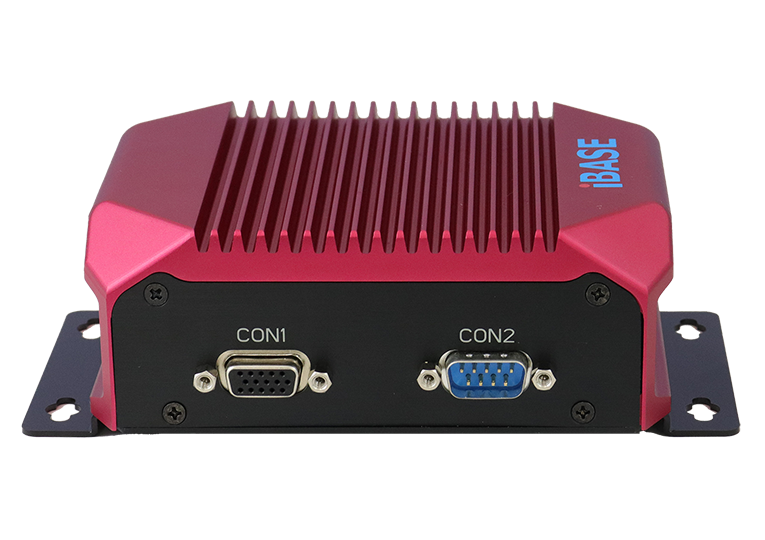

| Rear Panel External I/O | 1x DB9 connector for RS-232/485 and CanBus 1x DB15 connector for RS-232/422/485 and DIO x8 2x Antenna 1x 12V-24V DC input with 2-pin terminal block |
| Expansion Slot | 1x M.2 3042/3052 B-key (4G/5G/M.2 2242 B+M Key storage) |
| Storage | 1x M.2 2230 E-Key (WiFi/BT/Storage) |
| Construction | Aluminum & steel |
| Chassis Color | Black & Red |
| Mounting | Wall mount |
| Weight | TBD |
| Dimensions | 105mm x 90mm x 52mm |
| Operating Temperature | -15°C~55°C (-5°F~131°F) |
| Storage Temperature | -40°C~85°C (-40°F~185°F) |
| Relative Humidity | 5%~95% (non-condensing) |
| Vibration | Operatiing: 1 grms / 3~500Hz / random operation |
| Shock | Operating: 20 g / 11 ms Non-operating: 40 g / 11 ms |
| Certification | CE/FCC Class B |
| EC3000-NX-8 | NVIDIA Jetson Orin NX 8GB, 1 x HDMI, 1x GbE, 5x USB, M.2 B+M/E Key, 12V to 24V DC input, -15°C ~ + 55°C operating temperature, with power adaptor, with RTC battery |
| EC3000-NANO-4 | NVIDIA Jetson Orin Nano 4GB, 1 x HDMI, 1x GbE, 5x USB, M.2 B+M/E Key, 12V to 24V DC input, -15°C ~ + 55°C operating temperature, with power adaptor, with RTC battery |
| DATASHEETS | EC3000 |
| CATALOGS | Intelligent Systems (Vol.25.01) |
