Intelligent System
EC3100
Edge AI Computer with NVIDIA® Jetson ORIN NX/Nano Series
- 8-core NVIDIA Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3/6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
- 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores / 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
- 1x M.2 3052 B-Key 4G/5G function
- 1x M.2 3042 B-Key OOB 4G function
- 1x M.2 2230 E-Key WiFi/BT/GPS function
- 1x M.2 2280 M-Key NVMe storage
- 1x Summit connector for PoE Board; 1x 240-pin SO-DIMM connector
- Wide-power input range +9V to +36VDC
- Supports Ubuntu 22.04 OS
| System Mainboard | NVIDIA® Jetson ORIN NX 16GB or 8GB/ORIN Nano 8GB or 4GB SOM + Carrier Board |
| CPU Type | EC3100-NX-16: 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 EC3100-NX-8: 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 EC3100-NANO-8 / EC3100-NANO-4: 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
| System Speed | EC3100-NX-16 / EC3100-NX-8: 2GHz EC3100-NANO-8 / EC3100-NANO-4: 1.5GHz |
| Memory | EC3100-NX-16: 16GB 128-bit LPDDR5, 102.4GB/s EC3100-NX-8: 8GB 128-bit LPDDR5, 102.4GB/s EC3100-NANO-8: 8GB 128-bit LPDDR5, 68 GB/s EC3100-NANO-4: 4GB 64-bit LPDDR5, 34 GB/s |
| AI Accelerator | EC3100-NX16/NX-8/NANO-8: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores EC3100-NANO-4: 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores |
| LAN | 2x RJ-45 GbE port (10/100/1000) |

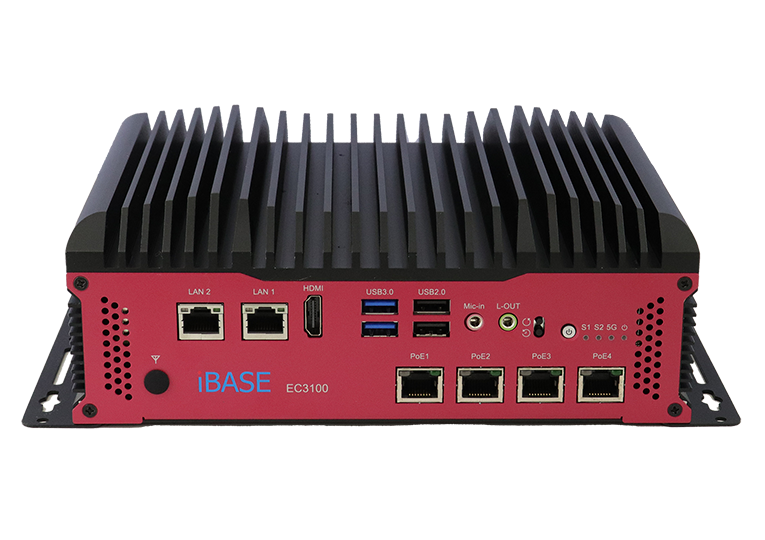

| Front Panel External I/O | 1x RJ45 GbE for OOB, 1x RJ45 GbE for system 1x HDMI 2.1 2x USB 3.2 Type-A Gen2, 2x USB 2.0 Type-A 1x Line-out jack, 1x Mic-in jack 1x Power button, 1x Recovery button 1x Reset button 4x RJ45 GbE support PoE (optional) |

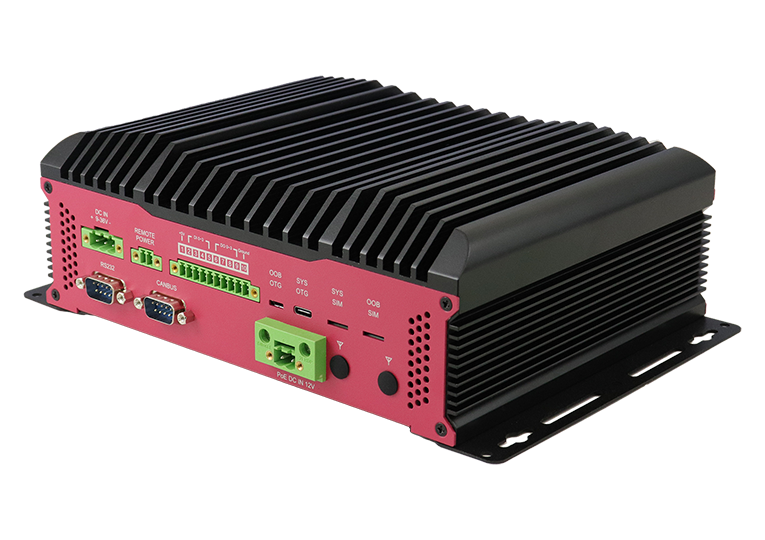

| Rear Panel External I/O | 1x DC-in 9V~36V lockable power jack 1x Remote power connector 4x DI + 4 x DO (pin1 with isolation output 5V @ 0.5A) 2x Edge insert nano SIM socket 1x USB 2.0 Type-C (OTG) 1x USB 2.0 Micro-USB (OOB OTG) 1x RS232 COM port DB9 connector 1x CANBus DB9 connector 3x Antenna holes |
| Expansion Slot | 1x M.2 3052 B-Key 4G/5G 1x M.2 3042 B-Key OOB 4G 1x M.2 2230 E-Key WiFi/BT/GPS 1x M.2 2280 M-Key NVMe |
| Storage | 1x M.2 2280 M-Key NVMe (default 128GB) |
| Auto Control and Monitoring | Out-of-band manage functions (optional) |
| Power Requirement | 9V~36V DC-in |
| Power Supply | 120W 12V power adapter |
| Construction | SECC and Aluminum |
| Chassis Color | Black & Red |
| Mounting | Desktop & wall mount |
| Weight | TBD |
| Dimensions | 220mm (L) x 174mm (W) x 80mm (H) |
| Others | 1x USB Type-C connector supports Recovery Mode and OTG 1x RS232 COM port DB9 connector 1x CANBus DB9 connector 4x DI + 4 x DO (pin1 with isolation output 5V @ 0.5A) 1x 3-pin power input 1x 2-pin Power on/off connector 1x SIM socket for 4G/5G 1x SIM socket for OOB 4G 3x Antenna jacks |
| Operating Temperature | -20°C~70°C (-40°F~158°F)(Target) |
| Storage Temperature | -40°C~80°C (-40°F~176°F) |
| Relative Humidity | 10%~90% (non-condensing) |
| Vibration | Operating: 1 Grms / 3~500Hz / random operation (with IEC 60068-2-64) |
| Shock | Operating: 20g/11ms Non-operating: 40g/11ms |
| Certification | CE, FCC Class B |
| Operating System | Ubuntu 22.04 |
| EC3100-NX-16 | NVIDIA® Jetson Orin NX 16GB, 1x HDMI, 2x GbE, 5x USB, 2x M.2 B-key, 1x M.2 E-key, 1x M.2 M-Key, with power adaptor, with RTC battery |
| EC3100-NX-8 | NVIDIA® Jetson Orin NX 8GB, 1x HDMI, 2x GbE, 5x USB, 2x M.2 B-key, 1x M.2 E-key, 1x M.2 M-Key, with power adaptor, with RTC battery |
| EC3100-NANO-8 | NVIDIA® Jetson Orin Nano 8GB, 1x HDMI, 2x GbE, 5x USB, 2x M.2 B-key, 1x M.2 E-key, 1x M.2 M-Key, with power adaptor, with RTC battery |
| EC3100-NANO-4 | NVIDIA® Jetson Orin Nano 4GB, 1x HDMI, 2x GbE, 5x USB, 2x M.2 B-key, 1x M.2 E-key, 1x M.2 M-Key, with power adaptor, with RTC battery |
| DATASHEETS | EC3100 |
