Intelligent System

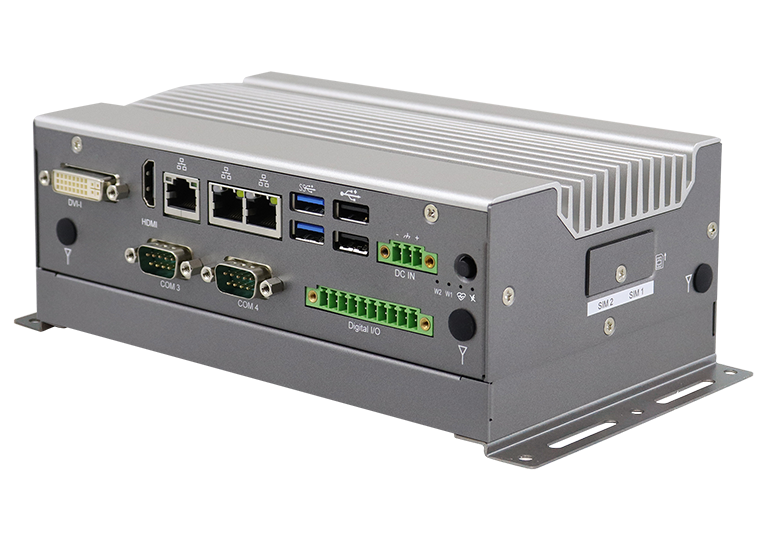

AGS103T

Compact IoT Gateway Edge Computing System with Intel® Atom® x6414RE/x6212RE Processors

  • Intel® Atom® x6414RE/x6212RE Processors (formerly Elkhart Lake)
  • GPIO 4-in/4-out & 1x DVI-I & 1x HDMI
  • Over/Under/Reverse voltage protection
  • Extended operating temperature from -20°C to 70°C
  • 9V~36V DC wide-range power input
  • 1x M.2 B-Key 3052 support 5G module
  • Optional 1x 2.5" SSD (AGS103TS)
  • 3x 2.5G Ethernet ports
  • 2x full-size Mini PCI-E
  • 4x COM (RS232/422/485), 2x USB 3.1 & 2x USB 2.0
  • Supports DIN-rail mount, wall mount & TPM 2.0
  • 5G
  • Fanless
  • Wide Temperature
  • Wide-range power input
  • IEC 62368-1 EN 62368-1
  • Microsoft Azure Certified-IoT
  • AWS IoT

The AGS103T is a compact IoT gateway edge computing system integrating the Intel Atom® x6000E Series processors (code-named Elkhart Lake) that deliver up to 4 cores with 40% increase in CPU performance and improved graphics when compared with previous versions. Based on Intel's 10nm technology, the energy-efficient platform is suitable for embedded applications in factory automation, IoT gateway, edge computing and automatic control systems.


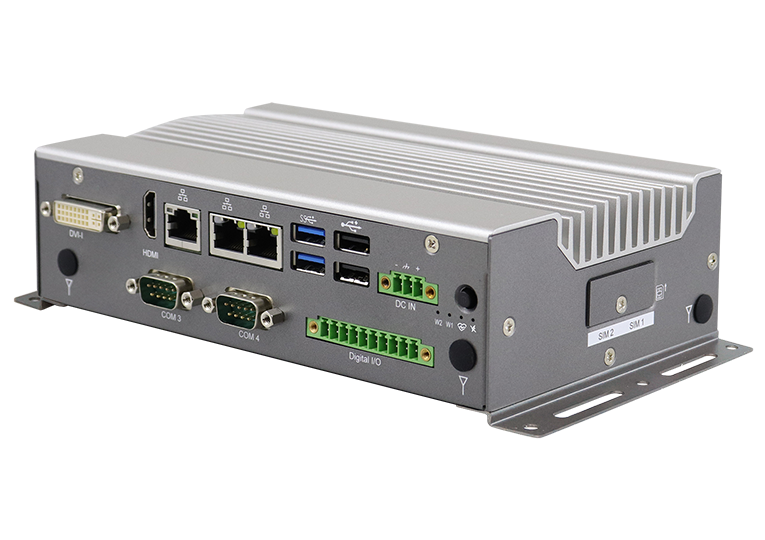

AGS103T Ultra-Compact IoT Gateway Edge Computing System

AGS103T Introduction Video


The ruggedized industrial-grade AGS103T boasts several advanced features such as an extended operating temperature range of -20°C to 70°C, three 2.5 Gigabit Ethernet ports for fast wired connections and multi-protocol communications, and over/under/reverse voltage protection. Useful I/O interfaces include 3052 M.2 B-Key, four COM (RS232/422/485), two USB 3.1 and two USB 2.0 sockets.


In addition, the low-power AGS103T supports DIN-rail and wall mounting installation, and onboard TPM 2.0 hardware-based security to ensure platform integrity. It is available with Intel® Atom® 6414RE x6212RE and with an option for an additional storage for 2.5" drives.

System Mainboard IB803T
CPU Type Intel® Atom® x6414RE (1.5GHz, 1.5MB cache, 9W TDP)
Intel® Atom® x6212RE (1.2GHz, 1.5MB cache, 6W TDP)
System Speed Up to 1.5GHz
Memory 1x DDR4 SO-DIMM , Max. 16GB

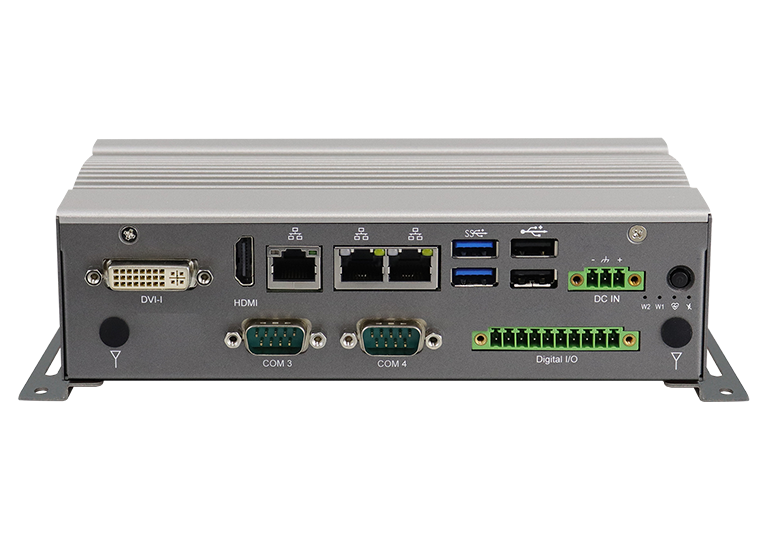

Rear Panel External I/O 1x DVI-I + 1x HDMI
2x USB 3.1 ports, 2x USB 2.0 port
3x RJ45 2.5G Ethernet port
4x LED indicators (GPIO, WLAN, WWAN)
1x power button with Green LED
1x 3-pin DC-in terminal block for 9V-36V
2x Antenna hole for WLAN module
2x RS232/422/485 ports for COM#3/COM#4
1x 4-in & 4-out GPIO

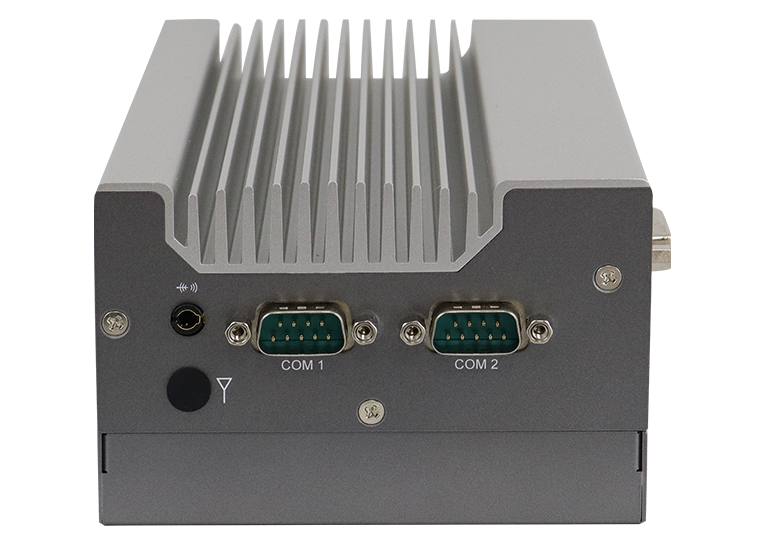

Left Panel External I/O 2x RS232/422/485 ports for COM#1/COM#2
1x Antenna hole for WLAN module
1x Line-out/ Mic-in
Right Panel External I/O 2x SIM card slot
1x Antenna hole for WLAN module
Expansion Slots 1x Full-size Mini PCI-E socket (USB 2.0)
1x Full-size Mini PCI-E socket (USB 2.0 + SATA)
1x M.2 B-Key socket (USB 3.0 + PCI-E)

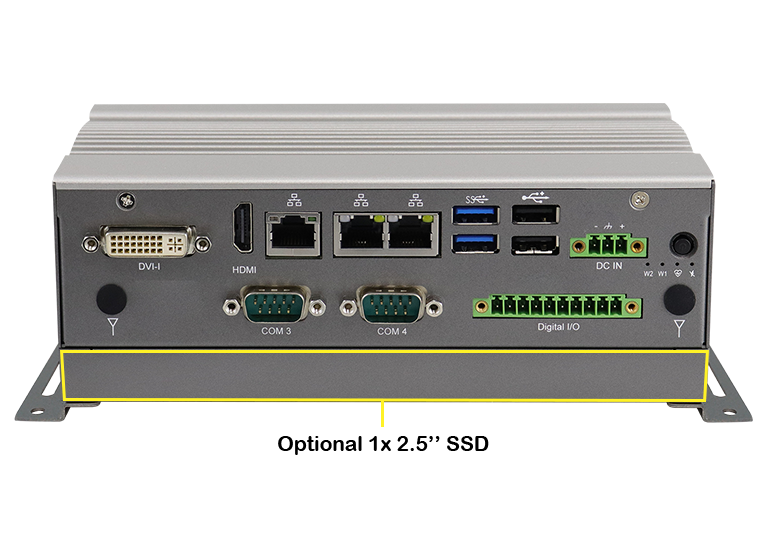

Storage 1x Mini PCI-E slot (mSATA SSD),1x 2.5’’ SSD (AGS103TS)
Construction Aluminum & steel
Chassis Color Silver & Gray

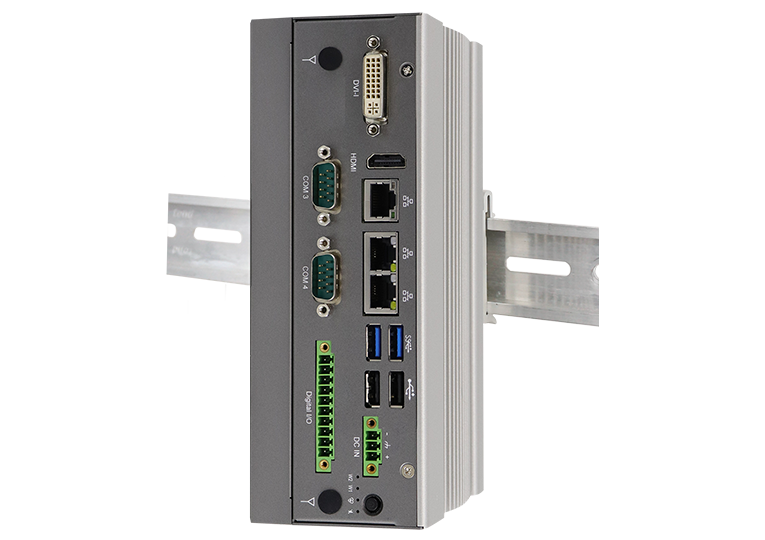

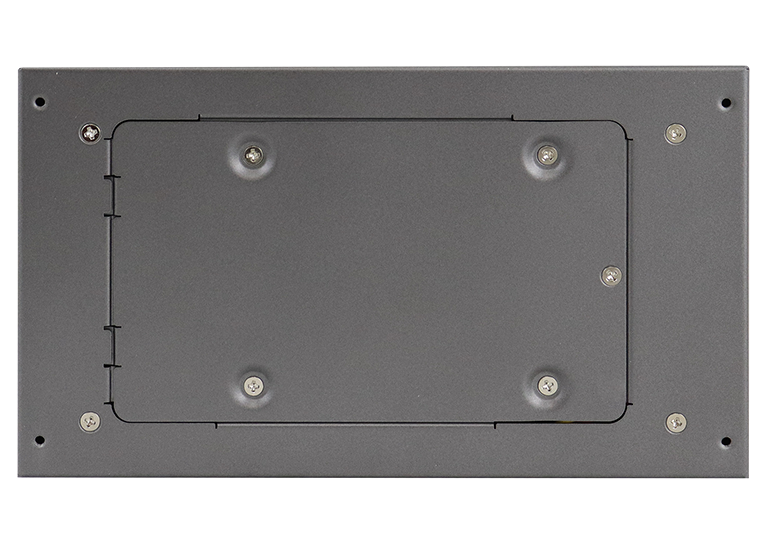

Mounting DIN-rail mounting (DIN-rail mount kit included)
Desktop or wall mounting (wall mount kit included)
Dimensions AGS103T :
218mm(W) x 110mm(D) x 52mm (H) w/ Wall-mount kit
8.58”(W) x 4.33mm(D) x 2.05mm (H)

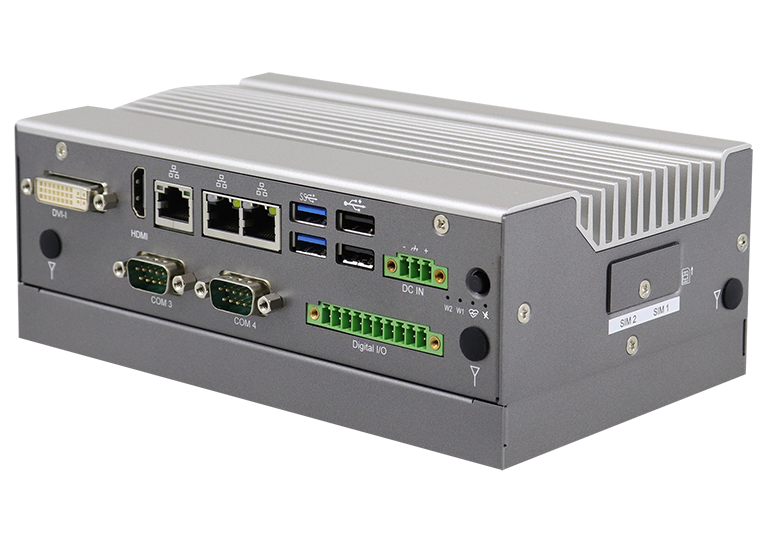

AGS103TS :
218mm(W) x 110mm(D) x 73mm (H) w/ Wall-mount kit
8.58”(W) x 4.33mm(D) x 2.87mm (H)
Weight 1.2kg
Operating Temperature -20°C~70°C (-4°F~158°F)
Storage Temperature -40°C ~ 85°C (-40°F~185°F)
Relative Humidity 5~90% @ 60°C, (non-condensing)
Vibration Operating: 2.0 Grms / 5~500Hz / random operation (with IEC 60068-2-64)
Shock Operating: 30G/11 ms Duration
Non-operating: 40G/11 ms Duration
Certification CE/ FCC/ LVD
Operating Systems Win10 and Linux Ubuntu
AGS103T-6414RM Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom® Processor x6414RE, 3x 2.5G Ethernet port, 4x COM, w/o memory, storage, power adaptor
AGS103TS-6414RM Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom® Processor x6414RE, 3x 2.5G Ethernet port, 4x COM, w/o memory, storage, power adaptor, w/ 2.5” storage slot
AGS103T-6212RM Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom® Processor x6212RE, 3x 2.5G Ethernet port, 4x COM, w/o memory, storage, power adaptor
AGS103TS-6212RM Fanless DIN-rail System supports TPM2.0 w/ Intel® Atom® Processor x6212RE, 3x 2.5G Ethernet port, 4x COM, w/o memory, storage, power adaptor, w/ 2.5” storage slot
DATASHEETS AGS103T
CATALOGS Intelligent Systems (Vol.05)
MANUALS AGS103T

Drivers

Model Chipset Video Audio Network Others
AGS103T

Intel(R) Chipset Software Installation Utility

Windows10

Intel(R) Elkhartlake Graphics Driver

Windows10

Realtek High Definition Audio

Windows10

Intel(R) I22X Gigabit Network

Windows10

Intel(R) ME

Windows10

By becoming an IBASE member, you can have access to the test reports, certifications, 2D/3D drawings and MTBF reports from our member site. Not a member? Join Now!
