Intelligent System


Compact Fanless & Ventless System with 14th/13th Gen Intel® Core™ i9/i7/i5/i3 Desktop Processors

  • Fanless system with IBASE MBE240 customized board
  • 14th/13th Gen Intel® Core™ i9/i7/i5/i3 Desktop Processors (35W TDP)
  • Dual SIM slots support WWAN redundancy (5G/4G/LTE)
  • 4x RJ45 Ethernet ports (2x 2.5GbE ports + 2 PoE+ ports support 802.3at)
  • 3x M.2 (B-Key/E-Key/M-Key), iAMT (16.1), TPM (2.0)
  • Single 24V DC input, supports over/under/reverse voltage protection
  • Supports wide-range operating temperature from -20°C to 70°C
  • NEW
  • 5G
  • Fanless
  • IEC 62368-1 EN 62368-1
  • IP40

The AMI240 fanless system houses the IBASE MBE240AF motherboard. This rugged system is engineered to seamlessly integrate a variety of 14th and 13th Gen Intel® Core™ processors, delivering unparalleled performance and responsiveness across a diverse range of applications.

The AMI240 fanless system houses the IBASE MBE240AF motherboard.

It is fully compatible with Sierra 5G modules and the Intel® i9-14900T processor (24 cores, 36M cache) with a TDP of 35W, enabling demanding workloads while maintaining power efficiency. The system accommodates two DDR5-4800/5600 with up to 64GB capacity and has a wide-range operating temperature from -20°C to 70°C, allowing deployments in challenging thermal conditions and where temperature fluctuations can be a concern. It boasts a compact and space-efficient design, measuring a mere 210mm(W)  x 285mm(D) x 77mm(H).

The AMI240 also boasts an array of connectivity options, including dual SIM slots that support WWAN redundancy and four RJ45 Ethernet ports featuring dual 2.5GbE and two PoE+ for versatile networking capabilities. It offers multiple M.2 slots (B-Key, E-Key, M-Key), AMT (16.1), TPM (2.0), and robust expansion through PCI-E slots, and is equipped with a single 24V DC input to ensure stable power supply and Over/Under/Reverse voltage protection for added reliability.

The robust AMI240 has been verified to support multi-OS function. It utilizes Intel SR-IOV technology to unleash 6x OS (Windows 10 & 11, 2x Android 12, and 2x Ubuntu 22.04) in one system. Users have the flexibility to choose and switch between different operating systems based on their needs. The implementation of Intel SR-IOV solutions enables efficient sharing of hardware resources between multiple operating systems, improving performance and resource utilization in virtualized environments. The system meets various application requirements for low-latency and high-value embedded computing, such as remote monitoring, predictive maintenance, and autonomous systems, which require a well-supported OS to optimize performance as software complexity rapidly increases.

System Mainboard MBE240AF with Intel® Q670E PCH
CPU Type 14th/13th Gen Intel® Core™ i9/i7/i5/i3 Desktop Processors
System Speed Up to 5.0GHz
Memory 2x DDR5-4800/5600 SO-DIMM, Max. 64GB

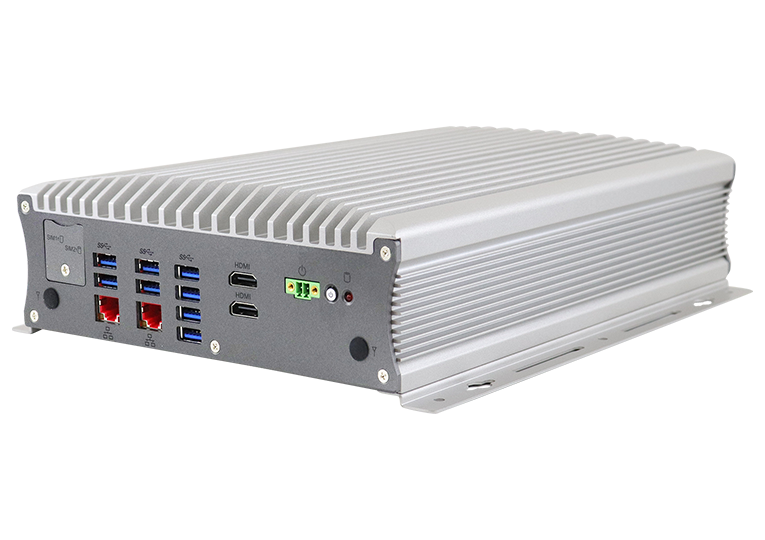

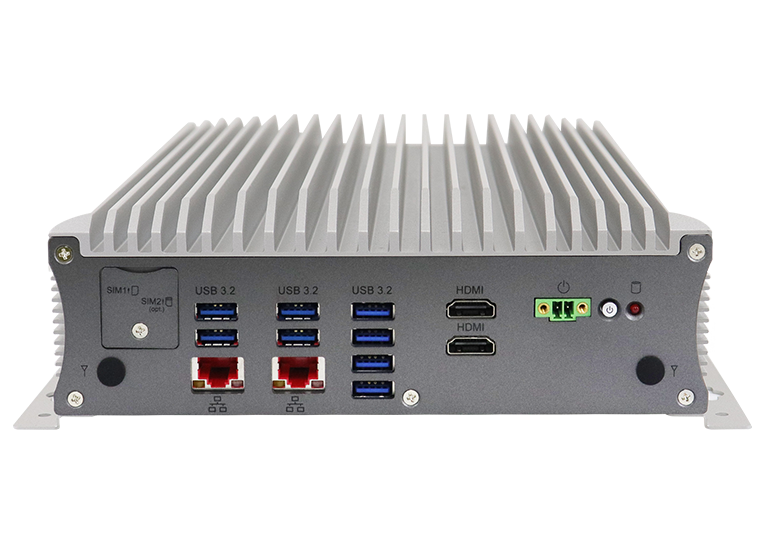

Front Panel External I/O 2x HDMI(2.0b)
1x Audio jack for MIC-in / Line-out
4x USB3.2 ports
2x Antenna holes
2x RJ45 2.5GbE ports + Dual USB3.2 stack ports
1x RED LED for 2.5" storage device
1x Power button with Green LED indicator
1x 2-pin terminal block
2x SIM card

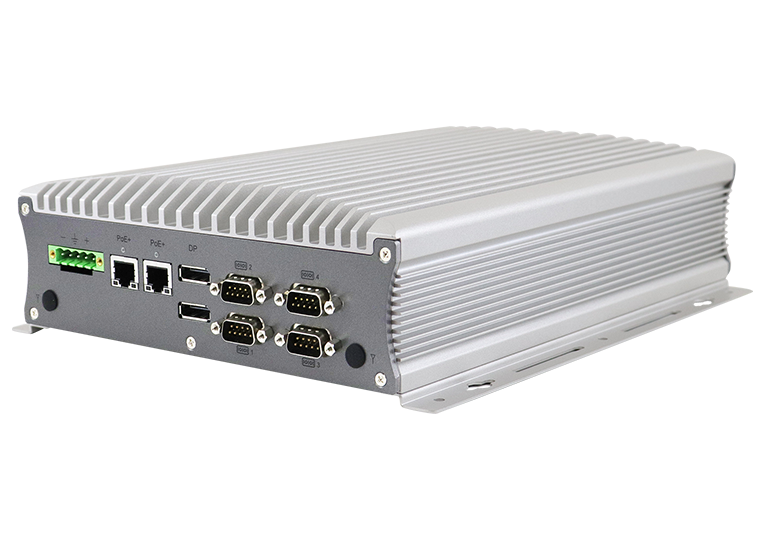

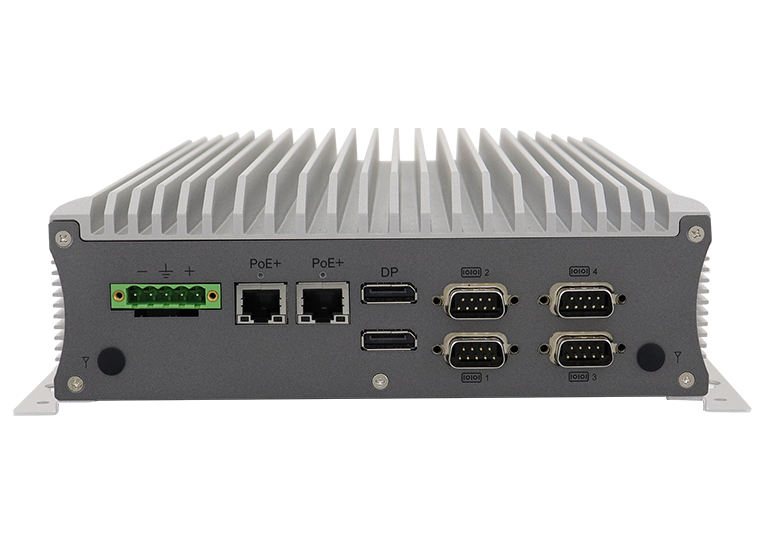

Rear Panel External I/O 2x RS232/422/485 port for COM#1~COM#2
2x RS232 ports for COM#3~COM#4
2x DisplayPort (1.2)
2x RJ45 Gigabit Ethernet port (Support 802.3at,PoE+)
1x 5-pin DC-in terminal block type for 24V
2x Antenna holes
Expansion Slots 1x M.2 (E-Key) for WiFi / BT
1x M.2 (B-Key) for 5G/4G/LTE (Supports Sierra 5G module)
Storage 1x 2.5 HDD/SSD
1x M.2 (M-Key)
*Supports NVMe SSD
Construction Aluminum & steel
Chassis Color Silver + Gray (Aluminum)
Mounting Desktop & wall mount
Dimensions 210mm(W) x 285mm(D) x 77mm(H)
8.27” (W) x 11.22” (D) x 3.03” (H)
Weight 4.1 Kg
Operating Temperature -20°C to 70°C (-4°F~158°F) (for 35W CPU)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 5%~90%@45°C (non-condensing)
Vibration Operating : 0.25Grms / 5~500Hz
Non-operating : 1Grms / 5~500Hz
Shock Operating : 20G / 11ms
Non-operating : 40G / 11ms
Certification CE *follow EN55032*
FCC Class A / LVD
AMI240AFM Fanless Box System support Intel® Core™ i9/i7/i5/ i3 desktop 35W CPU & DDR5 SO-DIMM Non-ECC memory (Max. 64GB) & 1x SATA 2.5” storage device, w/o power adaptor
270W Power Adaptor Kit (optional) 270W (24V@11.25A) power adaptor kit compatible with IEC62368-1/ EN62368-1
