AMI242

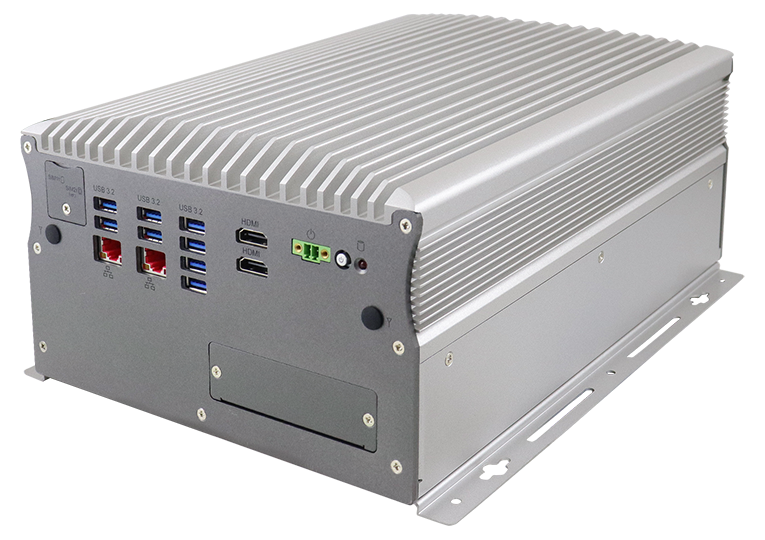

The AMI242 series fanless systems are designed to meet the rigorous demands of industrial applications. It combines robust performance, versatile connectivity, and exceptional reliability in a fanless design.

The AMI242 features the proprietary IBASE MBE240 board, supporting the latest 14th/13th Gen Intel® Core™ i9/i7/i5/i3 35W TDP desktop processors. It has two DDR5 SO-DIMM sockets, allowing up to 64GB of memory for seamless multitasking and enhanced system responsiveness. The AMI242AFM model features the MBE240AF motherboard with Intel Q670E PCH, supporting non-ECC memory, while the AMI242AFM-R model uses the MBE240AF-R board with Intel R680E PCH and ECC memory support.

The fanless system offers comprehensive connectivity options, including two Intel® 2.5G LAN ports, two Intel® GbE ports supporting 802.3at PoE+, and three M.2 sockets (M-Key/B-Key/E-Key) for expandability and customization. It also supports PCI Express Generation 5 for one PCI-E (16x) expansion slot, ensuring high-speed data transfer for various peripherals.

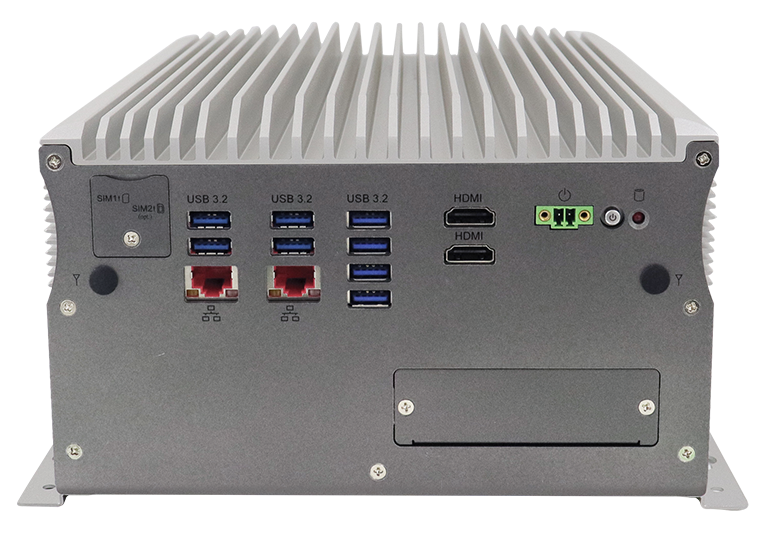

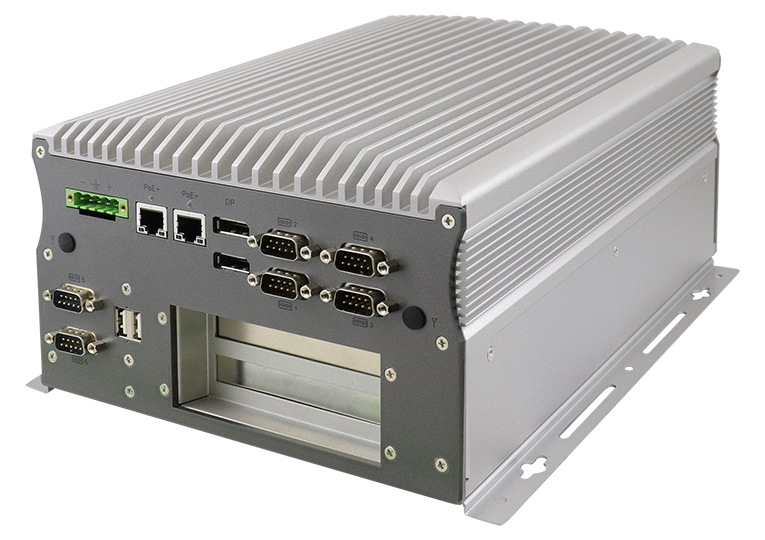

The AMI242 includes over/under/reverse voltage protection and operates within a wide temperature range of -20°C to 70°C, making it ideal for industrial automation, smart retail, and medical environments. It also features dual SIM slots for WWAN redundancy, iAMT (16.1), and TPM (2.0). Extensive front and rear panel I/O options include multiple USB ports, HDMI outputs, RJ-45 ports, antenna holes, and expansion slots. The system supports RAID 0/1 configurations with two 2.5” storage options, enhancing its data storage capabilities. The PCI-E slot with the IP218 expansion card supports the latest PCI-E Gen.5 bandwidth of 32GT/s, allowing high-end graphics cards and other high-speed peripheral cards.
