Intelligent System

ASB200-918

Slim Fanless system with IBASE IB918 3.5-inch Single Board Computer

  • Fanless system with IBASE IB918 3.5" Single Board Computer
  • Onboard AMD Ryzen™ Embedded V1000 /R1000
  • 2x DDR4 SO-DIMM, Max. 32GB, supports ECC
  • Supports 2x M.2 sockets (E-Key / M-Key, NVMe)
  • 12V(-10%) ~ 24V(+10%) DC-in Power Input
  • 2x HDMI(2.0a), 2x Intel® Gigabit LAN
  • 4 x COM ports, External GPIO
  • 4 x USB3.1, 1x USB2.0
  • iSMART
  • Fanless
  • Wide-range power input
  • IEC 62368-1 EN 62368-1
  • AMD Ryzen Embedded

The ASB200-918 series is based on the IB918 3.5-inch form factor SBC supporting AMD Ryzen SoCs (V1605B/V1202B/R1606G/R1505G). The four models in the series bring together the powerful performance of the "Zen" CPU and "Vega" GPU architectures to deliver a new class of embedded solutions.


IBASE leverages the high performance and stunning graphics capabilities of AMD Ryzen Embedded processors with its own manufacturing flexibility to design the fanless ASB200-918 that runs two simultaneous HDMI 2.0a displays at Ultra HD 4K resolution (3840 x 2160) with a frame rate of 60 fps. Measuring 240mm x 162mm x 42mm, it is equipped with rugged components to ensure a reliable and uninterrupted operation in industrial control, factory, kiosks and other space-critical applications.


ASB200-918 SBC Fanless System

The robust design of the ASB200-918 comes with 16GB of DDR4-2666 memory with ECC and up to 32GB support. The unit features a 64GB TLC SSD storage, 12V~24V DC wide power input and optional 90W power adaptor. Versatile I/O connectivity is provided by 4x COM, 4x USB 3.1, 1x USB 2.0, 2x GbE and an external GPIO, while expansion is supplied by two M.2 slots for NVMe storage and WiFi or Bluetooth connections. Supported operating systems include Win10, Win10 IoT Enterprise, Win Embedded Standard 8, and Ubuntu 16.04.

System Mainboard IB918F-1605 /IB918F-1202 /IB918F-1606G / IB918F-1505G
CPU Type AMD Embedded Ryzen™ Series SoC V1605B/ V1202B/ R1606G/ R1505G
System Speed Up to 3.6GHz
Memory 2x 8GB DDR4-2666 SO-DIMM
Max.32GB, supports ECC

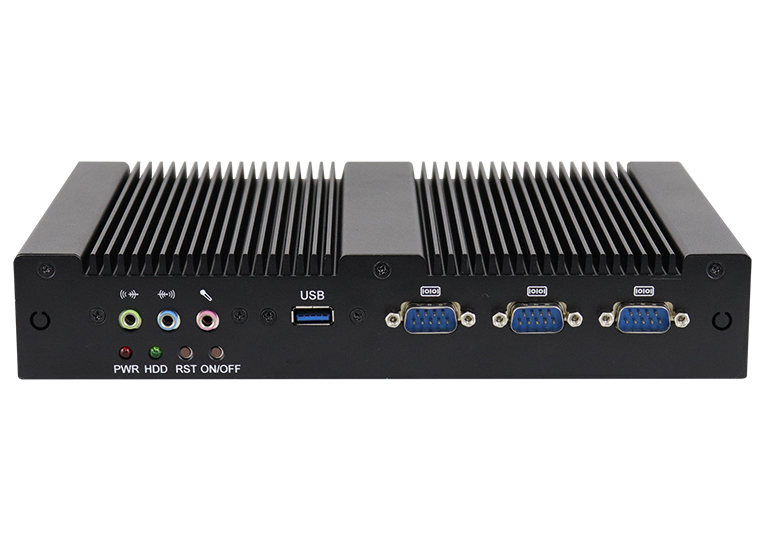

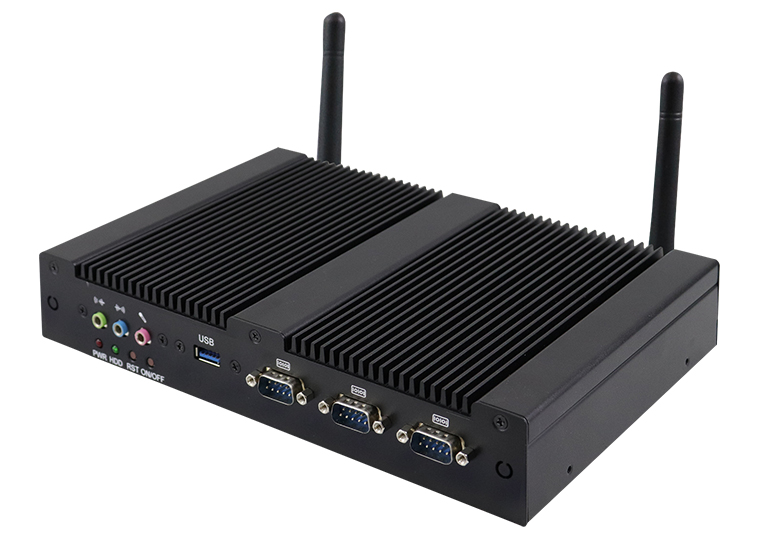

Front Panel External I/O 1x Audio Jack for Line-out/ Line-in/ MIC-in
1x Power LED/ 1x HDD LED/ 1x RST button/ 1x On/Off button
1x USB 3.0/2.0 by V1605B/ V1202B/ R1606G/ R1505G
3x DB9 for COM#2~4 (RS232)

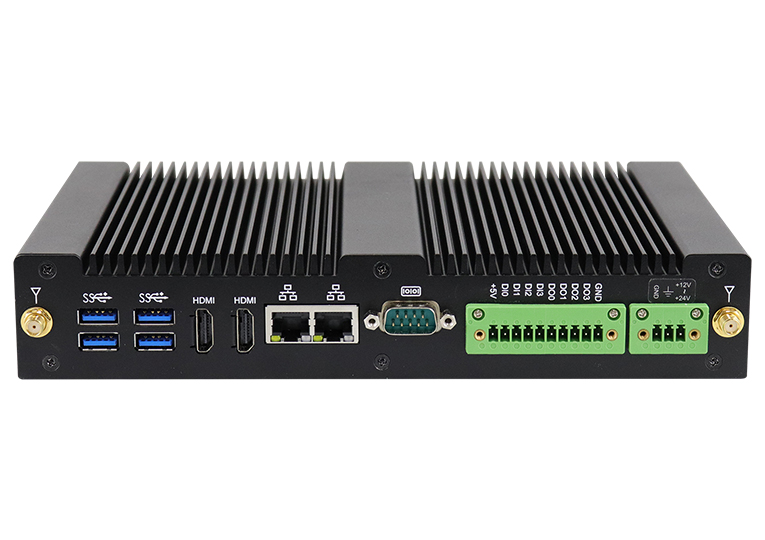

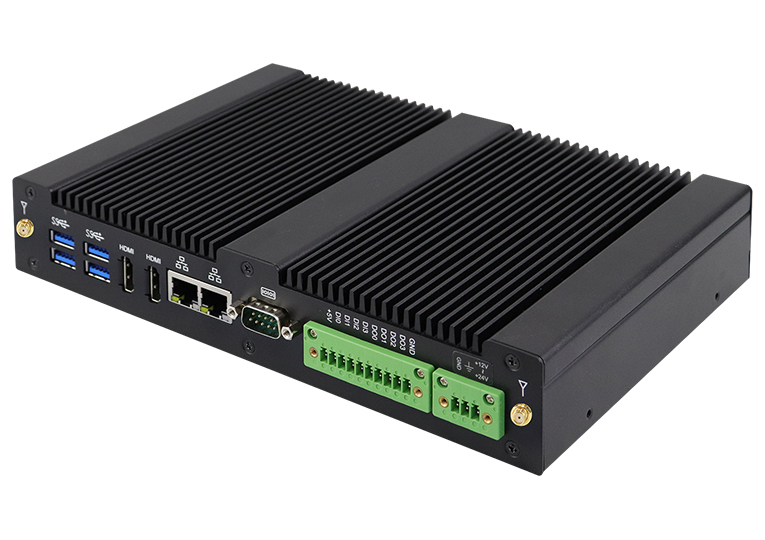

Rear Panel External I/O 4 x USB 3.1
2x HDMI(2.0a)
1x DB9 for COM#1 (RS232/422/485)
2x LAN
1x Digital I/O (4-in/4-out)
1x 3-pin DC-in terminal block for 12V(-10%) ~ 24V(+10%)
2x Antenna holes
Expansion Slots 2x M.2 (E-Key / M-Key)
Storage 1x 2.5" HDD or SSD
Construction Aluminum & steel
Chassis Color Black
Mounting Desktop or wall mount (wall mount kit included)
Dimensions 240mm (W) x 162mm (D) x 42mm (H)
9.44" (W) x 6.37" (D) x 1.65" (H)
Weight 1.7kg
Operating Temperature 0°C~45°C (32°F~113°F)
Storage Temperature -20°C ~80°C (-4°F~176°F)
Relative Humidity 5%~90%@45°C (non-condensing)
Vibration Operating : 3Grms / 5~500Hz
Shock Operating : 20G / 11ms
Non-operating : 40G / 11ms
Certification CE/LVD/FCC Class-B
ASB200-918-1605 Fanless chassis with IB918F-1605, AMD Ryzen™ Embedded V1605B QC APU 2.0GHz, 4x COM, 2x 8GB DDR4 memory, 1x 2.5’’ SATAIII 64GB TLC SSD,W/O 90W power adaptor
ASB200-918-1202 Fanless chassis with IB918F-1202, AMD Ryzen™ Embedded V1202B DC APU 2.3GHz, 4x COM, 2x 8GB DDR4 memory, 1x 2.5’’ SATAIII 64GB TLC SSD, W/O 90W power adaptor
ASB200-918-1606G Fanless chassis with IB918F-1606G, AMD Ryzen™ Embedded R1606G DC APU 2.6GHz, 4x COM, 2x 8GB DDR4 memory, 1x 2.5’’ SATAIII 64GB TLC SSD, W/O 90W power adaptor
ASB200-918-1505G Fanless chassis with IB918F-1505G, AMD Ryzen™ Embedded R1505G DC APU 2.4GHz, 4x COM, 2x 8GB DDR4 memory, 1x 2.5’’ SATAIII 64GB TLC SSD, W/O 90W power adaptor
90W power adaptor (optional) 90W (24V@3.75) power adaptor, DC-jack or bare wire type, Compatible with IEC62368-1/EN62368-1
DATASHEETS ASB200-918
CATALOGS Intelligent Systems (Vol.05)
MANUALS ASB200-918

Drivers

Model Chipset Video Audio Network Others
ASB200-918

AMD Graphics

Windows10

Realtek High Definition Audio

Windows10

Intel i211 Driver

Windows10

By becoming an IBASE member, you can have access to the test reports, certifications, 2D/3D drawings and MTBF reports from our member site. Not a member? Join Now!
