Intelligent System

ASB200-919

Slim Fanless system with IBASE IB919 3.5-inch Single Board Computer

  • Fanless system with IBASE IB919 3.5" Single Board Computer
  • Onboard 8th Gen Intel® Core™ U-Series Processor
  • Supports 2x M.2 sockets (E-Key, CNVi / M-Key, NVMe)
  • 12V(-10%) ~ 24V(+10%) DC-in power Input
  • 2x DDR4 SO-DIMM, Max.32GB
  • 4x USB 3.1, 2x Intel® Gigabit LAN
  • 1x COM ports, External GPIO
  • 2x DisplayPort (1x by Type-C), TPM (2.0)
  • Optional VESA mount bracket
  • iSMART
  • Fanless
  • Wide-range power input
  • IEC 62368-1 EN 62368-1

The slim-type ASB200-919 is a fanless system based on the IB919 3.5" disk-size SBC. The system is designed for both industrial and commercial applications, including factory automation, production line equipment, POS computers and gaming applications.


The compact ASB200-919 is equipped with the 8th Gen Intel® Core™ i7/i5/i3 / Celeron® processors and two DDR4 SO-DIMM slots with 8GB as default and 32GB maximum capacity. Measuring 180 x 150 x 66mm, the system provides multiple I/O ports (with 4x USB 3.1, 2x DP, 1x COM, and 2x GbE on the front panel) and two M.2 expansion sockets (E-Key & M-Key) to integrate various peripheral devices or meet specific application requirements.


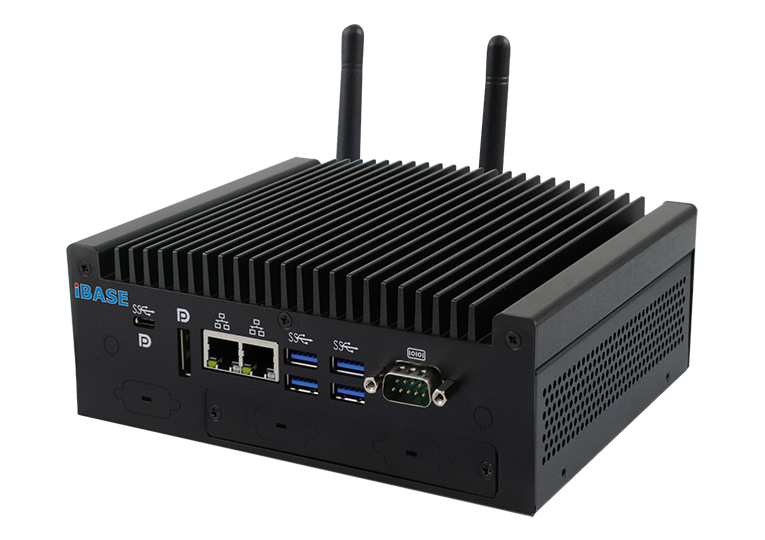

ASB200-919 SBC Fanless System

The ASB200-919 is designed for reliable 24/7 operation, with a wide power input range from 12V(-10%) to 24V(+10%) and 3Grms vibration resistance. Other features include TPM (2.0) for enhanced security and data protection, external GPIO, easy SSD replacement, and optional 90W power adaptor and WiFi antenna kit. Operating systems supported are Win10 and Linux Ubuntu.

System Mainboard IB919AF-8665/ IB919AF-8365/ IB919EF-8145/ IB919EF-4305
CPU Type Intel® Core™ i7 8665UE Processor
Intel® Core™ i5 8365UE Processor
Intel® Core™ i3 8145UE Processor
Intel® Celeron® 4305UE Processor
System Speed Up to 4.4GHz
Memory 2x 8GB DDR4-2666 SO-DIMM, Max.32GB

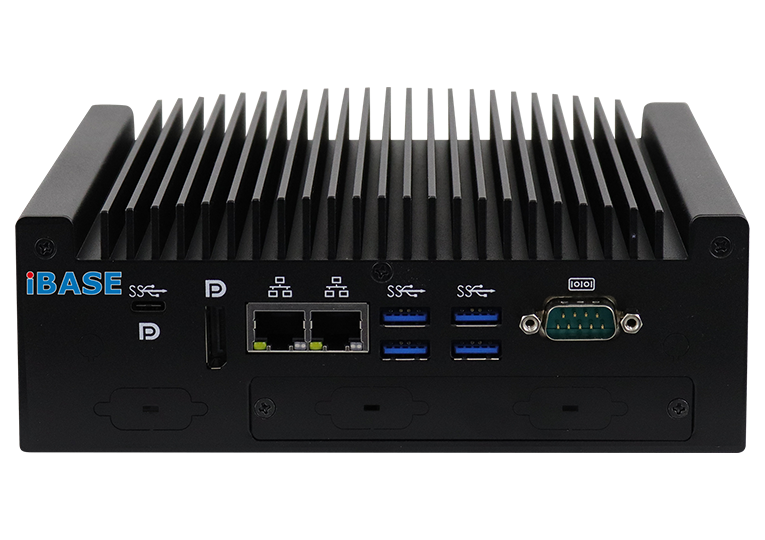

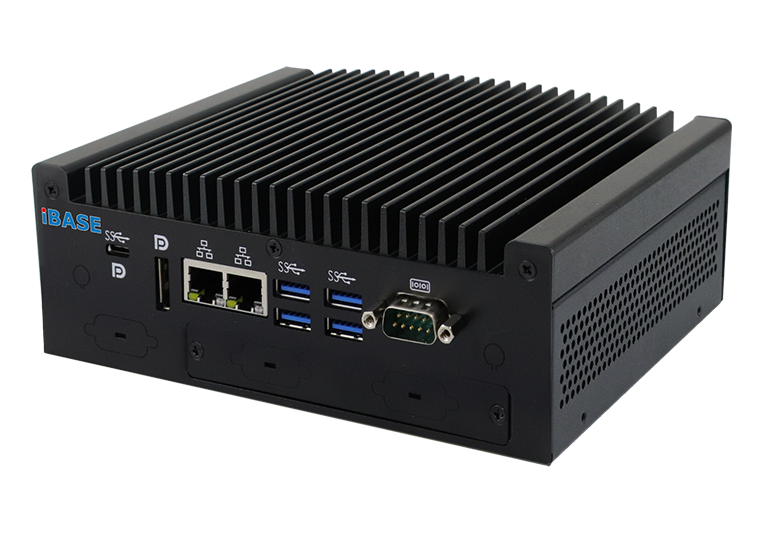

Front Panel External I/O 4x USB 3.1
2x DP
1x DB9 for COM#1 (RS232/422/485)
2x LAN

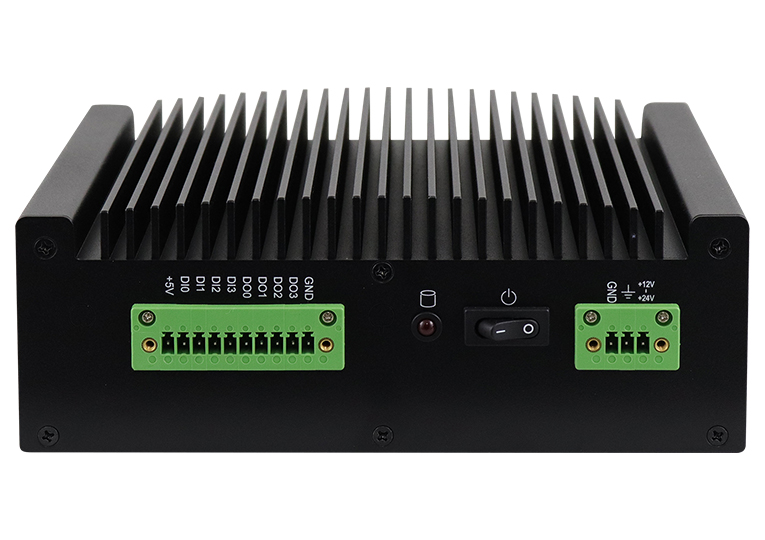

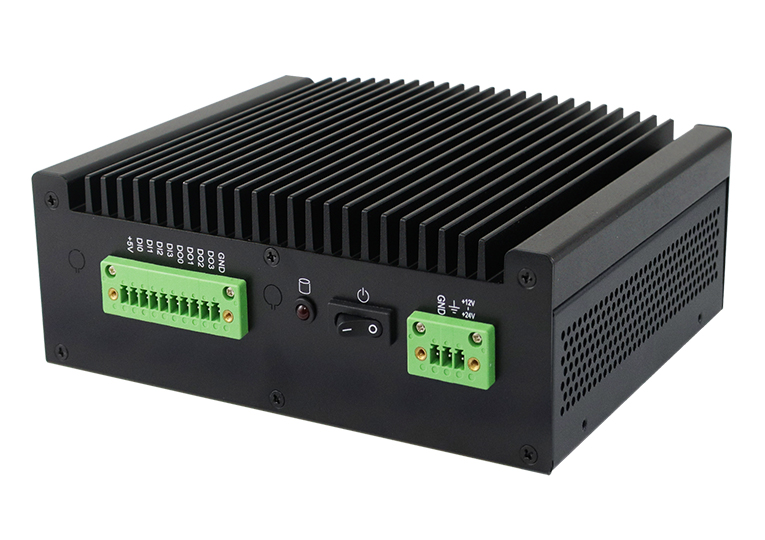

Rear Panel External I/O 1x Power button
1x Digital I/O (4-in/4-out)
2x Antenna holes
1x HDD LED
1x 3-pin DC-in terminal block for 12V(-10%) ~ 24V(+10%)
Expansion Slots 2x M.2 (E-Key, M-Key)
Storage 1x 2.5" HDD or SSD
Construction Aluminum & steel
Chassis Color Black
Mounting Desktop or wall mount (wall mount kit included)
Optional VESA mount kit
Dimensions 180mm (W) x 150mm (D) x 66mm (H)
7.08" (W) x 5.9" (D) x 2.6" (H)
Weight 1.5kg
Operating Temperature 0°C~45°C (32°F~113°F) *with airflow 0.9m/s
Storage Temperature -20°C ~80°C (-4°F~176°F)
Relative Humidity 5%~90%@45°C (non-condensing)
Vibration Operating: 3Grms / 5~500Hz
Shock Operating : 20G / 11ms
Non-operating : 40G / 11ms
Certification CE/LVD/FCC Class-B
ASB200-919-i7 Fanless chassis with IB919AF-8665, Intel® i7-8665UE 1.7GHz CPU, 1x COM, 2x 8GB DDR4 memory, 1x 2.5’’ SATAIII 64GB TLC SSD, w/o 90W power adaptor and VESA mount bracket
ASB200-919-i5 Fanless chassis with IB919AF-8365, Intel® i5-8365UE 1.6GHz CPU, 1x COM, 2x 8GB DDR4 memory, 1x 2.5’’ SATAIII 64GB TLC SSD, w/o 90W power adaptor and VESA mount bracket
ASB200-919-i3 Fanless chassis with IB919EF-8145, Intel® i3-8145UE 2.2GHz CPU, 1x COM, 2x 8GB DDR4 memory, 1x 2.5’’ SATAIII 64GB TLC SSD, w/o 90W power adaptor and VESA mount bracket
ASB200-919-CEL Fanless chassis with IB919EF-4305, Intel® Celeron® 4305UE 2.0GHz CPU, 1x COM, 2x 8GB DDR4 memory, 1x 2.5’’ SATAIII 64GB TLC SSD, w/o 90W power adaptor and VESA mount bracket
90W power adaptor (optional) 90W (24V@3.75A) power adaptor, DC-jack or bare wire type compatible with IEC62368-1/EN62368-1
SC2ASB2---- 0A1100R WiFi antenna kit
DATASHEETS ASB200-919
CATALOGS Intelligent Systems (Vol.05)
MANUALS ASB200-919

Drivers

Model Chipset Video Audio Network Others
ASB200-919

Intel Coffeelake chipset

Windows10

Intel HD Graphics Driver

Windows10

Realtek High Definition Audio

Windows10

Intel i21X LAN

Windows10

Intel iAMT Driver

Windows10

By becoming an IBASE member, you can have access to the test reports, certifications, 2D/3D drawings and MTBF reports from our member site. Not a member? Join Now!
