ASB200-953

Slim Fanless System with IBASE IB953 3.5-inch Single Board Computer

  • Fanless system with IBASE IB953 3.5’’ Single Board Computer (TDP 15W)
  • Onboard 11th Gen Intel® Core™ U-Series Processor
  • Supports 3x M.2 sockets (B-Key/E-Key and M-Key)
  • 12V (-10%) ~ 24V (+10%) DC-in power input
  • 2x DDR4-3200 SO-DIMM, Max. 64GB
  • 3x USB 3.1, 1x USB 2.0, 2x Intel® GbE, 1x COM
  • External GPIO, 2x DisplayPort, TPM (2.0)
  • Optional VESA mount bracket
  • 5G
  • Fanless

The ASB200-953 is a 5G-ready compact box PC housing IBASE's IB953 3.5-inch SBC powered by 11th Gen Intel® Core™ i7-1185G7E, i5-1145G7E and i3-1115G4E processors (formerly Tiger Lake) with a 15W TDP threshold.

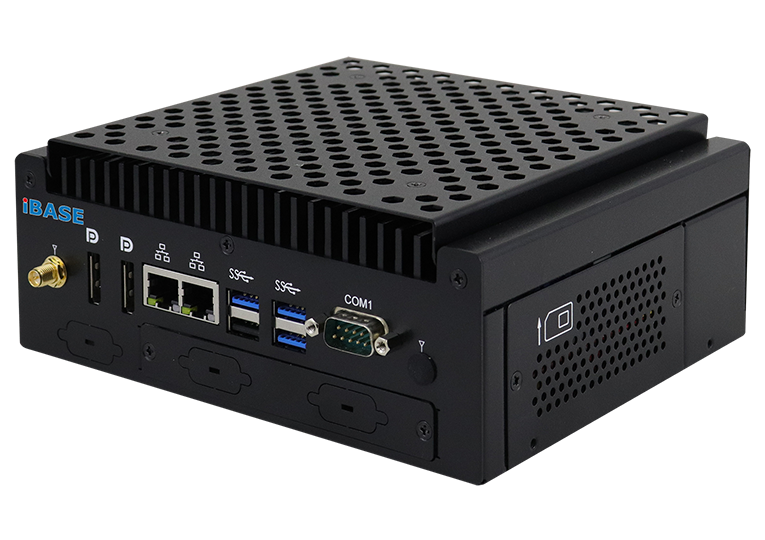

ASB200-953 5G-ready compact box PC

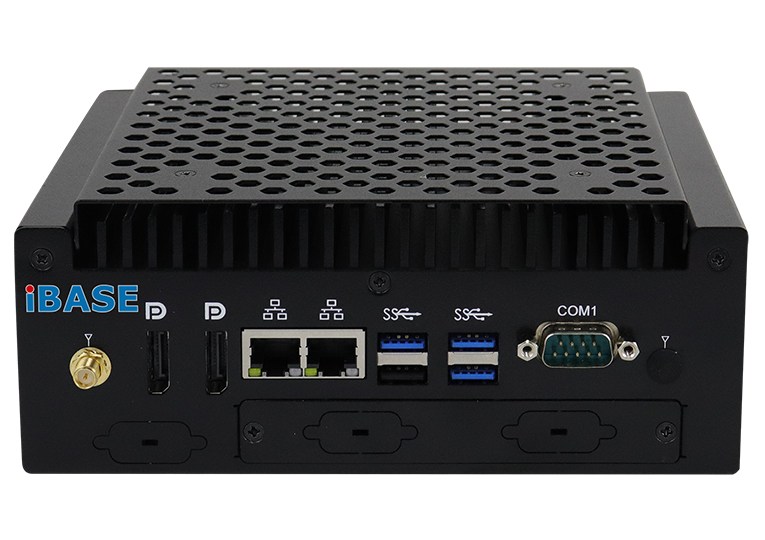

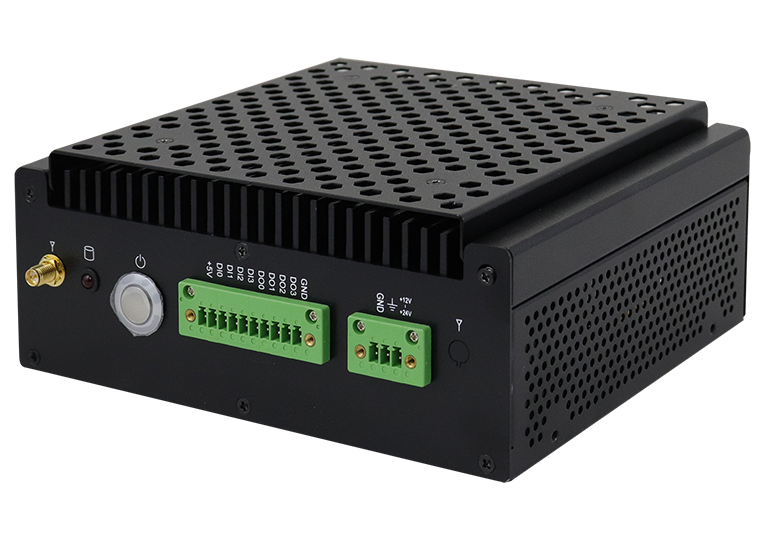

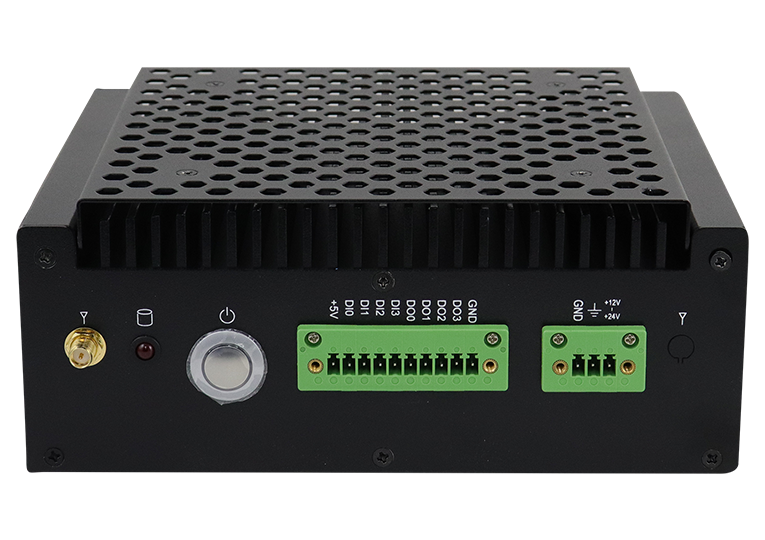

Aimed at smart applications in warehouse logistics management, factory automation and the automotive industry, the fanless ASB200-953 features high performance with low power consumption. With a black chassis color, it supports up to 64GB in two SO-DIMM slots and 12V~24V wide-range DC power input. Useful I/O ports on the front side include 3x USB 3.1, 1x USB 2.0, 2x DisplayPort, 1x COM, and 2x GbE ports. The rear panel is equipped with digital I/O, power button, HDD LED, DC-in terminal block and two antenna holes that can be used with the optional WiFi accessory kit.

Measuring 180x150x72mm (WxDxH), the ASB200-953 comes with an anti-scalding net design and flexible expansion support with high-speed 5G connectivity and other M.2 modules as well as dual storage for a 2280 NVMe SSD and a 2.5-inch HDD. The ASB210-953 variant comes with fan support and up to 28W TDP. Both have Trusted Platform Module (TPM 2.0) security and are compatible with Windows 10 and Linux Ubuntu operating systems.

System Mainboard IB953AF-i7/ IB953AF-i5/ IB953EF-i3/ IB953EF-CEL
CPU Type Intel® Core™ i7-1185G7E Processor
Intel® Core™ i5-1145G7E Processor
Intel® Core™ i3-1115G4E Processor
Intel® Celeron® 6305E Processor
System Speed Up to 4.4GHz
Memory 2x DDR4-3200 SO-DIMM, Max.64GB
Front Panel External I/O 3x USB 3.1
1x USB 2.0
2x DisplayPort
1x DB9 for COM#1 (RS232/422/485)
2x Gigabit LAN
Rear Panel External I/O 1x Power button
1x Digital I/O (4-in/4-out)
2x Antenna holes
1x HDD LED
1x 3-pin DC-in terminal block for 12V(-10%) ~ 24V(+10%)
Expansion Slots 2x M.2 sockets (B-Key/ E-Key)
Storage 1x M.2 M-key 2280, Supports NVMe, PCI-E(4x) only
Construction Aluminum & steel
Chassis Color Black
Mounting Desktop or wall mount (wall mount kit included)
Optional VESA mount kit
Dimensions 180mm (W) x 150mm (D) x 72mm (H)
7.08" (W) x 5.9" (D) x 2.83" (H)
Weight 1.5kg
Operating Temperature 0°C~45°C (32°F~113°F) *with airflow 0.9m/s
Storage Temperature -20°C ~80°C (-4°F~176°F)
Relative Humidity 5%~90%@45°C (non-condensing)
Vibration Operating: 3Grms / 5~500Hz
Shock Operating : 20G / 11ms
Non-operating : 40G / 11ms
Certification CE/LVD/FCC Class-B
ASB200-953-i7M Fanless chassis with IB953AF-i7, Intel® i7-1185G7E CPU, 1x COM, 2x DDR4 memory slot, 1x 2.5’’ SSD slot, desktop stand & mounting bracket, w/o memory/ SSD/ 90W power adaptor and VESA mount bracket
ASB200-953-i5M Fanless chassis with IB953AF-i5, Intel® i5-1145G7E CPU, 1x COM, 2x DDR4 memory slot, 1x 2.5’’ SSD slot, desktop stand & mounting bracket, w/o memory/ SSD/ 90W power adaptor and VESA mount bracket
ASB200-953-i3M Fanless chassis with IB953EF-i3, Intel® i3-1115G4E CPU, 1x COM, 2x DDR4 memory slot, 1x 2.5’’ SSD slot, desktop stand & mounting bracket, w/o memory/ SSD/ 90W power adaptor and VESA mount bracket
ASB200-953-CEL-M Fanless chassis with IB953EF-CEL, Intel® Celeron® 6305E CPU, 1x COM, 2x DDR4 memory slot, 1x 2.5’’ SSD slot, desktop stand & mounting bracket, w/o memory/ SSD/ 90W power adaptor and VESA mount bracket
90W power adaptor (optional) 90W (24V@3.75A) power adaptor, bare wire type compatible with IEC62368-1/EN62368-1 [PN: A005PS090W0100700P]
Optional Accessories VESA mount kit [PN: SC2ASB2----0A1200R] Wifi antenna kit [PN: A024MDWIFI0042400P (Intel® 9260 ) + SC2WIFI----A10M00R (WiFi Kit)]

Drivers

Model Chipset Video Audio Network Others
ASB200-953

Intel Chipset

Windows10 / Windows11

Intel HD Graphics

Windows10 / Windows11

Realtek High Definition Audio

Windows10 / Windows11

Intel LAN Driver

Windows10 / Windows11

Intel iAMT Driver

Windows10 / Windows11

Thunderbolt

Windows10

By becoming an IBASE member, you can have access to the test reports, certifications, 2D/3D drawings and MTBF reports from our member site. Not a member? Join Now!
