Intelligent System
ASB200-962U
Fanless System with Intel® Core™ Ultra 100U Series mobile Processors
- Onboard Intel® Core™ Ultra 100U Series mobile Processors (TDP@15W)
- Multiple M.2 sockets (B-key/ E-key and M-key)
- 2x DDR5-5600 SO-DIMM, Max. 96GB
- Dual 2.5G LAN, 3x USB 3.2, 3x USB 2.0, 1x COM
- Supports 2.5” SSD & M.2 NVMe storage devices
- Supports HDMI & DP, External GPIO, TPM(2.0)
- Optional VESA mount bracket
- Supports operating temperature from -10°C to 55°C
| System Mainboard | IB962AF-165U/ IB962AF-135U |
| CPU Type | Intel® Core™ Ultra 100U Series Mobile Processors |
| System Speed | Up to 4.9GHz |
| Memory | 2x DDR5-5600 SO-DIMM, Max. 96GB |

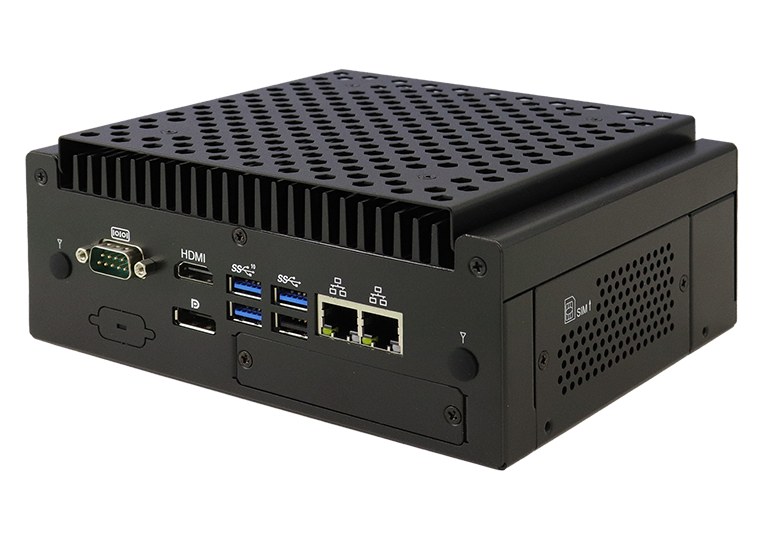

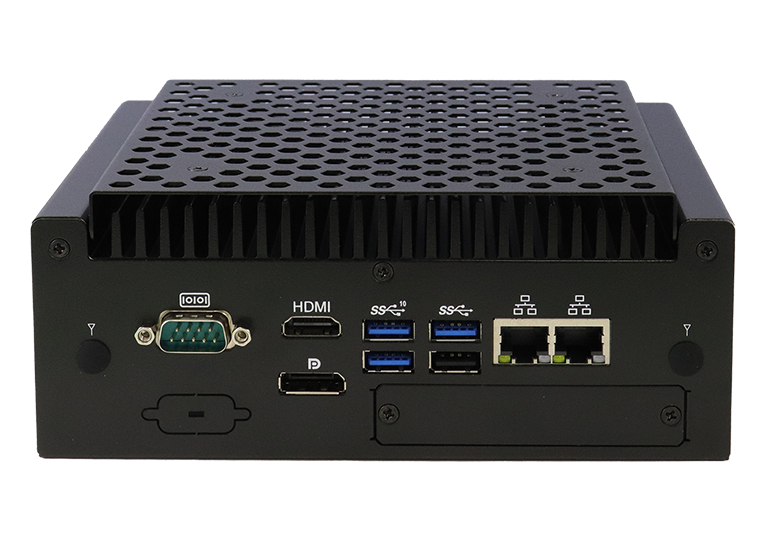

| Front Panel External I/O | 3x USB 3.2 1x USB 2.0 1x DisplayPort 1x HDMI 1x DB9 for COM#1 (RS232/422/485) 2x 2.5G LAN |

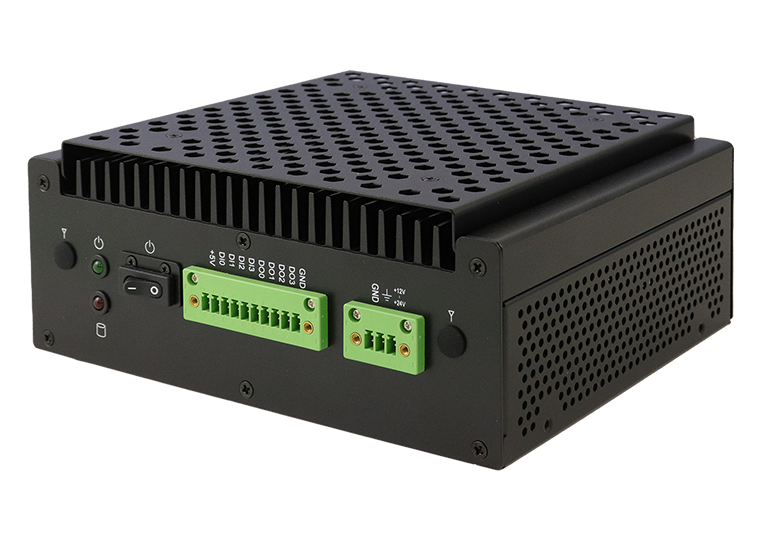

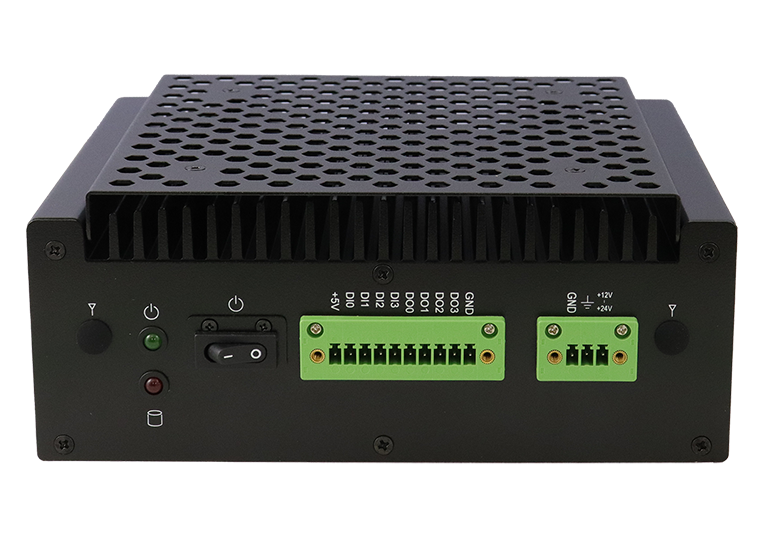

| Rear Panel External I/O | 1x power button 1x Digital I/O (4-in/4-out) 2x Antenna holes 1x HDD LED 1x 3-pin DC-in terminal block for 24V power adaptor |
| Expansion Slots | 3x M.2 sockets (B-key/ E-key and M-key) |
| Storage | 1x M.2 (M2280), supports NVMe 1x 2.5’’ HDD or SSD |
| Construction | Aluminum & steel |
| Chassis Color | Black |

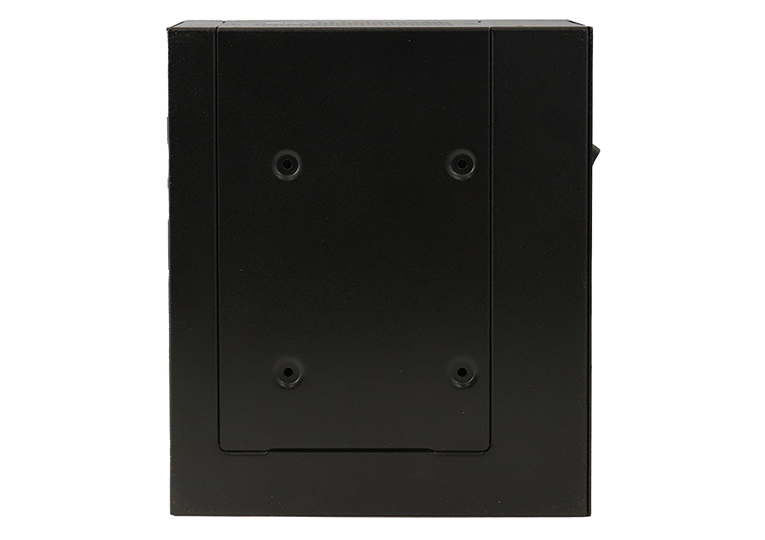

| Mounting | Desktop & wall mount bracket Optional VESA mount kit |
| Dimensions | 180mm (W) x 150mm (D) x 72mm (H) 7.08” (W) x 5.9” (D) x 2.83” (H) |
| Weight | 1.5kg |
| Operating Temperature | -10°C ~ +55°C (14°F~131°F) *with airflow 0.9m/s |
| Storage Temperature | -20°C ~ +80°C (-4°F~176°F) |
| Relative Humidity | 5% ~ 90% @ 45°C (non-condensing) |
| Vibration | Operating: 1Grms / 3~500Hz |
| Shock | Operating : 20G / 11ms Non-operating : 40G / 11ms |
| Certification | CE/LVD/FCC Class B |
| ASB200-962U-7M | Fanless chassis with IB962AF-165U, Intel® Core™ Ultra7 CPU(TDP@15W), w/ 1x COM, 2x DDR5 memory slot, desktop stand & mounting bracket, w/o memory/ 90W power adaptor and VESA mount bracket |
| ASB200-962U-5M | Fanless chassis with IB962AF-135U, Intel® Core™ Ultra5 CPU(TDP@15W), w/ 1x COM, 2x DDR5 memory slot, desktop stand & mounting bracket, w/o memory/ 90W power adaptor and VESA mount bracket |
| 90W power adaptor (optional) | 90W (24V@3.75A) power adaptor, bare wire-type compatible with IEC62368-1/EN62368-1 [PN: A005PS090W0100710P] |
| Optional Accessories | VESA mount kit [PN: SC2ASB2----0A1200R] Wifi antenna kit [PN: A024MDWIFI0042400P (Intel® 9260) + SC2WIFI----A10M00R (WiFi Kit)] |
| DATASHEETS | ASB200-962U |
| USER'S MANUALS | ASB200-962U V1.0 |
