Intelligent System

CSB200-822

Fanless System with IBASE IB822 3.5-inch Single Board Computer

  • Fanless system with IBASE IB822 3.5’’ Single Board Computer
  • Intel® Pentium® Silver Processor J5040
  • DC-Jack type or Terminal block type (by option)
  • Supports 1x 2.5’’ SATA HDD or SSD (removable)
  • Wall mount kit included
  • iSMART
  • Fanless
  • IEC 62368-1 EN 62368-1
System Mainboard IB822
CPU Type Intel® Pentium® Silver Processor J5040
System Speed Up to 2.8GHz
Memory 1x 4GB DDR4 SO-DIMM, Max. 8GB

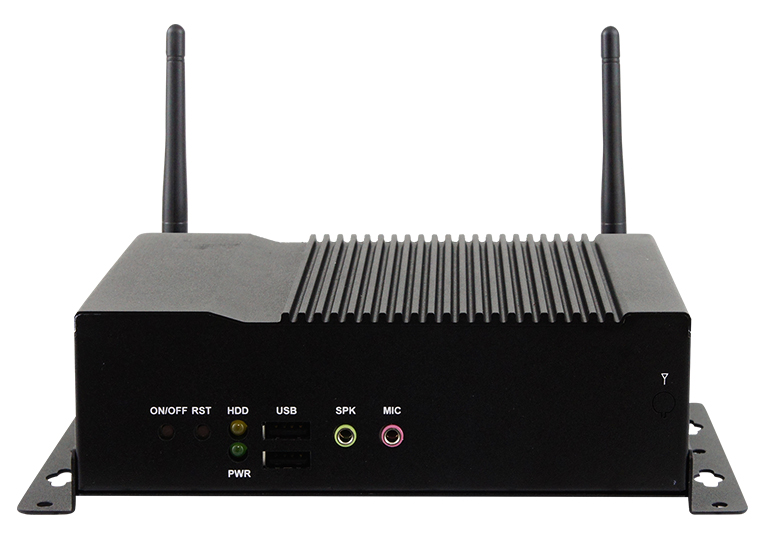

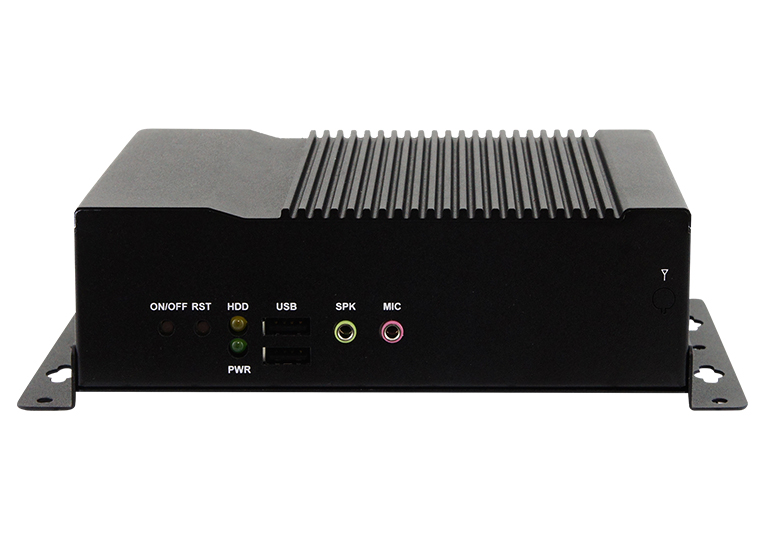

Front Panel External I/O 1x Power LED
1x HDD LED
1x Power button
1x Reset button
2x USB2.0 ports
1x Line-out
1x Mic-in
1x Antenna reserved

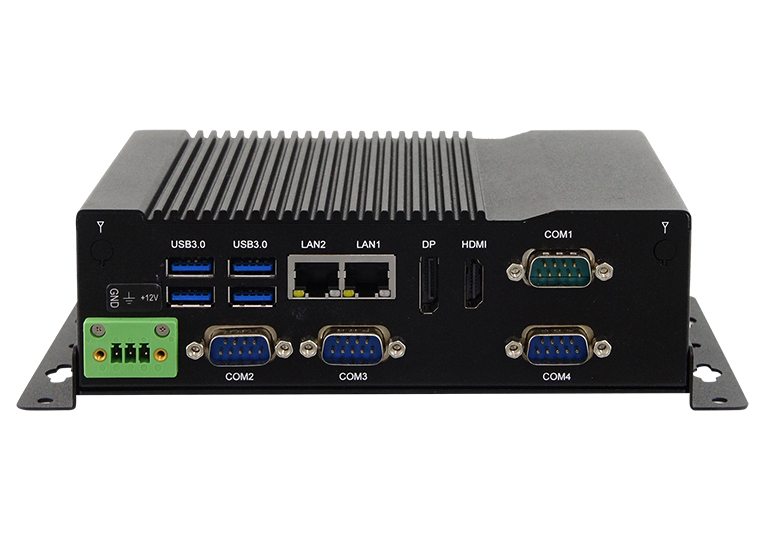

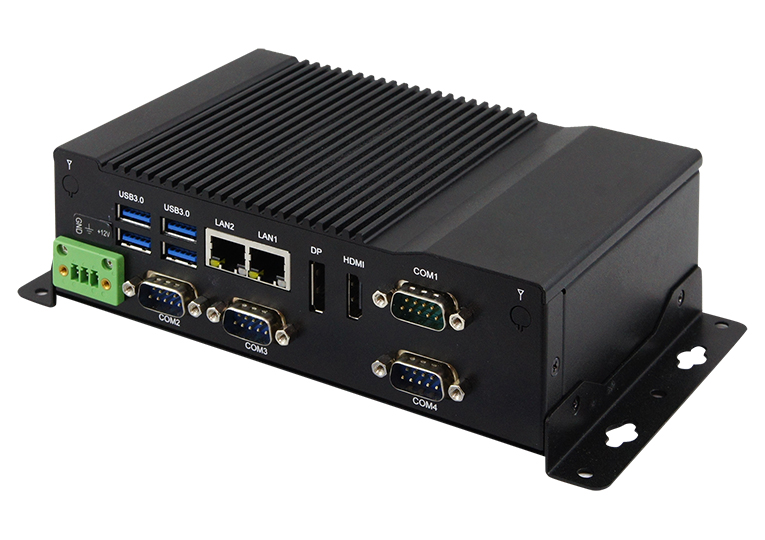

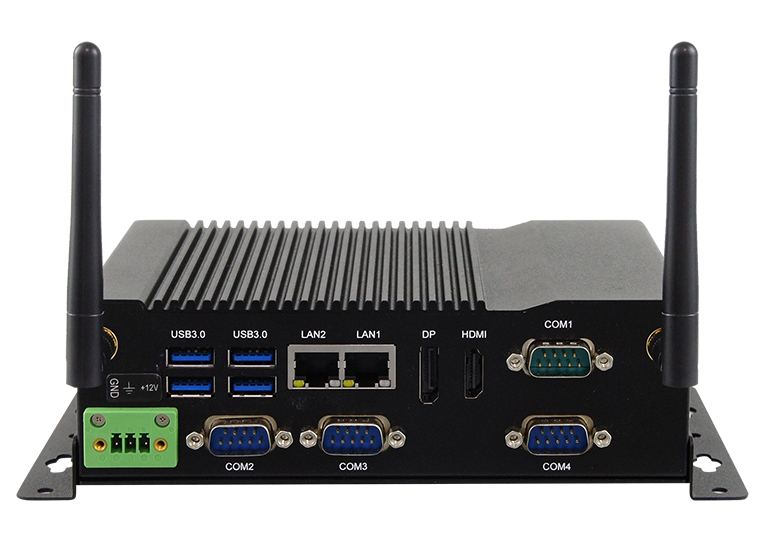

Rear Panel External I/O 4x USB 3.0 port
1x RS232/422/485 for COM#1
3x RS232 for COM#2~4
1x HDMI
1x DisplayPort
2x RJ-45 Gigabit Ethernet port
2x Antenna reserved
1x DC jack with lock or Terminal block 12V(±10%) DC-IN
Expansion Slots 1x M.2 (B-key, type: 2242)
1x M.2 (E-key, type: 2230)
Storage 1x 2.5" SATA HDD or SSD (removable)
Construction Aluminum & Steel
Chassis Color Black
Mounting Desktop or wall mount (Wall mount kit included)
Dimensions 172mm (W) x 111.6mm (D) x 53mm (H)
6.77" (W) x 4.37" (D) x 2.08" (H)
Weight 1.1kgs
Operating Temperature 0°C~45°C (32°F~113°F) (HDD) *With air flow
0°C~50°C (32°F~122°F) (SSD) *With air flow
Storage Temperature -40°C~85°C (-40°F~185°F)
Relative Humidity 5%~90%@45°C (non-condensing)
Vibration Operatiing: 1.0 grms / 5~500Hz / random operation (with IEC 60068-2-64)
Non-Operating: 2.0 grms / 5~500Hz / random operation (with IEC 60068-2-64)
Shock Operating : 20G / 11ms
Non-operating : 40G / 11ms
Certification CE/ FCC Class-B / LVD
CSB200-822-5040S Fanless system with IB822-J5040 w/ Intel® Pentium® J5040, 4x COM, 1x 4GB DDR4 memory, 1x 2.5" 500GB HDD, desktop stand & mounting brackets, w/o 60W power adaptor, Terminal block power input
CSB200-822-5040SDC Fanless system with IB822-J5040 w/ Intel® Pentium® J5040, 4x COM, 1x 4GB DDR4 memory, 1x 2.5" 500GB HDD, desktop stand & mounting brackets, w/o 60W power adaptor, DC-Jack power input
60W power adaptor (optional) 60W (12V@5A) power adaptor, DC-jack or bare wire type, Compatible with IEC62368-1/EN62368-1

Drivers

Model Chipset Video Audio Network Others
CSB200-822

Intel Chipset

Windows 10

Intel Geminilake Graphics

Windows 10

Realtek High Definition Audio

Windows 10

Intel I21x

Windows 10

Intel TXE

Windows 10
