MRD-286

EN50155 Compliant All-in-One 28.6" Bar-Type PIS Panel PC with Intel® Atom® x7-E3950 / Pentium® N4200 Processor

  • Intel® Atom® x7-E3950 / Pentium® N4200 Processor
  • Sunlight readable 1000nits bar type panel
  • Auto-dimming function
  • IP65 front-panel waterproof protection
  • Anti-scattering front side glass
  • iSMART
  • Fanless
  • F Panel IP65
  • EN50155
  • EN45545
  • 2021 Taiwan Excellence

The MRD-286 is an EN50155 compliant all-in-one 28.6" bar-type panel PC. It integrates an Intel® Pentium® Processor N4200 or an Intel® Atom® x7-E3950 Processor, powered by a 24VDC or 110VDC power input. Built with an ultra-wide TFT active matrix LCD screen, the system can ideally serve as signage display delivering advertising and providing passengers with the current information on arrival and departure times at targeted areas in the vicinity of airports or train stations.

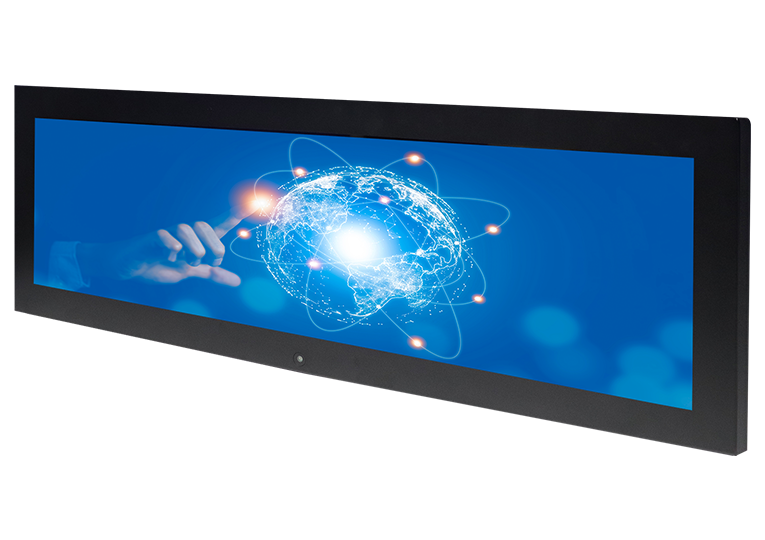

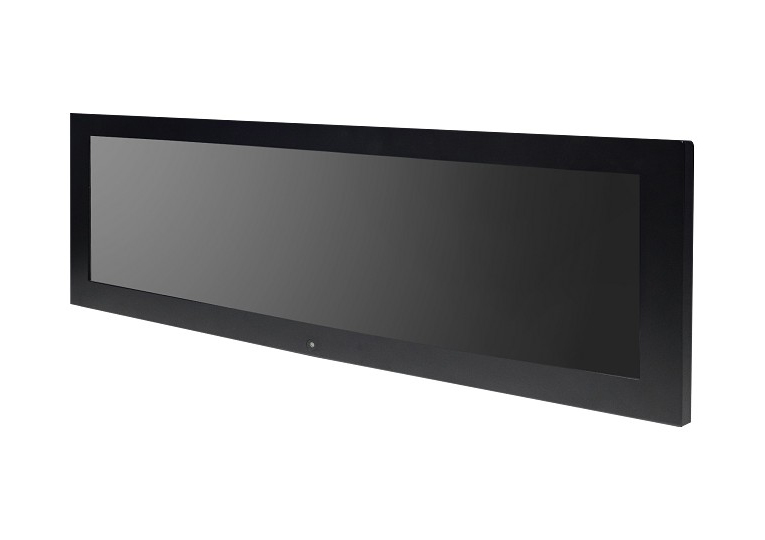

MRD-286 All-in-one 28.6" Bar-Type Panel PC

The MRD-286 complies with EN50155 international standards, ready to be deployed in various rolling stock applications where rigorous shock and vibration requirements should be met. Its sunlight readable panel provides enhanced graphical performance (1920 x 540) with a wide viewing angle of 178 degrees, ensuring excellent visibility from any direction. The unit has an IP-65 rated front panel and supports up to 8GB of system memory, a 64GB SSD storage, and useful I/O interfaces including an M12 GbE connector, an RS-232/422/485 port and two USB 2.0 ports.

Measuring 780mm x 278mm x 77mm, the MRD-286 features an auto-dimming function, Windows 10 and Linux OS support, and a selection of four models with different CPU and power supply configurations. The 24” MRD-238 and 49” MRD-049 bar-type panel PCs will be available at a later date.

CPU Type MRD286-N42: Intel® Pentium® Processor N4200 (1.1GHz~2.5GHz)
MRD286-I50: Intel® Atom® x7-E3950 Processor (1.6GHz~2.0GHz)
Memory 2x DDR3L SO-DIMM, Max. 8GB,1x Default 4GB
Display Size 28.6”
Max. Resolution 1920 x 540
Luminance (cd/m2) 1,000
Contrast 1000:1
Max. Color 16.7M
View Angle (H°/V°) 178/178
Backlight Lifetime(hrs) 50,000
Touch Type None, enhanced glass, anti-scattering, IK07 rating
Touch Interface Non
Light Transmission (%) 90
Point of touch Non

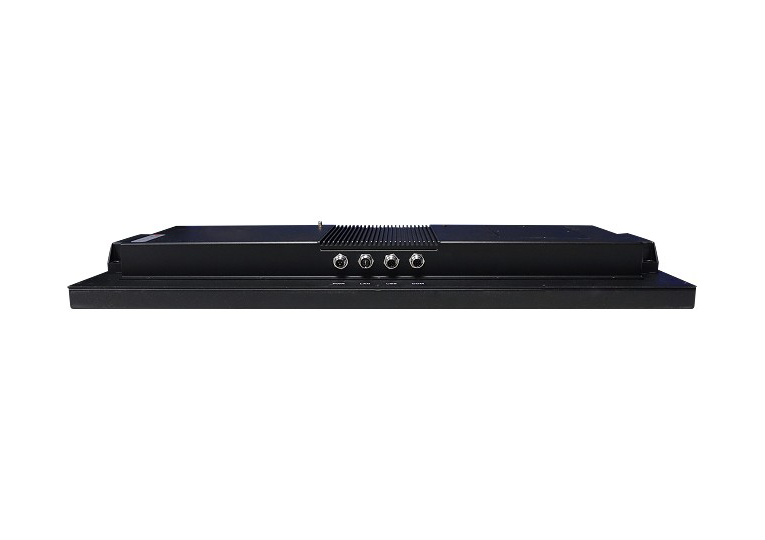

I/O Interface 1x 8-pin M12 A-code for 2x USB 2.0
1x 8-pin M12 A-code for RS-232/422/485
1x 8-pin M12 X-code GbE LAN
1x 3-pin M12 A-code Power Connector
Power Button IP65 membrane key
Power Input Range 24V DC or 110V DC
Membrane Control Dimming control, power on/off
Audio 2x IP65 2W speaker
Internal Expansion None
Wireless Optional
Storage 1x 2.5” HDD space, default 64GB SSD, easy accessible
Thermal Design Fanless
Construction Metal
Chassis Color (Front/ Back) Black/Black
IP Rating IP65 for other sides IP43
Mounting Side mount, VESA 100x100
Dimensions 780 (W) x 278 (D) x 77 (H) mm
30.7”(W) x 10.9”(D) x 3.03”(H)
Net Weight 15 kgs
Operating Temperature -25°C ~ 55°C (-13°F ~ 131°F)
Storage Temperature -25°C~70°C (-13°F ~ 158°F)
Storage Humidity 0~90% @40°C
Certified CE/FCC Class-A +LVD
EN50155, EN45545-2 Compliance
Operating Systems Windows 10, Linux Kernel 4.X
MRD286-N42 28.6” 1920 x 540 Bar Type-AIO, Intel® Pentium® Processor N4200, 4GB memory,64GB SSD, 24VDC power input, without adaptor
MRD286-N42H 28.6” 1920 x 540 Bar Type-AIO, Intel® Pentium® Processor N4200, 4GB memory,64GB SSD, 110VDC power input, without adaptor
MRD286-I50 28.6” 1920 x 540 Bar Type-AIO, Intel® Atom® x7-E3950 Processor, 4GB memory,64GB SSD, 24VDC power input, without adaptor
MRD286-I50H 28.6” 1920 x 540 Bar Type-AIO, Intel® Atom® x7-E3950 Processor, 4GB memory,64GB SSD, 110VDC power input, without adaptor
