Intelligent Transportation

MPT-1000V

E-mark Certified In-Vehicle Computer System with Intel® Atom® x7-E3950 Processor

  • SIM socket supports Dual WWAN
  • Removable 2.5” device bay
  • Ignition power-on signal control
  • Onboard CANbus
  • Rich I/O interfaces for wireless, SSD, GPS, WWAN and add-on card expansion
  • Add on card slots reset function
  • Quick accessible RTC battery
  • Fanless
  • Wide Temperature
  • Wide-range power input
  • IP40
  • E-Mark
System Mainboard MBT-1002V
CPU Type Intel® Atom® x7-E3950 Processor
Processor Speed 1.6GHz , up to 2.0GHz
Memory Onboard 4GB LPDDR4 memory (Intel® N3350 SKU)
Onboard 8GB LPDDR4 memory (Intel® E3950 SKU)
Construction Matel
Chassis Color Black

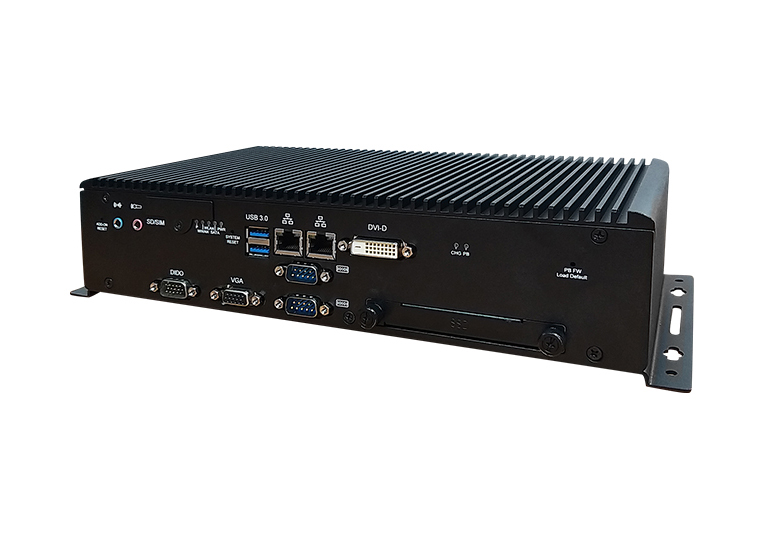

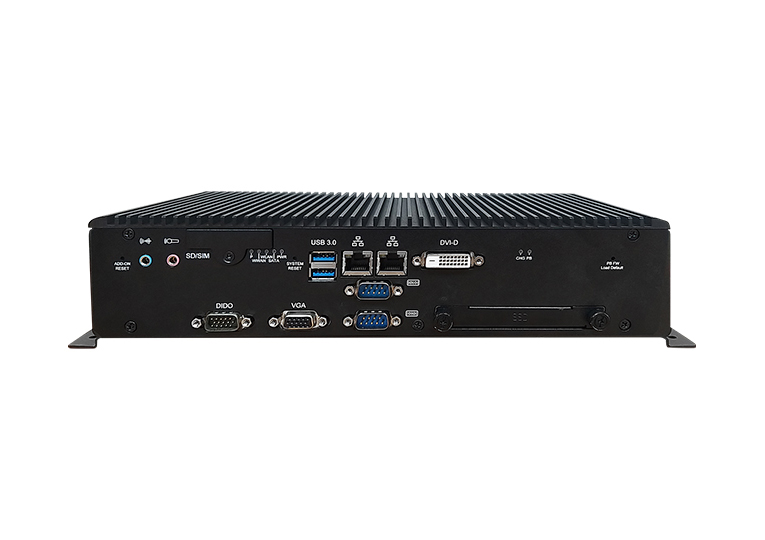

Front panel I/O 1x DVI-D connector for display connection
1x VGA DSUB15
2x RJ45 for GbE LAN
1x 3,5mm blue color audio connector for line input
1x 3,5mm pink color audio connector for MIC-Input
2x external accessible SIM socket (Coved)
1x external micro SD card slot (Coved together with SIM card holder)
1x Stack USB connector for 2x USB3.1 (#1/#2)
1x DUSB 9 for COM1 RS-232/485
1x DUB9 for COM2 RS-485 isolated
1x DSUB15 for DIDO 6in/6out isolated
 6x insulated DO:
  - Output type: Darlington transistor
  - Sink current •500 mA for one channel @100% duty
  - Source current •500 mA for one channel @100% duty cycle
  - Supply voltage: 5V-35V DC
  - Isolation voltage: 2500V RMS
 6x insulated DI:
  - Maximum input range •24V, non-polarity
  - Digital logic levels •0~24 V, non-polarity
  - Input high voltage: 5V~24V
  - Input low voltage: 0~1.5V
  - Input resistance: 1.2 k @ 0.5W
  - Isolation voltage •2500V RMS
1x tack switch for system reset
1x tack switch for Add-on cards reset
1x tack switch for power firmware load default Indicators:
  - 1x Green color LED for power status
  - 1x White color LED for storage activity status
  - 1x Blue color LED for WLAN activity status (option)
  - 1x Orange color LED for WWAN activity status (option)
  - 1x Green color LED, programable
  - 1x Red color LED for warning of wrong power voltage connected
  - 1x Bule color LED for external battery connected

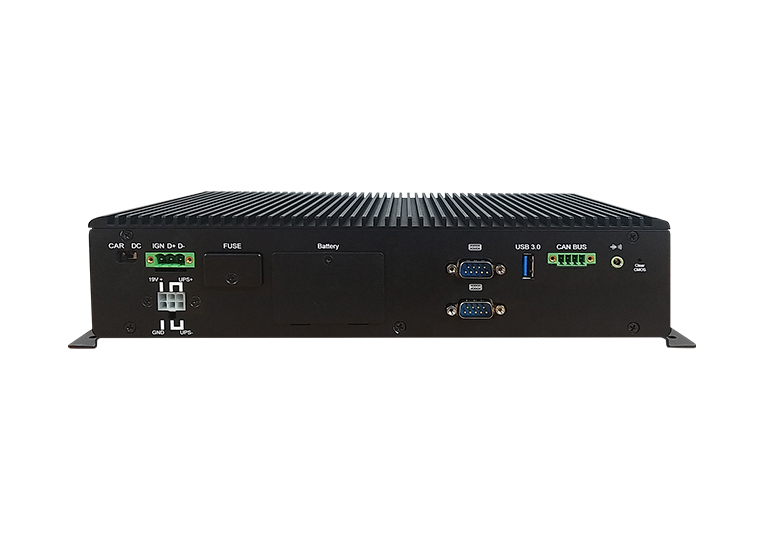

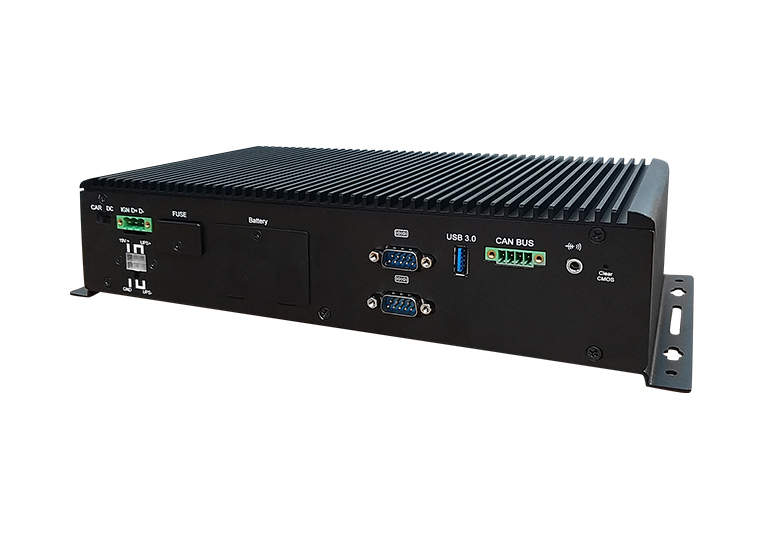

Rear Panel External I/O 2x DSUB9 for COM3/4 RS232
1x 4 pins terminal block for 2 masters CANbus
1x USB3.0 flag type-A
1x audio jack for line out
1x tack switch for clear CMOS
1x open window for accessing RTC battery
1x 6-pins ATX connector for external battery, and 19V DC(Max:1A) output
1x blade fuse socket with cover
1x dip switch for selecting power mode: CAR/DC
1x 3-pin thermainl block connector for power input and IGN
Storage 1x 2.5” device bay for SSD/HDD
1x mSATA via miniPCI-E slot
Expansion slots 1x miniPCI-E full/Half-size, supports mSATA
1x miniPCI-E full/Half-size, supports second SIM card
1x M.2 B-key 30x42 with USB 2.0 and USB 3.0 signal only, supports first SIM card
Power Supply 9V~32V DC input(10%) without backup battery power
12V~32V DC input with backup battery
Ignition detection: enable (Car mode)/ disable (DC mode)
Reverse protection
Mounting Side mounting, rack mounting with optional bracket
Dimensions 300 (W) x 158.4 (D) x 66 (H) mm
11.8” (W) x 6.23” (D) x 2.6” (H)
Operating Temperature -40°C~70°C, with SSD, not including add-on cards (Intel® E3950 SKU)
-5°C~50°C, with SSD, not including add-on cards (Intel® N3350 SKU)
Storage Temperature -40°C~85°C (-40°F~185°F)
Relative Humidity 10 ~ 95% @ 45°C, (non-condensing)
Vibration Operating/Non-operating: 2,26 Grms (5~500 Hz) / MIL-STD-810G composite wheeled condition (Z-axis only)
Shock Non-operating: Sawtooth: 40G, 11 msec (Z-axis)
Operating: Sawtooth: 20G, 11msec (Z-axis)
Certified E-Mark, CE (EN 62368 / EN55032 / EN55025)/ FCC Class-A
MPT-1000V8GM Intel® E3950 processor, 8G LPDDR4 RAM onboard, 9V~32V DC input (12V~32VDC if connected with backup power), ignition detection, no OS, adaptor and storage
MPT-1000VNM Intel® N3350 processor, 4G LPDDR4 RAM onboard, 9V~32V DC input (12V~32VDC if connected with backup power), ignition detection, no OS, adaptor and storage
