Enterprise 1U Edge Server with Intel® Xeon® D Processor & up to 4x 25 GbE Ports

  • Intel® Xeon® D-2700 Processor
  • 4x DDR4 DIMMs, Max. 256GB RDIMM or Max. 512GB LRDIMM
  • 4x 25GbE SFP28 ports on board
  • 2x 2.5” SATA/NVMe hot-swappable HDD/SSD
  • Optional for one card: 1x PCI-E (x16) Gen4 single-slot for double FHFL interfaces, passive cooling, up to 120W
  • For two cards: 1x PCI-E (x16) Gen4 single-slot +1x PCI-E (x8) Gen4 FHFL interfaces, passive cooling, up to 75W each
  • Optional IPMI 2.0 module
  • GPS time synchronization
  • Supports SyncE and PTP IEEE 1588
  • NEW

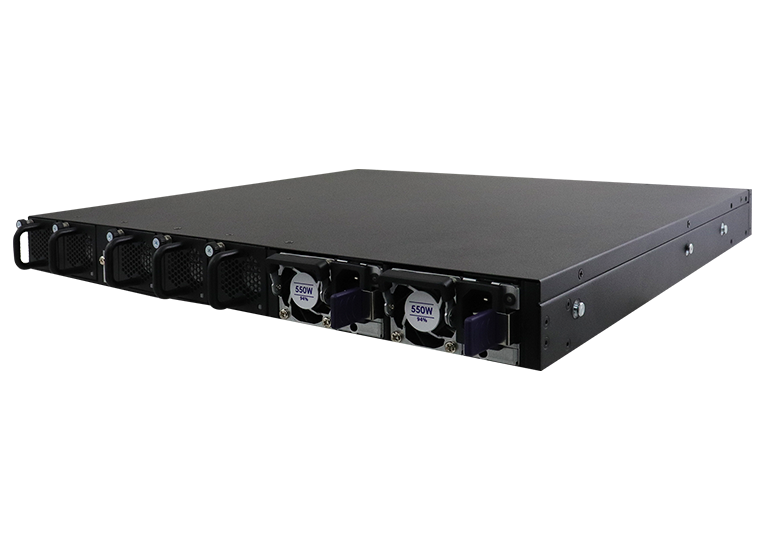

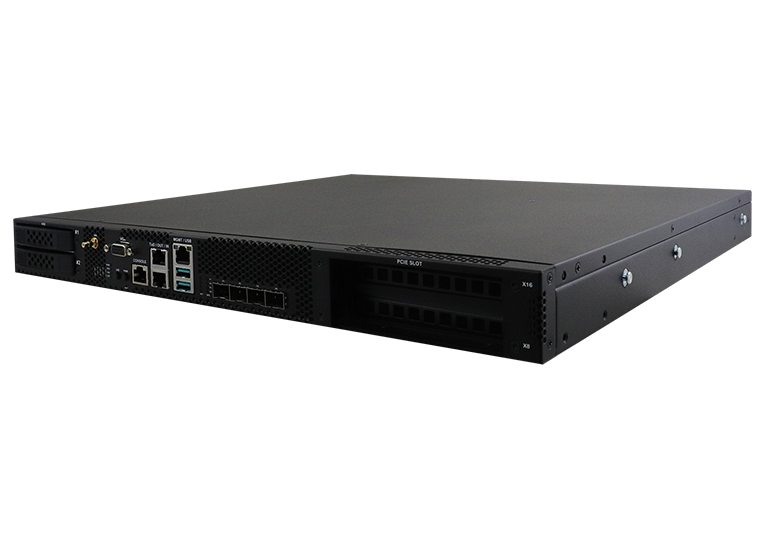

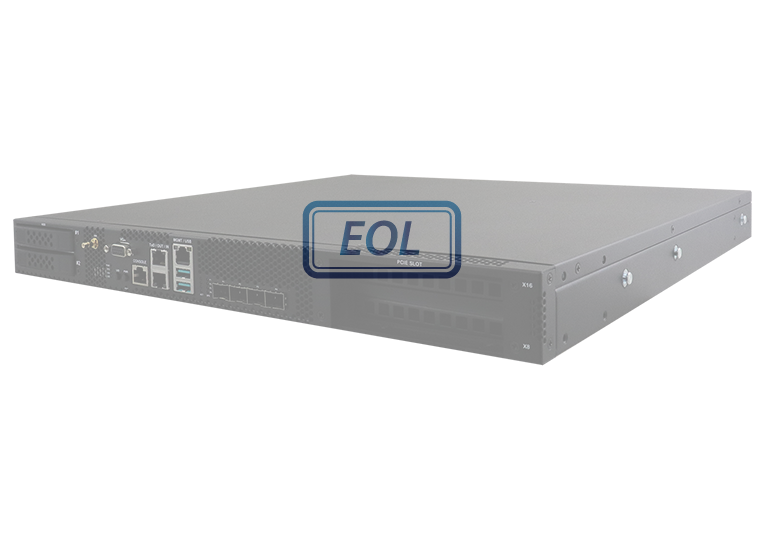

The INA8505 is an enterprise 1U edge server powered by the Intel® Xeon® D-2700 (Ice Lake-D) processor. This cutting-edge appliance offers versatile connectivity options and is specifically designed to excel in demanding 5G Open vRAN and MEC applications, such as real-time data analytics, autonomous vehicles, and smart city deployments. It enables full control over resource allocation in the RAN and MEC, and has the potential to seamlessly integrate AI capabilities to dynamically optimize network performance in real time at the edge of the 5G network infrastructure.

The INA8505 delivers unmatched performance, scalability, and efficiency with flexible storage, offering two SATA/NVMe 2.5” HDD/SSD slots, 2x M.2 (M-key) SATA/PCI-E storage slots, and one 16GB/32GB/64GB eMMC. With an FHFL PCI-E (x16) Gen4 (supports 75W) and an FHFL PCI-E (x8) Gen4 (supports 75W) configurable as PCI-E (x16) Gen4 double FHFL (supports 120W), the INA8505 adapts effortlessly into different network environments and meet future demands for increased scalability. It boasts a rich array of I/O connectivity options, including a VGA port from BMC (Aspeed 2600, IPMI 2.0 support), two USB2.0 Type-A ports, an RJ45 console port, and four 25 GbE SFP28 ports, ensuring enhanced adaptability to various connectivity needs.

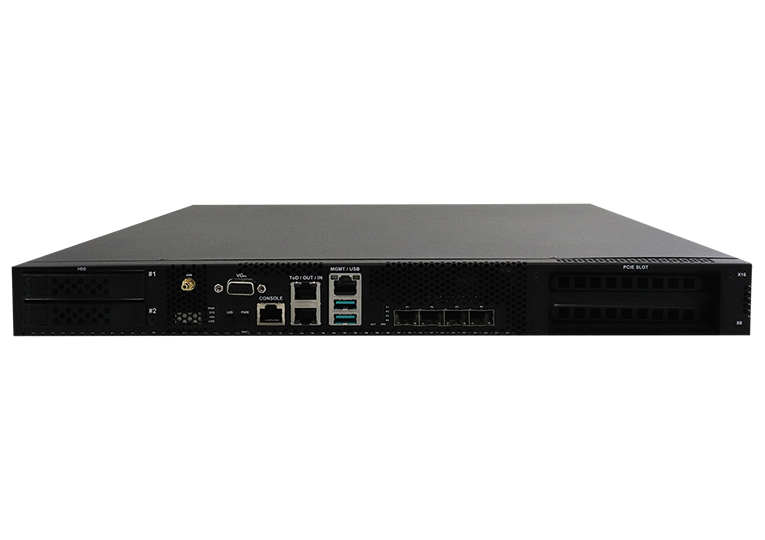

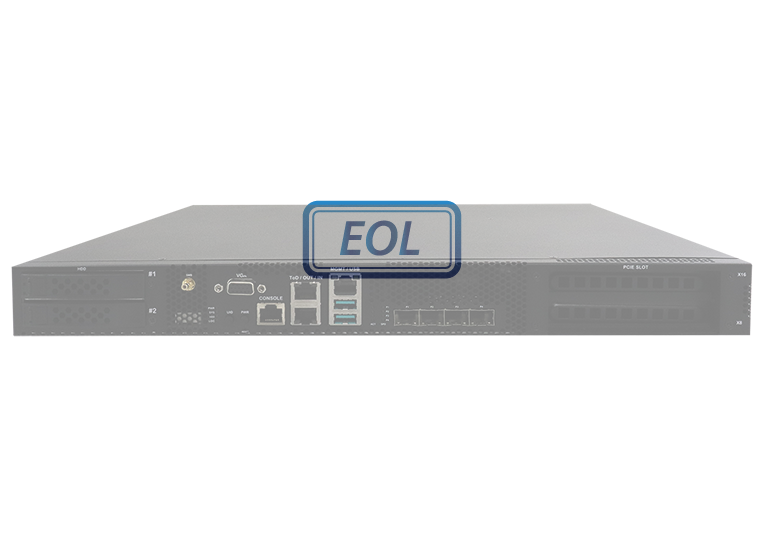

Designed with front access and a short-depth form factor, the INA8505 is perfect for space-constrained environments, making it convenient to operate, maintain, and integrate into existing infrastructure. Moreover, with GPS time synchronization, NEBS certification and DC power support, the INA8505 is well-suited for critical telecommunications and network deployments.

CPU Intel® Xeon® D-2700 Processor
Chipset N/A
Memory 4x DDR4 DIMMs, Max. 256GB RDIMM or 512GB LRDIMM, up to 3200MHz
Display 1x VGA (via optional IDN101 IPMI module)
Ethernet 4x 25 Gbe SFP28 ports (Intel® E823-C)
Bypass N/A
Expansion 1x PCI-E x16 Expansion slot (optional by SKU)
1x PCI-E x8 Expansion slot (optional by SKU)
IPMI Optional module; compliant with IPMI 2.0
Storage 1x 16GB/32GB/64GB eMMC
2x M.2(M-Key); supports SATA & PCI-E
2x 2.5" SATA/ NVMe/ hot-Swappable HDD/SSD
TPM TPM 2.0 (optional TPM 2.0 module)
I/O 3x LED (Power/ HDD/ Status)
1x RJ45 console port
1x RJ45 management port
2x USB 3.0 ports

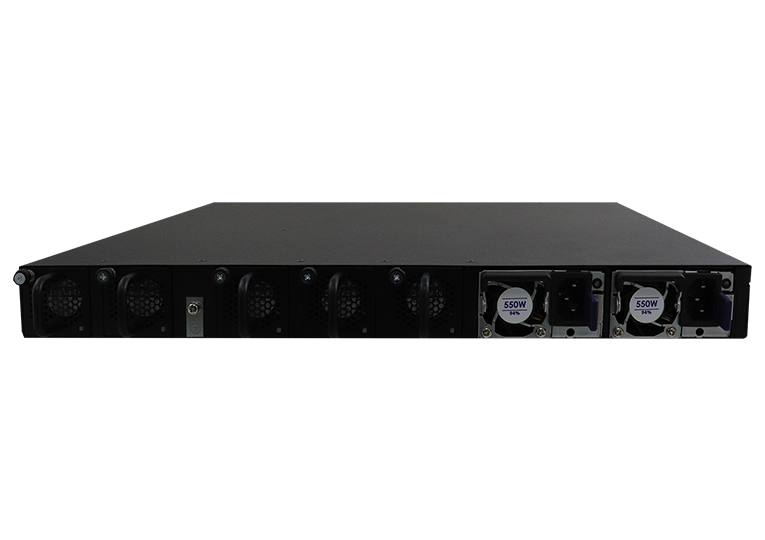

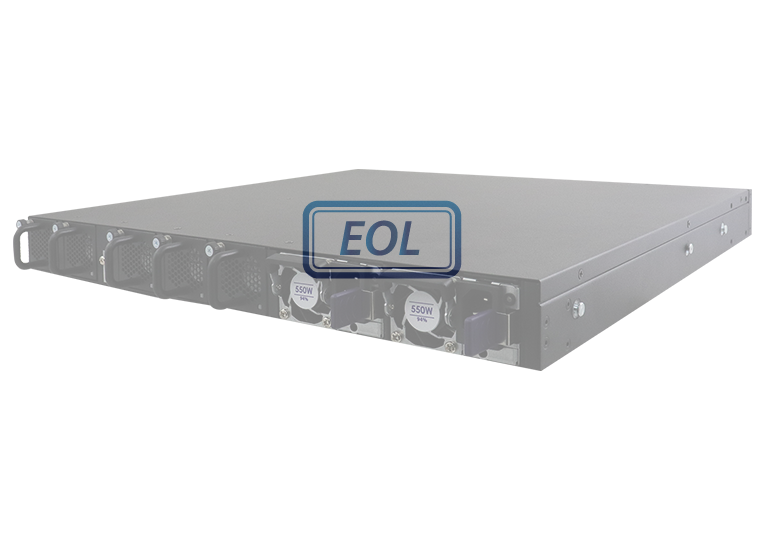

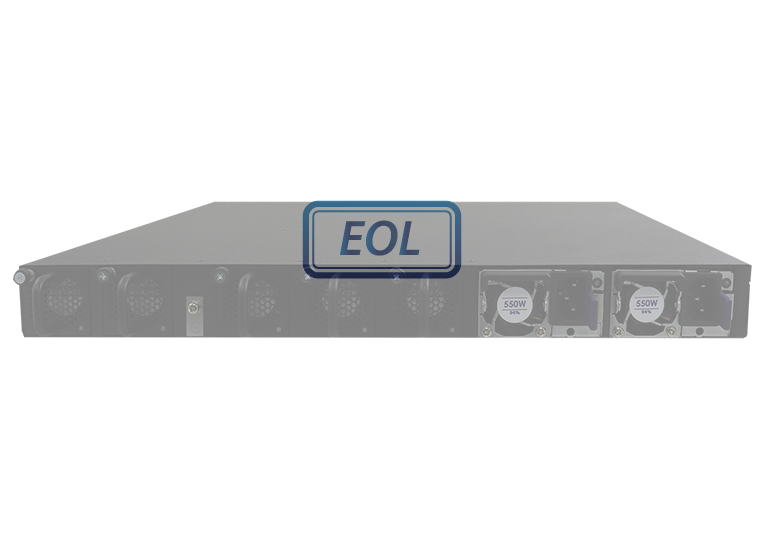

Power Supply Full range 550W CRPS 1+1 redundant power supply
Dimensions 438(W) x 420(D) x 43.8(H) mm
17.24" (W) x16.54" (D) x 1.72" (H)
Weight 15 kg (33.06 lbs) (estimated)
Operating Temperature 0°C ~ 50°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity 5% ~ 90%
Certification CE/FCC
INA8505 INA8505 Enterprise 1U Edge Server, MBN8505 Intel® Xeon® D-2700 Processor, 4x DDR4 DIMMs, 4x 25 GbE SFP28 ports, 550W CRPS 1+1 Redundant PSU, CPU cooler, optional IPMI, 1x PCI-E x16 slot, 1x PCI-E x8 slot, 2x 2.5” SDD Tray, Barebone without RAM/HDD/SSD
