Network Appliance

INA3605

Enterprise 1U Network Appliance with Intel® Xeon® E-2300 Processors & up to 16 GbE Ports

  • Intel® Xeon® E-2300 Processors with C252 PCH
  • 4x DDR4 UDIMM, RDIMM, Max. 128GB ( ECC )
  • 6x RJ45 GbE with 2 pairs bypass on board
  • 2x Gbe SFP ports on board
  • Optional NIC slot

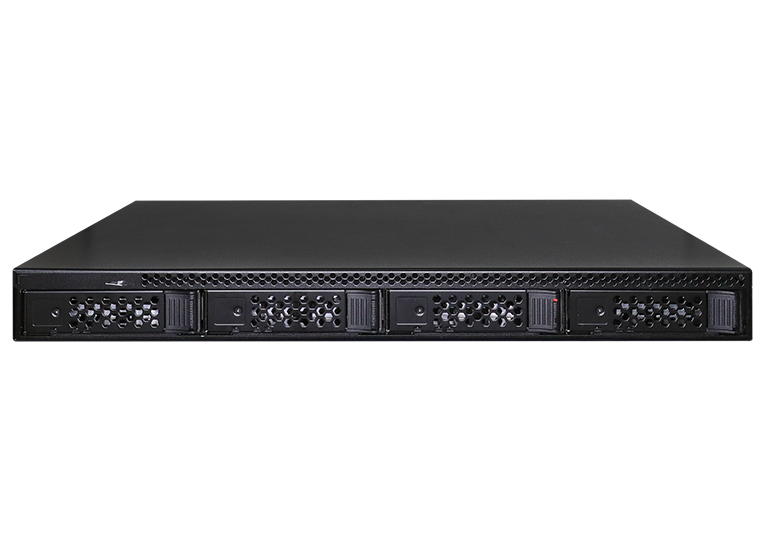

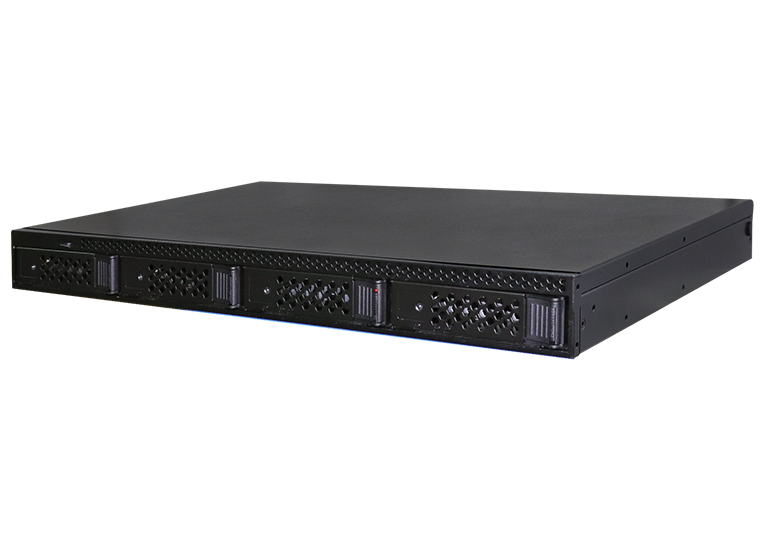

  • 4x U.3 storage on the front
  • SATA/NVMe SSD with RAID 0,1,5,6,10,50,60 support through LSI RAID controller
  • 1x PCI-E(x8) expansion slot
  • 600W AC redundant power supplies
  • NEW
CPU LGA1200 Socket for Intel® Xeon® E-2300 Processors
Chipset Intel® C252 PCH chipset
Memory 4x DDR4 UDIMMs
Max. 128GB
Display N/A

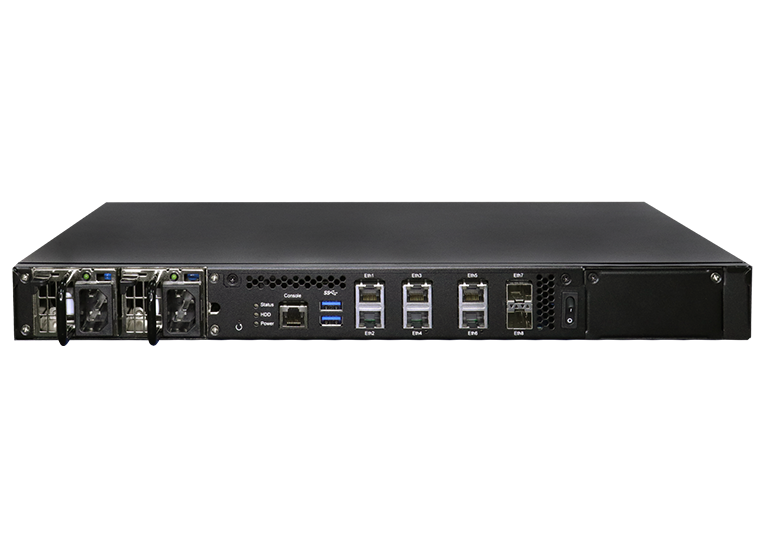

Ethernet 6x Gbe RJ45 Ports(Intel i226V) with 2 pairs bypass
2x Gbe SFP port (Intel i210IS)
Bypass 2-Segments, LAN3/4 & 5/6
Expansion 1x PCI-E(x8) slot (8-lane) for INA3605
IPMI N/A
Storage 4x hot-swappable 3.5” SATA HDD/SSD storage
-
Optional supporting NVMe drives with LSI RAID controller
(Suggested RAID Controller: LSI MegaRAID 9560-16i supporting RAID 0, 1, 5, 6, 10, 50 and 60)
-
Optional supporting HDD drives with LSI RAID controller
(Suggested RAID Controller: LSI MegaRAID 9540-8i supporting RAID 0, 1, 10)
TPM TPM 2.0
I/O 3x LED (Power/ HDD/ Status)
1x Reset button
1x RJ45 console
2x USB3.2
Power Supply full range 600 Watt redundant Power Supply
Dimensions 438 (W) x 630 (D) x 44 (H) mm
17.24” (W) x24.8” (D) x 1.73” (H)
Weight 17.6 kg (30.8 lbs)
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20° ~ 70°C (-4°F ~ 158°F)
Operating Humidity 10~ 95%
Certification CE/FCC
INA3605 INA3605 1U Rackmount Appliance, MBN808 Intel® RKL-E, C252 PCH, 4x DDR4 DIMMs, Max. 16 LAN Ports, 600W 1+1 PSU, CPU cooler, 1x PCI-E(x8) slot, Barebone without CPU/RAM/HDD/IBN Card
