Network Appliance

INA7600

Performance 2U Network Appliance with Dual 3rd Gen Intel® Xeon® Scalable Processors & up to 64 GbE Ports

  • Dual 3rd Gen Intel® Xeon® Scalable Processors (ICL-SP)
  • 16x DDR4 RDIMM, Max. 512GB
  • 8x or 4x NIC modules, Max. 64 GbE ports
  • 1x PCI-E x16 expansion slot
  • Optional IPMI 2.0 module
  • 1200-watt redundant power supply

The INA7600 network appliance is based on two 3rd Gen Intel® Xeon® Scalable processors (codenamed Ice Lake). The IBASE INA7600 utilizes Intel server-class Xeon-SP CPUs to provide unparalleled computing power, which is most suitable for carrier or enterprise-level network security applications, such as next-generation firewalls, IPS, DDoS and DPI. In addition, the Intel's QuickAssist Technology on the Intel Xeon-based platform greatly enhances Crypto and compression/decompression calculations through hardware acceleration.

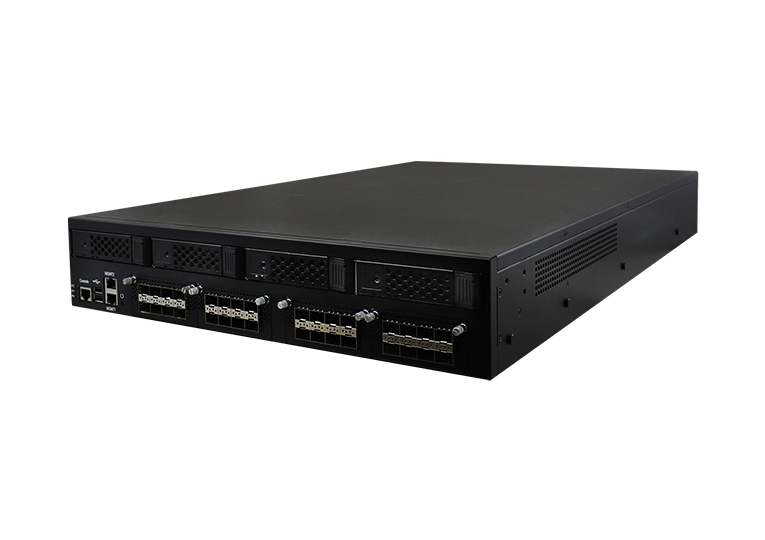

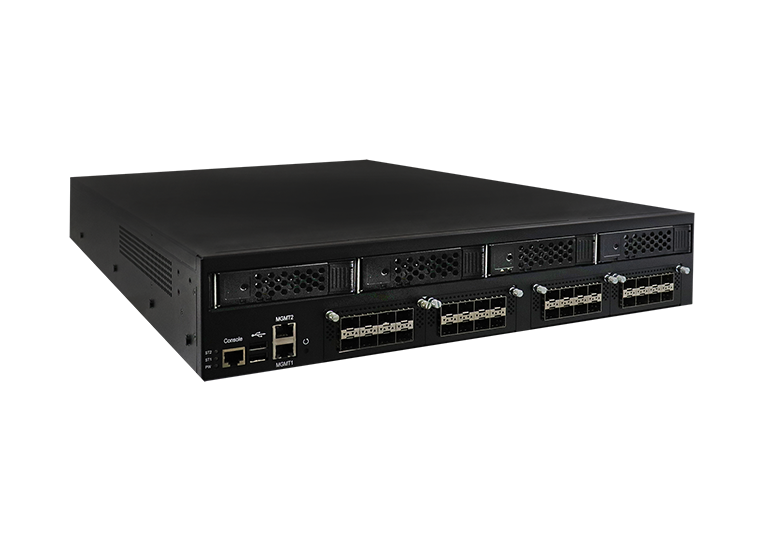

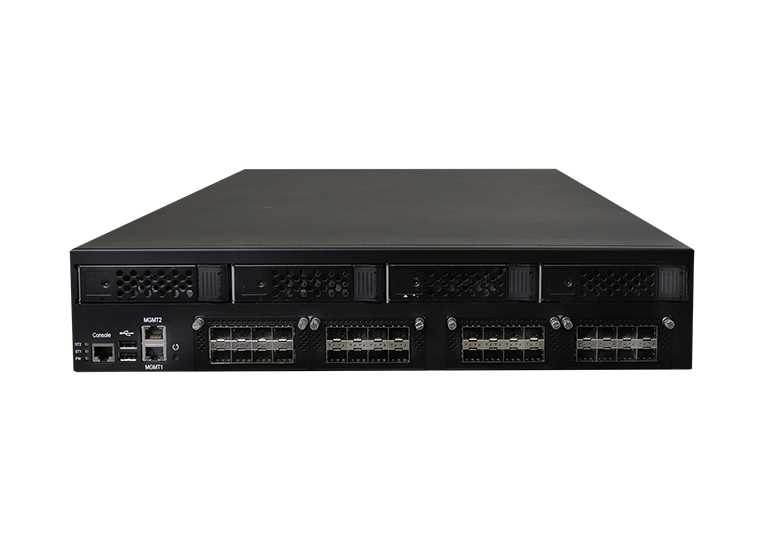

INA7600 Rackmount Network Appliance

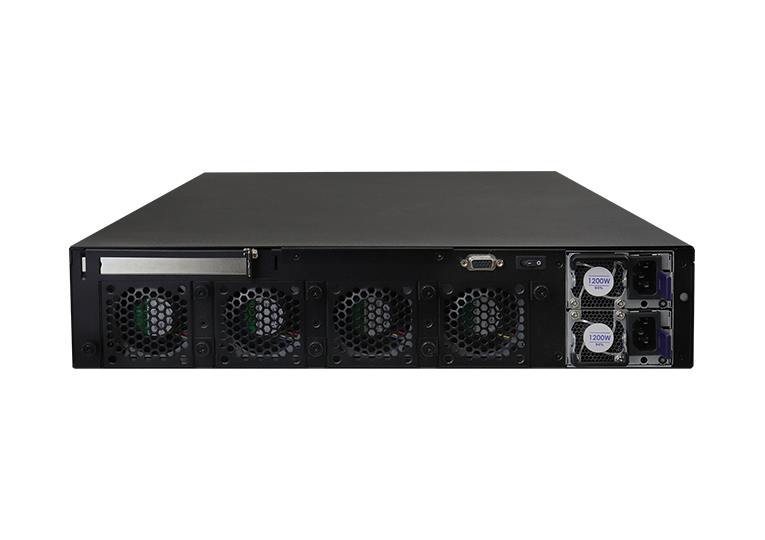

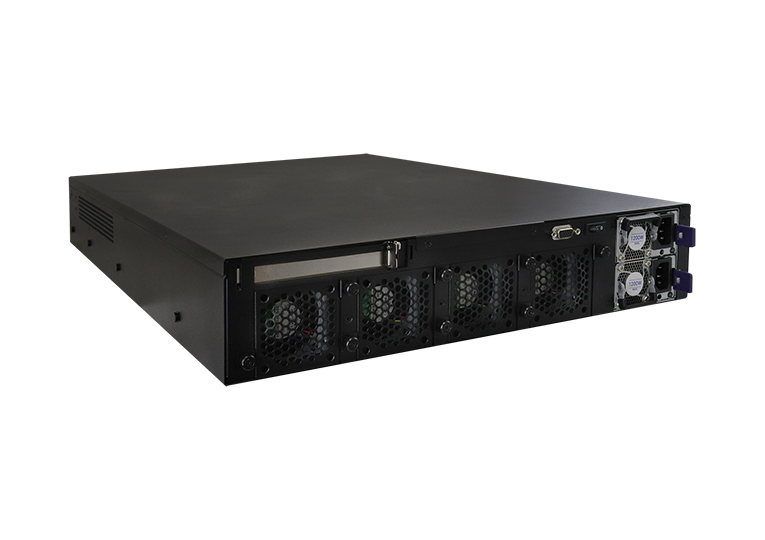

The system has a unique modular design that allows customers to flexibly configure network ports to suit their requirements. It supports up to 8 network modules to accommodate up to 64 GbE ports (with or without bypass) in copper or optical-fiber cable. IBASE offers a comprehensive selection of modules, with up to two 100GbE QSFP28 ports. In order to achieve high availability, the INA7600 is equipped with redundant power supplies and 4 hot-swappable fans. An optional IPMI 2.0 module provides direct access to server management function and remote monitoring capabilities.

The INA7600 is available in two variants: INA7600-NIC and INA7600-SHQ, supporting a maximum of 66GbE ports and 34 GbE ports respectively. Measuring 438(W) x 660(D) x 88(H) mm, it has 16 DDR4 RDIMM slots that can take up to 512GB. Standard I/O connectivity and expansion slots include a PCIe x16 slot, an M.2 (M-key) socket for SATA 3.0 or PCIe, an RJ45 serial console, two USB 2.0, and two MGMT ports.

CPU Dual LGA4189 Socket for Intel® Xeon® ICL-SP
Chipset Intel® C621A PCH Chipset
Memory 16x DDR4 RDIMMs
Up to 3200MHz
Max. 512GB
Display 1x VGA
Ethernet 2x Intel® I210-AT GbE on IDN901 daughter board
8x or 4x NIC module, Max. 64 GbE ports
Bypass Via IBN module SKU
Expansion 1x PCI-E x16 slot (8-lane)
1x M.2 (M-key) Supports SATA 3.0 or PCI-E
IPMI N/A
Storage 2x 2.5" or 4x 3.5" Swappable SATA drive bay (by SKU)
2x U.2 (PCI-E x4, SATA signal)
TPM TPM2.0
I/O 1x LCM (by SKU)
3x LED (Power/ HDD/ Status)
1x Factory default button (GPIO)
1x RJ45 console
2x USB 2.0
2x MGMT Ports (LAN2 share with IPMI NC-SI port)
Power Supply Full range 1200W 1+1 redundant power supply
Dimensions 438 (W) x 660 (D) x 88 (H) mm
17.24" (W) x 25.98" (D) x 3.46" (H)
Weight 21.0 kg (46.3 lbs)
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20° ~ 70°C (-4°F ~ 158°F)
Operating Humidity 5 ~ 90%
Certification CE/FCC
INA7600-NIC INA7600-NIC 2U Rackmount Appliance, MBN901 Dual 3rd Gen Intel® Xeon® ICL-SP, C621A PCH,16x DDR4 DIMMs, Max. 66 GbE Ports, 1200W RPSU, CPU cooler, 1x PCI-E x16 slot, 2x U.2 slots.1x ilO2 LCM. Barebone without CPU/RAM/HDD/IBN Card
* (Must order 8x IBN-cards)
INA7600-SHQ INA7600-SHQ 2U Rackmount Appliance, MBN901 Dual 3rd Gen Intel® Xeon® ICL-SP, C621A PCH, 16x DDR4 DIMMs, Max. 34 GbE Ports, 1200W RPSU, CPU cooler, 1x PCI-E x16 slot, 2x U.2 slots. 4x 3.5” HDD Tray. Barebone without CPU/RAM/HDD/IBN Card
*(Must order 4x IBN-cards)
