Network Appliance

INA1600

Desktop uCPE/SD-WAN Appliance with AMD Ryzen™ Embedded V1605B/R1505G & up to 6x GbE Ports

  • AMD Ryzen™ Embedded V1605B/R1505G
  • 2x DDR4 SO-DIMMs; Max. 32GB (ECC/non-ECC)
  • 4x GbE RJ45
  • 2x GbE RJ45 or SFP combo ports (for INA1600V only)
  • 1x Mini PCI-E slot
  • 2x M.2 slot
  • Supports WiFi/WiFi 6, LTE/5G, with up to 8 antennas
  • 5G
  • AMD Ryzen Embedded

The INA1600 is an uCPE/SD-WAN appliance powered by AMD Ryzen Embedded R1000/V1000 processor. The entry-level INA1600 supports WiFi 6 and 5G LTE Cat20 connectivity and is certified by FlexiWAN, making it easy for system integrators to deploy enterprise networks leveraging universal customer premises equipment (uCPE).

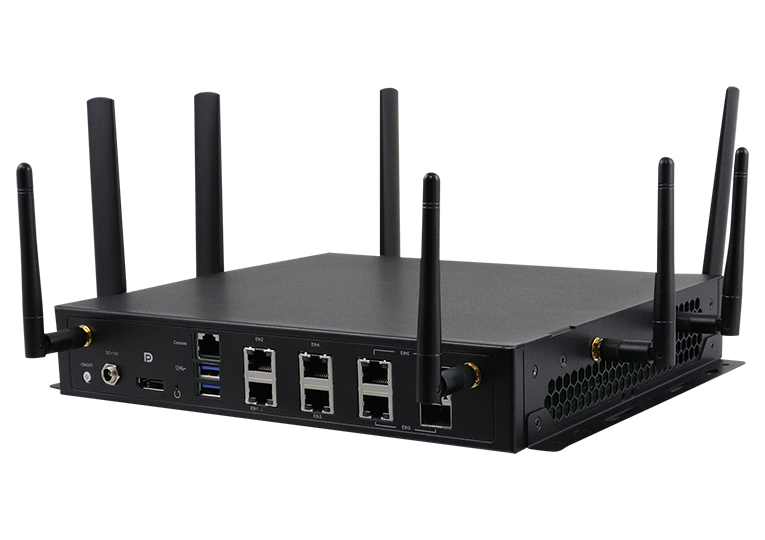

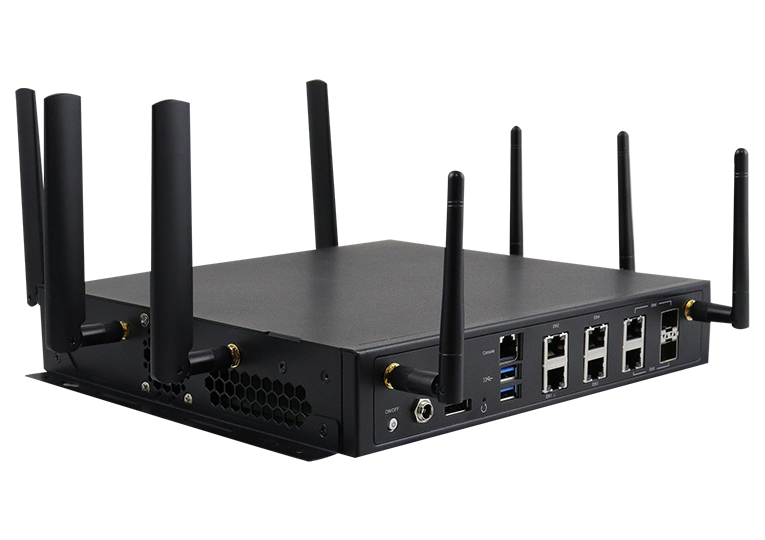

INA1600 uCPE/SD-WAN Appliance

With Software-defined WAN (SD-WAN), enterprises can deliver more responsive and predictable applications in less time and at lower costs than traditional MPLS services. Cloud-based SD-WAN adds value by providing an integrated view of the network that can be easily managed at scale. The INA1600 is designed to help enterprises centralize management, and enable automatic configuration and provision with zero-touch provisioning.


The INA1600 features up to four 1G copper ports and optional two RJ45/fiber combo ports. It has two WAN ports for secure internet connectivity and VPN support in SD-WANs, replacing traditional MPLS private lines in enterprises. In addition, the INA1600 supports LTE/5G wireless communication module with dual SIM cards. The desktop uCPE/SD-WAN appliance measures 250(W) x 231(D) x 44(H) mm and is also equipped with two DDR4 SODIMM slots, up to four GbE ports, and standard Linux support.

CPU INA1600V: AMD Ryzen™ Embedded V1605B
INA1600R: AMD Ryzen™ Embedded R1505G
Chipset N/A
Memory 2x DDR4 SO-DIMMs
Up to 3200MHz, Max. 32GB (ECC/non-ECC)
Display 1x DisplayPort
Ethernet INA1600V:
4x Intel® I210-AT GbE
1x Intel® i350-AM2 (2x GbE RJ45 or SFP combo ports)
INA1600R:
4x Intel® I210-AT GbE
Bypass 1x segment, LAN 1/2
Expansion 1x Mini PCI-E slot
1x M.2 slot (B-key 3042, PCI-E(x1) & USB 3.0 signal)
2x Micro SIM for M.2 or Mini PCI-E 4G/LTE module
1x M.2 slot (B/Mkey 3080, PCI-E(x2) & USB 3.0 & SATA)
IPMI N/A
Storage 1x 2.5" SATA drive bay
TPM TPM 2.0
I/O 3x LED (Status/HDD/Power)
1x Factory default button (GPIO)
1x RJ45 console
2x USB 3.0
1x DisplayPort
Power Supply Full range 84W adaptor / 12V
Dimensions 250(W) x 231(D) x 44(H) mm
9.84" (W) x 9.09" (D) x 1.73" (H)
Weight 5.3 kg (11.68 lbs)
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity 5% ~ 90%
Certification CE/FCC
INA1600V Desktop Appliance, AMD Ryzen™ Embedded V1605B, 2x DDR4 SO-DIMMs,4x GbE RJ45 w/ 1 Pair of Bypass,2x GbE RJ45 or SFP combo ports, 84W Adaptor,DisplayPort, Barebone without RAM/HDD/Drive Bay Kit
INA1600R Desktop Appliance, AMD Ryzen™ Embedded R1505G,2x DDR4 SO-DIMMs, 4x GbE RJ45 w/ 1 pair of Bypass,84W Adaptor, DisplayPort, Barebone without RAM/HDD/Drive Bay Kit
