Panel PC

BYARM-181-PC

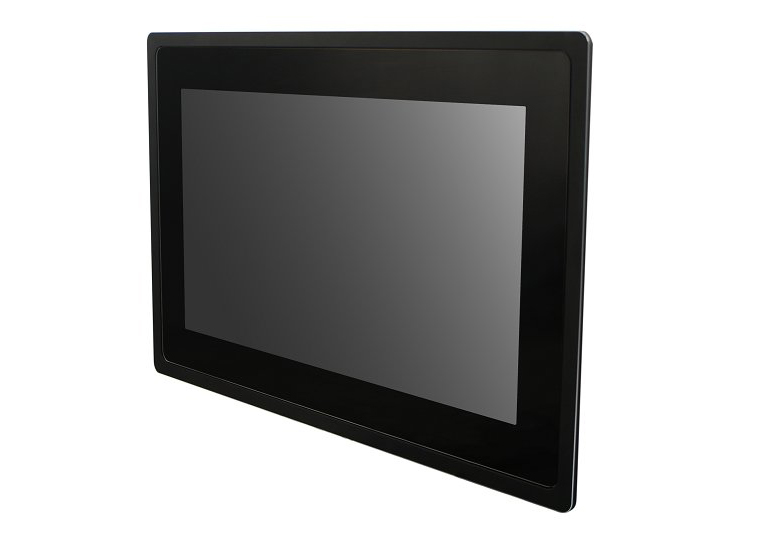

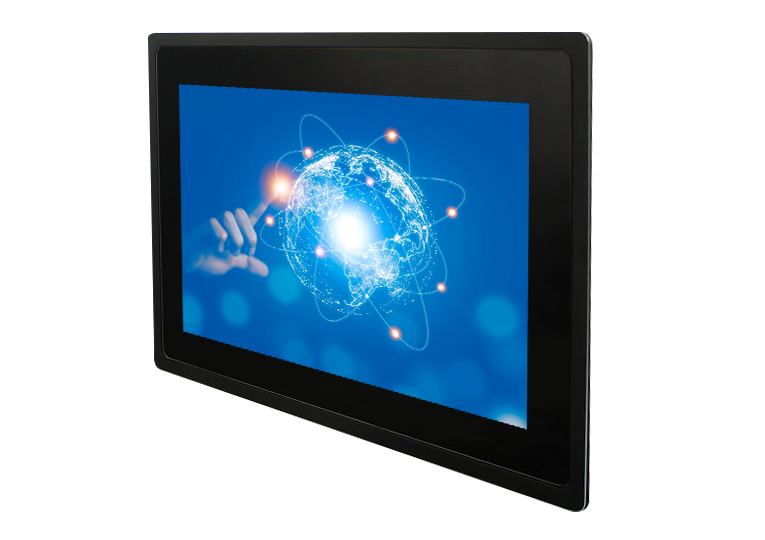

ARM-Based All-in-One 18.5" Panel PC with NXP i.MX6 Cortex Processor

  • NXP i.MX6 high performance processor
  • Projected capacitive touch screen, flat bezel design
  • 12V DC and PoE supports
  • Programmable LED light bar (rear)
  • External SD card slot for storage expansion
  • Supports Android 4.3x
  • F Panel IP65
  • Flat Bezel
  • RISC Based
Display Size 18.5” TFT-LCD
Max. Resolution 1366 x 768
Luminance (cd/m2) 300
Contrast 1000:1
Max. Color 16.7M
View Angle (H/V) 170/160
Backlight Lifetime(hrs) 50000
Touch Type Projected capacitive
Touch Interface USB
Light Transmission (%) 85
Point of touch 2
USB 3.0/ 3.1 0
USB 2.0 1x USB (USB Host. A-Type) (Flag type)
1x USB OTG (mini AB type)
RS-232/422/485 Selectable in BIOS 1
RS-232 0
LAN 1x GbE
Additional Graphics None
Audio None
Digital I/O None
Power Connector Power jack
Power Button Reset button
Dimensions (mm) 520 x 341 x 68.3
Net Weight (kgs) 6.1
Processor NXP i.MX6 Cortex A9 Solo 1 Core @ 1GHz
Memory 1GB DDR3 on board
Thermal Design Fanless
Membrane Control None
Built-in Speaker/MIC 2x speaker
Internal Expansion Bus 1x Mini PCI-E slot (full/half size)
Expansion Slot None
Wireless Optional Wi-Fi/BT
HDD 4GB eMMC on board
Removable 1x SD slot
Power Input Range 12V DC / PoE+
Chassis Material Black aluminum front bezel and black steel back cover
Color (Front/Back) Black / Black
IP Rating IP65 front bezel
Mounting VESA 75x75, 100x100 mm
Operating Temperature 0°C~50°C
Storage Temperature -20°C~60°C
Storage Humidity 10%~90% (non-condensing)
Certification CE/FCC Class-B
Supported Operating Systems Android 4.3
BYARM-181-PC RISC 18.5” Panel PC with projected capacitive touch, I.MX6 Cortex A9 CPU, 1GB DDR3 onboard, supports Android, w/ 60W power adaptor
