IPPC-121

The IPPC-121 is a fanless industrial panel PC engineered for high-reliability deployment across demanding automation and control environments. Powered by a range of Intel® processors including the Core™ 3 N355, Core™ i3 N305, Atom® N97, and Atom® X7835RE, the system provides scalable performance for various workloads, from HMI to edge computing in harsh industrial conditions.

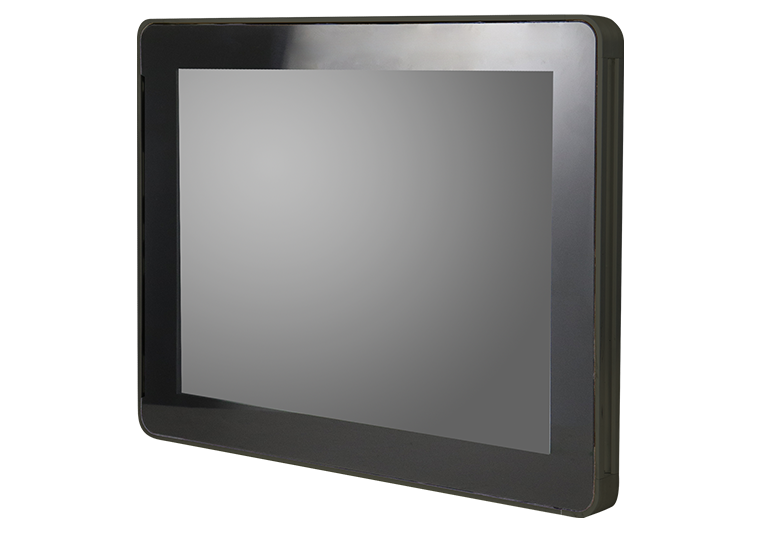

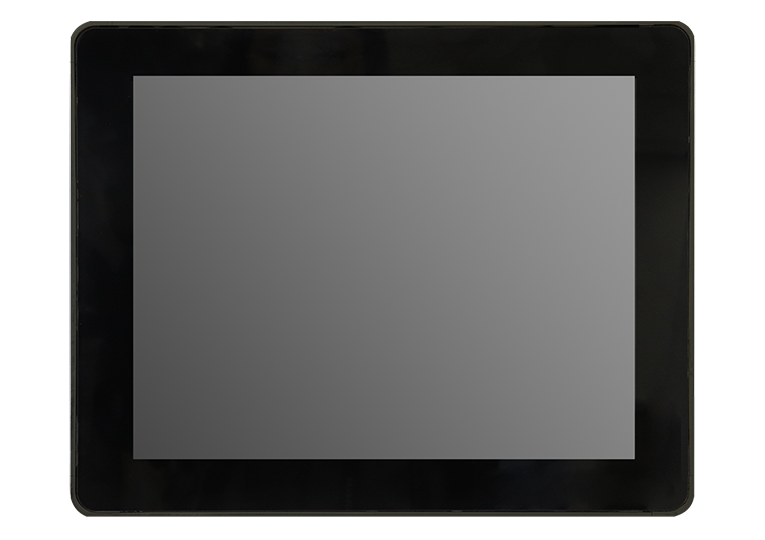

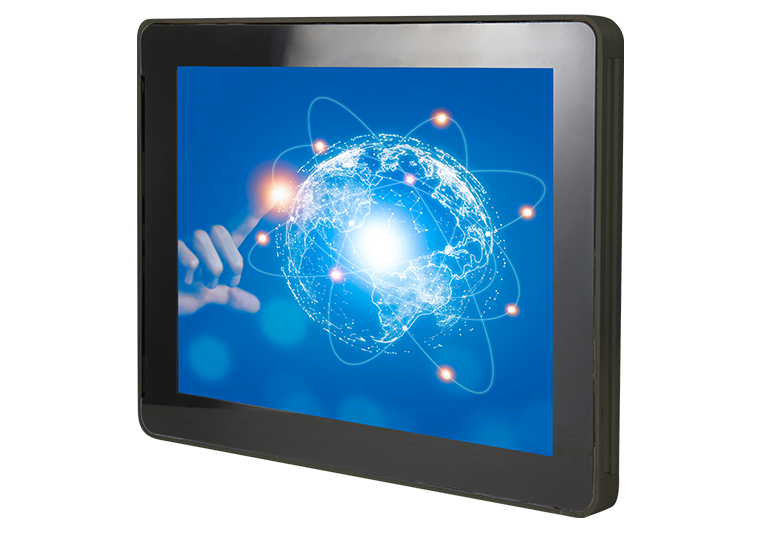

The IPPC-121 features a 12.1-inch projected capacitive touchscreen with 1024x768 resolution and 500 cd/m² brightness, enclosed in a rugged chassis with IP65-rated front panel. The design supports both 6mm T-slot and V-slot linear rail, allowing flexible mechanical integration. All configurations are completely fanless and support operating temperature ranges from -20°C to 45°C (N355/N305/N97), and up to 60°C for the X7835RE variant.

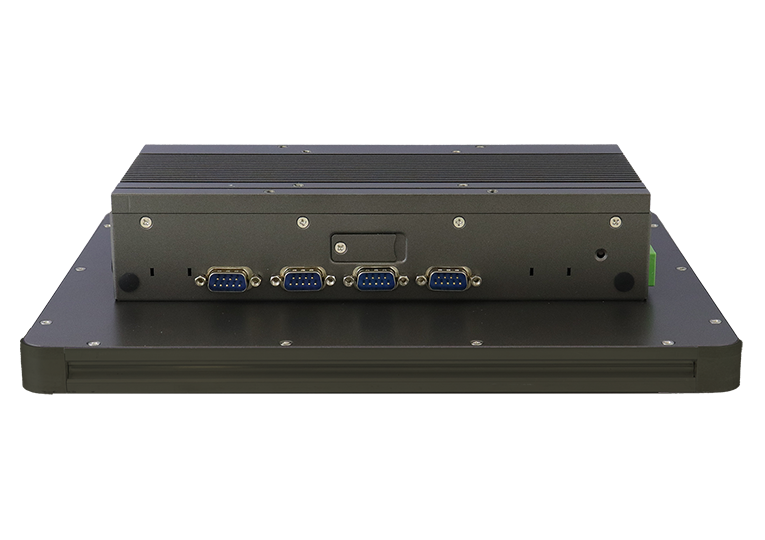

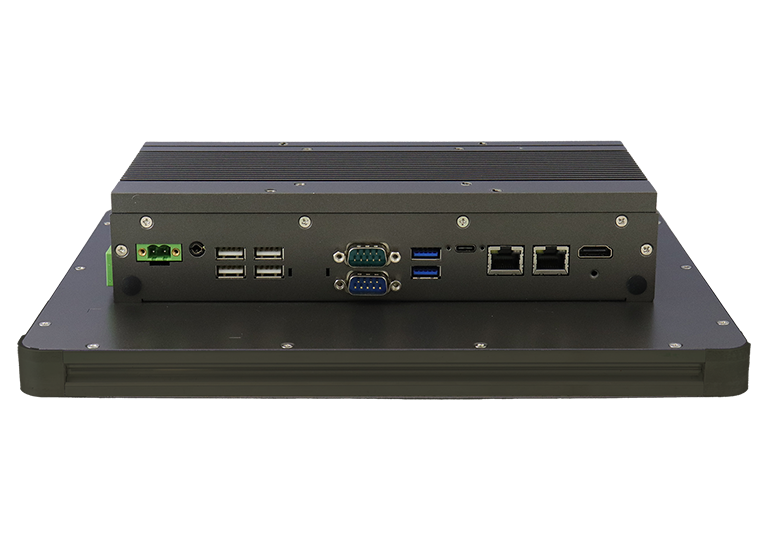

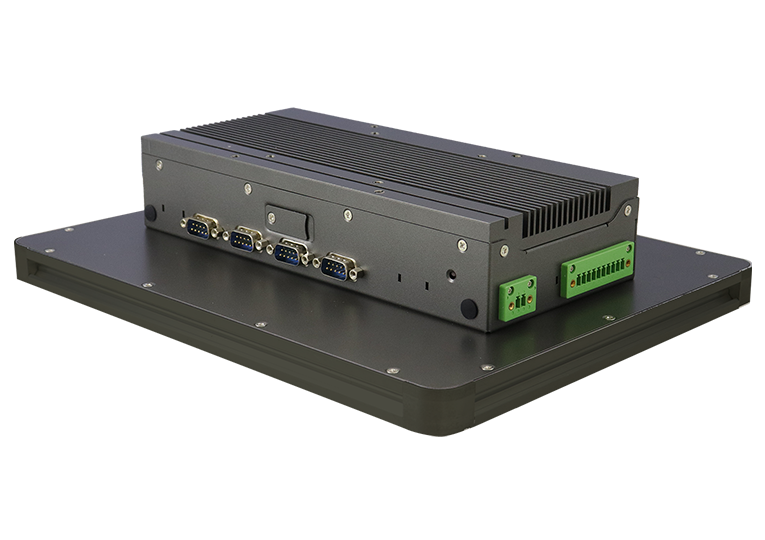

In terms of connectivity, the IPPC-121 excels with rich I/O: 2x COM ports (expandable to 6 with power COM), 4x USB 2.0, 2x USB 3.2, USB Type-C with 60W PD, 2x 2.5GbE LAN ports, HDMI, and a 4x DI / 4x DO digital interface. Internally, it offers three M.2 slots (2280 M+B key, 2230 E-key, and 3052 B-key) to support WiFi, Bluetooth, 4G/5G modules, and a Nano SIM slot. These features ensure the system is ready for industrial IoT and wireless edge deployments.

With support for TPM 2.0 hardware security, wide 9V–36V DC input, and OS compatibility across Windows 10/11 and Linux Kernel 4+, the IPPC-121 provides a secure, rugged, and scalable platform.
