Panel PC
IXPC-W215
Seamless & Dynamic Connectivity with Via USB Type-C Single Cable Connection Industrial Modular Panel PC
- Seamless & dynamic connectivity two-in-one solution via USB Type-C single cable connection for easy maintenance and upgrades
- Improves cable management and installation efficiency with a maximum 2-meter industrial-grade waterproof Type-C cable
- High-power PD 60W rugged embedded system powered by Intel® Atom® x7000E Series / N-series / Core™ 3 N355 Processors (formerly Alder Lake-N / Amston Lake / Twin Lake)
- Fully waterproof 21.5” touch screen (front panel IP65 and body IP54)
- Screen complies with EU 6mm T&V-Slot linear rail groove
- Supports M.2 sockets for WiFi / BT and 4G/5G communication with Nano SIM slot
- Wide range power input +9V ~ 36V DC-IN

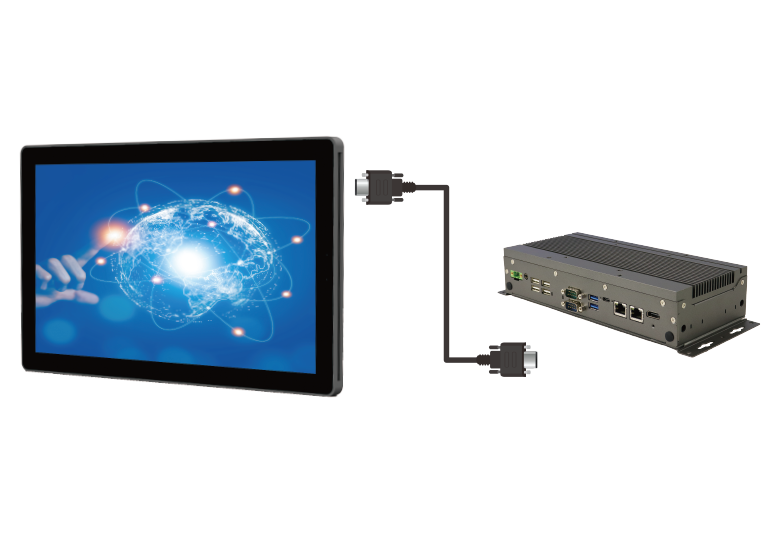

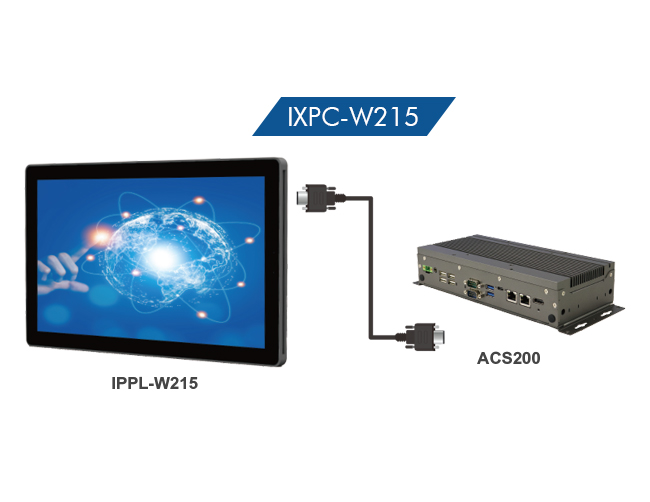

The IXPC-W215 industrial modular panel PC is an innovative two-in-one interactive display solution that seamlessly integrates a 21.5” fully waterproof touch screen (IPPL-W215) with a high-power PD 60W rugged embedded system (ACS200-210) via a USB Type-C single cable connection. It offers two different combination modes, rear mounted or within 2 meters range through an industrial-grade waterproof Type-C cable.
Designed for smart factories, industrial automation, smart retail, POS and kiosks, the IXPC-W215 offers high performance, easy installation, and superior connectivity. The IPPL-W215 features a Full HD (1920x1080) LCD panel with a wide viewing angle and a projected capacitive touchscreen, delivering 800-nit brightness for excellent visibility. Its IP65-rated front panel and IP54-rated body ensure waterproof protection, making it ideal for harsh environments. Its VESA 100x100mm mounting and 6mm T&V-slot linear rail groove design allows for flexible installation. Paired with the ACS200-210, a high-performance embedded system powered by Intel® Atom® x7000E Series, N-series or Core™ 3 Processor N355, it ensures seamless edge computing performance with expandable M.2 slots for WiFi, 4G/5G, Nano SIM slot and dual storage RAID 1 support.
With a single USB Type-C cable supporting data, video, and power delivery up to 60W, the IXPC-W215 simplifies cabling, reduces clutter, and enhances reliability. Whether used in POS, production lines, or industrial control systems, this highly adaptable and modular panel PC redefines efficiency and performance in the industrial computing landscape. Its modular structure, industrial-grade durability, and seamless connectivity set a new standard for next-generation industrial panel PCs.
| Panel Size (IPPL-W215) | 21.5 (16:9) |
| View Angle (IPPL-W215) | 178° / 178° |
| Resolution (IPPL-W215) | 1920 x 1080 |
| Brightness (IPPL-W215) | 800 |
| Contrast Ratio (IPPL-W215) | 1000 : 1 |
| Panel Interface (IPPL-W215) | LVDS |
| Type (IPPL-W215) | Projected Capacitive touch |
| Point of touch (IPPL-W215) | 10 |
| Light Transmission (IPPL-W215) | 85±2.5% |
| Glass Thickness (IPPL-W215) | 3mm |
| Surface Hardness (IPPL-W215) | 7H |
| Touch Interface (IPPL-W215) | USB |
| Power Input Range (IPPL-W215) | +12V ~24V DC |
| Dimensions (IPPL-W215) | 540 x 331 x 40 |
| Net Weight (IPPL-W215) | 5.6 |
| USB 3.0 (IPPL-W215) | 1x USB Type-C (Alternate mode) |
| USB 2.0 (IPPL-W215) | 2 |
| LAN (IPPL-W215) | N/A |
| HDMI-IN (IPPL-W215) | 1 |
| Audio Out (IPPL-W215) | 1 |
| DC-in (IPPL-W215) | DC Jack 55mm/25mm |
| OSD Button (IPPL-W215) | 1 |
| Operating Temperature (IPPL-W215) | 0°C~45°C |
| Storage Temperature (IPPL-W215) | -20~60°C |
| Storage Humidity (IPPL-W215) | 5%~90% @ 50°C, (non-condensing) |
| Certification (IPPL-W215) | CE/FCC Class-B |
| Chassis Material (IPPL-W215) | Aluminum and SGCC |
| Color (IPPL-W215) | Gray / Black |
| IP Rating (IPPL-W215) | IP65 front-panel waterproof and body IP54 |
| Mounting (IPPL-W215) | VESA 100x100 mm |
| Processor (ACS200-210) | Intel® Atom® N97 Processor (Quad-Core @ 3.6GHz) Intel® Core™ 3 N305 Processor (Eight-Core @ 3.8GHz) Intel® Atom® X7835RE Processor (Eight-Core @ 3.6GHz) Intel® Core™ 3 Processor N355 Processor (Eight-Core @ 3.9GHz) |
| Memory (ACS200-210) | 1x DDR4 SO-DIMM, up to 16GB, default 8GB |
| Thermal Design (ACS200-210) | Fanless |
| Membrane Control (ACS200-210) | None |
| Built-in Speaker/Mic (ACS200-210) | None |
| Internal Expansion Bus (ACS200-210) | 1x M.2 2280 (M key) 1x M.2 2230 (E-key) 1x M.2 3043 (B-key |
| Expansion Slot (ACS200-210) | N/A |
| Wireless (ACS200-210) | Optional Wi-Fi/BT/4G/5G/LTE |
| HDD (ACS200-210) | N/A |
| Removable (ACS200-210) | N/A |
| Power Input Range (ACS200-210) | +9V ~ 36V DC |
| Dimensions (ACS200-210) | 242.2 x 110 x 54.15 |
| Net Weight (ACS200-210) | 1.65 |
| USB 3.0 (ACS200-210) | 2x USB 3.2 1x USB Type-C (Alternate mode w/ PD 60W) |
| USB 2.0 (ACS200-210) | 4 |
| RS-232/422/485 Selectable via BIOS (ACS200-210) | COM 1 |
| RS-232 (ACS200-210) | COM 2 and optional 3~6 ports |
| LAN (ACS200-210) | 2x GbE |
| Additional Graphics (ACS200-210) | HDMI 1x USB-C (DP Alternate mode) |
| Audio (ACS200-210) | Combo Jack |
| Digital I/O (ACS200-210) | 4x DI and DOx4 |
| Power Connector (ACS200-210) | 2Pin Bare-Wire DC-in & GND Screw |
| Power Button (ACS200-210) | Tact Switch |
| Chassis Material (ACS200-210) | Aluminum and SGCC |
| Color (ACS200-210) | Gray / Gray |
| IP Rating (ACS200-210) | 2x |
| Mounting (ACS200-210) | VESA 75x75 and 100x100 mm, Optional DIN-Rail kit, Wall Mount |
| Operating Temperature (ACS200-210) | -20°C~45°C for N97, N305 and N355 -30°C~50°C for X7835RE with air flow |
| Storage Temperature (ACS200-210) | N97, N305 and N355: -30~60°C X7835RE: -40~80°C |
| Storage Humidity (ACS200-210) | 5%~90% @ 50°C, (non-condensing) |
| Certification (ACS200-210) | CE/FCC Class-B |
| Supported Operating Systems (ACS200-210) | Microsoft Windows 10,11, Linux Kernel 4+ |
| ACS200-210-N305 | Intel® Core™ i3-N305 Processor, 8GB DDR5 SO-DIMM, 128GB SSD, USB-C PD 60W, w/o power adaptor |
| ACS200-210-N97 | Intel® Atom™ N97 Processor, 8GB DDR5 SO-DIMM, 128GB SSD, USB-C PD 60W, w/o power adaptor |
| ACS200-210-7835 | Intel® Atom™ x7835RE Processor, 8GB DDR5 SO-DIMM, 128GB SSD, USB-C PD 60W, w/o power adaptor |
| A005PS090W0100710P | AC 100V~240V Adaptor 90W DC 24V/3.75A |
| A005PS180W0100800P | AC 100V~240V Adaptor 180W DC 24V/7.5A |
| IPPL-W215-CA | 21.5” FHD 800nits with HD Camera and digital MIC, USB Type-C single cable connection, USB 2.0 x 2, HDMI-IN, Earphone and DC-IN |
| IPPL-W215-1 | 21.5” FHD 250nits without HD Camera and digital MIC, USB Type-C single cable connection, USB 2.0 x 2, HDMI-IN, Earphone and DC-IN |
| IPPL-W215-2 | 21.5” FHD 500nits without HD Camera and digital MIC, USB Type-C single cable connection, USB 2.0 x 2, HDMI-IN, Earphone and DC-IN |
| DATASHEETS | IXPC-W215 |
