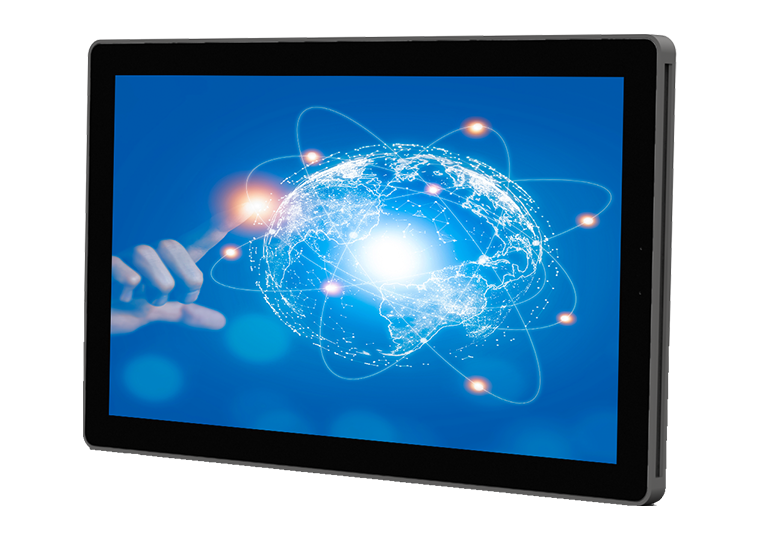

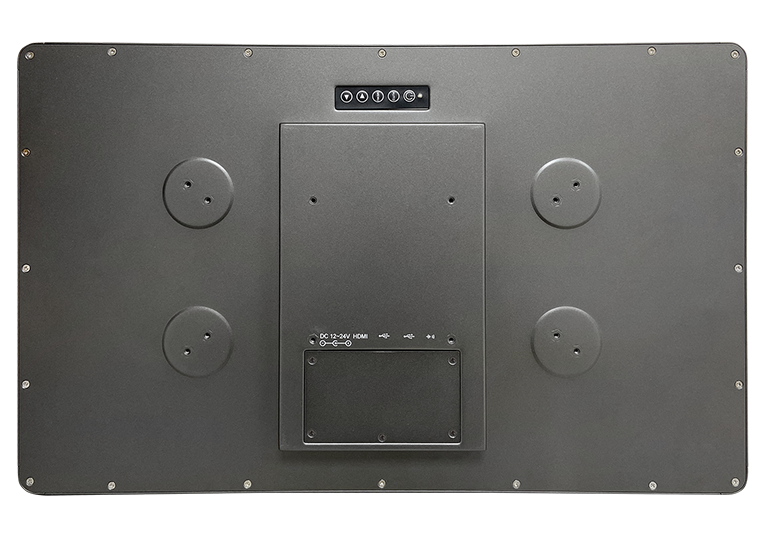

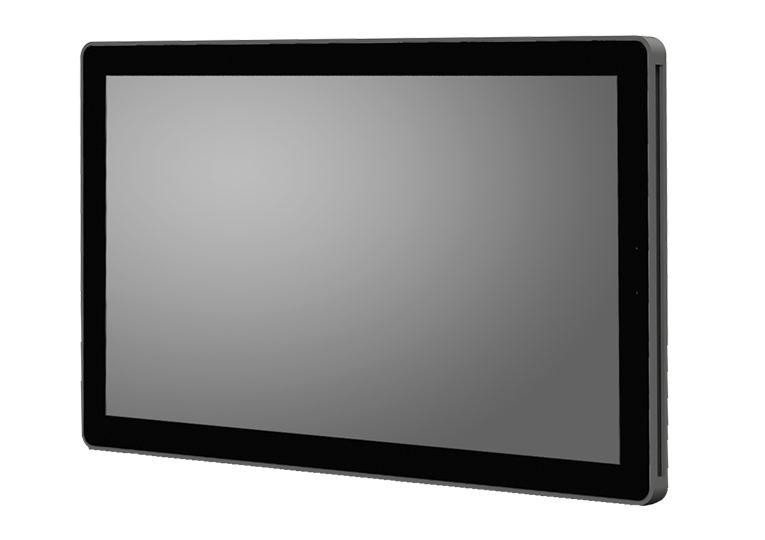

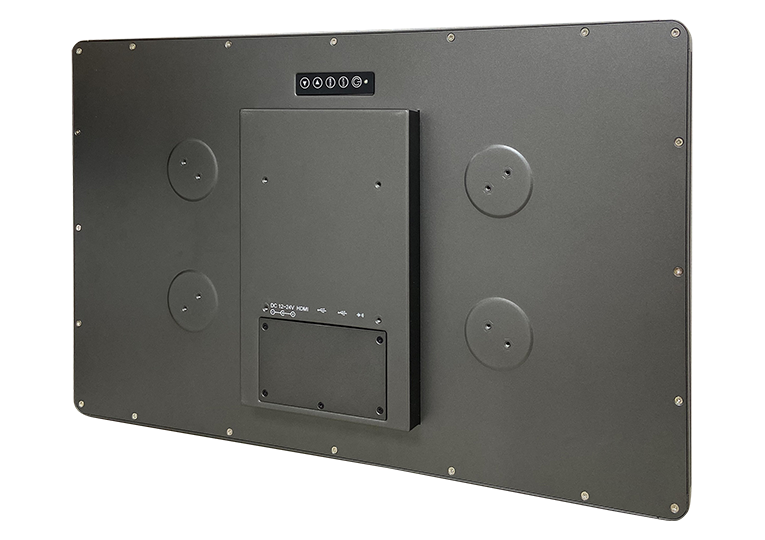

Panel PC
IPPL-W215
USB Type-C Single Cable Connection Fully Waterproof Industrial Touch Monitor
- Compliance with EU 6mm T&V-Slot™ Linear Rail Groove
- 21.5" true-flat FHD LCD panel with projected capacitive touchscreen
- Fully Waterproof Design (Front Panel IP65 and Body IP54)
- USB-C single cable connection (Need PD60W ACS200-210)
- Supports auto dimming function
- Supports HDMI-IN, USB 2.0 x2, Audio out and DC-in
- Wide Range Power Input +12V ~ 24V DC
- Optional Camera and Microphone
- Optional Sunlight Readable Panel 1,500nits
- Optional Heat Blocking Film for UV and IR-Cut
- Optional IR remote controller
| Display Size | 21.5 (16:9) |
| Max. Resolution | 1920 x 1080 |
| Luminance (cd/m2) | 800 |
| Contrast | 1000 : 1 |
| Panel Interface | LVDS |
| View Angle (H/V) | 178° / 178° |
| Touch Type | Projected Capacitive touch |
| Touch Interface | USB |
| Light Transmission (%) | 85±2.5% |
| Glass Thickness | 3mm |
| Surface Hardness | 7H |
| Point of touch | 10 |
| USB 3.0/ 3.1 | 1x USB Type-C (Alternate mode) |
| USB 2.0 | 2 |
| LAN | N/A |
| HDMI-IN | 1 |
| Audio | 1 |
| DC-in | DC Jack 55mm/25mm |
| OSD Button | 1 |
| Power Button | 1 |
| Dimensions (mm) | 540 x 331 x 40 |
| Net Weight (kgs) | 5.6 |
| Power Input Range | +12V ~24V DC |
| Chassis Material | Aluminum and SGCC |
| Color (Front/Back) | Gray / Black |
| IP Rating | IP65 front-panel waterproof and body IP54 |
| Mounting | VESA 100x100 mm |
| Operating Temperature | 0°C~45°C |
| Storage Temperature | 20~60°C |
| Storage Humidity | 5%~90% @ 50°C, (non-condensing) |
| Certification | CE/FCC Class-B |
| IPPL-W215-CA | 21.5” FHD 800nits with HD Camera and digital MIC, USB Type-C single cable connection, USB 2.0 x 2, HDMI-IN, Earphone and DC-IN |
| IPPL-W215-1 | 21.5” FHD 250nits without HD Camera and digital MIC, USB Type-C single cable connection, USB 2.0 x 2, HDMI-IN, Earphone and DC-IN |
| IPPL-W215-2 | 21.5” FHD 500nits without HD Camera and digital MIC, USB Type-C single cable connection, USB 2.0 x 2, HDMI-IN, Earphone and DC-IN |
| DATASHEETS | IPPL-W215 |
| CATALOGS | Panel PC (Vol.25.01) |
| USER'S MANUALS | IPPL-W215 V1.0 |
