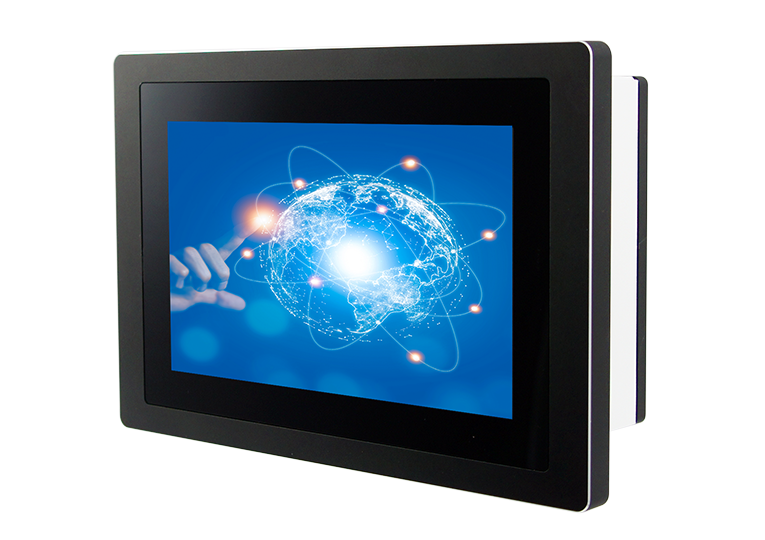

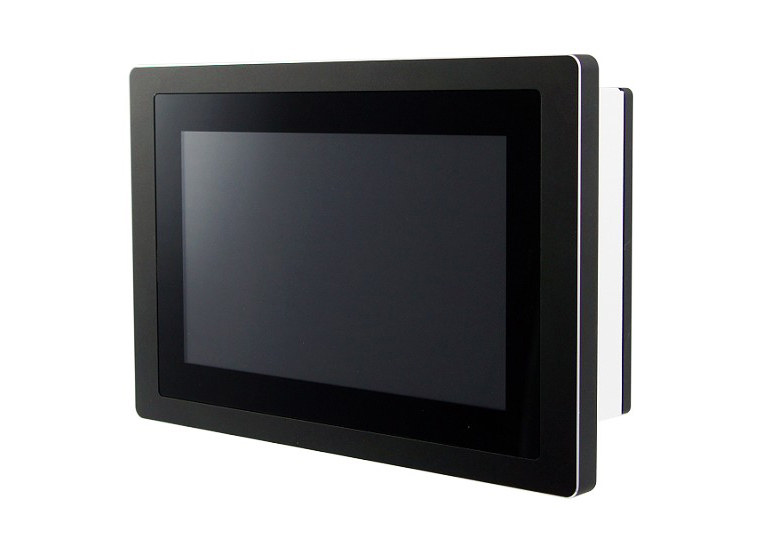

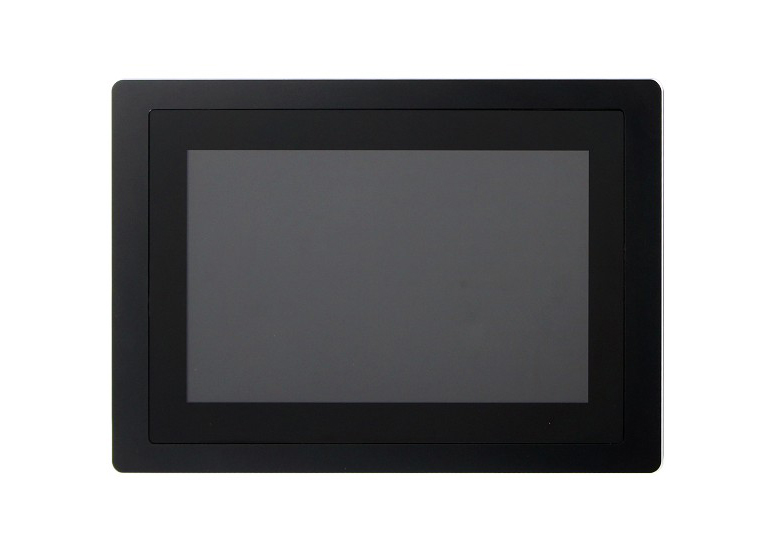

| Display Size | 7” TFT-LCD |
| Max. Resolution | 1024 x 600 |
| Luminance (cd/m2) | 500 |
| Contrast | 800:1 |
| Max. Color | 16.7M |
| View Angle (H/V) | 150/150 |
| Backlight Lifetime(hrs) | 50000 |
| Touch Type | Projected capacitive |
| Touch Interface | USB |
| Light Transmission (%) | 85 |
| Point of touch | 2 |

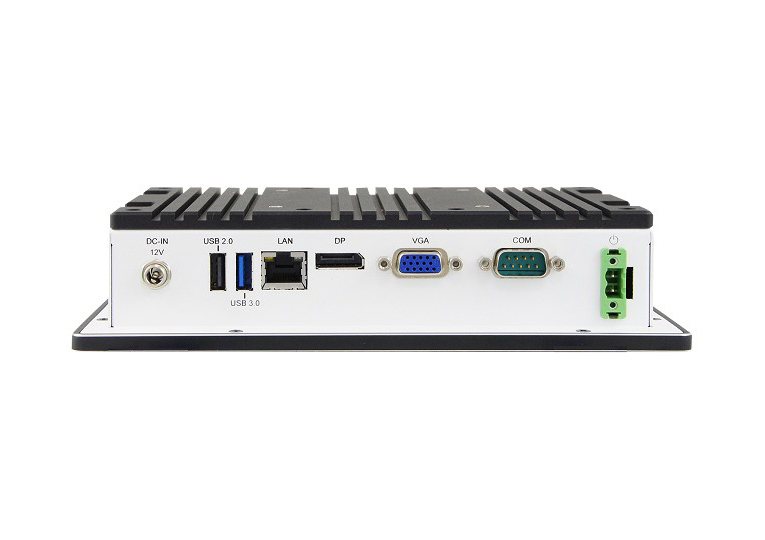

| USB 3.0/ 3.1 | 1 |
| USB 2.0 | 1 |
| RS-232/422/485 Selectable in BIOS | 1 |
| RS-232 | 1 |
| LAN | 1x RJ45 with GbE LAN |
| Additional Graphics | DP |
| Audio | None |
| Digital I/O | None |
| Power Connector | Power jack |

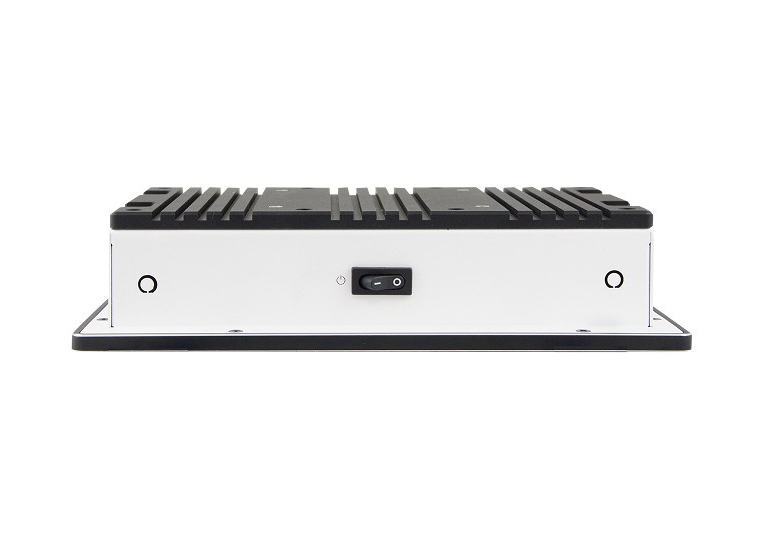

| Power Button | 1 x Power rocker switch |
| Dimensions (mm) | 211.5 x 143.5 x 49.8 |
| Net Weight (kgs) | 1.5 |
| Processor | Intel® Atom® Processor E3825 (Dual Cores @ 1.33 GHz) |
| Memory | 1x DDR3L SO-DIMM, up to 4GB, default DDR3L 2GB (Non-ECC) |
| Thermal Design | Fanless |
| Membrane Control | None |
| Built-in Speaker/MIC | None |
| Internal Expansion Bus | 1x miniPCI-E [half-size] |
| Expansion Slot | None |
| Wireless | Optional Wi-Fi/BT |
| HDD | mSATA, default 64GB mSATA |
| Removable | None |
| Power Input Range | 12V DC input |
| Chassis Material | Aluminum front bezel |
| Color (Front/Back) | Black / white |
| IP Rating | IP65 front bezel |
| Mounting | Panel mount and VESA 75x75 mm |
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -30°C~70°C |
| Storage Humidity | 10%~90% (non-condensing) |
| Certification | CE/FCC Class-B |
| Supported Operating Systems | Windows 8 32/64-bit, Windows 7 Pro for Embedded 64-bit, WES7 64-bit |
| BYTEM-W072-PC | 7" Flat Panel Design Panel PC with IB898, Intel® Atom® Processor E3825 1.33GHz, DDR3L SO-DIMM 2GB, with 64G mSATA, projected capacitive touch, with 12V power adaptor |
| Power adaptor (optional) | AC 90V~240V input, 12V DC output 84W power adaptor, IBASE P/N: A005PS084W0050000P |
| DATASHEETS | BYTEM-W071-PC /BYTEM-W072-PC/ BYTEM-101-PC / BYTEM-121-PC |
| CATALOGS | Panel PC (Vol.25.01) |
| DRIVERS - SYSTEMS | BYTEM-W072-PC Driver DVD |
