Panel PC
UPC-7210

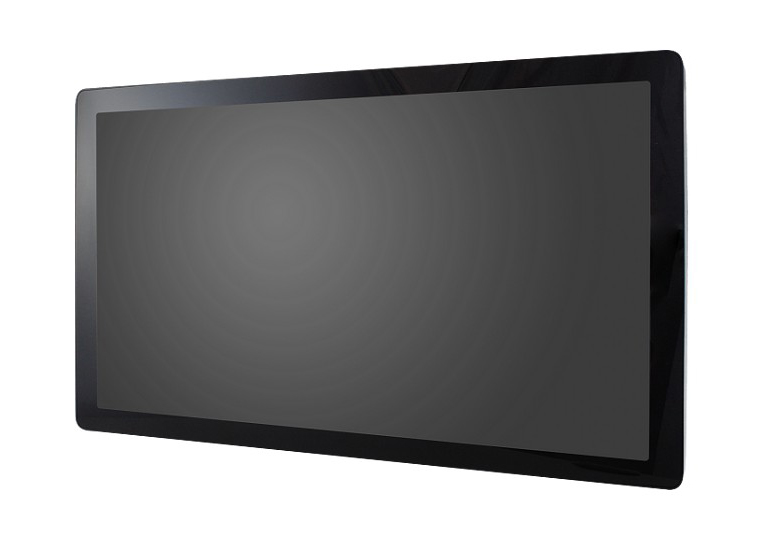

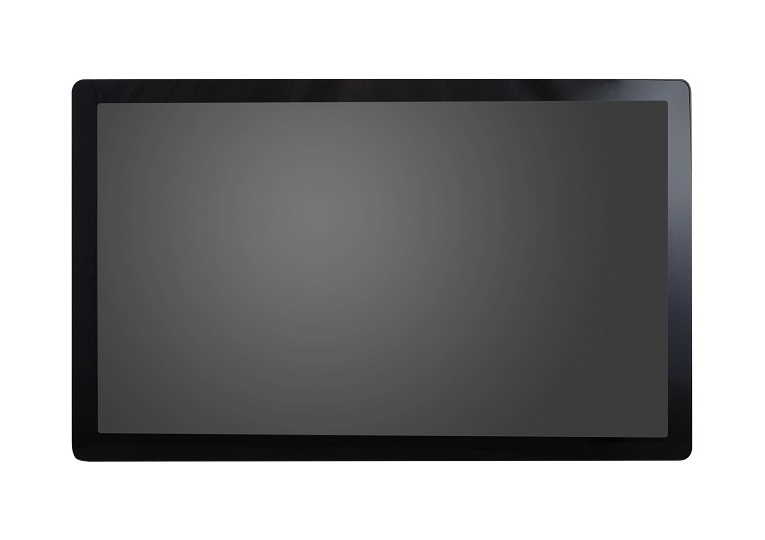

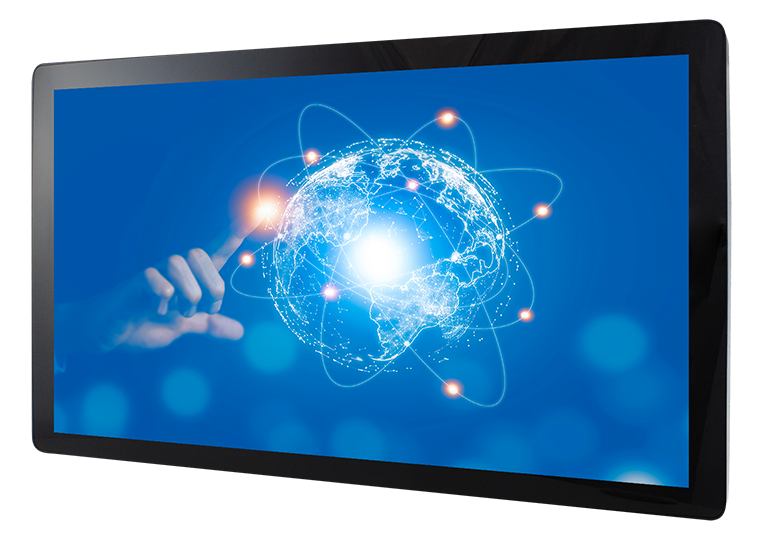

21.5” Waterproof Panel PC with 7th Gen Intel® Core™ i3/i5/i7 Processor
- 21.5” IPS LCD, 1920 x1080
- Projected capacitive touch screen, supports multi touch
- IP65 front-panel waterproof protection
- Supports a variety of processor platforms, from entry to performance level
- Optional wireless solution
The UPC-7210 fanless 21.5-inch panel PC is created for smart retail applications. It features a full flat bezel design and a 1920x1080 IPS LCD with projected capacitive touch screen that allows multi touch and gesture touch functionalities. The unit has high reliability and sealed housing, with IP65 rated front panel for waterproof resistance, and are powered by 7th Gen Intel® Core™ Processors.

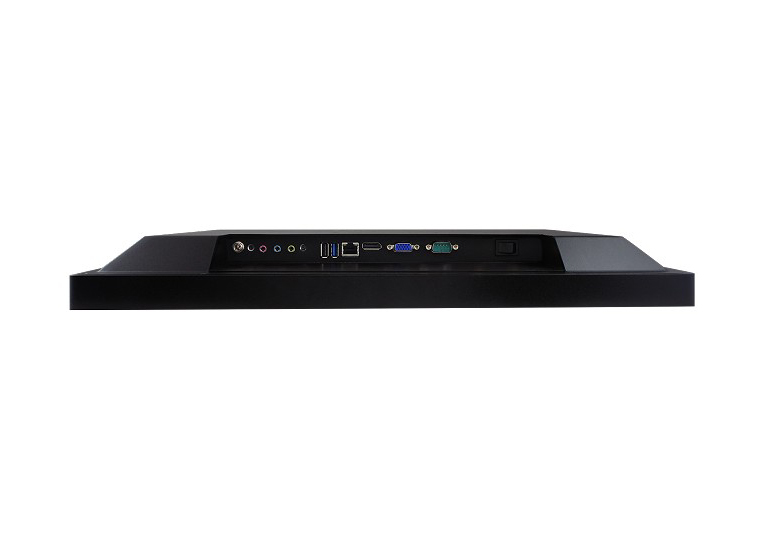

The UPC-7210 is equipped with four USB 3.0, one USB 2.0, two Gigabit Ethernet, extra HDMI and DP graphics, 24VDC input and up to 32GB of DDR4 support. Common features include 64GB SSD storage, mPCIe for mSATA, 12VDC input, optional wireless solutions, and OS support for Windows 10 and Linux Kernel 4+. With VESA mounting (100x100), the UPC-7210 is not restricted to wall mounting but can be fitted to desk mount or placed on a swivel arm.
This visually-appealing panel PC is aimed to enhance customer experiences in retail and catering environments such as convenience stores, department stores, airports, cinemas and specialty stores. The high-performance and low-power systems are designed for long-term use and have no problem operating in ambient temperatures up to 50°C.
| Display Size | 21.5” TFT-LCD |
| Max. Resolution | 1920 x 1080 |
| Luminance (cd/m2) | 250 |
| Contrast | 1:1000 |
| Max. Color | 16.2M |
| View Angle (H/V) | 178/178 |
| Backlight Lifetime(hrs) | 30000 |
| Touch Type | Projected capacitive |
| Touch Interface | USB |
| Light Transmission (%) | 89 |
| Point of touch | 10 |
| USB 3.0/ 3.1 | 4 |
| USB 2.0 | 0 |
| RS-232/422/485 Selectable in BIOS | 1 |
| RS-232 | 0 |
| LAN | 2 x GbE |
| Additional Graphics | 1x HDMI 1x DP |
| Audio | 1x 3.5 mm phone jack for line -out |
| Digital I/O | None |
| Power Connector | Power jack |
| Power Button | Rock switch |
| Dimensions (mm) | 529 x 321 x 59 |
| Net Weight (kgs) | 9 |
| Processor | Intel® i7 7600U (2.8GHz~3.9GHz, 4MB cache) UPC-7210 -I76 Intel® i5 7300U (2.6GHz~3.5GHz, 3MB cache) UPC-7210 -I73 Intel® i3 7100U (2.4GHz, 3MB cache) UPC-7210 -I71 |
| Memory | Max. 32GB, default 4GB DDR4 |
| Thermal Design | Fanless |
| Membrane Control | None |
| Built-in Speaker/MIC | 2x 2W 4Ω Speakers |
| Internal Expansion Bus | 1x miniPCI-E Full-size, mSATA supports |
| Expansion Slot | None |
| Wireless | Optional |
| HDD | 1x 2.5” HDD space default 64GB SSD |
| Removable | None |
| Power Input Range | 12V/24VDC |
| Chassis Material | AL 5052 |
| Color (Front/Back) | Black/Black |
| IP Rating | Front Side IP65 |
| Mounting | VESA 100x100 |
| Operating Temperature | 0°C~50°C |
| Storage Temperature | -20°C~70°C |
| Storage Humidity | 10%~90% @40°C (non-condensing) |
| Certification | CE/FCC Class-B +LVD |
| Supported Operating Systems | Windows 10, 64bits, Linux Kernel 4+ |
| UPC-7210 -I76 | 21.5” Fanless Panel PC with IB917AF-7600, 7th Gen Intel® Core™ i7 7600U, Projected capacitive touch screen, 4GB DDR4 memory, 64G SSD, 12V or 24V DC input, with 12VDC adaptor |
| UPC-7210 -I73 | 21.5” Fanless Panel PC with IB917AF-7300, 7th Gen Intel® Core™ i5 7300U, Projected capacitive touch screen, 4GB DDR4 memory, 64G SSD, 12V or 24V DC input, with 12VDC adaptor |
| UPC-7210 -I71 | 21.5” Fanless Panel PC with IB917AF-7100, 7th Gen Intel® Core™ i3 7100U, Projected capacitive touch screen, 4GB DDR4 memory, 64G SSD, 12V or 24V DC input, with 12VDC adaptor |
| DATASHEETS | UPC-6210 / UPC-7210 |
| CATALOGS | Panel PC (Vol.23.05) |
| USER'S MANUALS | UPC-7210 V1.0 |
| DRIVERS - SYSTEMS | UPC-7210 Driver DVD |
