RISC Platform

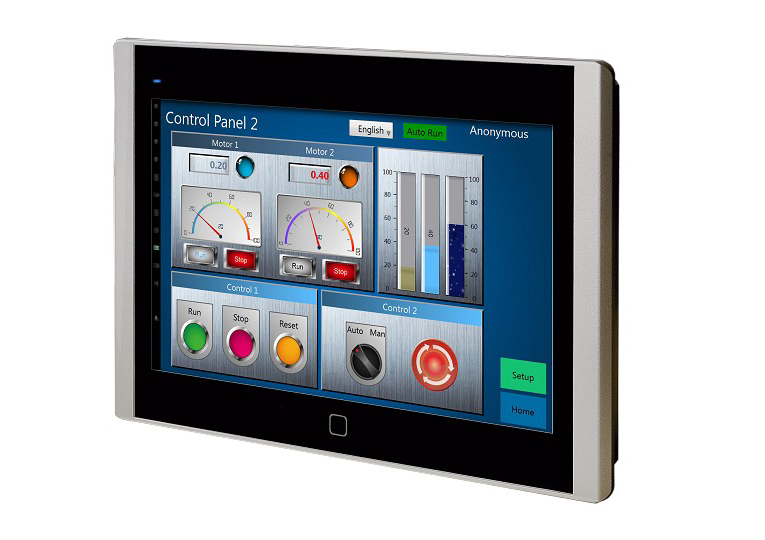

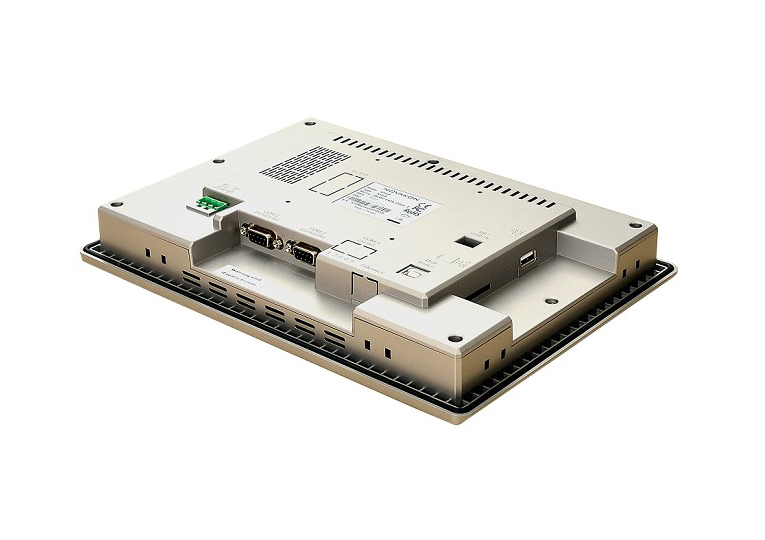

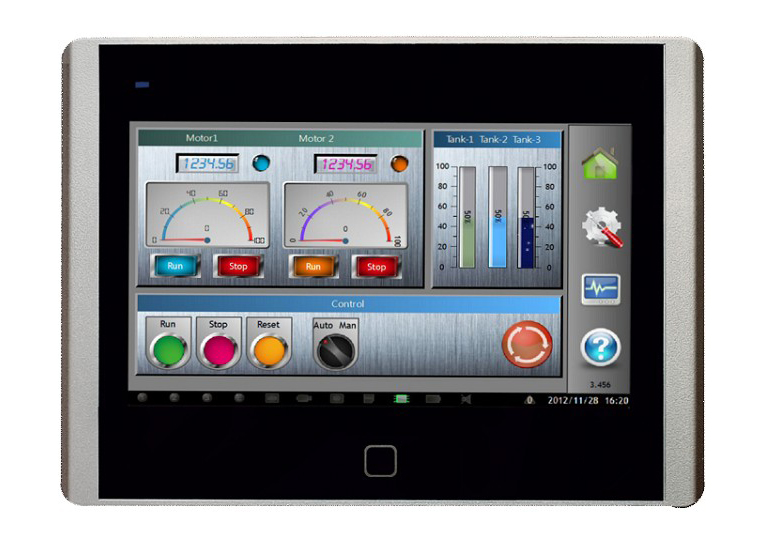

IPR-P10F-N
Industrial HMI with TI ARM® Cortex™ A8, Sitara™ AM3352 (1GHz) Processor
- ARM Cortex-A8 (1GHz)
- 800x480 (WVGA) TFT, 350 cd/m2, 20,000 hours
- DC 24V+20%
- Plastic chassis, fan-less design
- Panel or VESA 75mm x 75mm mount, IP65 front bezel
- ESD Protection : Level 4 (Contact Discharge 8KV,
- Air-Gap Discharge 15KV), Class A
- Suitable for industrial applications
| Display type | 10.2" TFT |
| Resolution | 800 x 480 |
| Display area | 222.0mm x 132.48mm |
| Color depth | 64K |
| Backlight type | LED |
| Brightness | 350 cd/m² |
| Backlight lifetime | 20,000 hours |
| Viewing angle (H°/V°) | 130/110 |
| Contrast | 300:1 |
| Touch panel | 4-wire resistive type |
| CPU | ARM Cortex-A8 (1GHz) |
| Flash memory | 4G Bytes eMMC |
| DRAM | 512M Bytes |
| FRAM (non-volatile) | 32K Bytes |
| RTC | Yes |
| COM1 | RS232/422/485 |
| COM2 | RS232/422/485 |
| COM3 | RS232/485 or CAN bus (option) |
| Ethernet | 1x 10/100 Mbit or 2x 10/100 Mbit (option) |
| USB | 1x Host, 1x Device |
| Memory card | SD card |
| Power supply voltag | DC 24V ±20 %, Isolated Power |
| Power consumption | 10W |
| Operation temperature | 0 ~ 50°C |
| Storage temperature | -20 ~ 60°C |
| Humidity | 10% ~ 90% (non-condensing) @40°C |
| Waterproof (front) | IP65 |
| ESD Protection | Level 4 (Contact Discharge 8KV, Air-Gap Discharge 15KV), Class A |
| Dimension | 279.5mm(W) x 195.5mm(H) x 39.5mm(D) |
| Cut-out | 260.2mm(W) x 177.2mm(H) |
| Weight(Net) | 1.1Kgs |
| IPR-P10F-N | 10.2”, 800x480 pixel, TI ARM ® Cortex ™ A8, Sitara ™ AM3352 (1GHz), eMMC 4G, SDRAM 512M, COM1 (RS232/RS422/RS485), COM2 (RS232/RS422/RS485), COM3 (RS232/RS485), USB (1 Host/1 Device), Ethernet, SD Card, 24V ± 20% DC |
| DATASHEETS | IPR-P10F-N |
