RISC Platform

IBR215

Low-Power 2.5-inch SBC with NXP ARM® Quad Cortex-A53 i.MX8M Plus Processor

  • NXP Cortex®-A53, i.MX 8M Plus Quad processor
  • 3GB LPDDR4, 16GB eMMC & SD socket
  • External connectivity for USB, HDMI & Ethernet
  • Supports M.2 B-Key (3052) for 5G module
  • Expansion IO board for wireless, 4G/LTE, LCD, camera, NFC & QR-code functions
  • Ruggedized and fanless design
  • 5G
  • Fanless
  • RISC Based

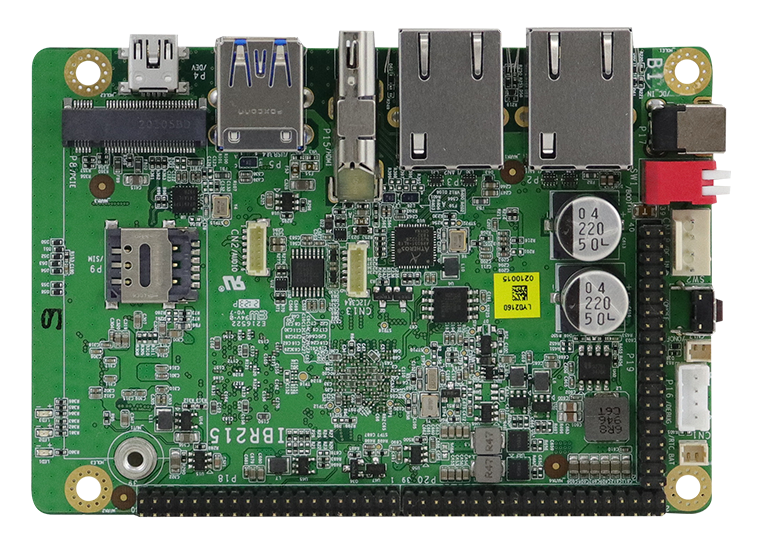

The IBR215 is a 2.5-inch single board computer powered by NXP's quad-core 1.6GHz ARM Cortex®-A53 i.MX 8M Plus processor. Measuring 105 x 72 mm in a compact footprint, the SBC offers impressive computing performance, advanced multimedia, flexible connectivity and a variety of interfaces, making it ideal for industrial automation, smart home and buildings, smart cities and factories, retail environment, machine learning, and industrial IoT applications.


2.5" Single Board Computer with NXP ARM® Cortex®-A53 i.MX 8M Plus Quad 1.6GHz Processor

The IBR215 features multiple display interface (HDMI and dual-channel LVDS), a 5G-compatible M.2 3052 socket, 3GB LPDDR4 system memory, up to 64GB eMMC flash memory, external I/O including one HDMI 2.0a, two USB 3.0, two GbE RJ45, one USB OTG, and an SD socket, as well as internal headers for two I2C and DC power. Three 2x20 headers on board connect communication and GPIO signals to the IBR215-IO expansion board to provide interfaces for an M.2 E-key socket, an mPCIe socket, one RS232/422/485 port, two USB 3.0, dual-channel LVDS with backlight control, two CAN bus and two MIPI camera serial interface.


The IBR215 has a wide operating temperature range of -40°C~85°C when built with a heat sink or housing with efficient heat dissipation. IBASE offers both Yocto Linux and Android BSP (Board Support Package) to enable customers to easily develop their applications.

Form Factor 2.5-inch SBC
Processor NXP Cortex®-A53 i.MX8M Plus processor
System Memory 3GB DDR4 on board (optional 1/2/4GB)
Flash Memory 16GB eMMC on board (optional up to 128GB)
Display 1x HDMI 1.4a
1x LVDS 2ch through IO
Video Codec Decode: 1080p60, H.265, H.264, VP9, VP8
Encode: 1080p60, H.265, H.264
Graphics OpenGL 3.1, OpenCL 1.2, Vulkan
Edge I/O 1x On/Off button
1x 12V~24V DC-in Jack
1x SD socket (UHS-I SDR-104, 104MB/s max.)
1x Boot select switch (boot from eMMC or SD)
1x HDMI 1.4a
2x USB 3.0 Type-A
2x RJ45 GbE LAN
1x Mini-USB OTG
Internal I/O 1x M.2 B-Key(3052) with SIM socket (for 5G module)
2x I2C / 4x GPIO
1x Audio Line-in and Line-out 1x DC input
1x DC power (4-pin header)
3x IO expansion 2mm pitch 2x20 headers with following features (Contact us for design reference):
• 1x USB 2.0
• 1x PCM
• 2x UART(Rx, Tx)
• 1x SDIO
• 1x UART (Tx, Rx, CTS, RTS)
• 2x USB 3.0
• 1x 2ch LVDS with backlight control
• 1x I2C
• 2x PWM
• 3x GPIO
• 1x Cap touch IF
• 2x MIPI-CSI for cameras
• 2x CAN-FD
• 1x 5V DC
Expansion IO 1x M.2 E-Key(2230)w/ SDIO, UART for wireless
1x Mini PCI-E w/ USB 2.0, SIM, PCM for 4G/LTE
1x DB-9 RS232/422/485 port
2x USB 3.0 in 2x10 headers
1x 2ch LVDS with backlight control
1x Cap touch IF
2x MIPI-CSI
2x CAN-FD
Watchdog 256 levels, 0~128 seconds
Dimensions IBR215: 105mm(W) x 72mm(D)
4.13”(W) x 2.83”(D)
IBR215-IO: 100mm(W) x 72mm
3.94”(W) x 2.83”(D)
IBR215+IBR215-IO: 105mm(W) x 72mm(D) x 35mm(H)
4.13”(W) x 2.83”(D) x 1.37”(H)
Power Input 12V~24V DC-in jack
Operating Temperature -40°C~ 85°C (with heat sink or through housing design)
-40°C~ 65°C (without heatsink)
Relative Humidity 10%~90% (non-condensing)
OS Support Yocto v3.0
Android 11
Other OS (by request)
Certification CE/ FCC Class-B
IBR215-Q316I ARM-based IOT Gateway, NXP Cortex®-A53, i.MX 8M Plus Quad 1.6GHz, 3GB LPDDR4, 16GB eMMC
IBR215-IO Expansion Board for IBR215
